Front Brake Flexible Hose: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
NOTE: 10.94in (278mm) brakes shown, 12.60in (320mm) brakes similar.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Remove the wheel and tire. Refer to: Wheel and Tire .

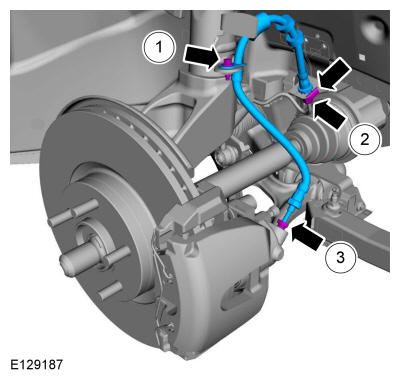

    1. Remove the brake flexible hose bracket bolt.
    2. Disconnect the brake tube fitting and remove the brake hose clip.
    3. Loosen the brake hose fitting and remove the brake flexible hose.
GFD264520Courtesy of FORD MOTOR COMPANY
