Front Brake Flexible Hose - RS: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

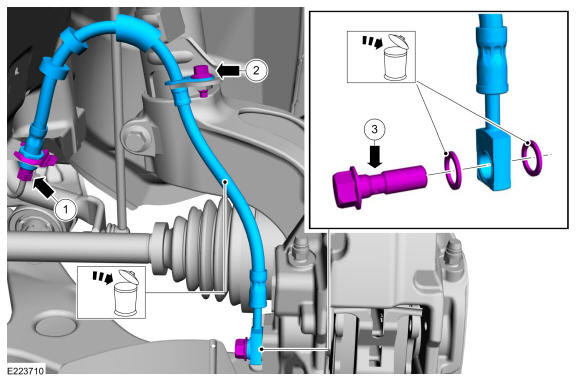

    1. Disconnect the brake tube fitting and remove the brake hose clip.
    2. Remove the brake flexible hose bracket bolt.
    3. Loosen the brake hose fitting and remove the brake flexible hose. Discard the brake flexible hose and the washers.
GFD264534Courtesy of FORD MOTOR COMPANY
