Front Brake Disc: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: 10.94in (278mm) brakes shown, 12.60in (320mm) brakes similar.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

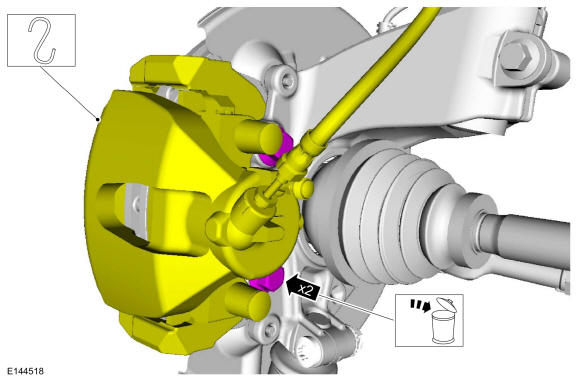

  2. NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.
    NOTE: Make sure that new bolts are installed.

    Remove the bolts and position the brake caliper and anchor plate aside. Discard the bolts.

    Torque

    : 129 lb.ft (175 Nm)

    GFD264509Courtesy of FORD MOTOR COMPANY

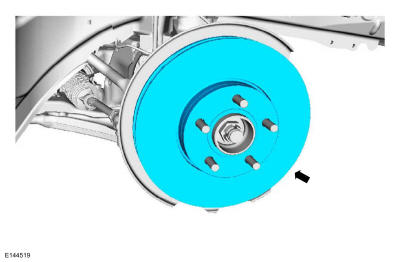

  3. Remove the brake disc.
GFD264510Courtesy of FORD MOTOR COMPANY
