Front Brake Disc Shield - RS: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the brake disc. Refer to: Brake Disc - RS  .
  2. Remove the bolts and brake disc shield.

    Torque

    : 22 lb.ft (30 Nm)

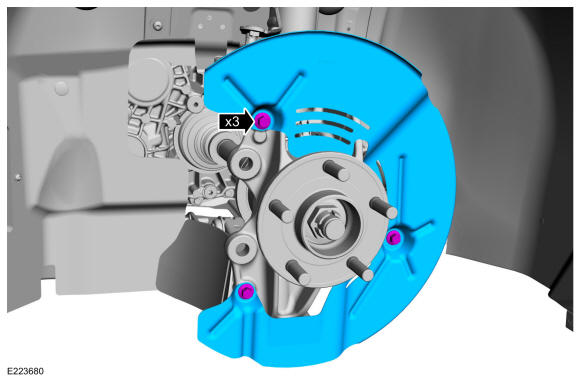

GFD264527Courtesy of FORD MOTOR COMPANY
