Home >> Lincoln >> 2018 >> MKZ Select, AWD >> Repair and Diagnosis >> External Pages >> Different car >> Section 1488 (Front Disc Brake (Except Electric)) >> Removal And Installation >> Front Brake Disc - RS >> Removal

Front Brake Disc - RS: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and Tire. Refer to: Wheel and Tire .
  2. NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.
    NOTE: Make sure that new bolts are installed.

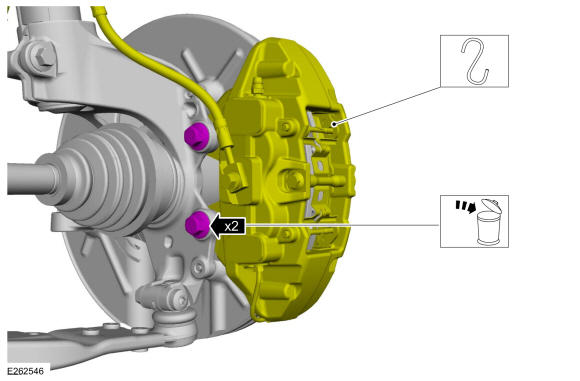

    Remove the bolts and position aside the brake caliper. Discard the bolts.

    Torque

    :Stage 1: 85 lb.ft (115 Nm) Stage 2: 90°

    GFD264524Courtesy of FORD MOTOR COMPANY

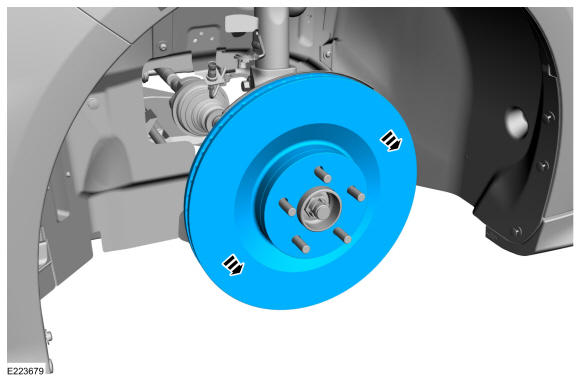

  3. Remove the brake disc.
GFD264525Courtesy of FORD MOTOR COMPANY
