Front Brake Caliper: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: 10.94in (278mm) brakes shown, 12.60in (320mm) brakes similar.

Refer to: Health and Safety Precautions .
Remove the wheel and tire. Refer to: Wheel and Tire .
Loosen the brake hose fitting and disconnect the brake hose.
Torque

: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the brake caliper spring.

Courtesy of FORD MOTOR COMPANY

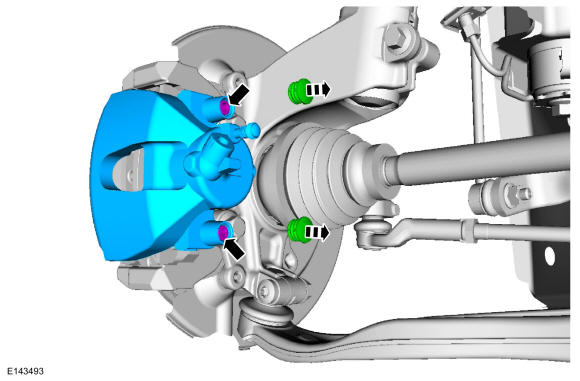

1. Remove the caps.
2. Remove the brake caliper guide pin bolts.
  Torque

  : 21 lb.ft (28 Nm)
3. Remove the brake caliper.
Courtesy of FORD MOTOR COMPANY
Remove the outboard brake pad.

Courtesy of FORD MOTOR COMPANY
Remove the inboard brake pad.

Courtesy of FORD MOTOR COMPANY
