Front Brake Caliper - RS: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the brake pads. Refer to: Brake Pads - RS  .

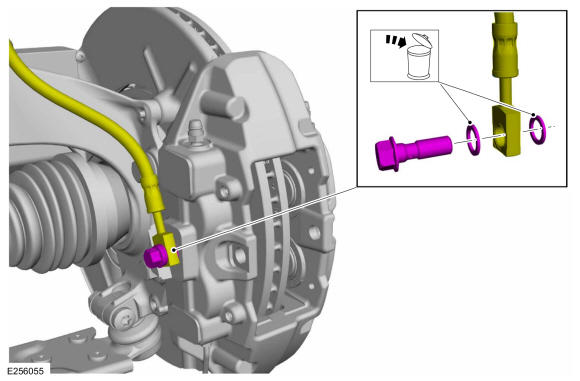

  2. Remove the brake caliper flow bolt and disconnect the brake hose. Discard the washers.

    Torque

    : 35 lb.ft (47 Nm)

    GFD264522Courtesy of FORD MOTOR COMPANY

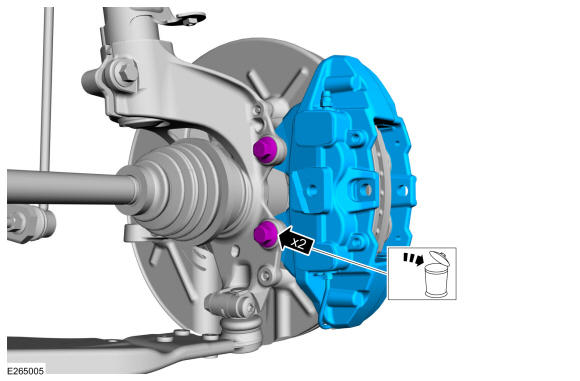

  3. NOTE: Make sure that new bolts are installed.

    Remove the bolts and the brake caliper. Discard the bolts.

    Torque

    :Stage 1: 85 lb.ft (115 Nm) Stage 2: 90°

GFD264523Courtesy of FORD MOTOR COMPANY
