Rear Halfshaft: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake disc. Refer to: Brake Disc - RS .

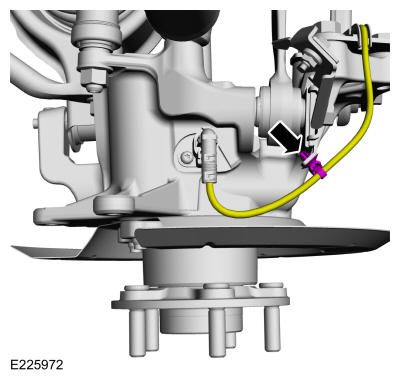

  2. Remove the retainer and position aside the wiring harness.
    GFD264442Courtesy of FORD MOTOR COMPANY
  3. Remove the rear wheel speed sensor. Refer to: Rear Wheel Speed Sensor - RS .
  4. Remove and discard wheel hub mounting bolt.

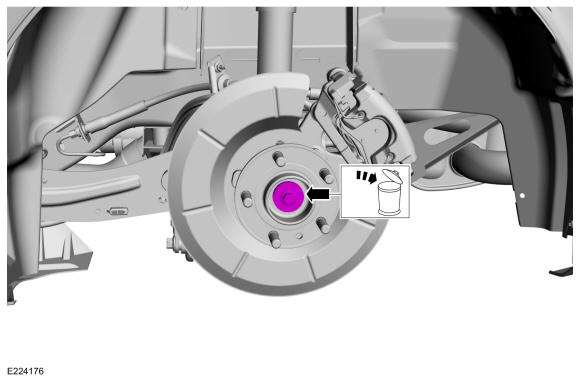

    GFD264443Courtesy of FORD MOTOR COMPANY

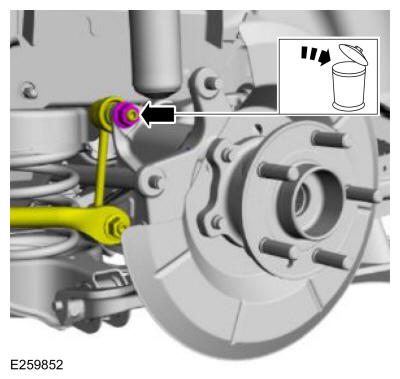

  5. Remove and discard the stabilizer bar mounting nut and disconnect the stabilizer bar.
    GFD264444Courtesy of FORD MOTOR COMPANY

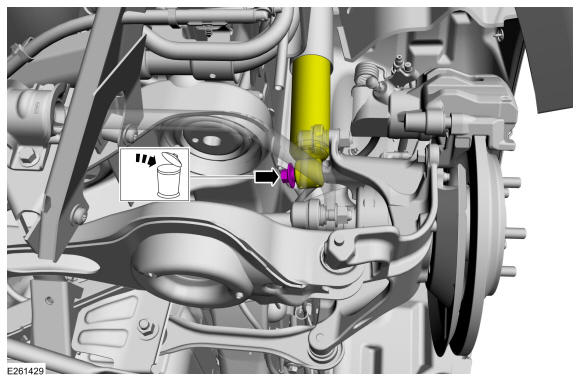

  6. Remove and discard the lower shock absorber bolt and disconnect the lower shock absorber.
    GFD264445Courtesy of FORD MOTOR COMPANY
  7. Remove the spring. Refer to: Spring .

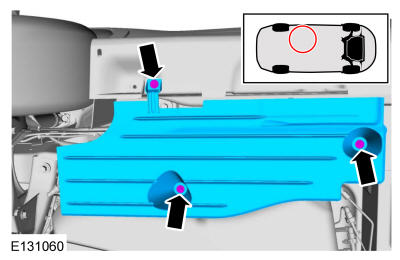

  8. Remove the bolts and the underbody shield.
    GFD264446Courtesy of FORD MOTOR COMPANY

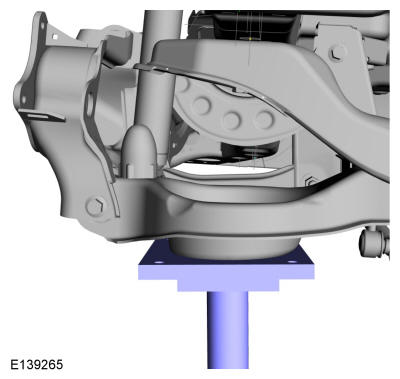

  9. Support the rear suspension. Use the General Equipment: Transmission Jack
    GFD264447Courtesy of FORD MOTOR COMPANY

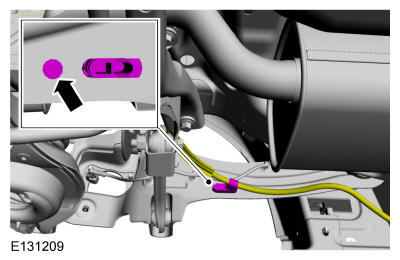

  10. Remove the bolt and position aside the parking brake cable.
    GFD264448Courtesy of FORD MOTOR COMPANY

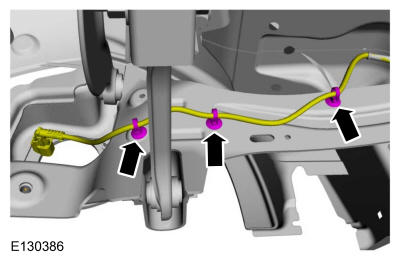

  11. Remove the retainers and position aside the wiring harness.
    GFD264449Courtesy of FORD MOTOR COMPANY
  12. Remove the retainer, disconnect electrical connector and keep aside the wiring harness.

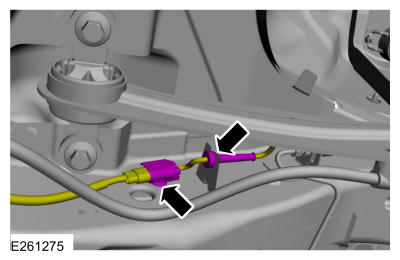

    GFD264450Courtesy of FORD MOTOR COMPANY

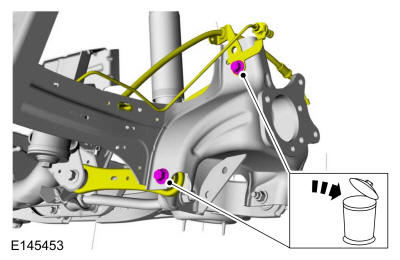

    • Remove and discard the bolt and position the front lower arm aside.

    • Remove and discard the bolt and position brake hoses and bracket aside.

    GFD264451Courtesy of FORD MOTOR COMPANY

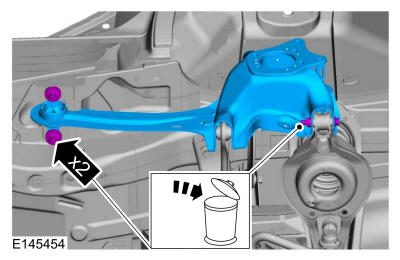

  14. Remove and discard the bolt and remove the trailing arm and knuckle assembly as a unit.
    GFD264452Courtesy of FORD MOTOR COMPANY

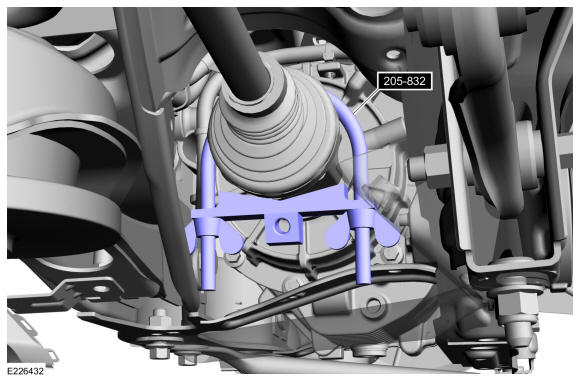

  15. Install Special Service Tool: 205-832 Remover, Halfshaft.
    GFD264453Courtesy of FORD MOTOR COMPANY
  16. NOTE: Make sure that special tool can move freely.

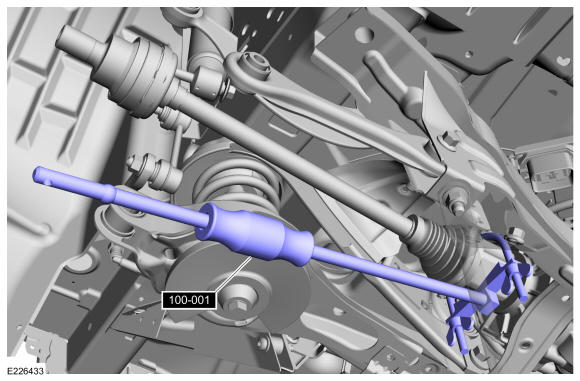

    Install Special Service Tool: 100-001 (T50T-100-A) Slide Hammer.

    GFD264454Courtesy of FORD MOTOR COMPANY
  17. NOTE: Take extra care when handling the component.

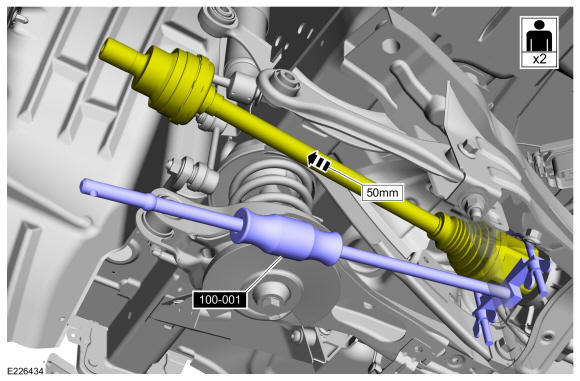

    Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer.

    GFD264455Courtesy of FORD MOTOR COMPANY
  18. Remove Special Service Tool: 100-001 (T50T-100-A) Slide Hammer., 205-832 Remover, Halfshaft.
  19. NOTE: Take extra care when handling the component.
    NOTE: The outer constant velocity (CV) joint must not be bent more than 45°.
    NOTE: The inner constant velocity (CV) joint must not be bent more than 18°.

    Remove the rear halfshaft.

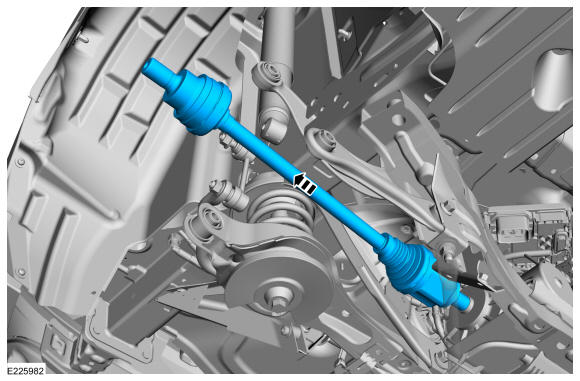

    GFD264456Courtesy of FORD MOTOR COMPANY
    1. Remove and discard the inner halfshaft circlip.
    2. Inspect the inner halfshaft seal surface and splines for damage.

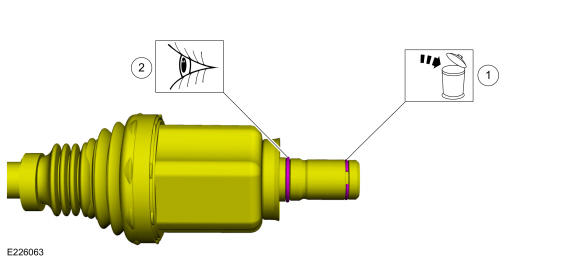

GFD264457Courtesy of FORD MOTOR COMPANY
