Rear Halfshaft: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

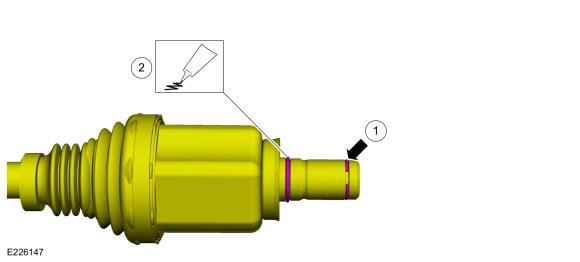

  1. Install the rear halfshaft seal. Refer to: Rear Halfshaft Seal .
    1. NOTE: Make sure that a new component is installed.

      Install a new inner halfshaft circlip.

    2. NOTE: The seal is to be reused unless damaged.

      Material

      : Motorcraft® High Temperature 4x4 Front Axle and Wheel Bearing Grease / XG-11 (WSS-M1C267-A1)

    GFD264458Courtesy of FORD MOTOR COMPANY

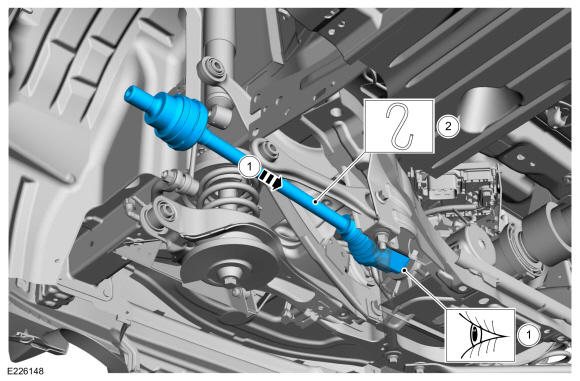

  3. NOTE: The outer constant velocity (CV) joint must not be bent more than 45°.
    NOTE: The inner constant velocity (CV) joint must not be bent more than 18°.
    NOTE: Take extra care not to damage the seal.

    1. NOTE: Make sure that the component is correctly installed.

      Install the halfshaft until the halfshaft circlip is fully seated.

    2. Hold the rear halfshaft by using C-clamp.

    GFD264459Courtesy of FORD MOTOR COMPANY
  4. NOTE: Fabricate a spacer.

    Measure the length as per the specification.

    GFD264460Courtesy of FORD MOTOR COMPANY

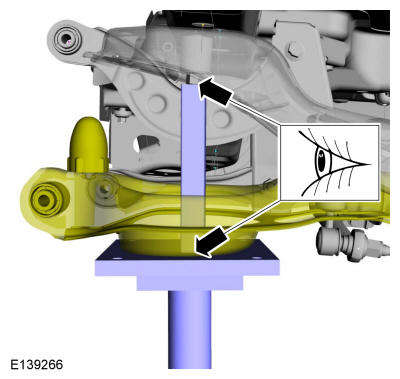

  5. Support the rear suspension and position the correct spacer. Use the General Equipment: Transmission Jack
    GFD264461Courtesy of FORD MOTOR COMPANY

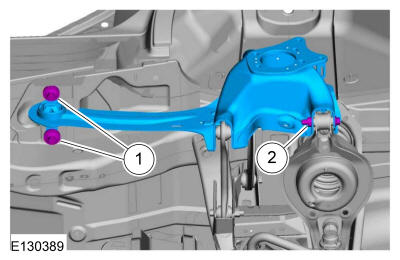

    1. Install the trailing arm and knuckle assembly as a unit, tighten the new front bolts.

      Torque

      : 129 lb.ft (175 Nm)

    2. NOTE: Finger tight at this stage.

      Install the new trailing arm-to-lower arm bolt and nut.

    GFD264462Courtesy of FORD MOTOR COMPANY

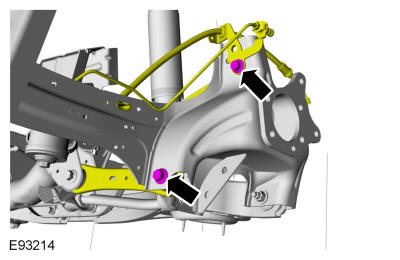

  7. Position the front lower arm and brake hoses and bracket and tighten the bolts.

    Torque

    : 85 lb.ft (115 Nm)

    GFD264463Courtesy of FORD MOTOR COMPANY
  8. Position the wiring harness and install the pin type retainers.
    GFD264449Courtesy of FORD MOTOR COMPANY
  9. Connect the wiring harness electrical connector and install the retainer.
    GFD264450Courtesy of FORD MOTOR COMPANY
  10. Position the parking brake cable and install the bolt.

    Torque

    : 17 lb.in (1.9 Nm)

    GFD264448Courtesy of FORD MOTOR COMPANY
  11. Install the underbody shield and install the bolts.
    GFD264446Courtesy of FORD MOTOR COMPANY

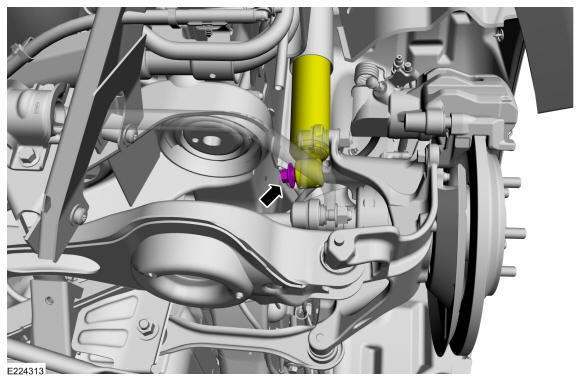

  12. NOTE: Make sure that new bolt is installed.

    Install the lower shock absorber with bolt.

    Torque

    : 85 lb.ft (115 Nm)

    GFD264464Courtesy of FORD MOTOR COMPANY

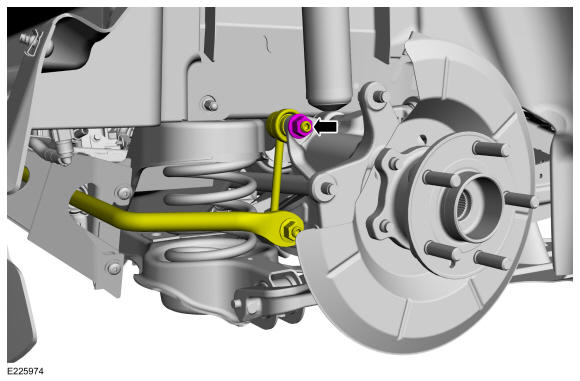

  13. NOTE: Make sure that new nut is installed.

    Install the stabilizer bar with nut.

    Torque

    : 76 lb.ft (103 Nm)

    GFD264465Courtesy of FORD MOTOR COMPANY
  14. Install the spring. Refer to: Spring .
  15. Remove the General Equipment: Transmission Jack

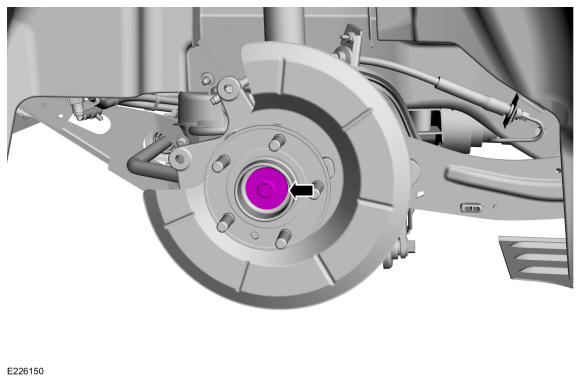

  16. NOTE: Make sure a new bolt is installed.
    NOTE: Only tighten the bolt finger tight at this stage.

    Install the new wheel hub mounting bolt.

    GFD264466Courtesy of FORD MOTOR COMPANY
  17. Install the rear wheel speed sensor. Refer to: Rear Wheel Speed Sensor - RS .
  18. Install the wiring harness and retainer.
    GFD264442Courtesy of FORD MOTOR COMPANY
  19. Install the brake disc. Refer to: Brake Disc - RS .

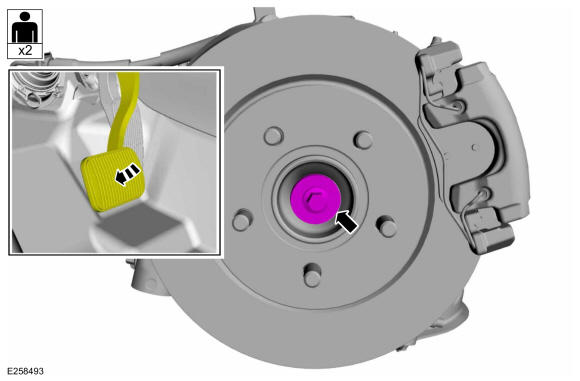

  20. NOTE: Apply the brake to keep the halfshaft from rotating.

    Tighten the wheel hub mounting bolt.

    Torque

    : 37 lb.ft (50 Nm)

    GFD264467Courtesy of FORD MOTOR COMPANY
  21. Install the wheel and tire. Refer to: Wheel and Tire .
