Inner Constant Velocity (CV) Joint Boot - 2.0L EcoBoost (184kW/250PS) - MI4: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the halfshaft. Refer to: Front Halfshaft LH . Refer to: Front Halfshaft RH .
Remove and discard the CV boot clamps and remove the CV tripod housing.

Courtesy of FORD MOTOR COMPANY

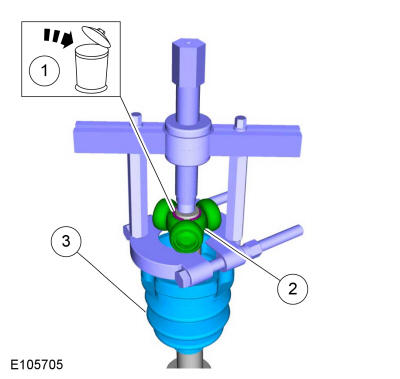

1. Remove and discard the CV tripod circlip.
2. Using the bearing separator and bearing puller remove the CV tripod. Use the General Equipment: Puller. Use the General Equipment: Bearing Separator
3. Remove the inner CV boot.

Courtesy of FORD MOTOR COMPANY
