Inner Constant Velocity (CV) Joint Boot - 2.0L EcoBoost (184kW/250PS) - MI4: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Install the inner CV boot, and using the special tool install the small CV boot clamp. Use Special Service Tool: 205-343 (T95P-3514-A) Installer, Constant Velocity Joint Boot Clamp.

Courtesy of FORD MOTOR COMPANY
Install the CV tripod.

Courtesy of FORD MOTOR COMPANY
1. NOTE: Make sure that a new component is installed.

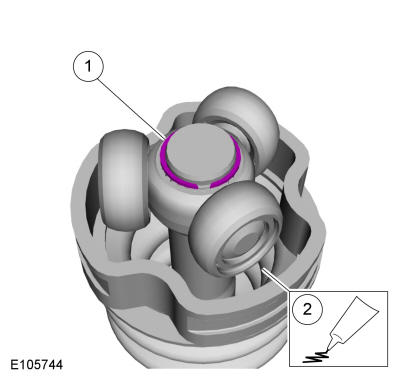

  Install the new CV tripod circlip.
2. NOTE: Grease sachet is supplied with boot kit.

  Apply grease on the CV tripod.
Courtesy of FORD MOTOR COMPANY
NOTE: Grease sachet is supplied with boot kit.

Evenly apply the grease sachet to the inner boot and inner CV tripod assembly.

Courtesy of FORD MOTOR COMPANY
1. Insert the intermediate shaft into the CV boot. Use a flat blade screw driver to release trapped air. Use the General Equipment: Flat Headed Screw Driver
2. Completely slide the intermediate shaft into the CV tripod housing until it bottoms out.
3. Slide the intermediate shaft out 25mm (1 inch).
4. Remove the flat blade screw driver. Use the General Equipment: Flat Headed Screw Driver
Courtesy of FORD MOTOR COMPANY
Using the special tool, position back the CV boot and install the new large halfshaft boot clamp. Use Special Service Tool: 205-343 (T95P-3514-A) Installer, Constant Velocity Joint Boot Clamp.

Courtesy of FORD MOTOR COMPANY
Install the front halfshaft. Refer to: Front Halfshaft RH . Refer to: Front Halfshaft LH .
