Halfshaft Bearing: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Using a hydraulic press, install the intermediate shaft bearing. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY

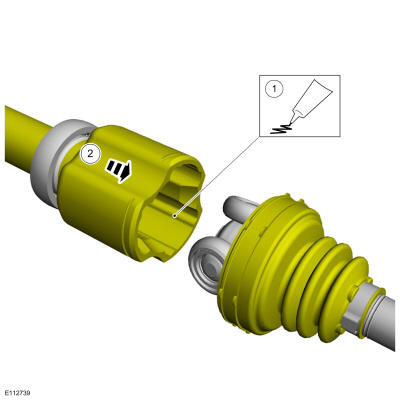

Evenly apply the grease sachet to the inner boot and inner CV tripod assembly.
Material

: Motorcraft® Constant Velocity Joint Grease / XG-5 (WSS-M1C258-A1)

Courtesy of FORD MOTOR COMPANY

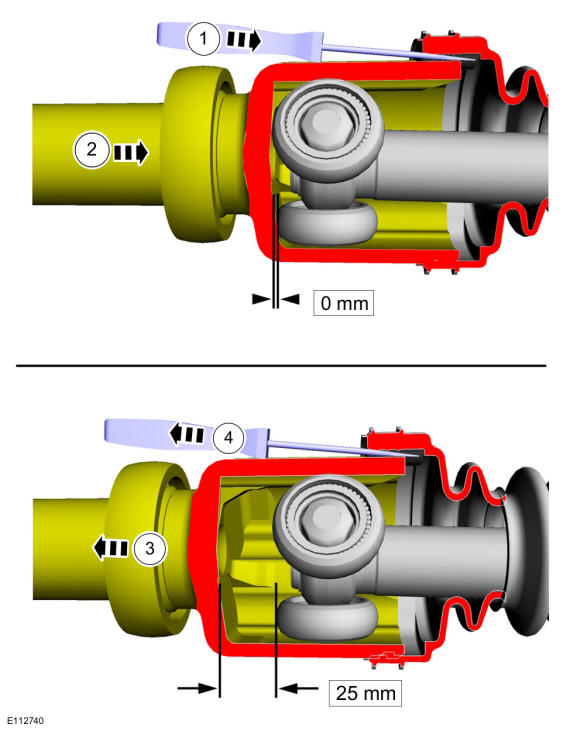

1. Insert the intermediate shaft into the CV boot. Use a flat blade screw driver to release trapped air. Use the General Equipment: Flat Headed Screw Driver
2. Completely slide the intermediate shaft into the CV tripod housing until it bottoms out.
3. Slide the intermediate shaft out 25mm (1 inch).
4. Remove the flat blade screw driver. Use the General Equipment: Flat Headed Screw Driver
Courtesy of FORD MOTOR COMPANY
Using the special tool, position back the CV boot and install the new large halfshaft boot clamp. Use Special Service Tool: 205-343 (T95P-3514-A) Installer, Constant Velocity Joint Boot Clamp.

Courtesy of FORD MOTOR COMPANY
Install the RH front halfshaft. Refer to: Front Halfshaft RH .
