Front Halfshaft RH - 2.3L EcoBoost (257kW/350PS) - MI4: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the inboard end of the halfshaft.

Courtesy of FORD MOTOR COMPANY
Inspect the outboard end of the halfshafts.

Courtesy of FORD MOTOR COMPANY
Install a new intermediate shaft seal. Refer to: Intermediate Shaft Seal .
NOTE: Do not fully install the shaft at this time.

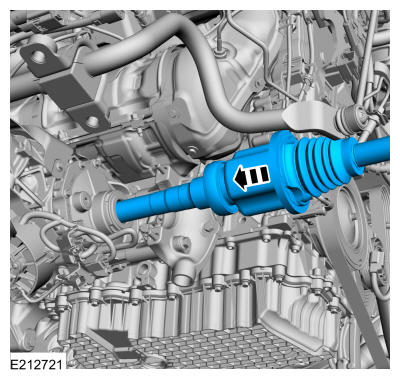

Insert the halfshaft splines.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not install the halfshaft any deeper than the centerline of the bearing with the centerline of the bracket. Over-installation of the halfshaft and pulling the halfshaft back out to align the bearing in the bracket could damage the intermediate shaft seal.

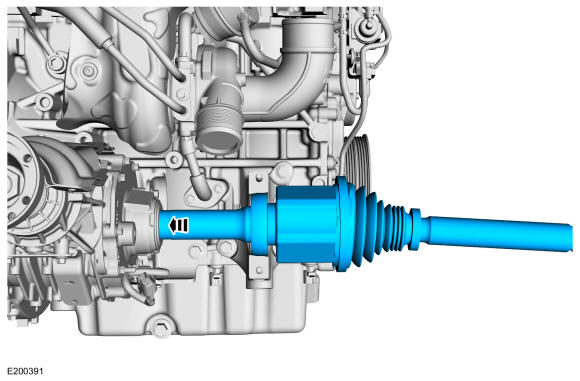

Insert the intermediate shaft until the intermediate shaft bearing is centered in the concave groove of the intermediate shaft bearing bracket.

Courtesy of FORD MOTOR COMPANY

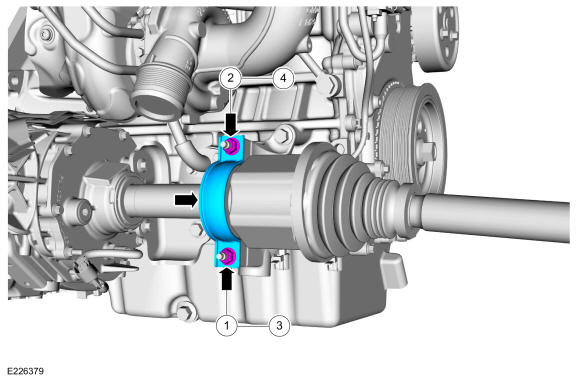

Install the new intermediate shaft bearing strap and new intermediate shaft bearing strap nuts.
Torque

:Stage 1: Tighten lower nut to: 53 lb.in (6 Nm) Stage 2: Tighten upper nut to: 53 lb.in (6 Nm) Stage 3: Tighten lower nut to: 18 lb.ft (25 Nm) Stage 4: Tighten upper nut to: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.

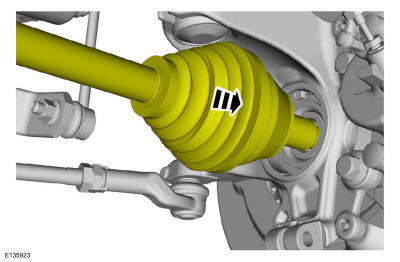

Position the halfshaft through the wheel bearing.

Courtesy of FORD MOTOR COMPANY

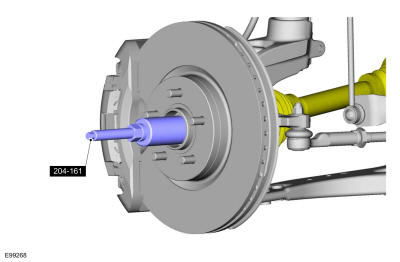

Using the special tool, seat the halfshaft in the wheel bearing mating splines. Use Special Service Tool: 204-161 (T97P-1175-A) Installer, Halfshaft.

Courtesy of FORD MOTOR COMPANY

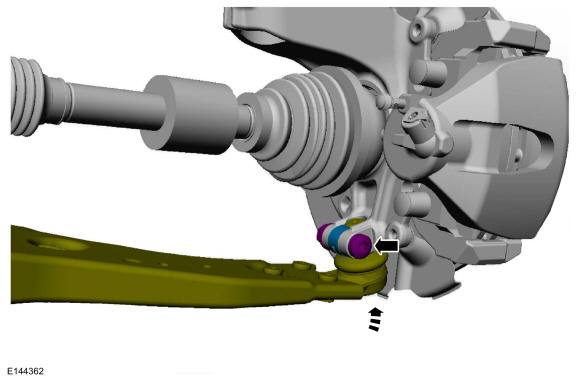

Install the new lower ball joint pinch bolt and nut.
Torque

: 61 lb.ft (83 Nm)

Courtesy of FORD MOTOR COMPANY

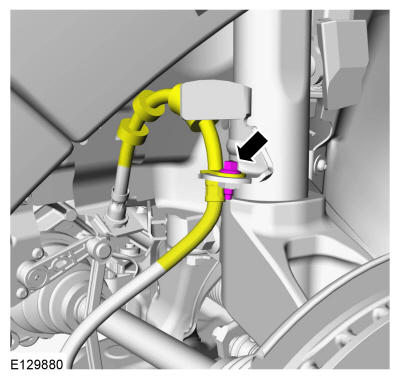

Install the brake flexible hose bracket bolt.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not tighten the front wheel hub nut with the vehicle on the ground. The nut must be tightened to specification before the vehicle is lowered onto the wheels. Wheel bearing damage will occur if the wheel bearing is loaded with the weight of the vehicle applied.

NOTE: Install and tighten the new wheel hub nut to specification in a continuous rotation. Always install a new wheel hub nut after loosening or when not tightened to specification in a continuous rotation or damage to the components may occur.

NOTE: Apply the brake to keep the halfshaft from rotating.

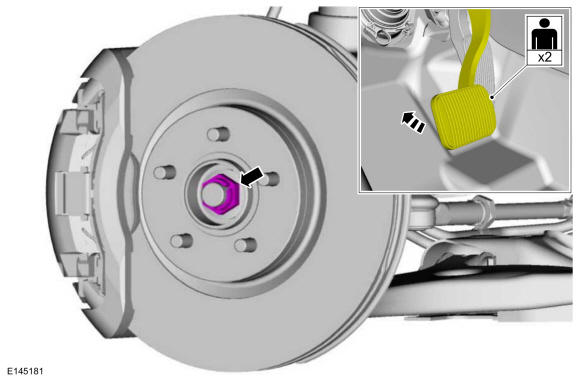

Using an assistant to apply brake pressure, install the new wheel hub nut.

Torque

:Stage 1: 59 lb.ft (80 Nm) Stage 2: 90°

Courtesy of FORD MOTOR COMPANY
Check the transmission fluid level. Refer to: Transmission Fluid Level Check - 2.3L EcoBoost (257kW/350PS) - MI4 .

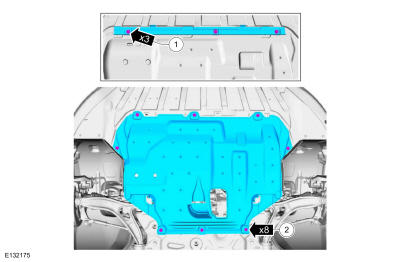

If equipped, install the underbody shield.

Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
