Drive Pinion Seal: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

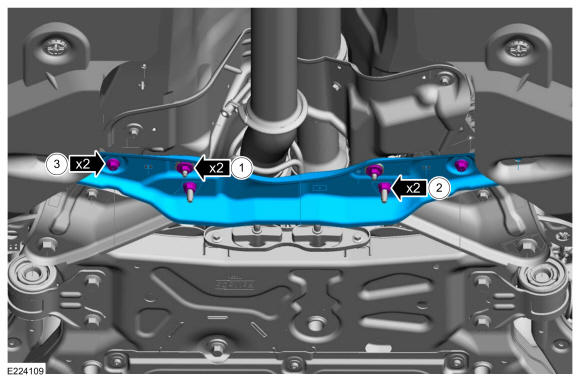

On both sides.
NOTE:

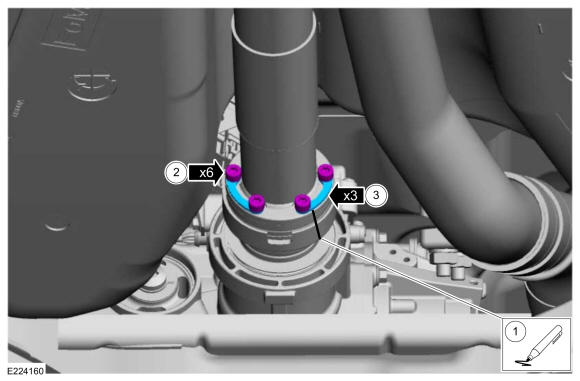

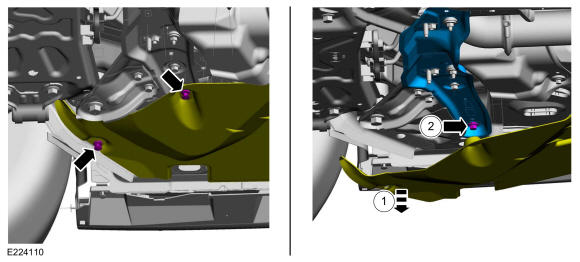

Note the position of the components before removal.

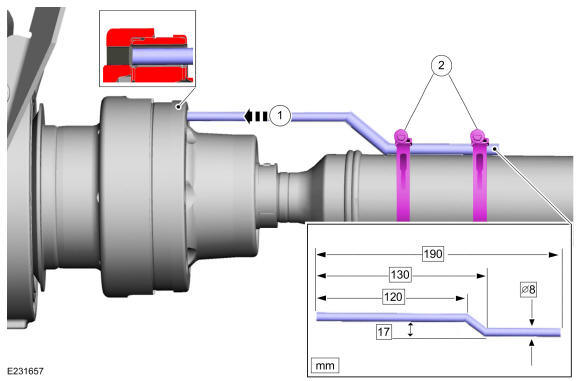

Fabricate a tool
NOTE:

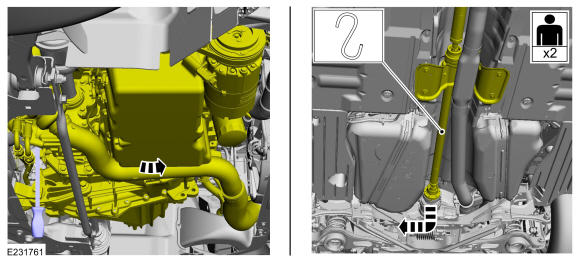

The max articulation of the flex coupling is 7 degrees. The max articulation of any u-joint is 15 degrees. If the flex coupling or any u-joint of the driveshaft is articulated further then the max allowable degrees damage may occur.
NOTE:
Only tighten the bolts finger tight at this stage.

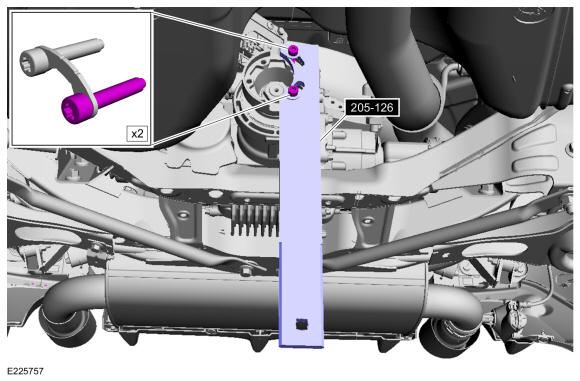

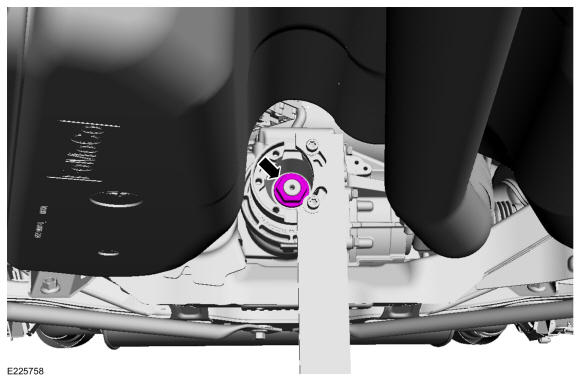

Install Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.
Remove Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.
NOTE:

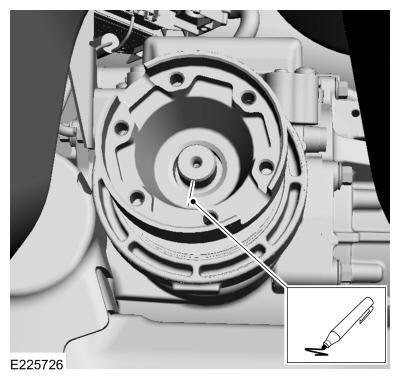

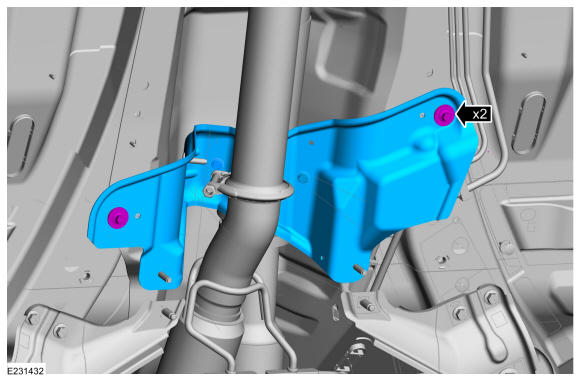

Note the position of the component before removal.
NOTE:
Only tighten the bolts finger tight at this stage.

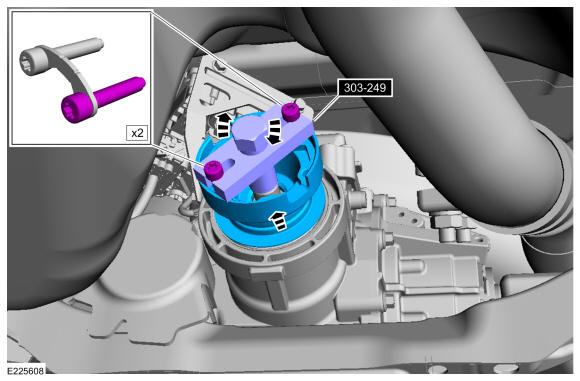

Use Special Service Tool: 303-249 Remover, Crankshaft Timing Pulley.
Remove Special Service Tool: 303-249 Remover, Crankshaft Timing Pulley.

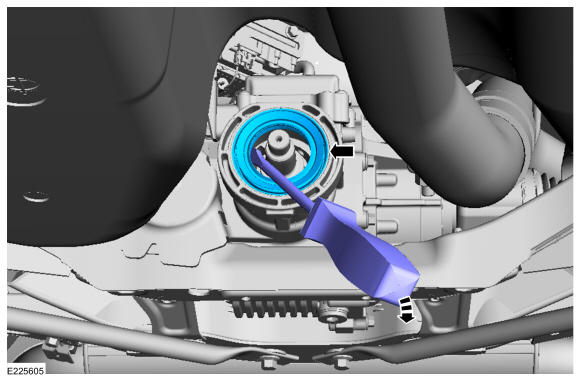

Use the General Equipment: Flat Headed Screw Driver
