Axle Assembly: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped. Remove the retainers and the engine undershield.

Courtesy of FORD MOTOR COMPANY
Remove the engine rear support mounting bolt.
Torque

: 92 lb.ft (125 Nm)

Courtesy of FORD MOTOR COMPANY
On both sides.
1. Remove the retainers and position the underbody aero deflector shield aside.
2. Remove the rear sub-frame reinforcement bracket bolt.
  Torque

  : 32 lb.ft (43 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the rear sub-frame reinforcement bracket.
1. Remove the nuts.
  Torque

  : 18 lb.ft (25 Nm)
2. Remove the nuts.
  Torque

  : 35 lb.ft (48 Nm)
3. Remove the bolts.
  Torque

  : 46 lb.ft (63 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the bolts and the driveshaft center bearing support bracket.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
On both sides. Remove the rear halfshaft. Refer to: Rear Halfshaft .
Remove the bolts and the driveshaft center bearing support bracket.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The driveshaft flange fits tightly on the flange pilot. Never hammer on the driveshaft or any of its components to disconnect the driveshaft flange from the flange pilot.

NOTE: Do not remove driveshaft from the pinion flange by pulling on the driveshaft tube. Damage to the CV joint can result.

NOTE: Make sure that the component is installed to the position noted before removal.

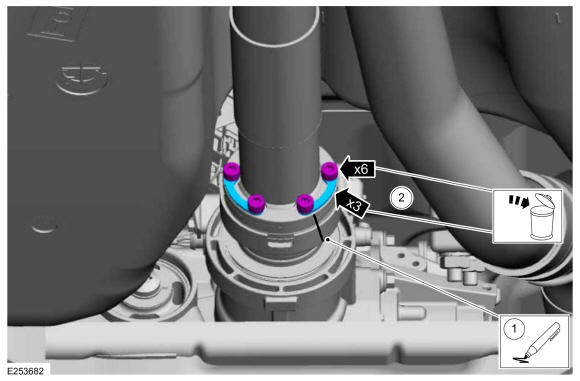

Separate the driveshaft flange from the pinion flange and support the driveshaft.
1. Index-mark the driveshaft flange to the pinion flange to maintain alignment during installation.
2. Remove and discard the driveshaft flange to pinion flange bolts and washers.
  Torque

  : 26 lb.ft (35 Nm)
Courtesy of FORD MOTOR COMPANY
Fabricate a tool.
1. Install the special tool and ensure the distance shown.
2. Tie the special tool on the drive shaft.
Courtesy of FORD MOTOR COMPANY
NOTE: The max articulation of the flex coupling is 7 degrees. The max articulation of any U-joint is 15 degrees. If the flex coupling or any U-joint of the driveshaft is articulated further then the max allowable degrees damage may occur.
- Using pry tool position the engine aside. Use the General Equipment: Flat-Bladed Screwdriver
- Position aside the drive shaft and support.
Courtesy of FORD MOTOR COMPANY

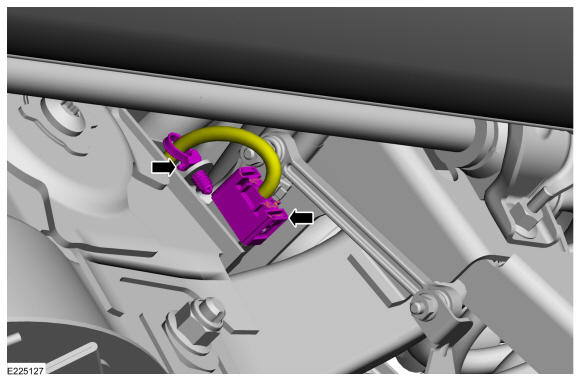

Detach the wiring harness retainer and disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

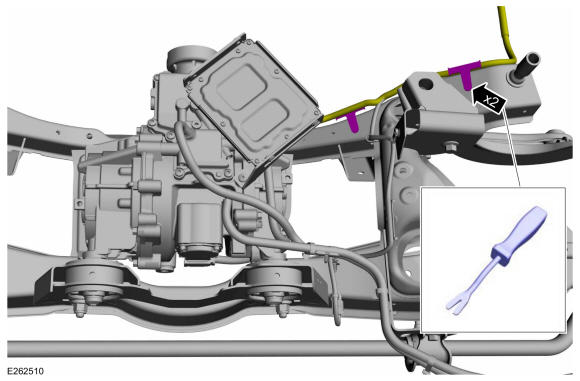

Detach the retainers and position the electrical wiring harness aside.

Courtesy of FORD MOTOR COMPANY
Remove the exhaust isolator and position the muffler pipe aside.

Courtesy of FORD MOTOR COMPANY

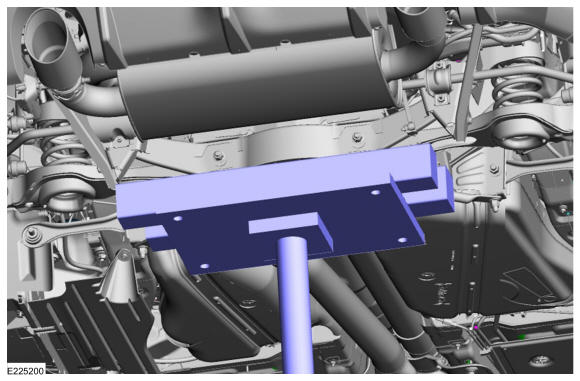

Position and secure the transmission jack under the rear drive axle assembly. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY

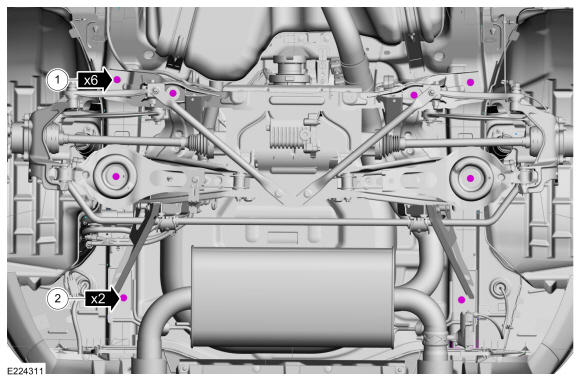

1. Remove the rear axle assembly member brace bolts.
  Torque

  : 85 lb.ft (115 Nm)
2. Remove the rear axle assembly member brace bolts.
  Torque

  : 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

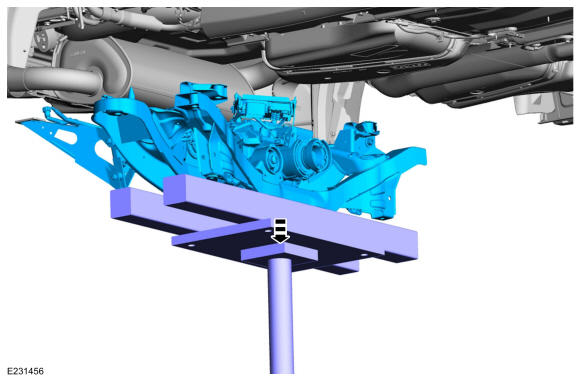

Using the transmission jack remove the rear axle assembly. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY

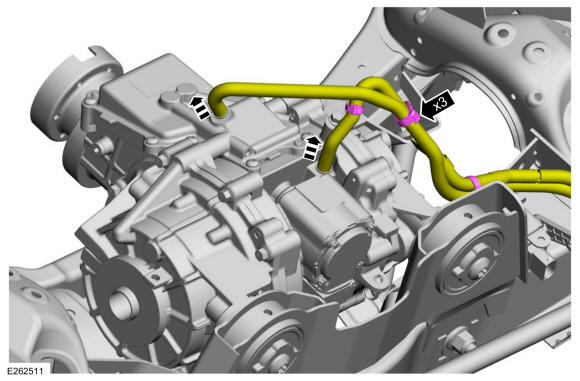

Remove the rear axle housing vent hose and clips.

Courtesy of FORD MOTOR COMPANY

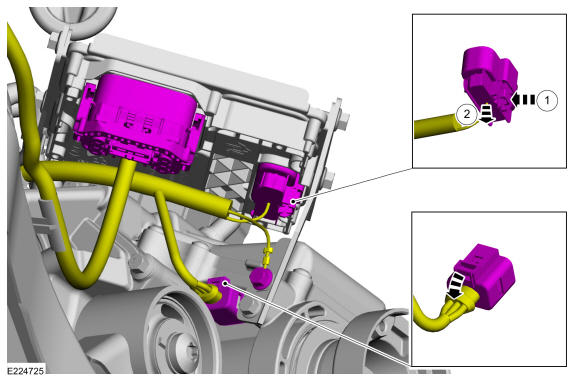

- Remove the bolt and the ground wire.
  Torque

  : 89 lb.in (10 Nm)
- Disconnect the rear axle transfer shift control module electrical connectors and position the wiring harness aside.
Courtesy of FORD MOTOR COMPANY

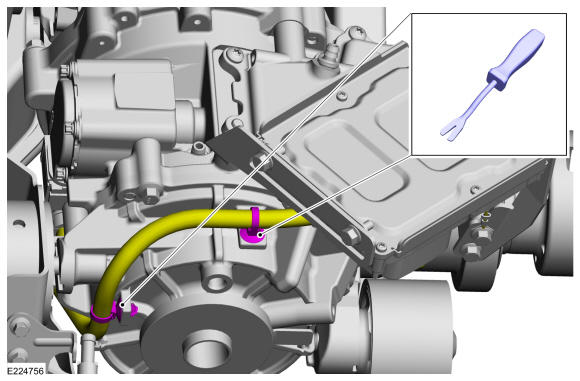

Detach the retainers and position the transfer shift control module electrical wiring harness aside.

Courtesy of FORD MOTOR COMPANY

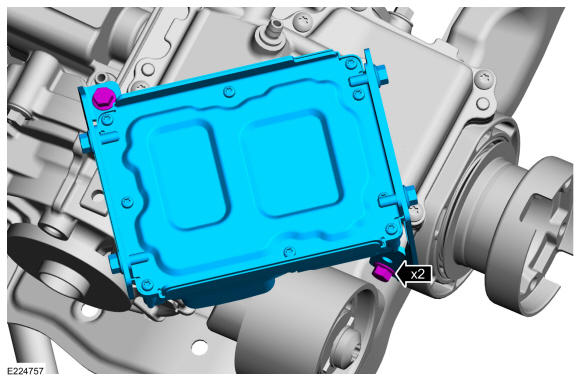

Remove bolts and the rear axle transfer shift control module.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of the component before removal.

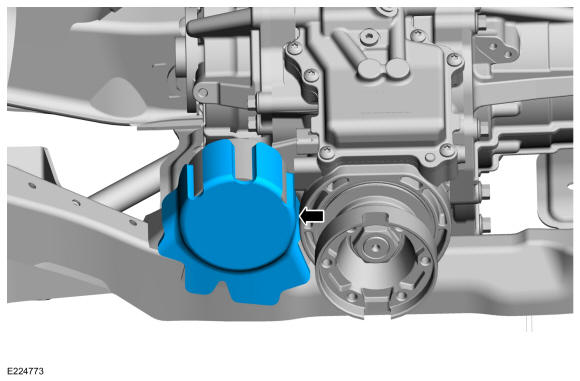

Remove the rear axle front insulator shield.

Courtesy of FORD MOTOR COMPANY

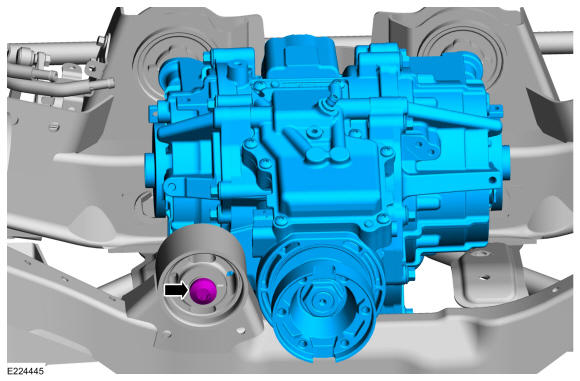

Remove the rear axle front insulator bolt.
Torque

: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of the component before removal.

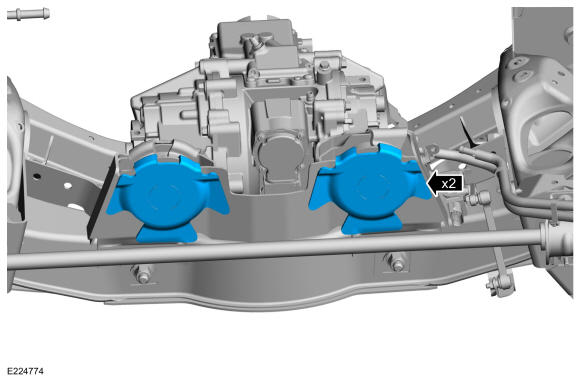

Remove the rear axle rear insulator shield covers.

Courtesy of FORD MOTOR COMPANY

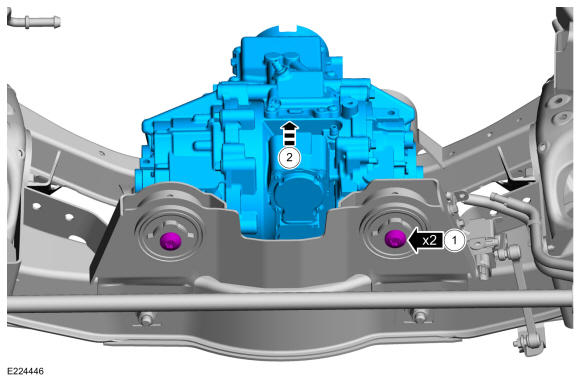

1. Remove the rear axle assembly rear insulator bolts.
  Torque

  : 66 lb.ft (90 Nm)
2. Remove the rear axle assembly.

Courtesy of FORD MOTOR COMPANY
