Differential Draining and Filling

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Draining

  1. Refer to: Jacking and Lifting - Overview .

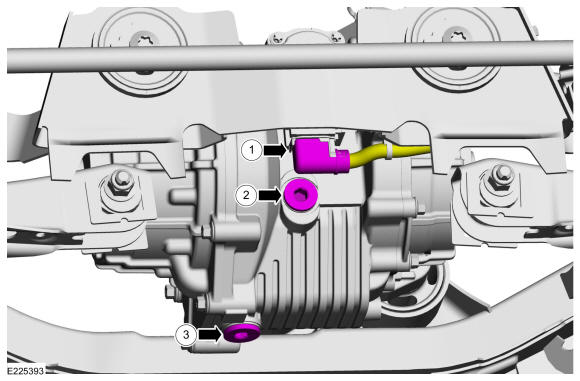

GFD264346Courtesy of FORD MOTOR COMPANY

Filling

  1. Mix the oil and friction modifier with the specified mixing ratio before filling. Refer to: Specifications  .
  2. Torque

    : 26 lb.ft (35 Nm)

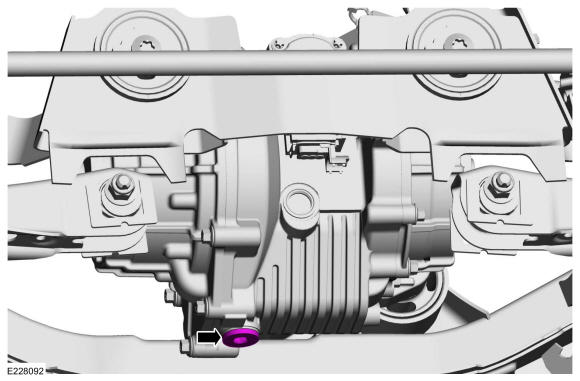

    GFD264347Courtesy of FORD MOTOR COMPANY
    GFD264348Courtesy of FORD MOTOR COMPANY
    1. Torque

      : 26 lb.ft (35 Nm)

GFD264349Courtesy of FORD MOTOR COMPANY
