Rear Driveshaft: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Jacking and Lifting - Overview .
Remove Engine Undershield - If equipped.

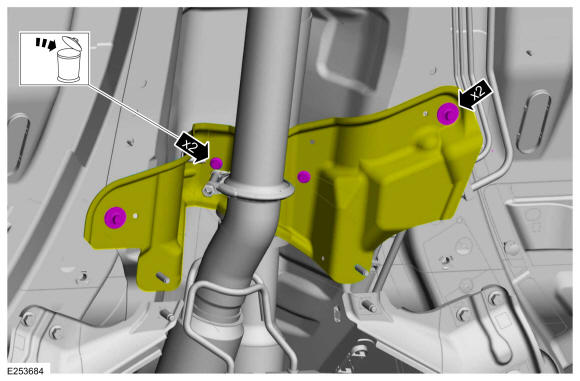

Courtesy of FORD MOTOR COMPANY
On both sides.
Torque

: 46 lb.ft (63 Nm)

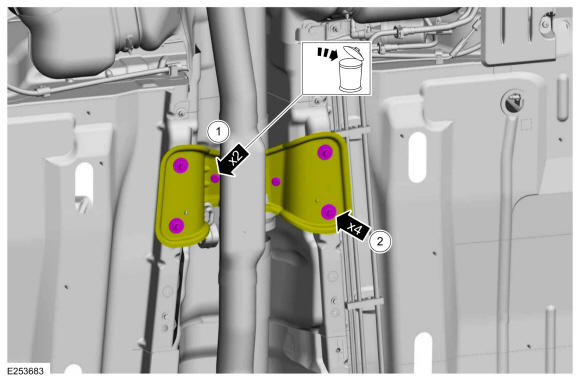

Courtesy of FORD MOTOR COMPANY
1. Torque
  : 18 lb.ft (25 Nm)
2. Torque
  : 35 lb.ft (48 Nm)
3. Torque
  : 46 lb.ft (63 Nm)
Courtesy of FORD MOTOR COMPANY

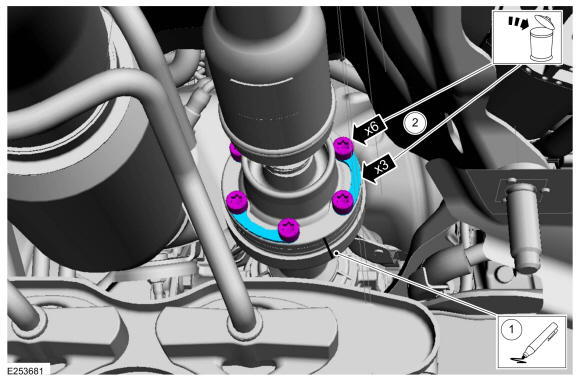

Make sure that the component is installed to the position noted before removal.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

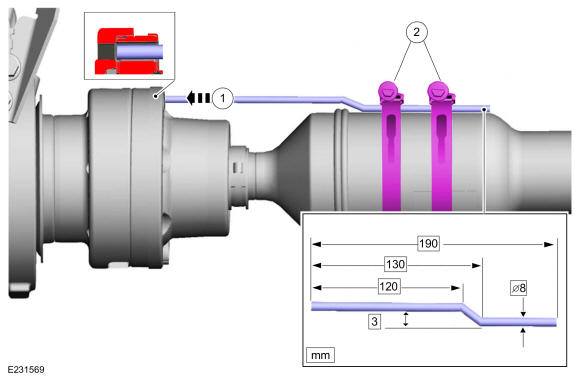

Fabricate a tool

Courtesy of FORD MOTOR COMPANY
Make sure that the component is installed to the position noted before removal.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
Fabricate a tool

Courtesy of FORD MOTOR COMPANY
1. Torque
  : 18 lb.ft (25 Nm)
2. Torque
  : 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
Torque
: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

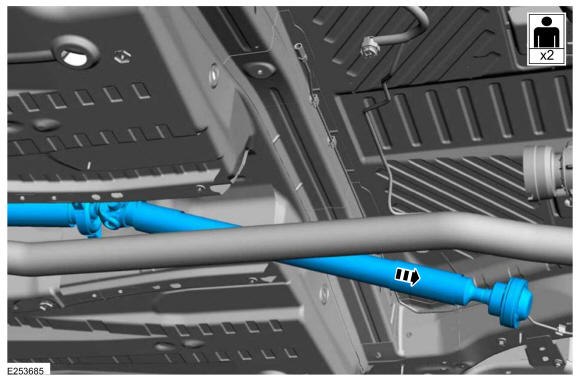

NOTE: The max articulation of the flex coupling is 7 degrees. The max articulation of any u-joint is 15 degrees. If the flex coupling or any u-joint of the driveshaft is articulated further then the max allowable degrees damage may occur.

Use the General Equipment: Tire Lever

Courtesy of FORD MOTOR COMPANY
