Driveshaft Angle Measurement

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Check

NOTE: This procedure does not apply to CV joints, flex couplers or double cardan joints that are used in some driveshafts. This check is for single-cross and roller-style joints found in the driveshafts.

NOTE: Prior to checking driveline angularity, inspect the U-joints for correct operation.

NOTE: An incorrect driveline angle can cause a vibration or shudder.

NOTE: Driveline angularity is the angular relationship between the engine crankshaft, the driveshaft and the rear axle pinion. Factors determining driveline angularity include ride height, rear spring and engine mounts.

1. Inspect the U-joints for correct operation.
2. Park the vehicle on a level surface such as a drive-on hoist, or back onto a front end alignment rack.
3. Verify the curb position ride height is within specifications with the vehicle unloaded and all of the tires are inflated to their normal operating pressures.
One piece driveshafts
NOTE: Rotate the driveshaft until the flange U-joint cup is parallel with the floor. This will simplify taking measurements. Rotate the driveshaft until the flange U-joint cup is parallel with the floor. This will simplify taking measurements.

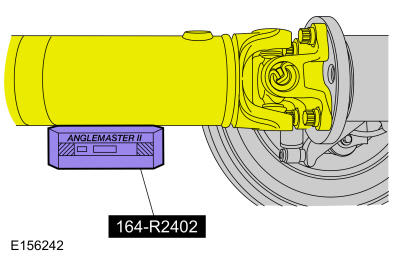

Calibrate the Anglemaster II by placing it on a clean section of the driveshaft and press the ALT-ZERO button.
- Special Tool(s): Anglemaster II Driveline Inclinometer/Protractor 164-R2402.
Courtesy of FORD MOTOR COMPANY

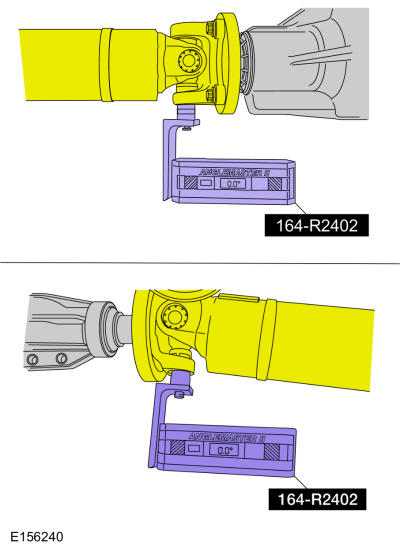

NOTE: If equipped, remove the snap ring to allow access to the base of the U-joint cup. Make sure the Anglemaster II Driveline Inclinometer/Protractor is seated against the U-joint cup.

Measure the slope of the axle pinion flange and transmission flange or yoke. The measured angle will be the U-joint operating angle.
- Special Tool(s): Anglemaster II Driveline Inclinometer/Protractor 164-R2402.
Courtesy of FORD MOTOR COMPANY

Multiple piece driveshafts
NOTE: Repeat this step for each center support bearing on the driveshaft.

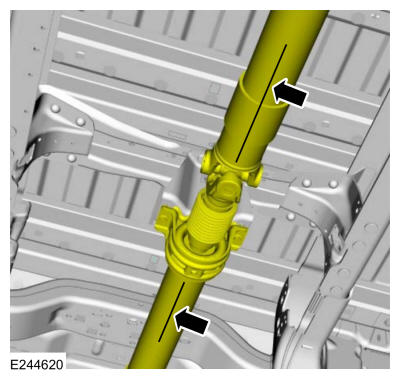

Calibrate the Anglemaster II by placing it on a clean section of the driveshaft in front of the center support bearing and press the ALT-ZERO button. Measure the slope of the driveshaft behind the center support bearing U-joint in the area indicated. The measured angle will be the U-joint operating angle.
- Special Tool(s): Anglemaster II Driveline Inclinometer/Protractor 164-R2402.
Courtesy of FORD MOTOR COMPANY

All vehicles
Ideally, the operating angles on each connection of the driveshaft must:
1. be equal or within one degree of each other.
2. have a 3 degree maximum operating angle.
3. have at least one-half of one degree continuous operating angle.
If the angle is not within specifications, repair or adjust to obtain the correct angle. Inspect the engine mounts, transmission mounts, center support bearing mounting, rear suspension, rear axle, rear axle mounting or the frame for wear or damage.
