Generic Function Module 2 (GFM2): Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the C-pillar lower trim panel. Refer to: C-Pillar Lower Trim Panel .
  2. Remove the D-pillar trim panel. Refer to: D-Pillar Trim Panel - 5-Door .
  3. Remove the subwoofer speaker. Refer to: Subwoofer Speaker - RS .

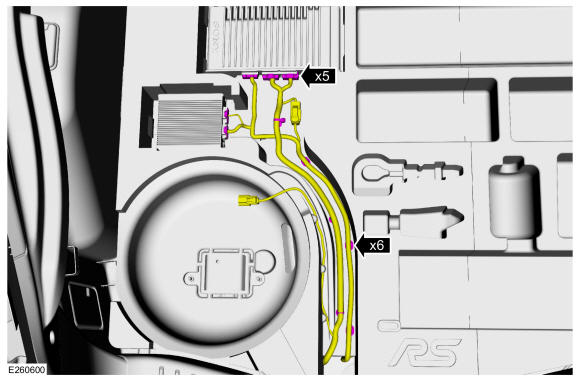

  4. Disconnect the electrical connectors from the DACMC and the DSP and position the wiring harness aside.
    GFD264318Courtesy of FORD MOTOR COMPANY

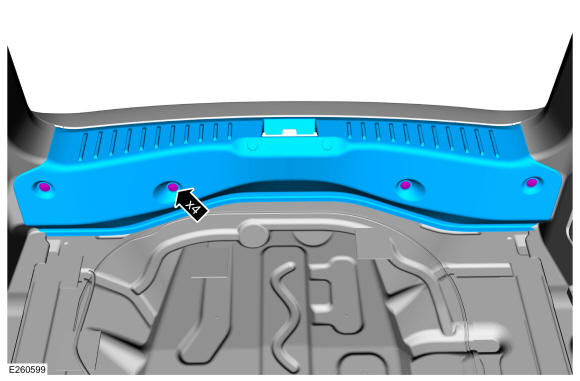

  5. Remove the retainers and remove the cargo area rear trim panel.
    GFD264319Courtesy of FORD MOTOR COMPANY

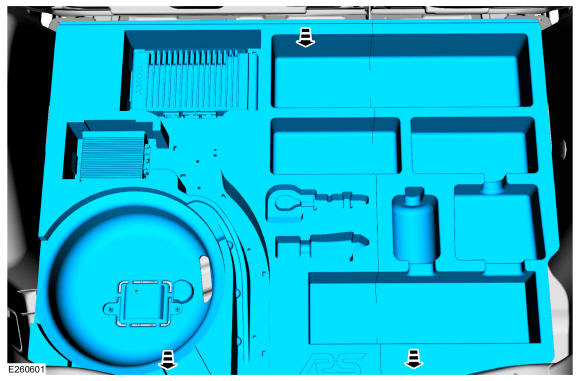

  6. Remove the load compartment floor sound insulator.
    GFD264320Courtesy of FORD MOTOR COMPANY

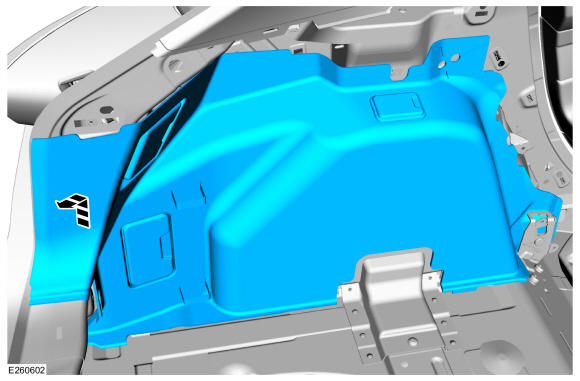

  7. Remove the LH load space trim panel.
    GFD264321Courtesy of FORD MOTOR COMPANY
  8. NOTE: The GFM2 is mounted to the LH fender well with Velcro®.

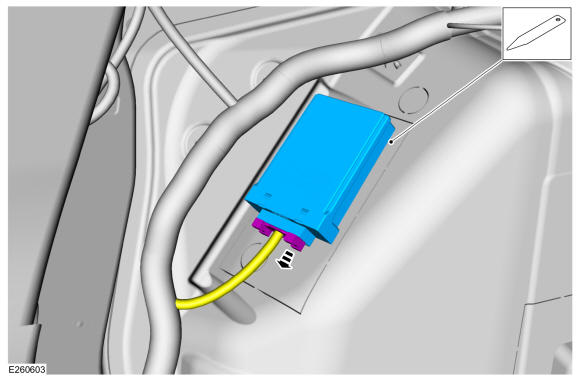

    Disconnect the electrical connector and remove the GFM2.

GFD264322Courtesy of FORD MOTOR COMPANY
