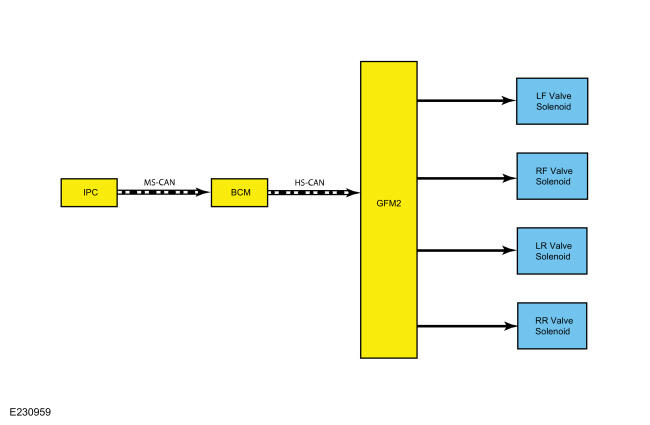

System Diagram
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
LH front valve solenoid |
| 2 |
GFM2 |
| 3 |
RH front valve solenoid |
| 4 |
LH rear valve solenoid |
| 5 |
RH rear valve solenoid |
| 6 |
IPC |
| 7 |
BCM |
