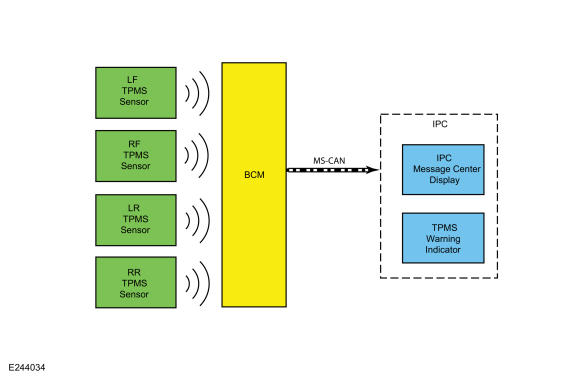

System Diagram
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
IPC |
| 2 |
IPC Message Center Display |
| 3 |
TPMS Warning Indicator |
| 4 |
LH front TPMS Sensor |
| 5 |
RH front TPMS Sensor |
| 6 |
LH rear TPMS Sensor |
| 7 |
RH rear TPMS Sensor |
| 8 |
BCM |
