Wheel Bearing and Wheel Hub: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

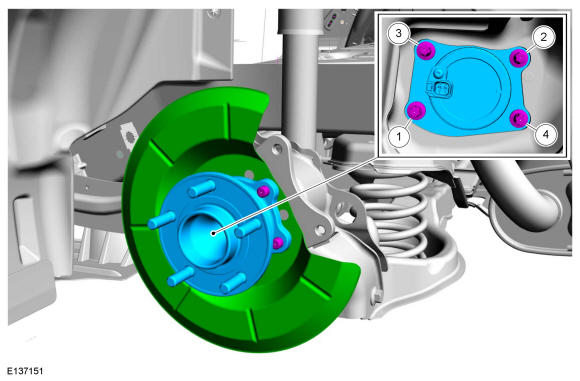

  1. Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub bolts in the sequence shown.

    Torque

    : 81 lb.ft (110 Nm)

    GFD264243Courtesy of FORD MOTOR COMPANY
  2. Connect the wheel speed sensor electrical connector.
    GFD264241Courtesy of FORD MOTOR COMPANY
  3. Install the brake disc. Refer to: Brake Disc .
