Wheel Bearing and Wheel Hub - RS: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

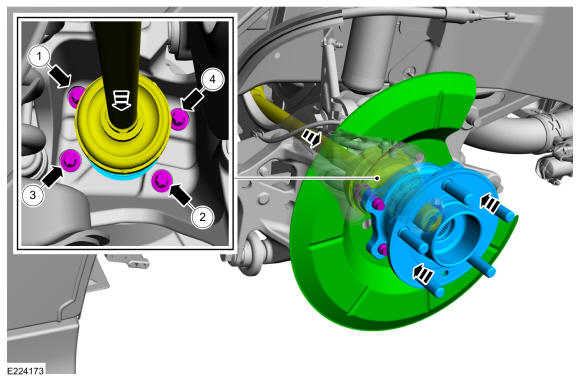

  1. Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub bolts in the sequence shown.

    Torque

    : 81 lb.ft (110 Nm)

    GFD264269Courtesy of FORD MOTOR COMPANY

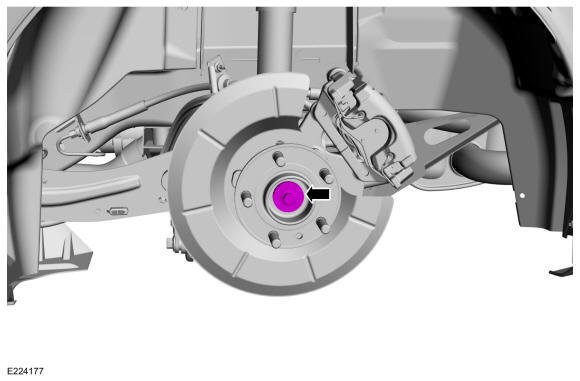

  2. NOTE: Make sure a new bolt is installed.
    NOTE: Only tighten the nut finger tight at this stage.
    GFD264270Courtesy of FORD MOTOR COMPANY
  3. Install the brake disc. Refer to: Brake Disc - RS .
  4. Install the rear wheel speed sensor. Refer to: Rear Wheel Speed Sensor - RS .

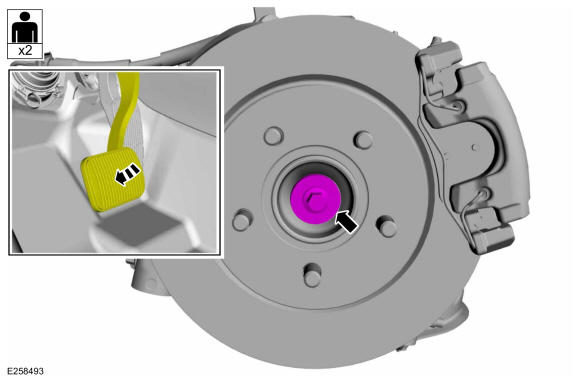

  5. NOTE: Apply the brake to keep the halfshaft from rotating.

    Torque

    : 37 lb.ft (50 Nm)

    GFD264271Courtesy of FORD MOTOR COMPANY
  6. Install the wheel and tire. Refer to: Wheel and Tire .
