Rear Lower Arm - RS: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

Mark the position of the rear lower arm adjustment cam to the rear subframe.

Courtesy of FORD MOTOR COMPANY
Remove the rear spring. Refer to: Spring .

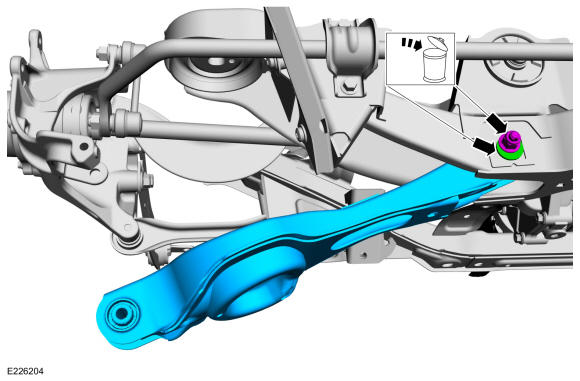

Remove and discard the rear lower arm-to-rear subframe bolt, nut and washers and remove the rear lower arm.

Courtesy of FORD MOTOR COMPANY
