Front Stabilizer Bar: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
  2. NOTE: While tightening the subframe bolts, make sure the front subframe does not move.
    NOTE: Before tightening the subframe bolts, align the subframe using the special tool and the reference marks made during removal.

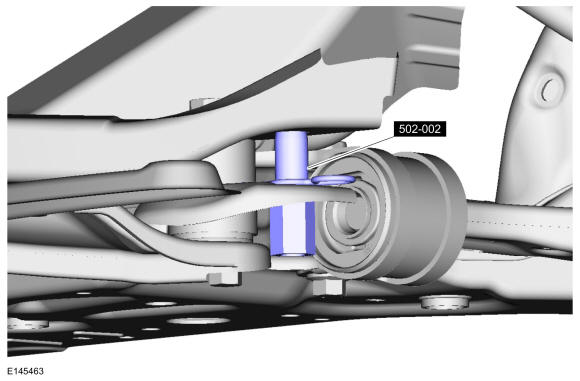

    Using the special tool tighten the subframe bolts. Use Special Service Tool: 502-002 (T94P-2100-AH) Alignment Pins, Subframe.

    GFD264121Courtesy of FORD MOTOR COMPANY
  3. Check and, if necessary, adjust the front toe. Refer to: FRONT TOE ADJUSTMENT .
