Component Testing

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

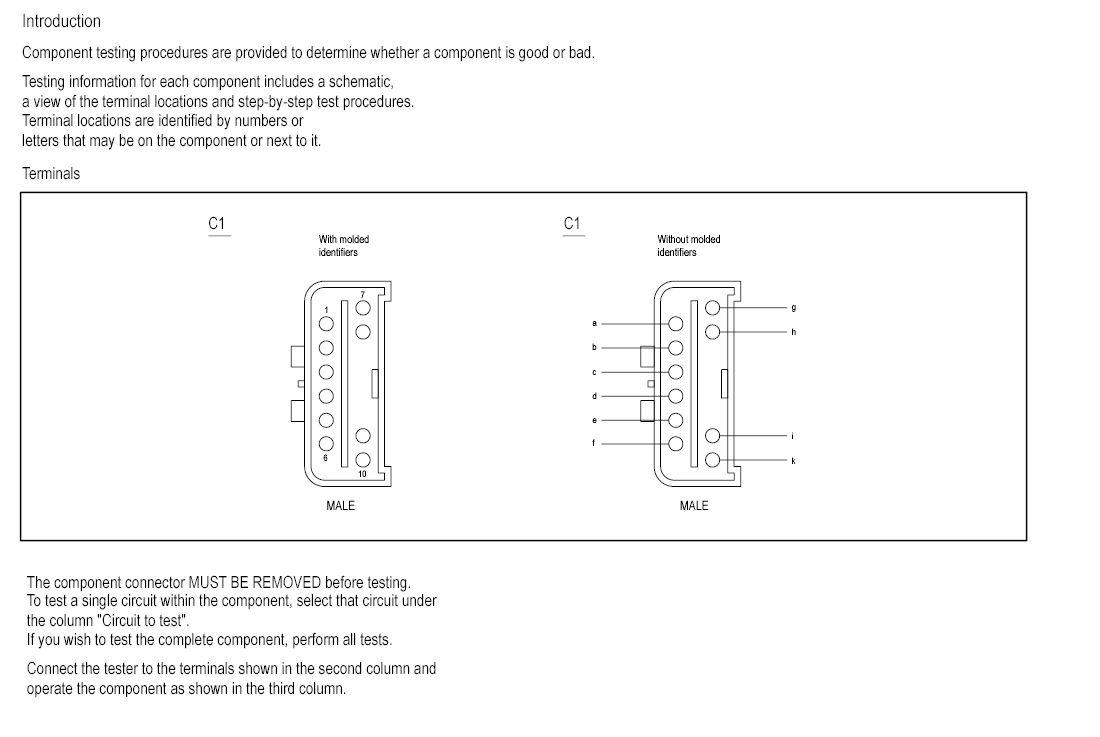

Fig 1: Component Testing Introduction

Courtesy of FORD MOTOR COMPANY

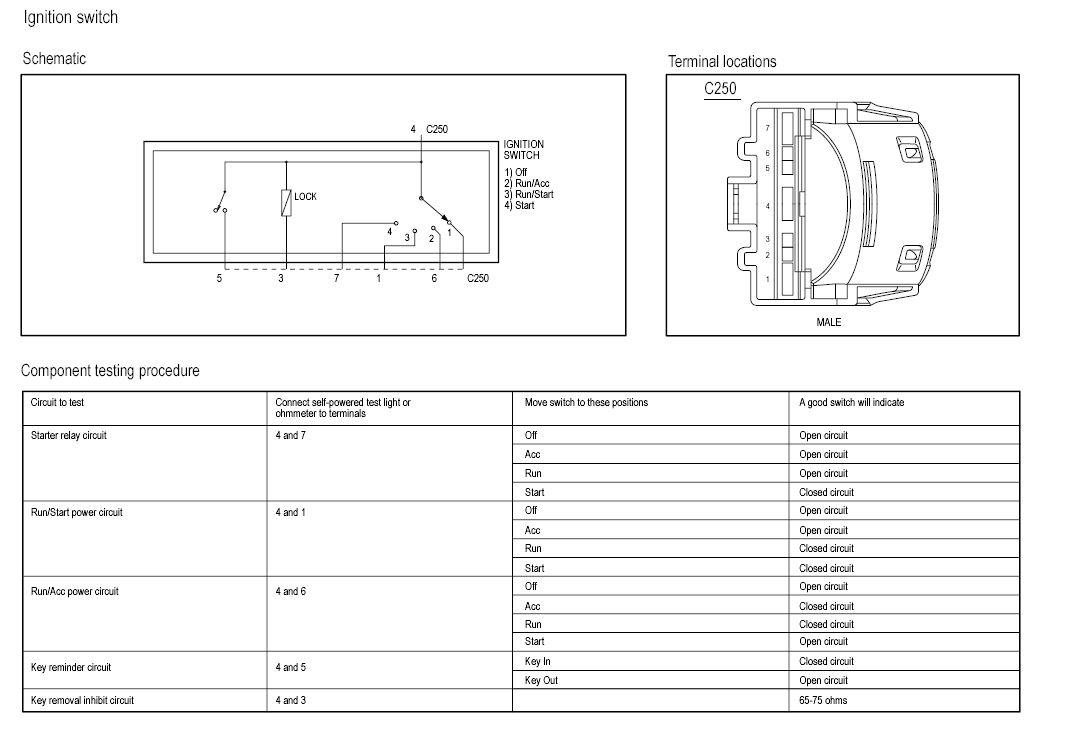

Fig 2: Ignition Switch Component Testing

Courtesy of FORD MOTOR COMPANY

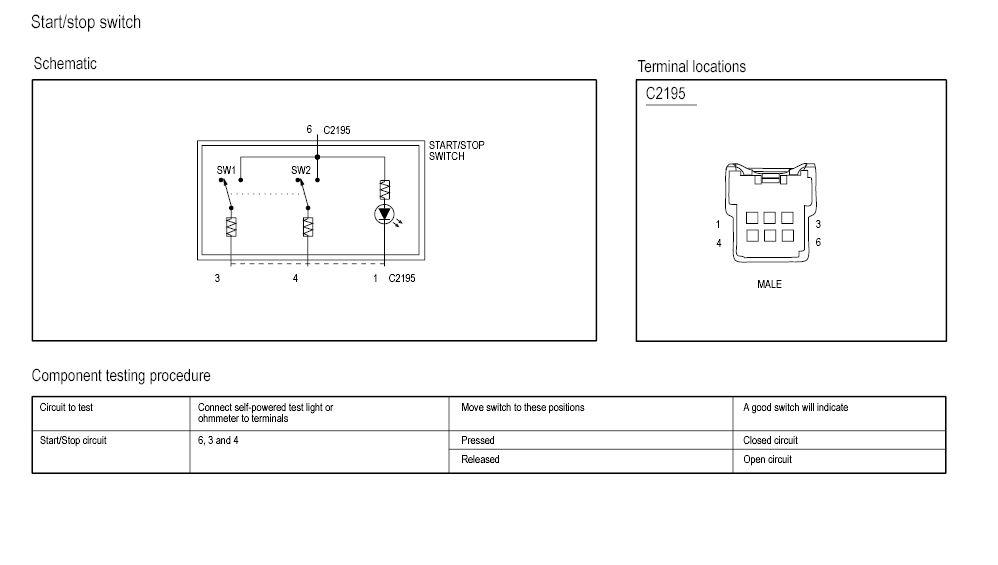

Fig 3: Start Switch/Stop Switch Component Testing

Courtesy of FORD MOTOR COMPANY

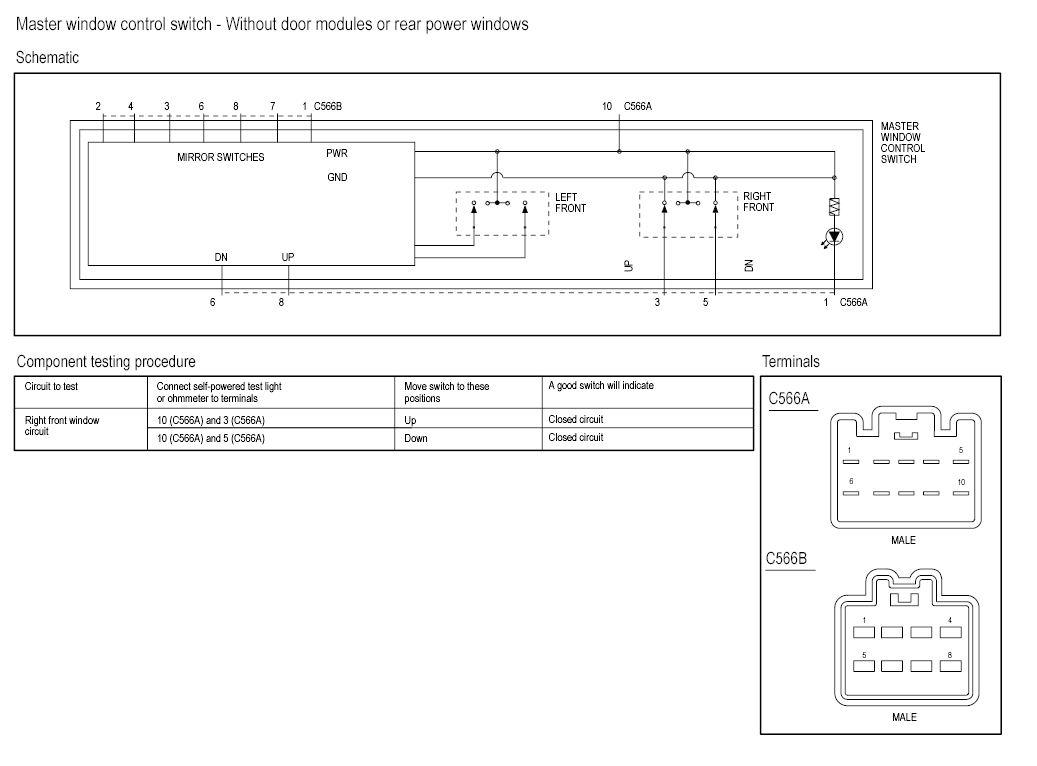

Fig 4: Master Window Control Switch (Without Door Modules Or Rear Power Windows) Component Testing

Courtesy of FORD MOTOR COMPANY

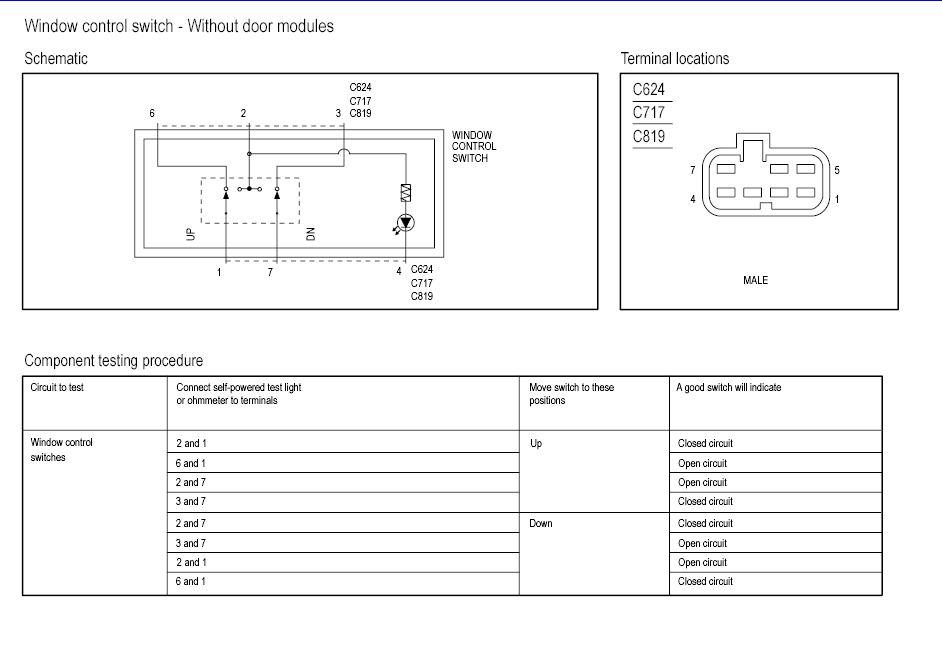

Fig 5: Window Control Switch (Without Door Modules)

Courtesy of FORD MOTOR COMPANY

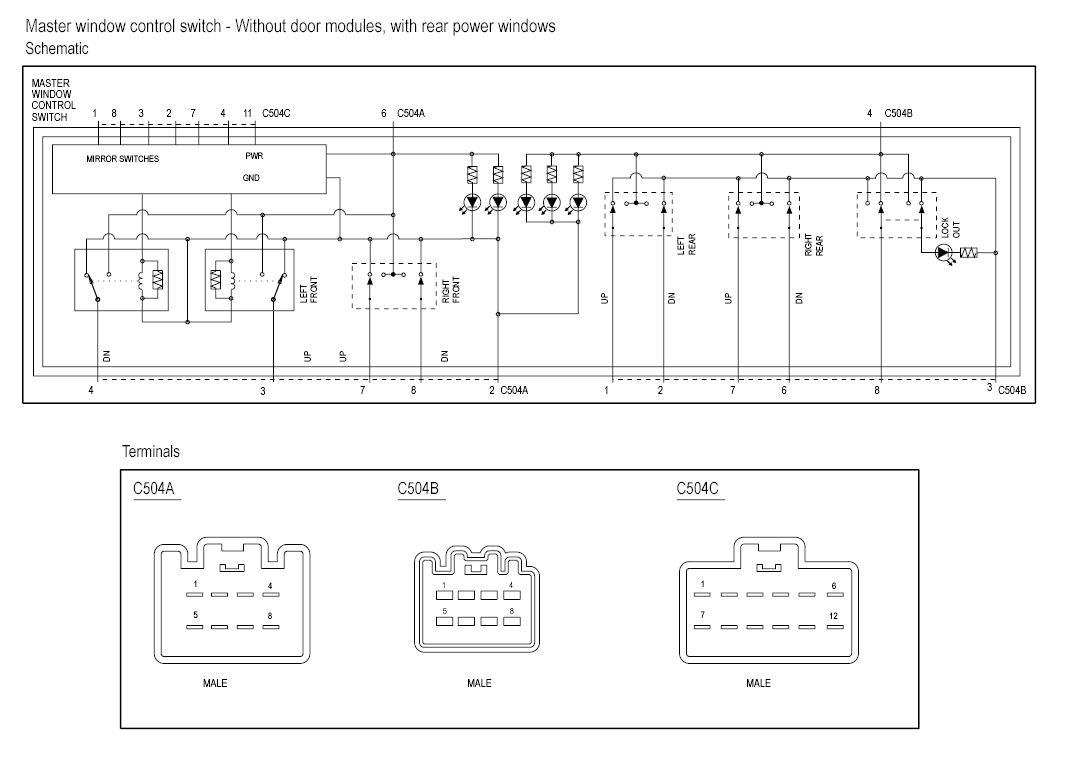

Fig 6: Master Window Control Switch (Without Door Modules With Rear Power Windows) Component Testing (1 Of 2)

Courtesy of FORD MOTOR COMPANY

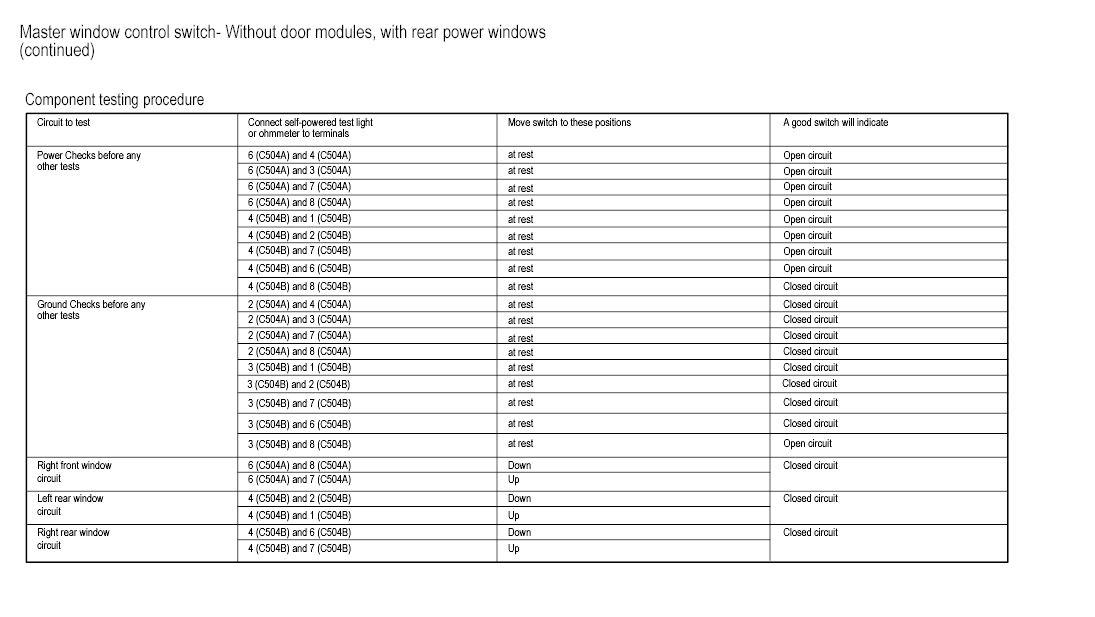

Fig 7: Master Window Control Switch (Without Door Modules With Rear Power Windows) Component Testing (2 Of 2)

Courtesy of FORD MOTOR COMPANY

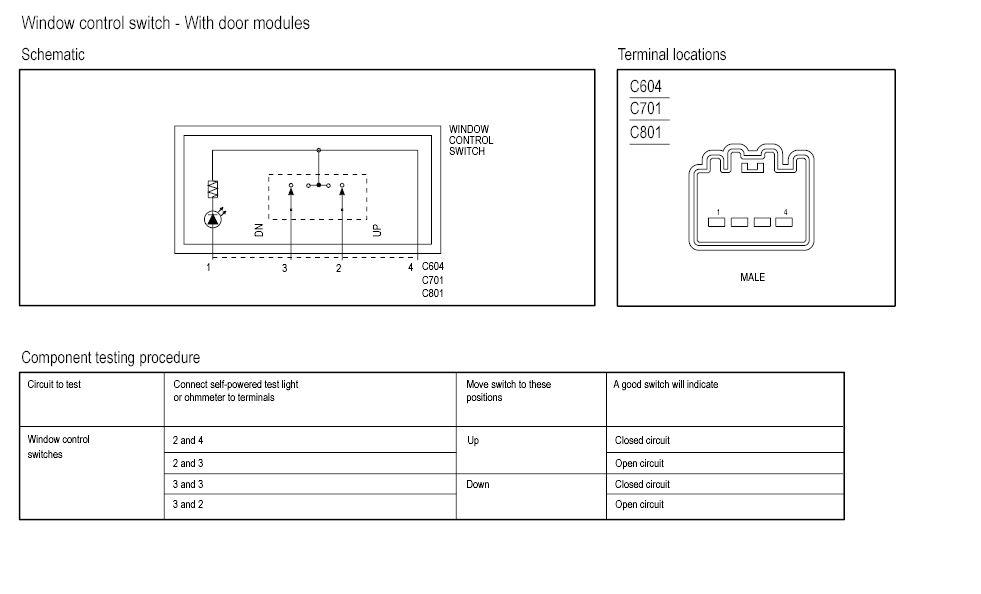

Fig 8: Window Control Switch (With Door Modules) Component Testing

Courtesy of FORD MOTOR COMPANY

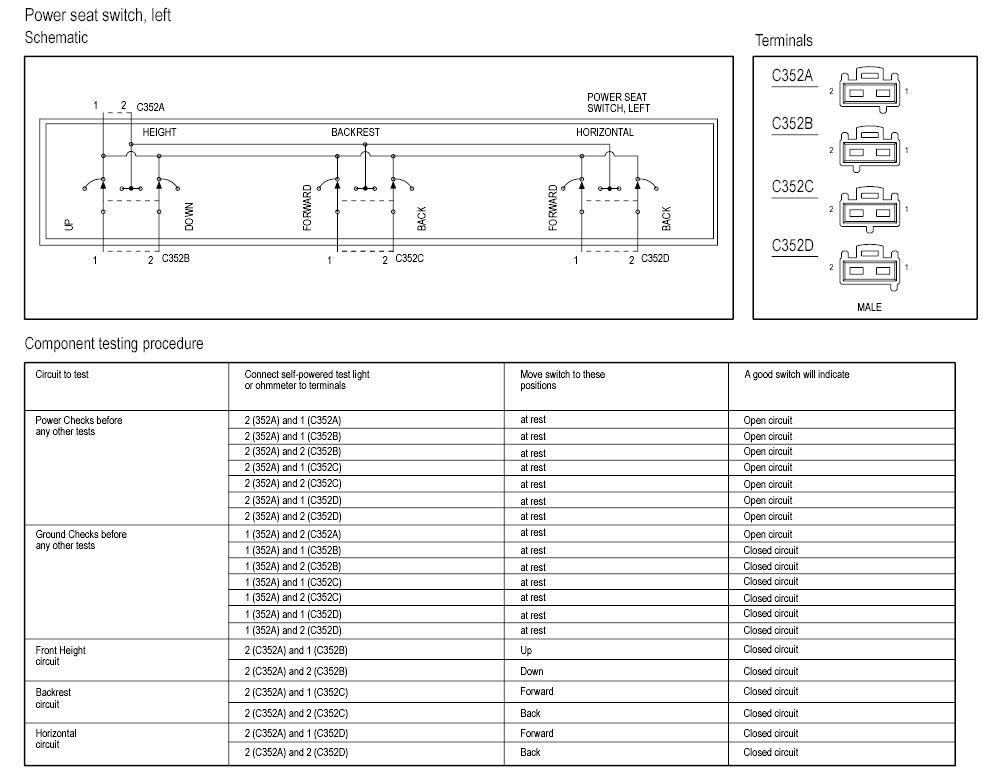

Fig 9: Power Seat Switch (Left) Component Testing

Courtesy of FORD MOTOR COMPANY

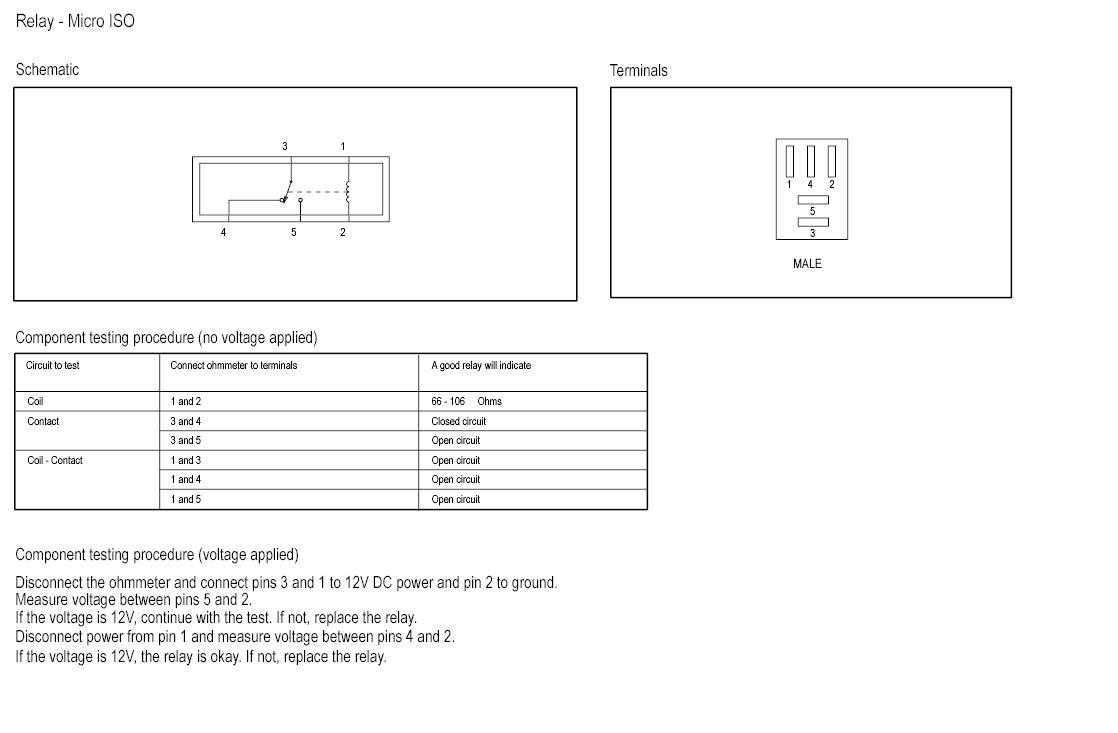

Fig 10: Relay - Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

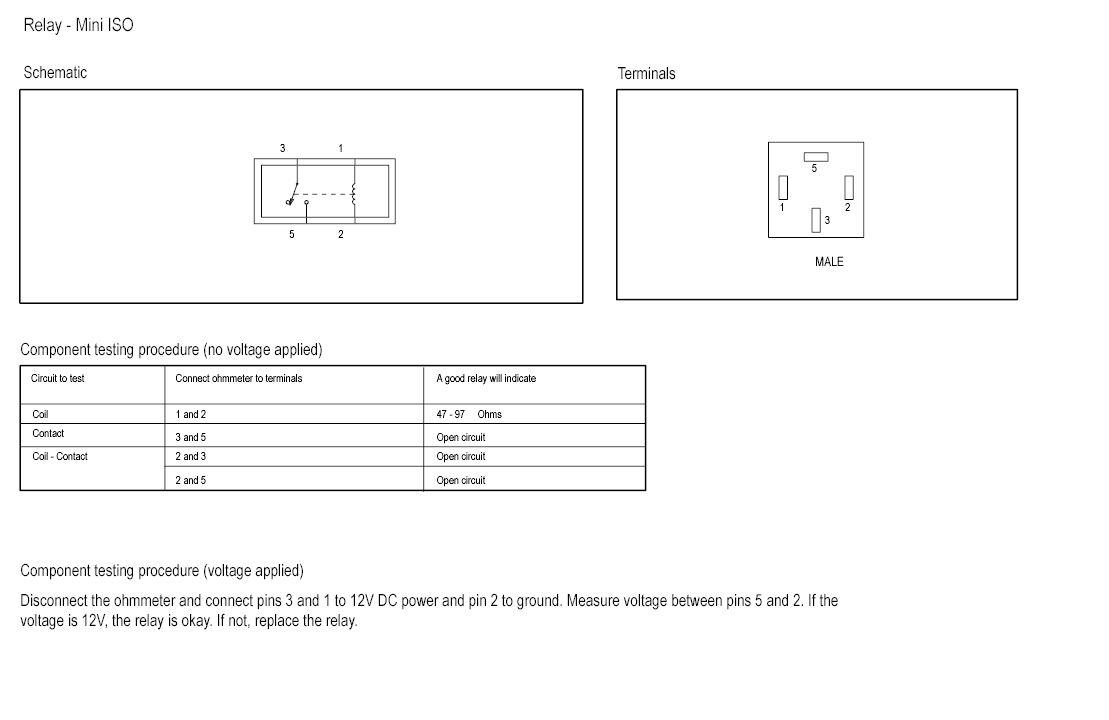

Fig 11: Relay - Mini ISO Component Testing

Courtesy of FORD MOTOR COMPANY

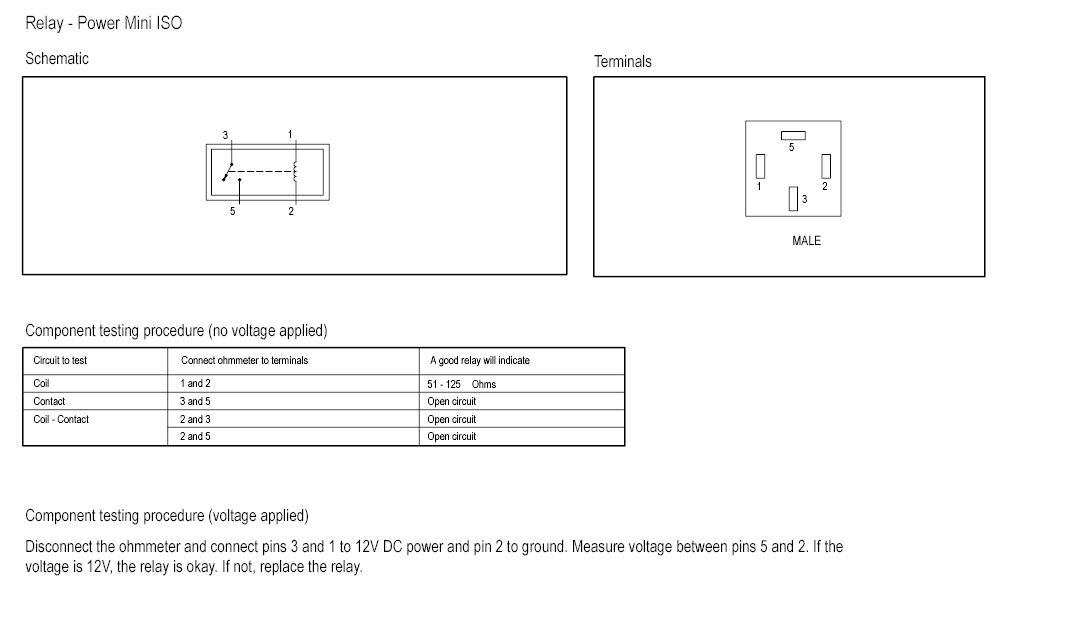

Fig 12: Relay - Power Mini ISO Component Testing

Courtesy of FORD MOTOR COMPANY
