Section 1470 (OEM Wiring Diagrams (Except Electric))
>>
Reversing Lamps
Reversing Lamps
WARNING:
This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

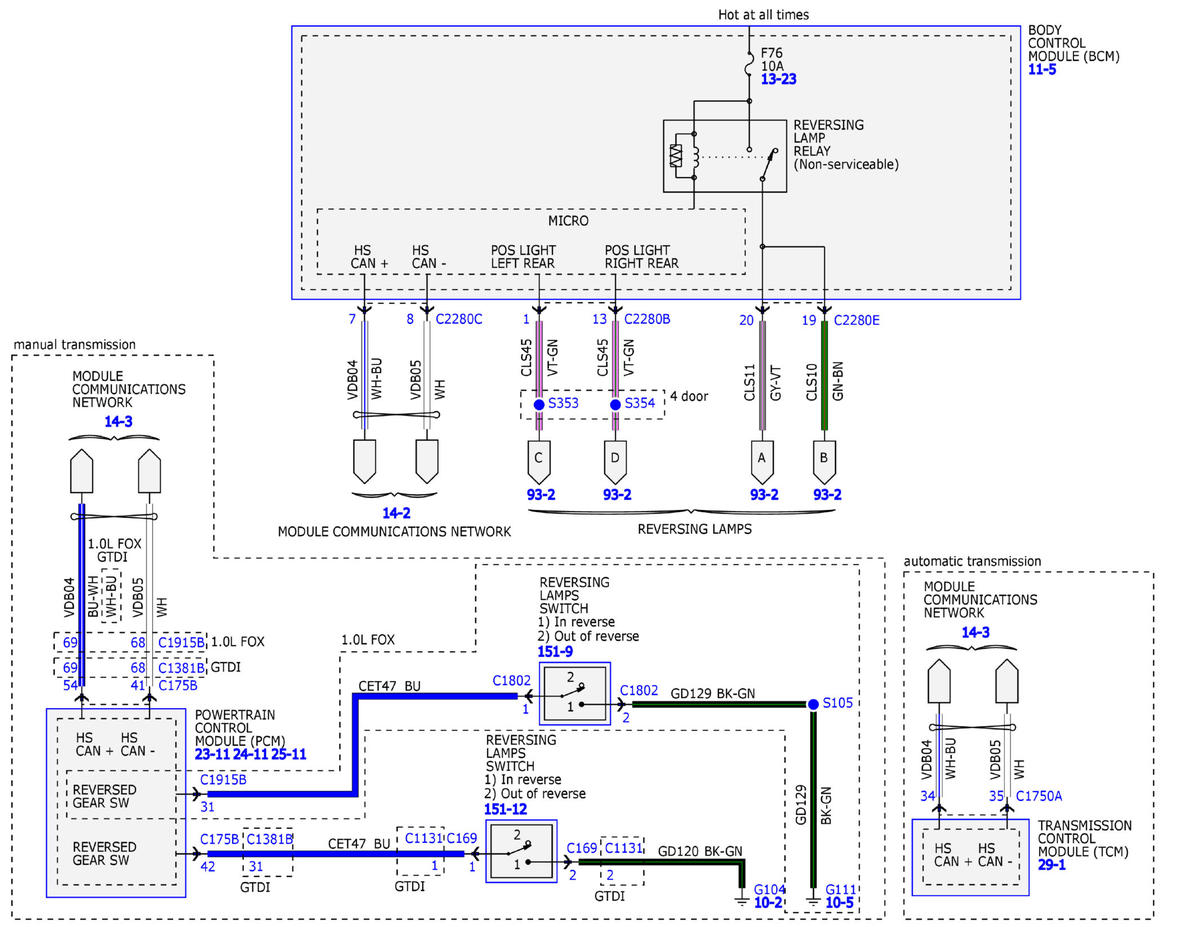

Fig 1: Reversing Lamps System Wiring Diagrams (1 Of 2)
Courtesy of FORD MOTOR COMPANY

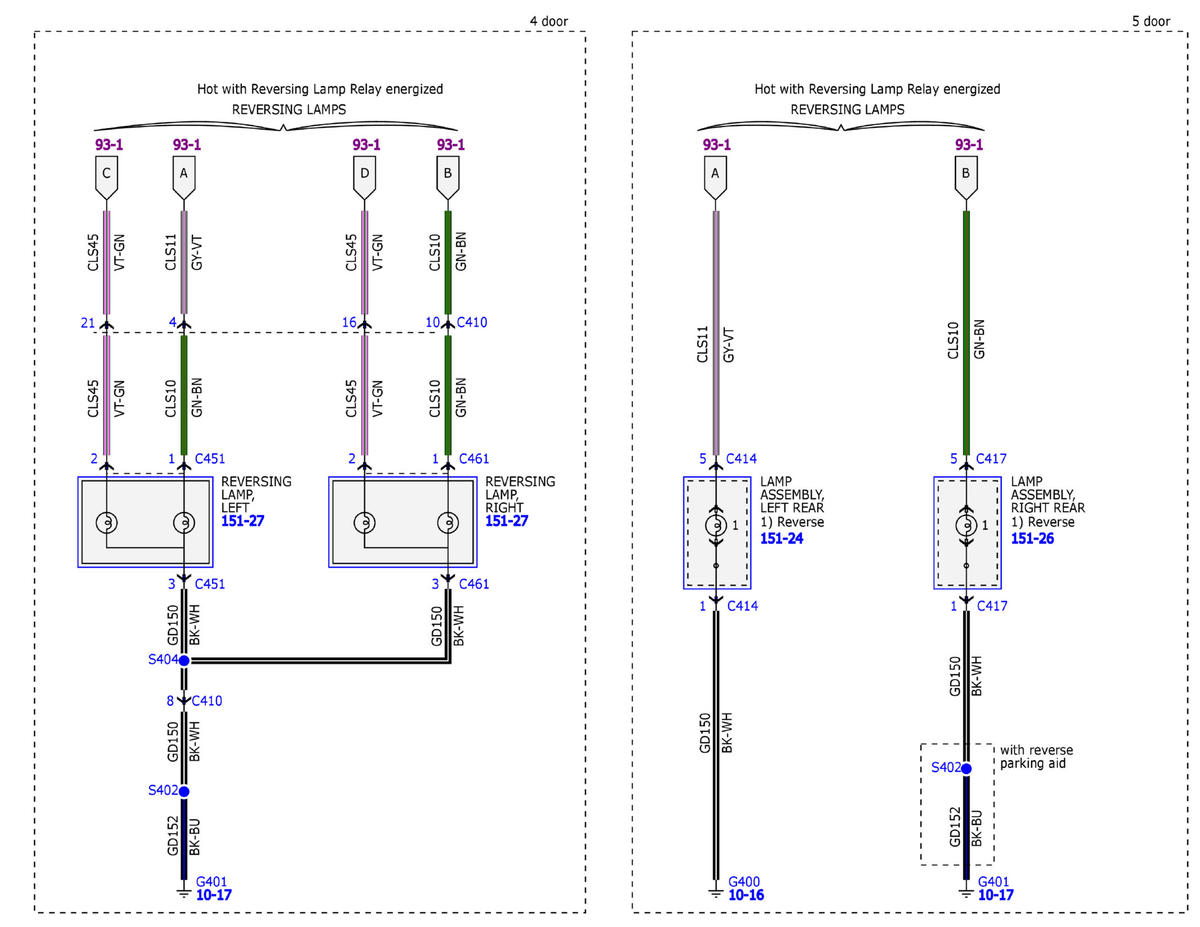

Fig 2: Reversing Lamps System Wiring Diagrams (2 Of 2)
Courtesy of FORD MOTOR COMPANY
