Remote Keyless Entry and Alarm

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

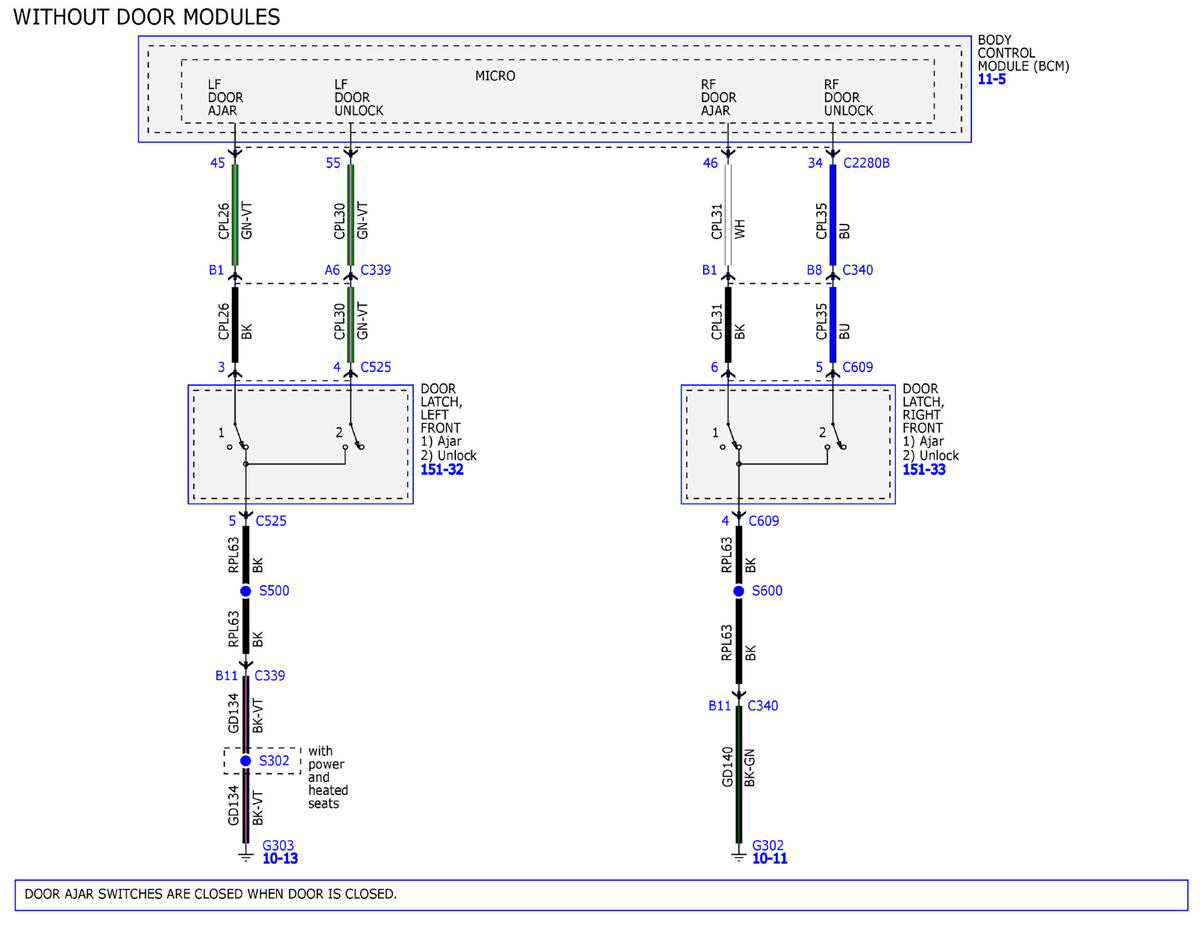

Fig 1: Remote Keyless Entry and Alarm System Wiring Diagrams (1 Of 14)

Courtesy of FORD MOTOR COMPANY

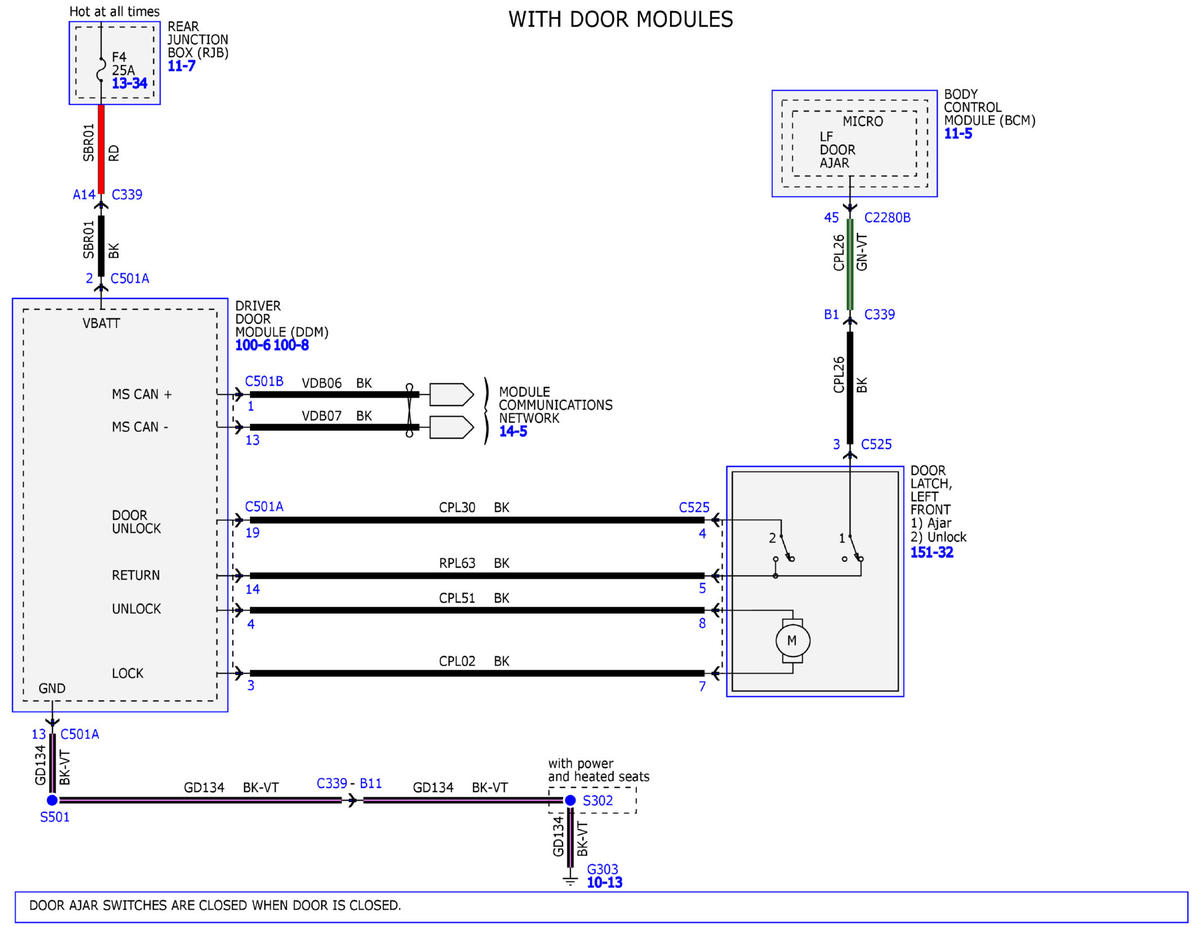

Fig 2: Remote Keyless Entry and Alarm System Wiring Diagrams (2 Of 14)

Courtesy of FORD MOTOR COMPANY

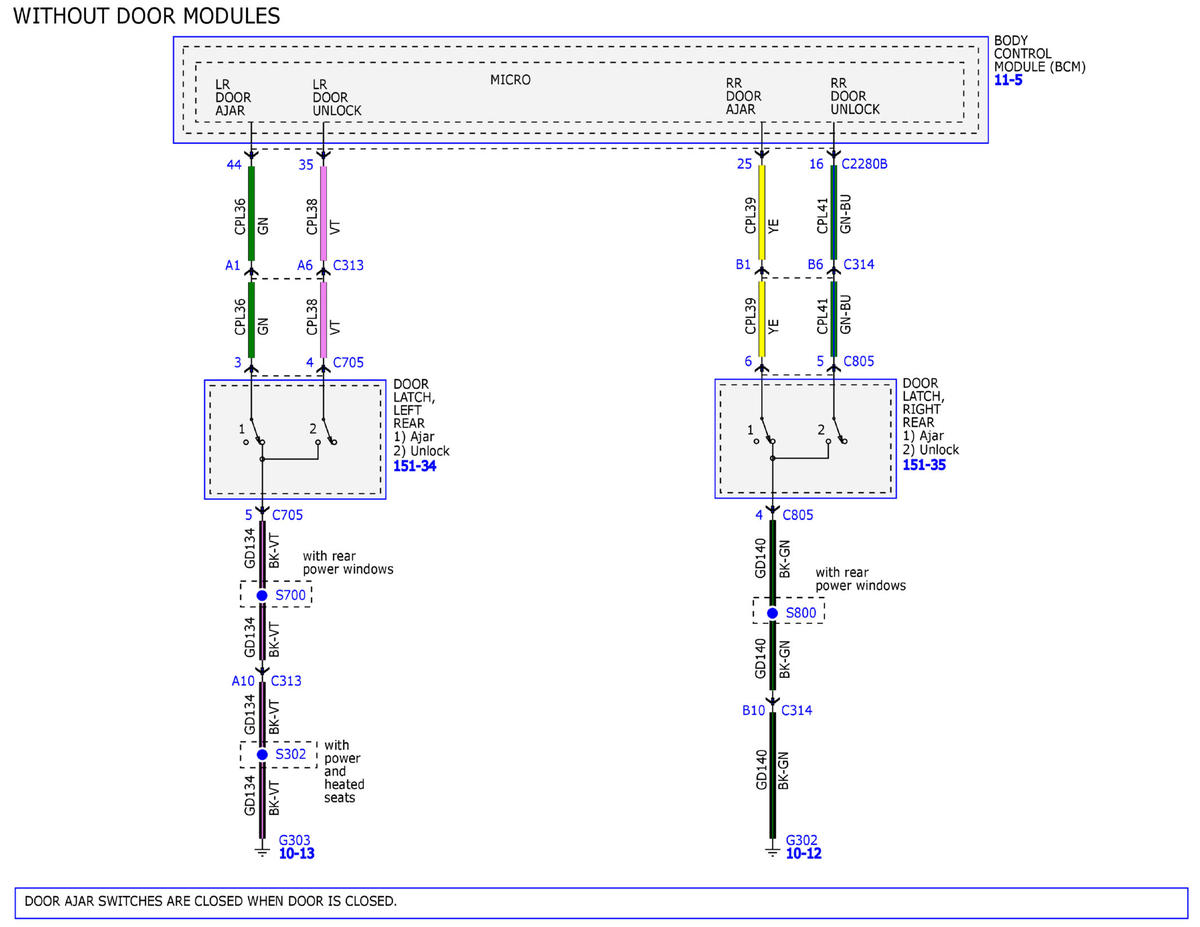

Fig 3: Remote Keyless Entry and Alarm System Wiring Diagrams (3 Of 14)

Courtesy of FORD MOTOR COMPANY

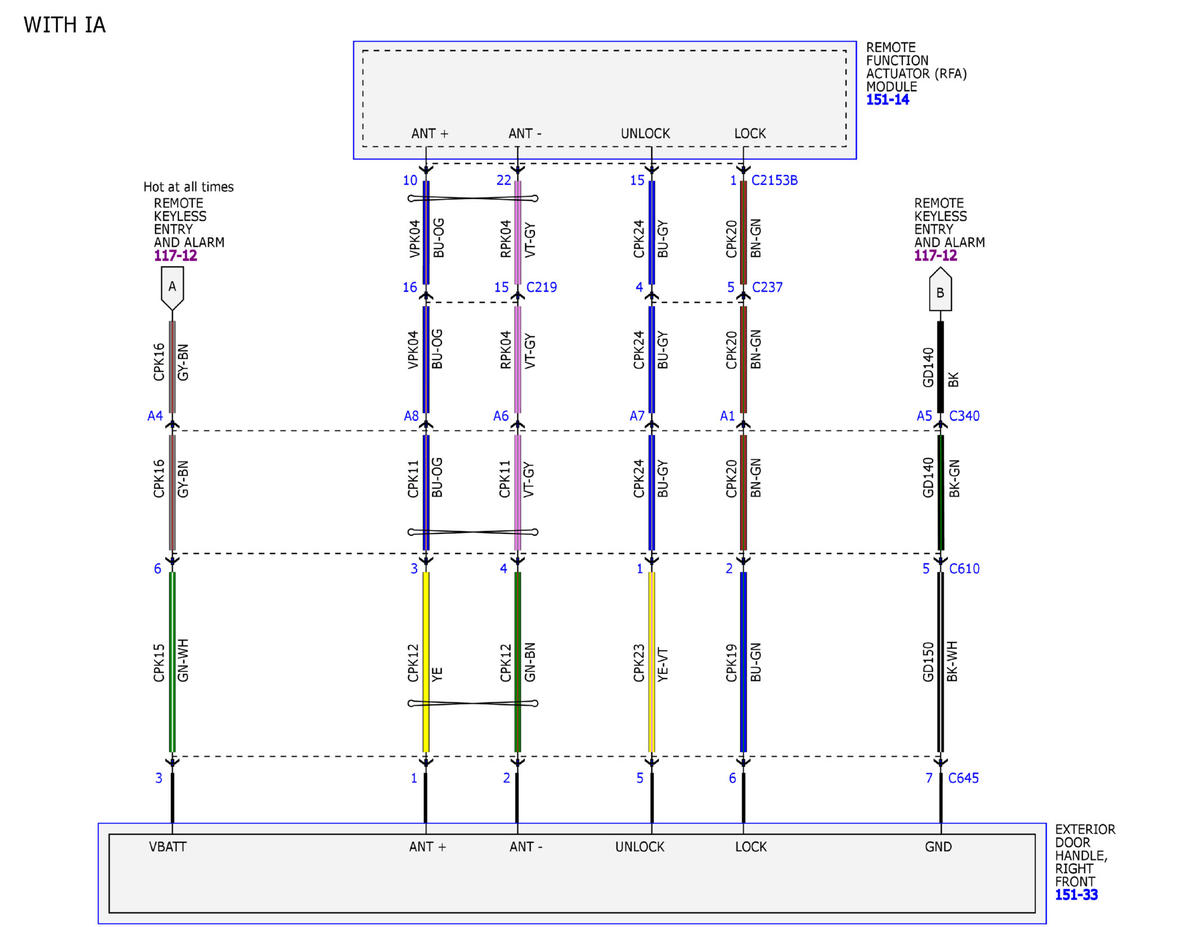

Fig 4: Remote Keyless Entry and Alarm System Wiring Diagrams (4 Of 14)

Courtesy of FORD MOTOR COMPANY

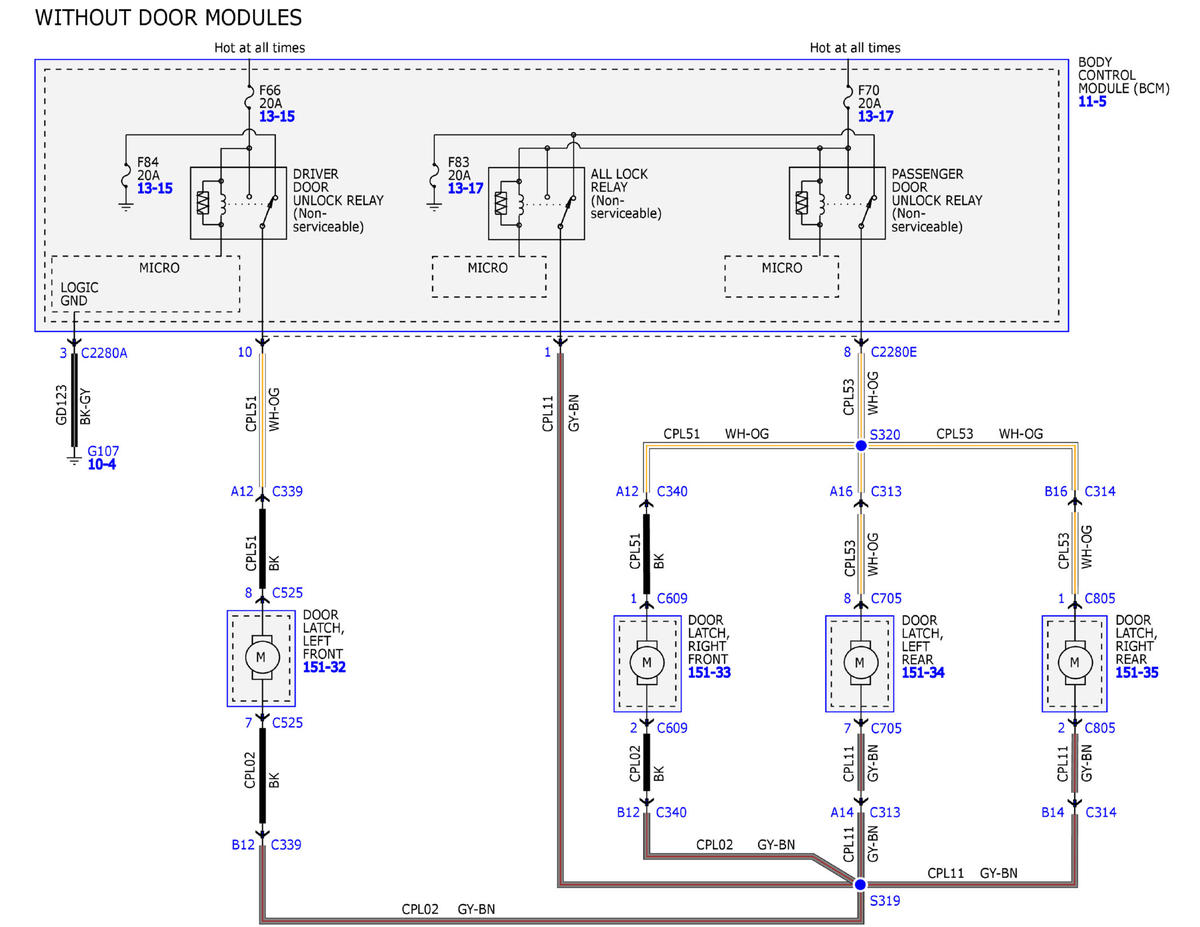

Fig 5: Remote Keyless Entry and Alarm System Wiring Diagrams (5 Of 14)

Courtesy of FORD MOTOR COMPANY

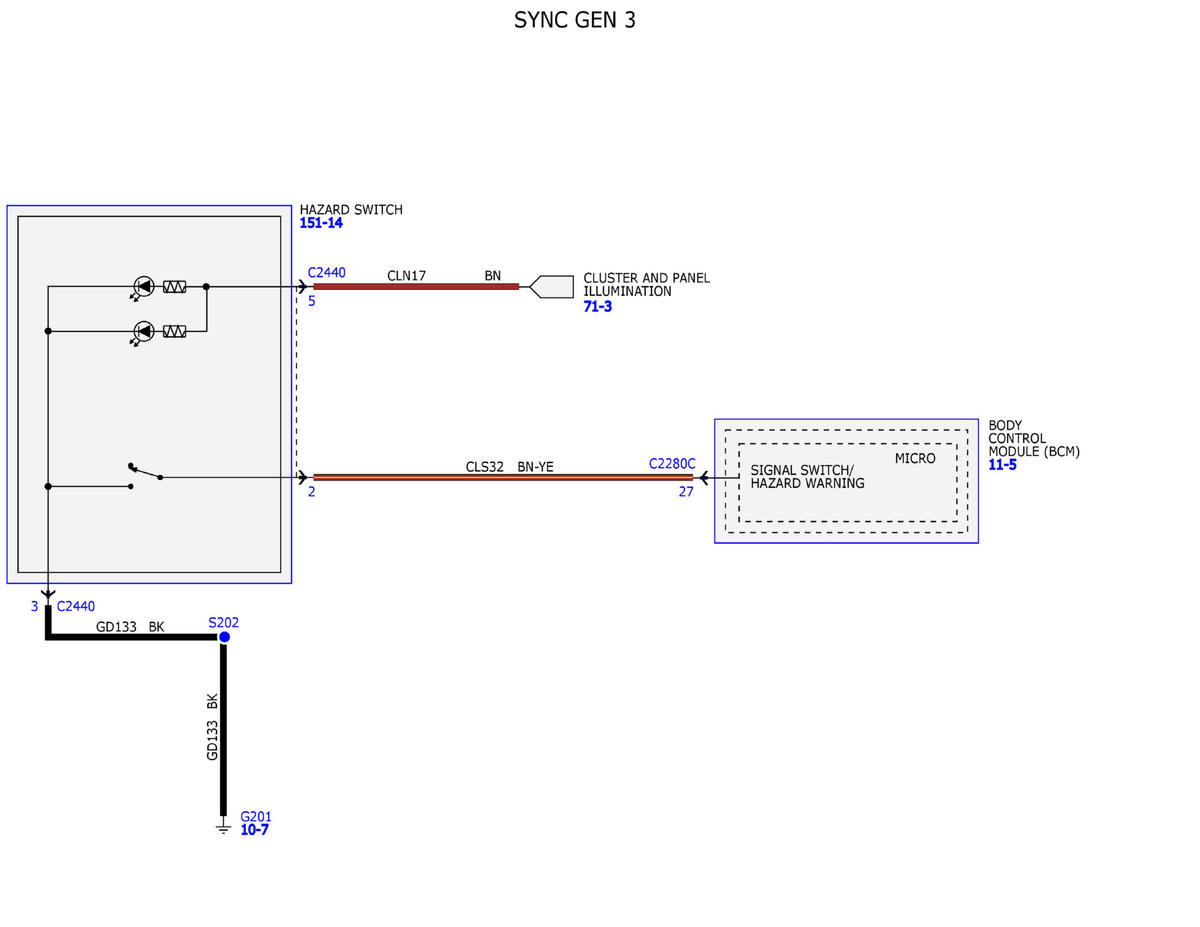

Fig 6: Remote Keyless Entry and Alarm System Wiring Diagrams (6 Of 14)

Courtesy of FORD MOTOR COMPANY

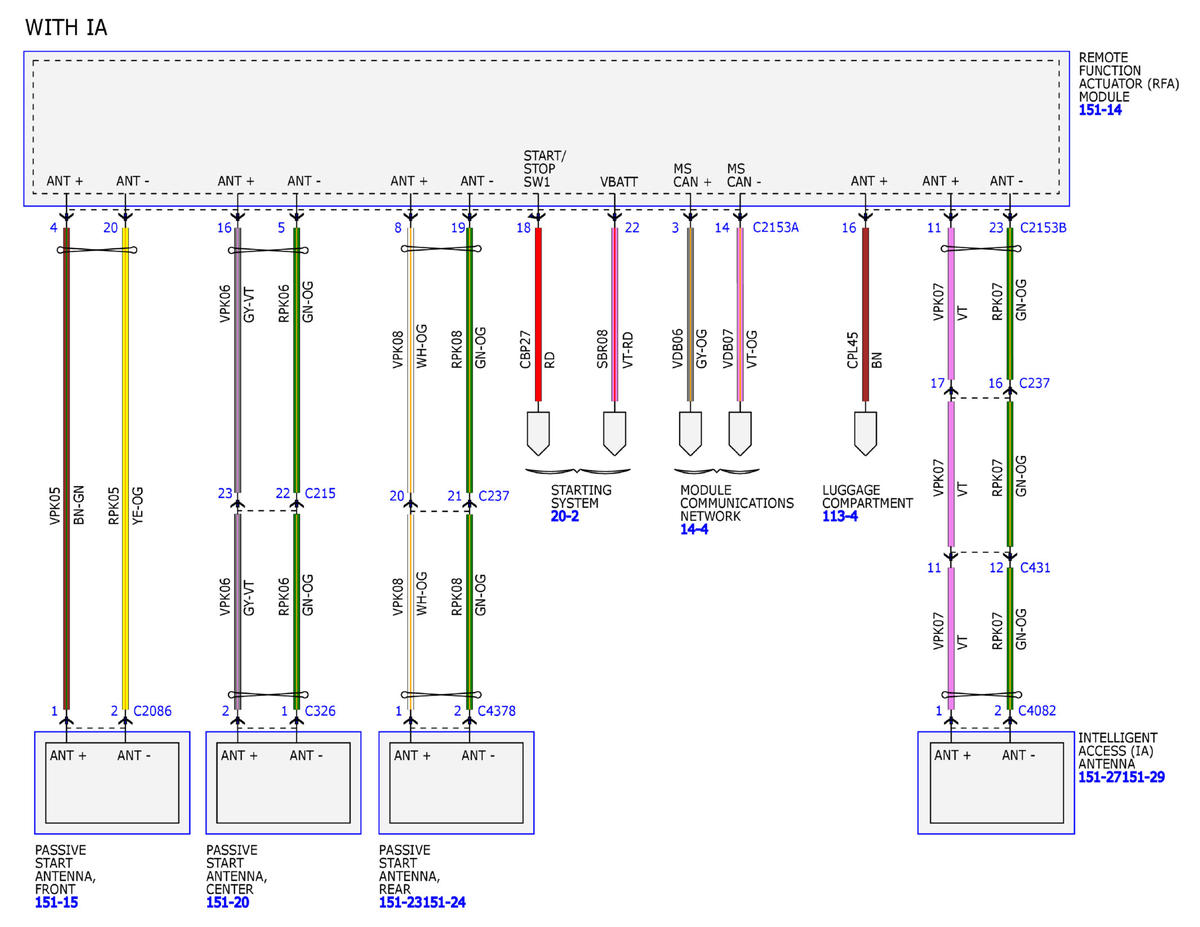

Fig 7: Remote Keyless Entry and Alarm System Wiring Diagrams (7 Of 14)

Courtesy of FORD MOTOR COMPANY

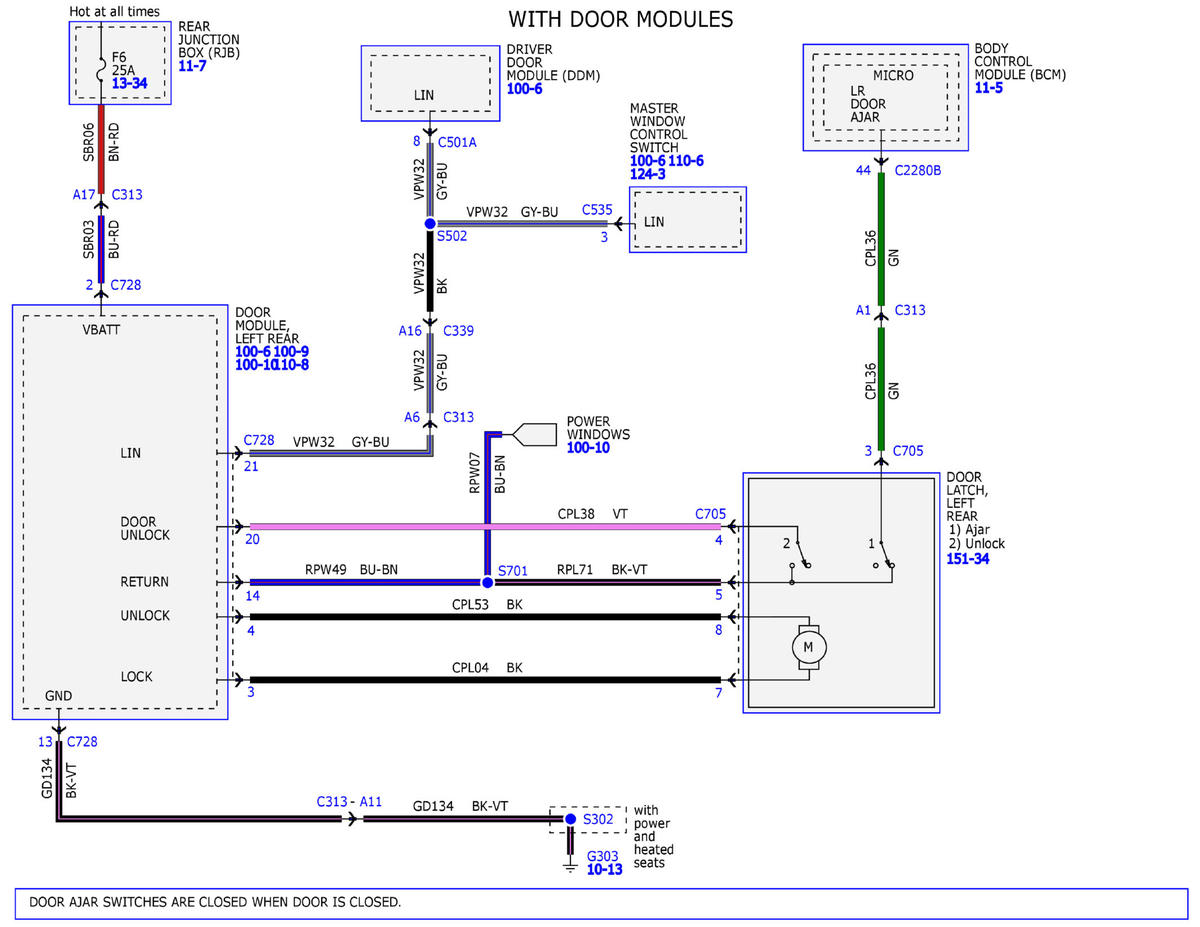

Fig 8: Remote Keyless Entry and Alarm System Wiring Diagrams (8 Of 14)

Courtesy of FORD MOTOR COMPANY

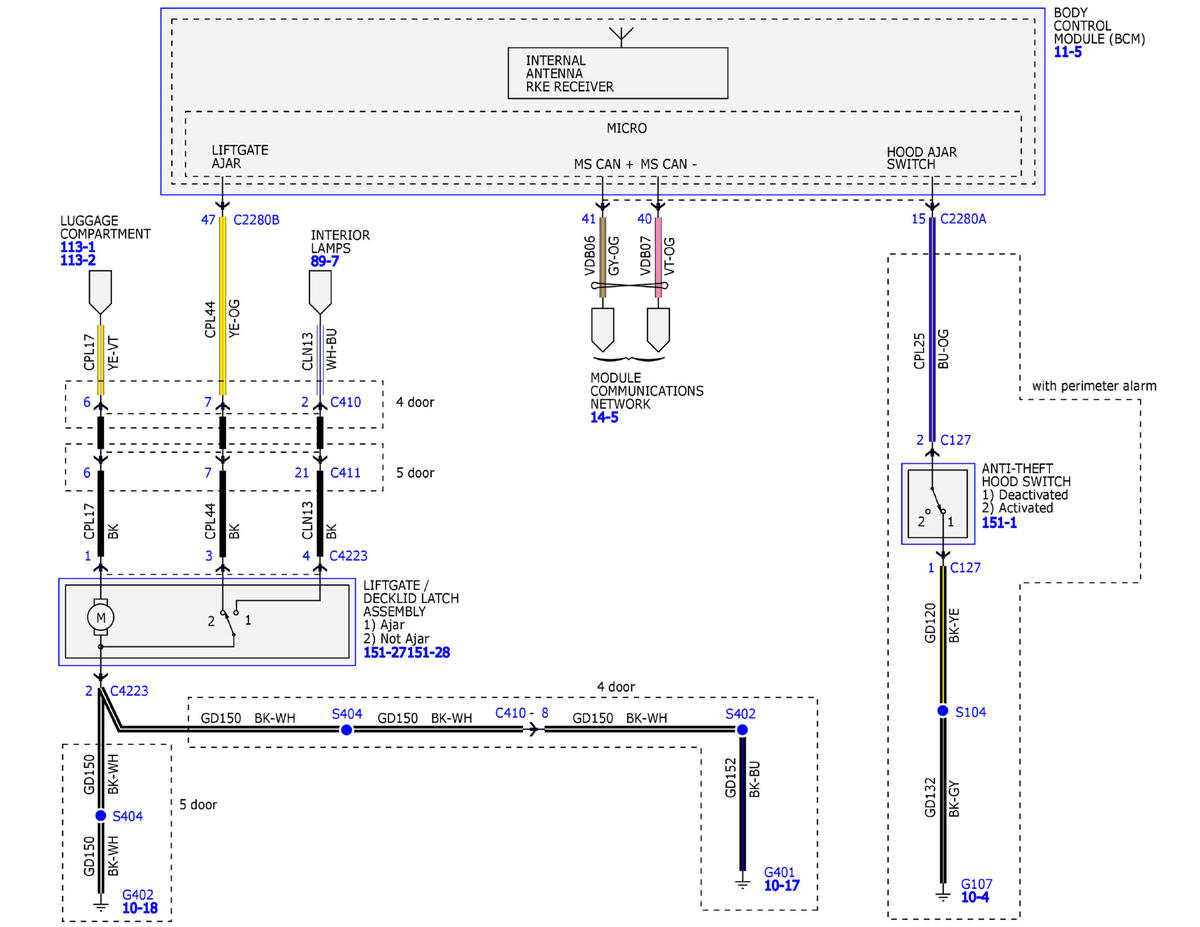

Fig 9: Remote Keyless Entry and Alarm System Wiring Diagrams (9 Of 14)

Courtesy of FORD MOTOR COMPANY

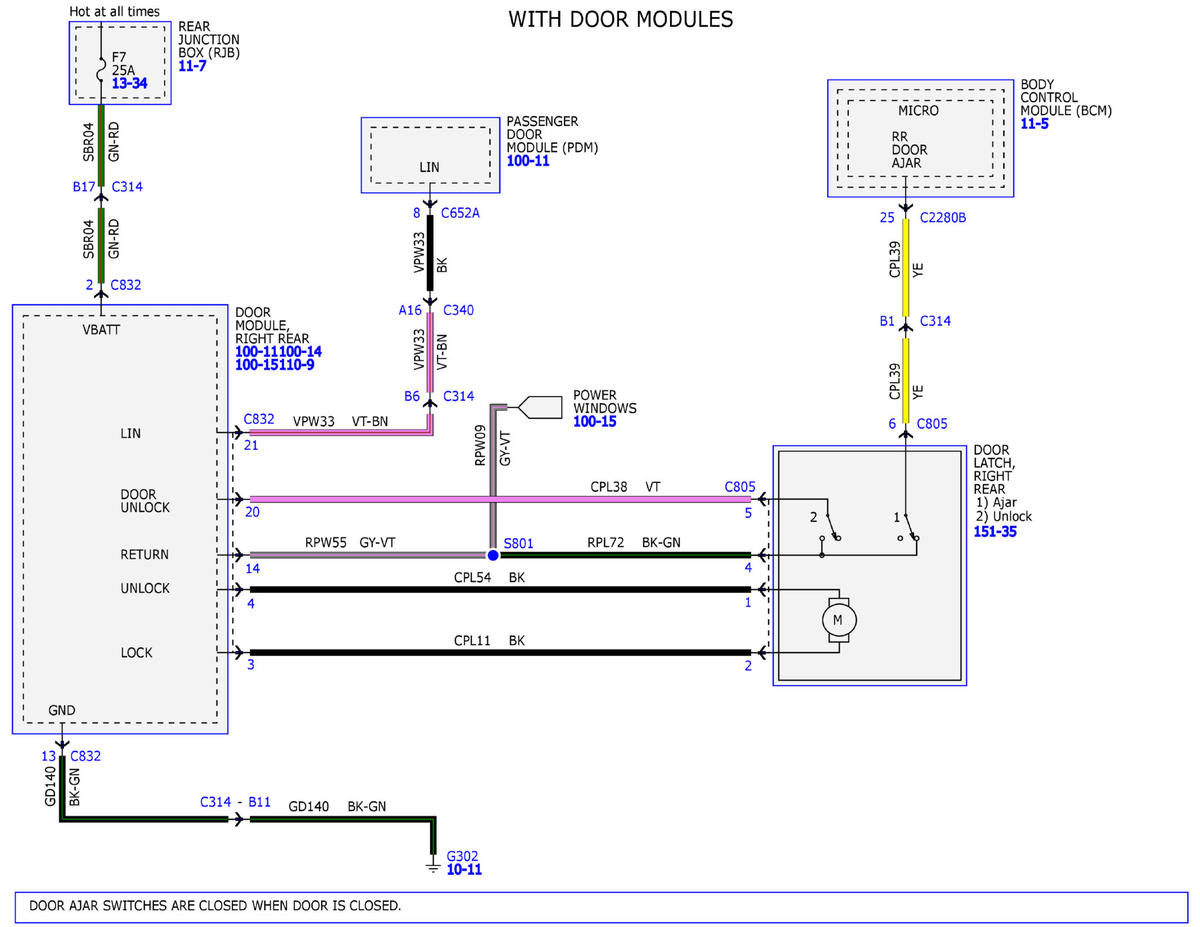

Fig 10: Remote Keyless Entry and Alarm System Wiring Diagrams (10 Of 14)

Courtesy of FORD MOTOR COMPANY

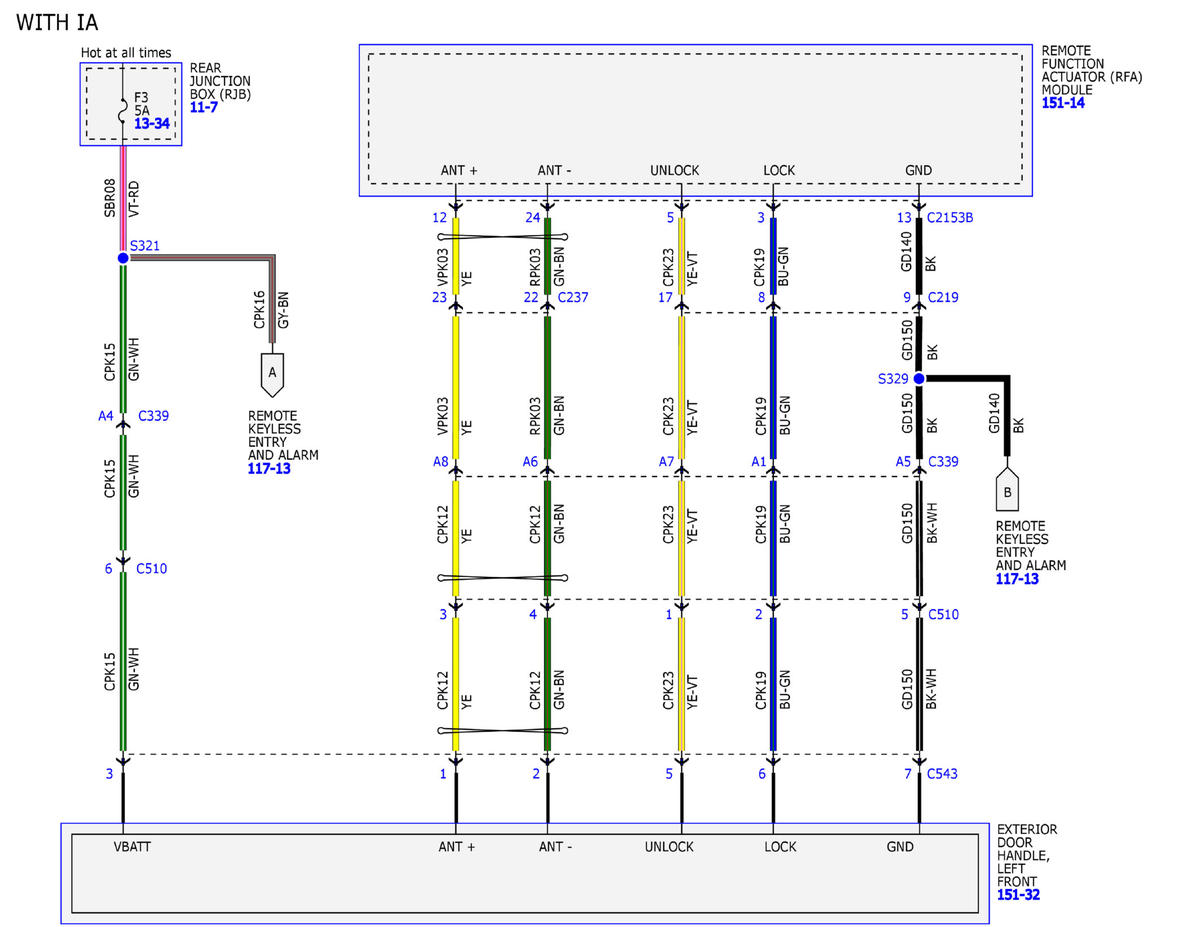

Fig 11: Remote Keyless Entry and Alarm System Wiring Diagrams (11 Of 14)

Courtesy of FORD MOTOR COMPANY

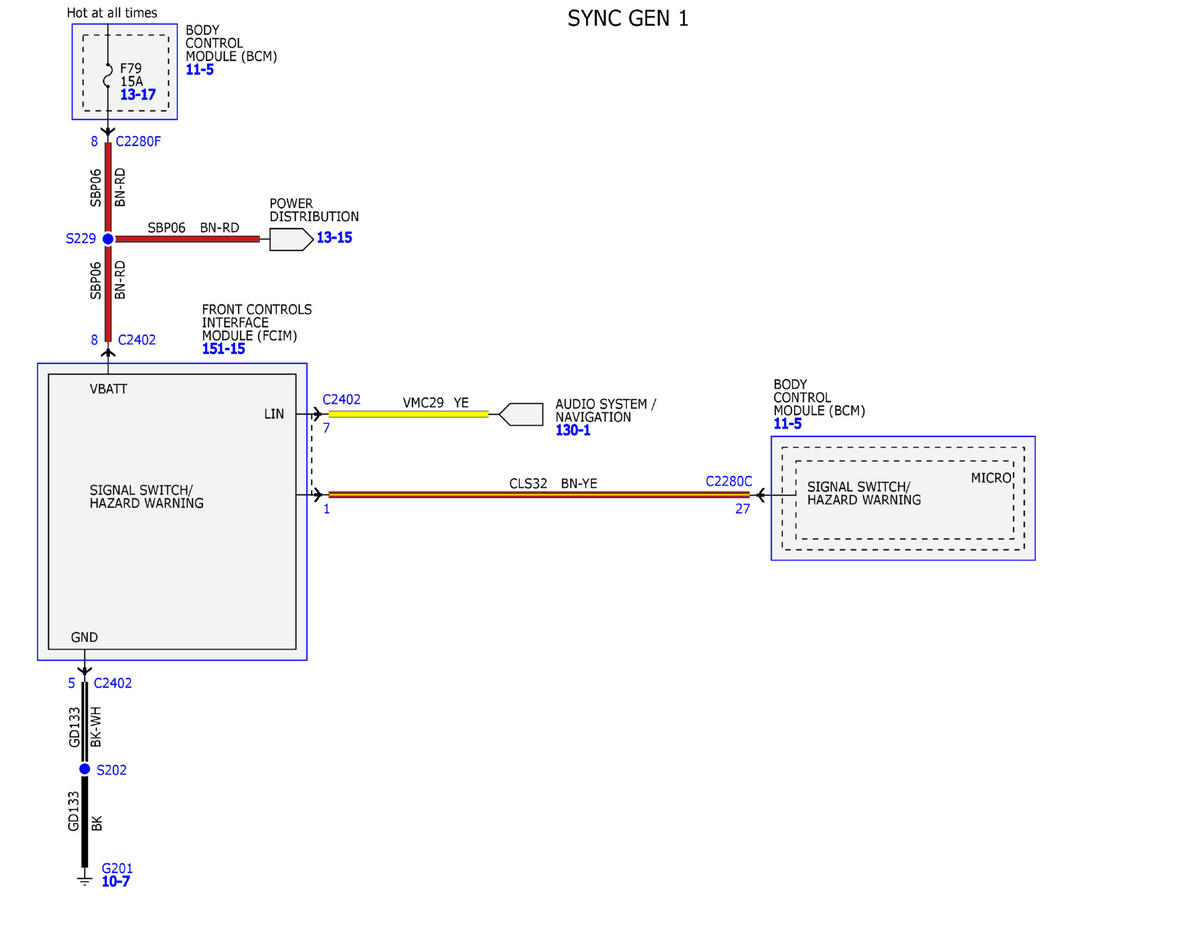

Fig 12: Remote Keyless Entry and Alarm System Wiring Diagrams (12 Of 14)

Courtesy of FORD MOTOR COMPANY

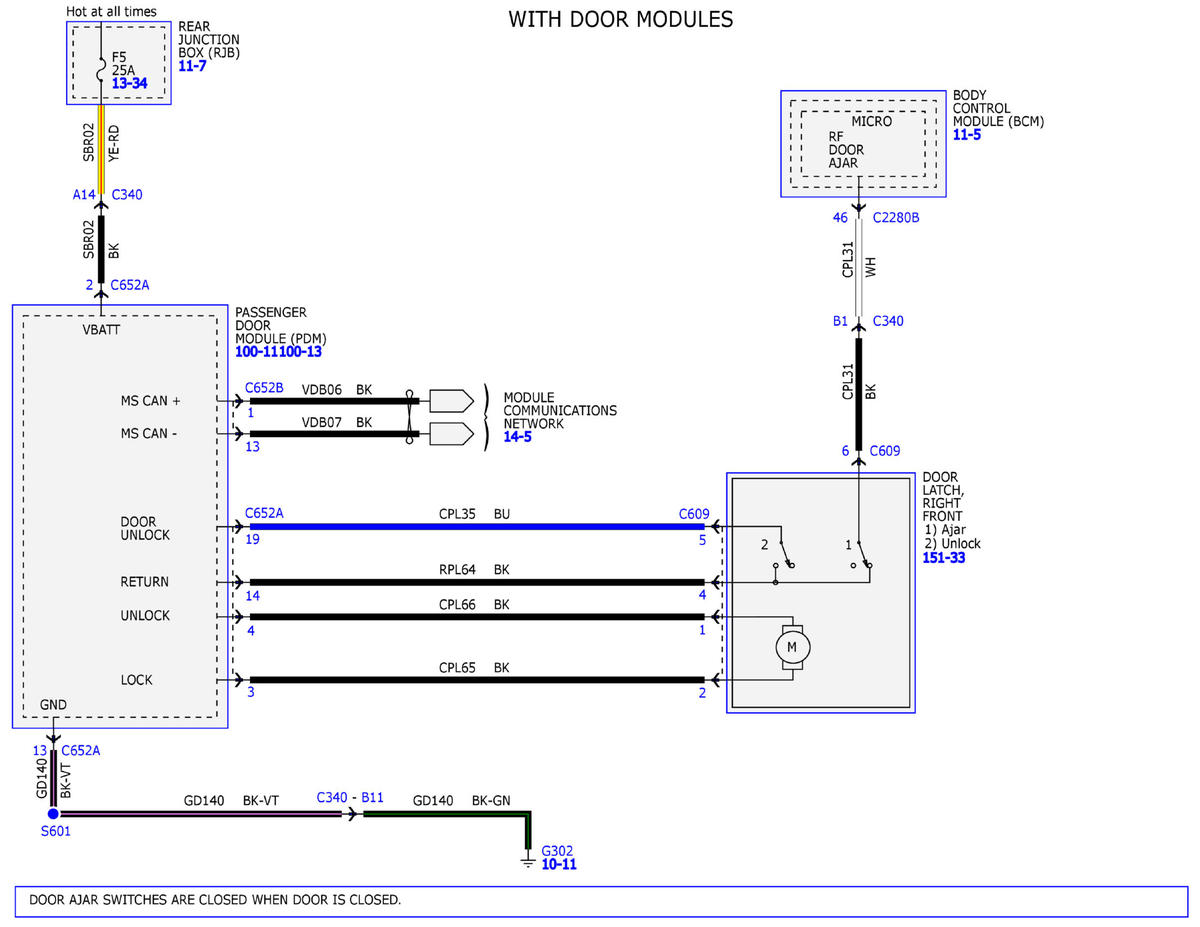

Fig 13: Remote Keyless Entry and Alarm System Wiring Diagrams (13 Of 14)

Courtesy of FORD MOTOR COMPANY

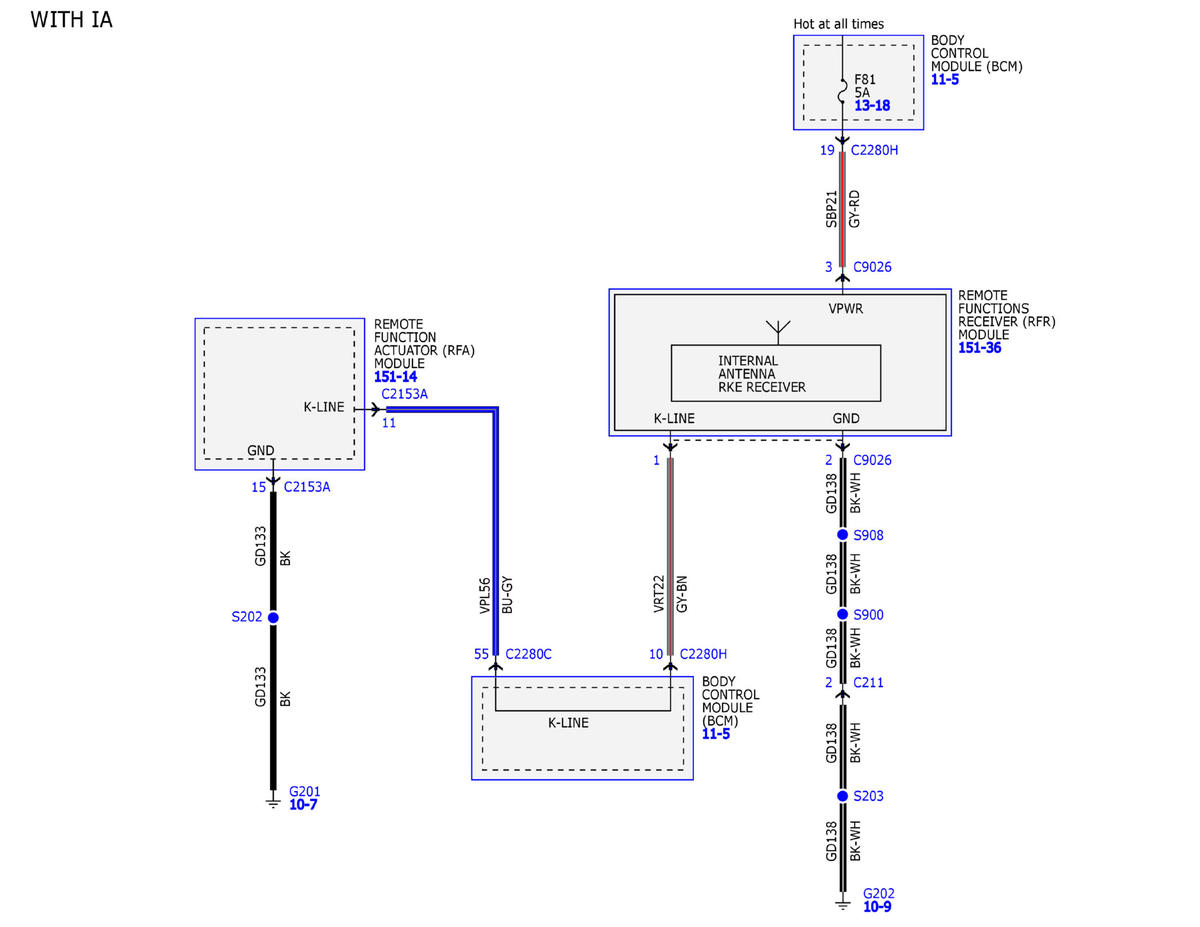

Fig 14: Remote Keyless Entry and Alarm System Wiring Diagrams (14 Of 14)

Courtesy of FORD MOTOR COMPANY
