Power Windows

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

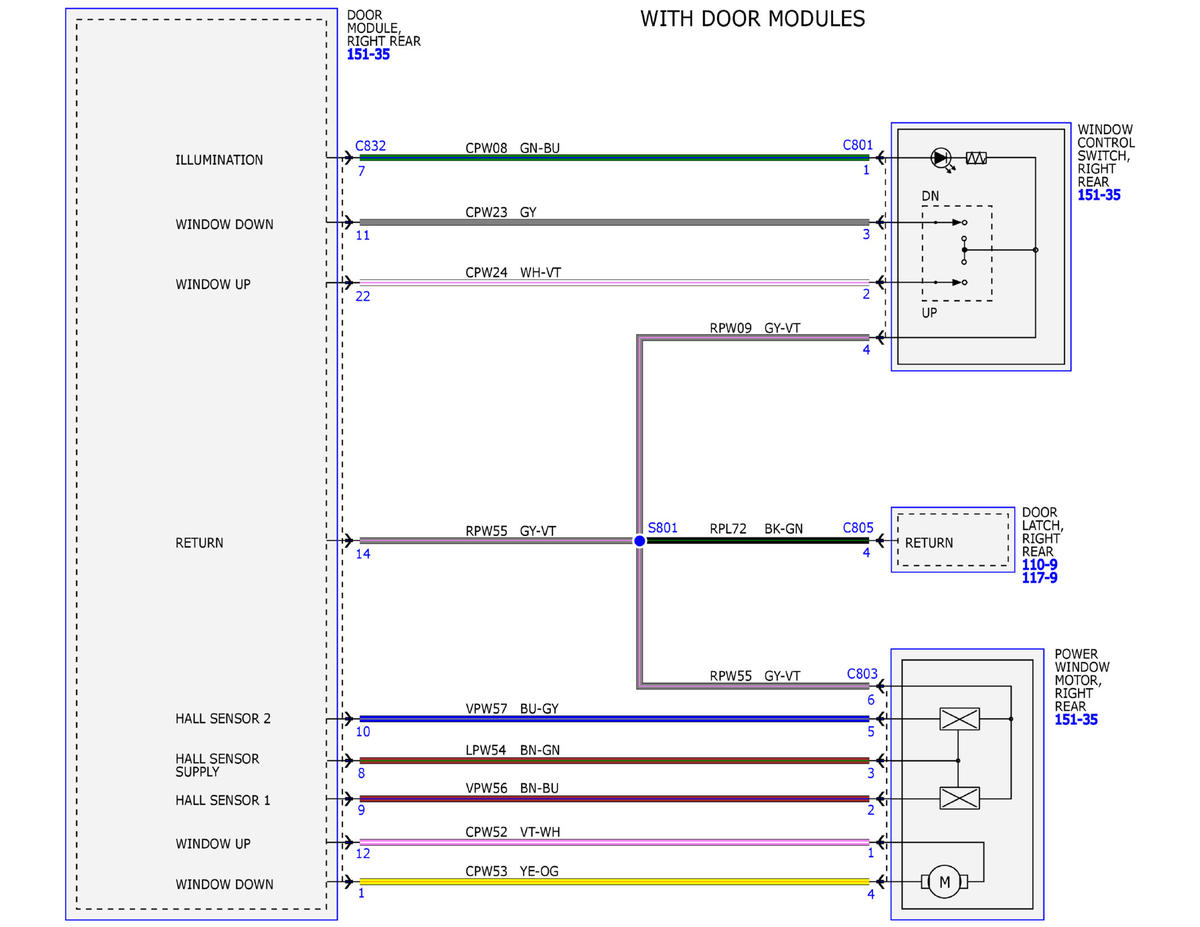

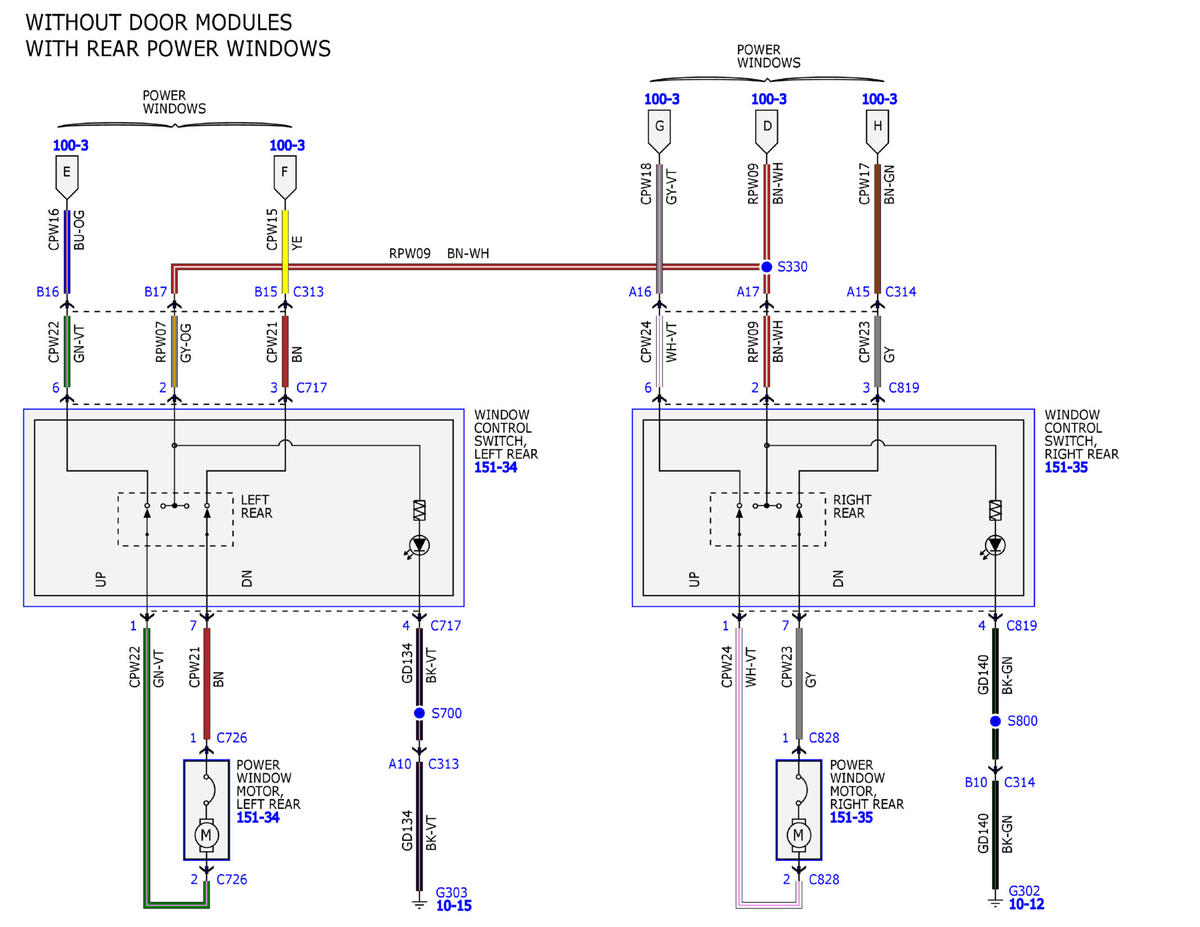

Fig 1: Power Windows System Wiring Diagrams (1 Of 15)

Courtesy of FORD MOTOR COMPANY

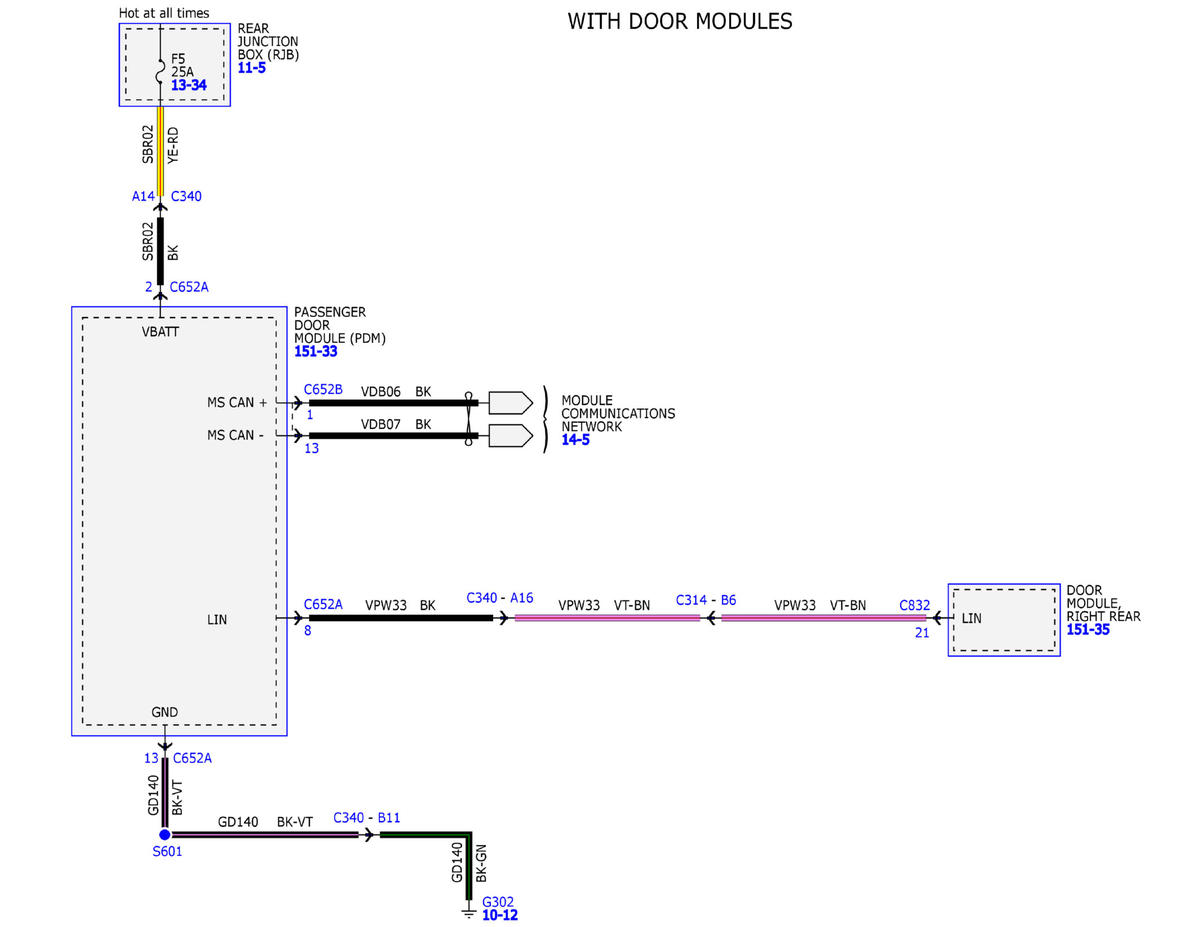

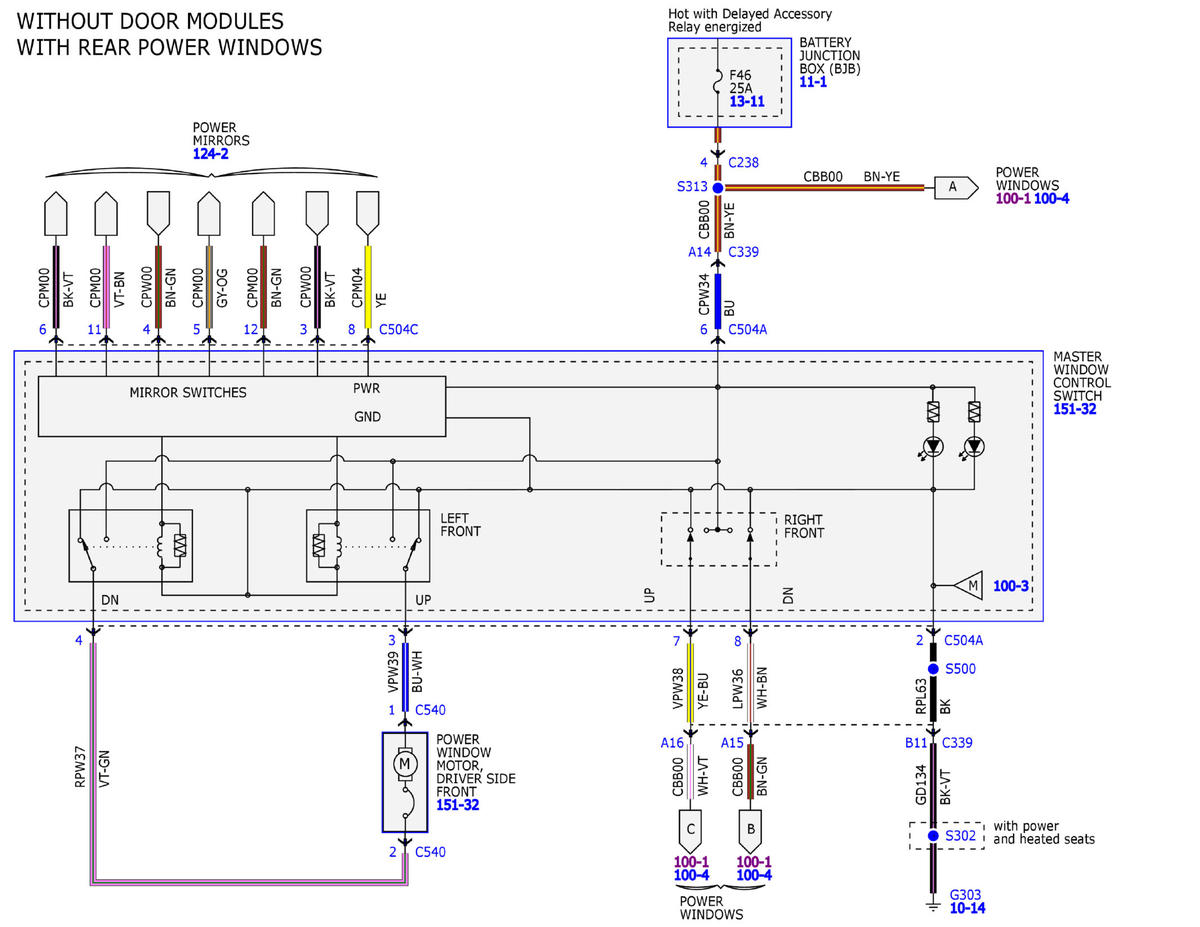

Fig 2: Power Windows System Wiring Diagrams (2 Of 15)

Courtesy of FORD MOTOR COMPANY

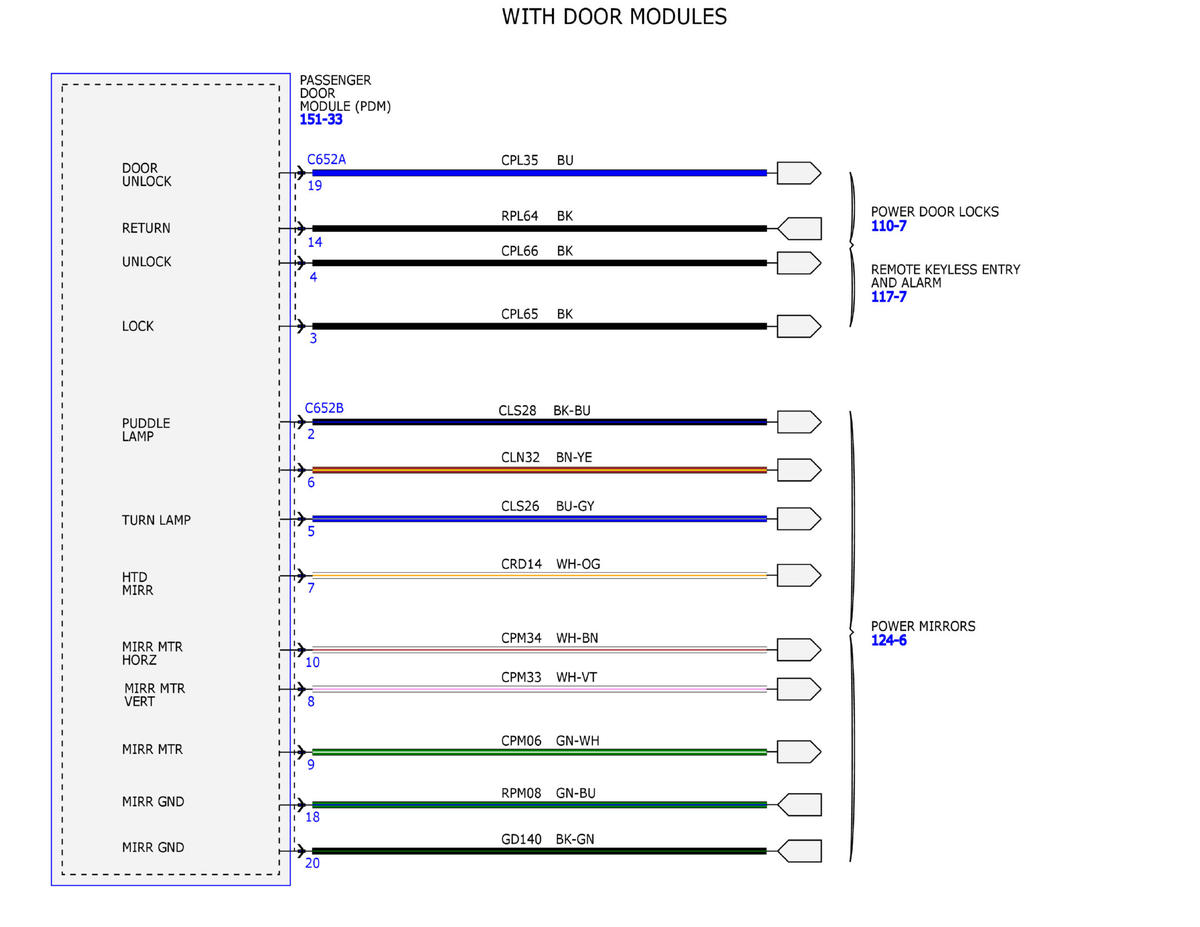

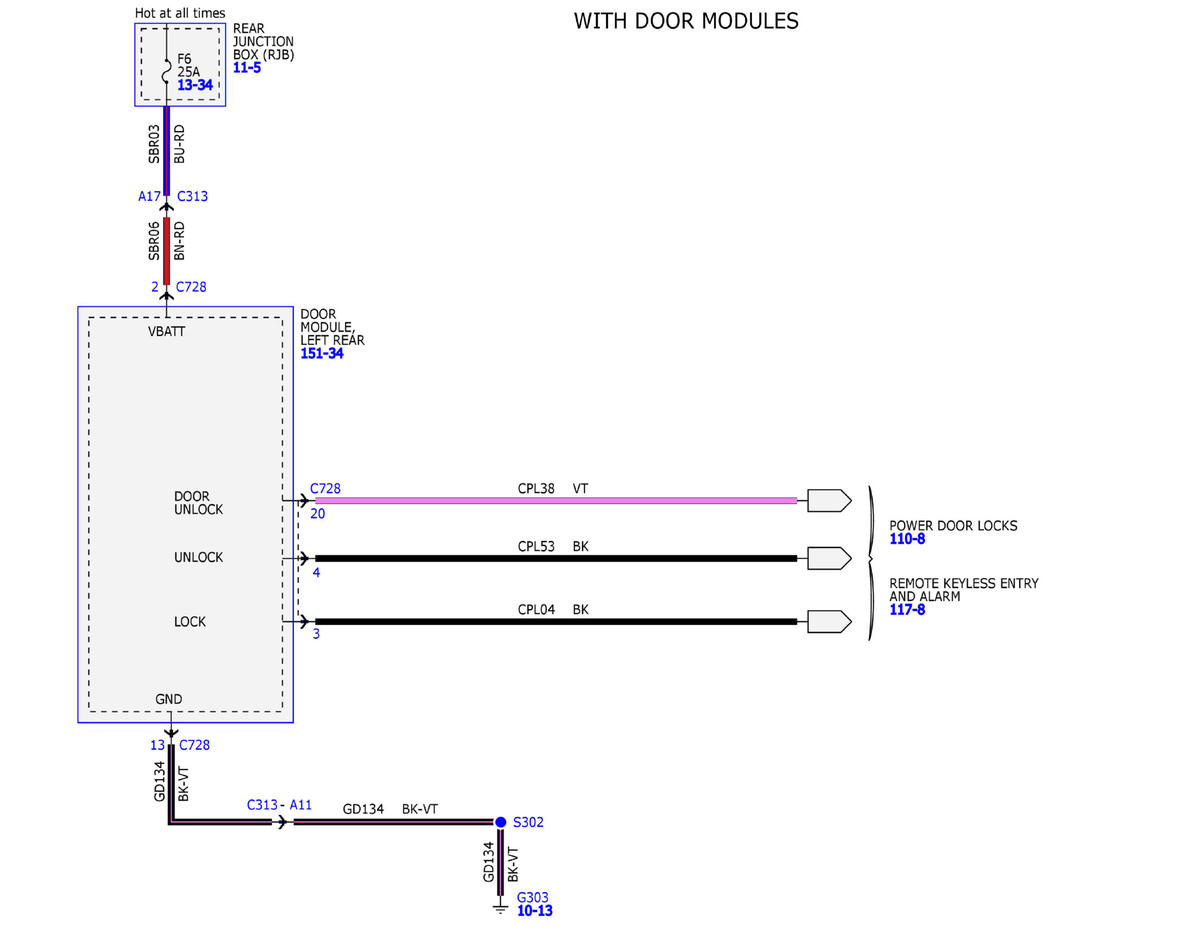

Fig 3: Power Windows System Wiring Diagrams (3 Of 15)

Courtesy of FORD MOTOR COMPANY

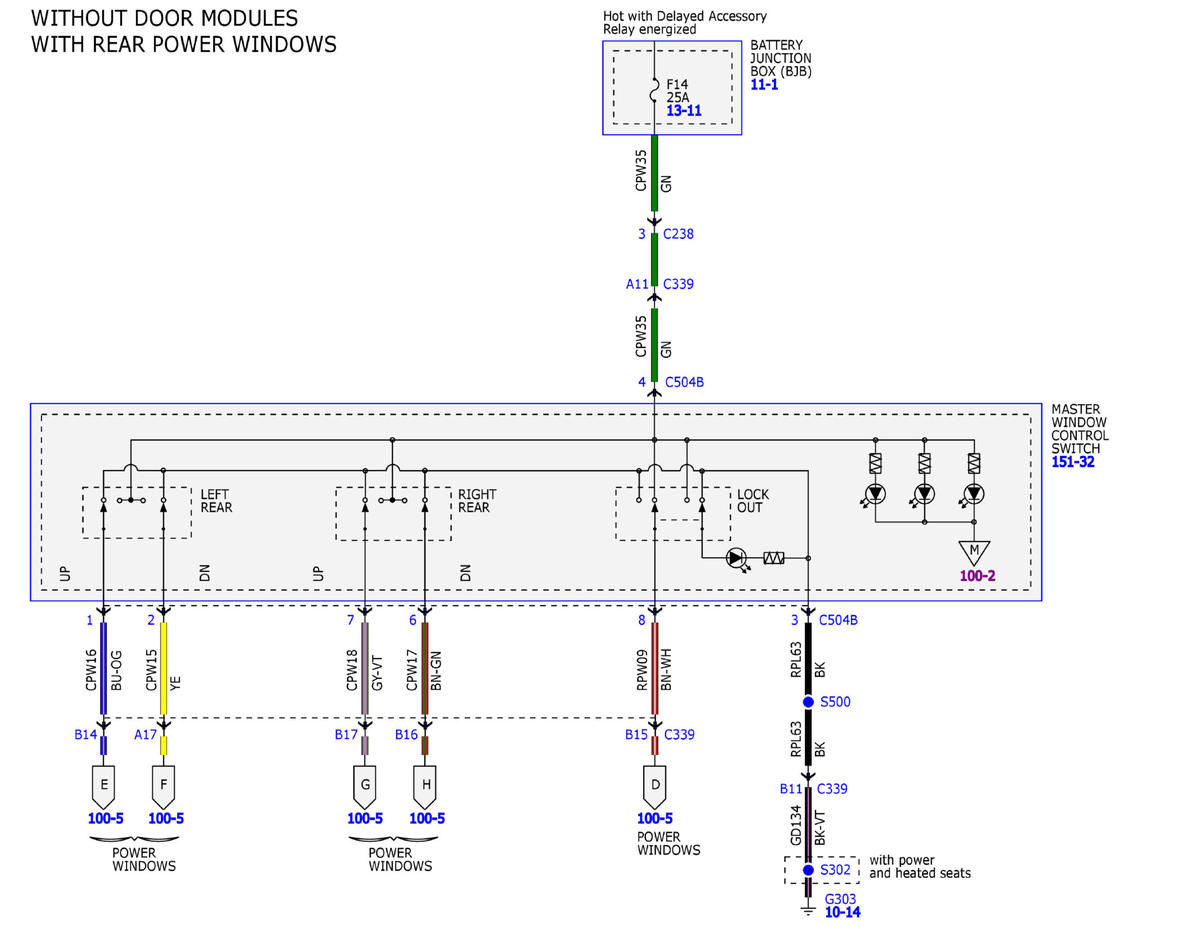

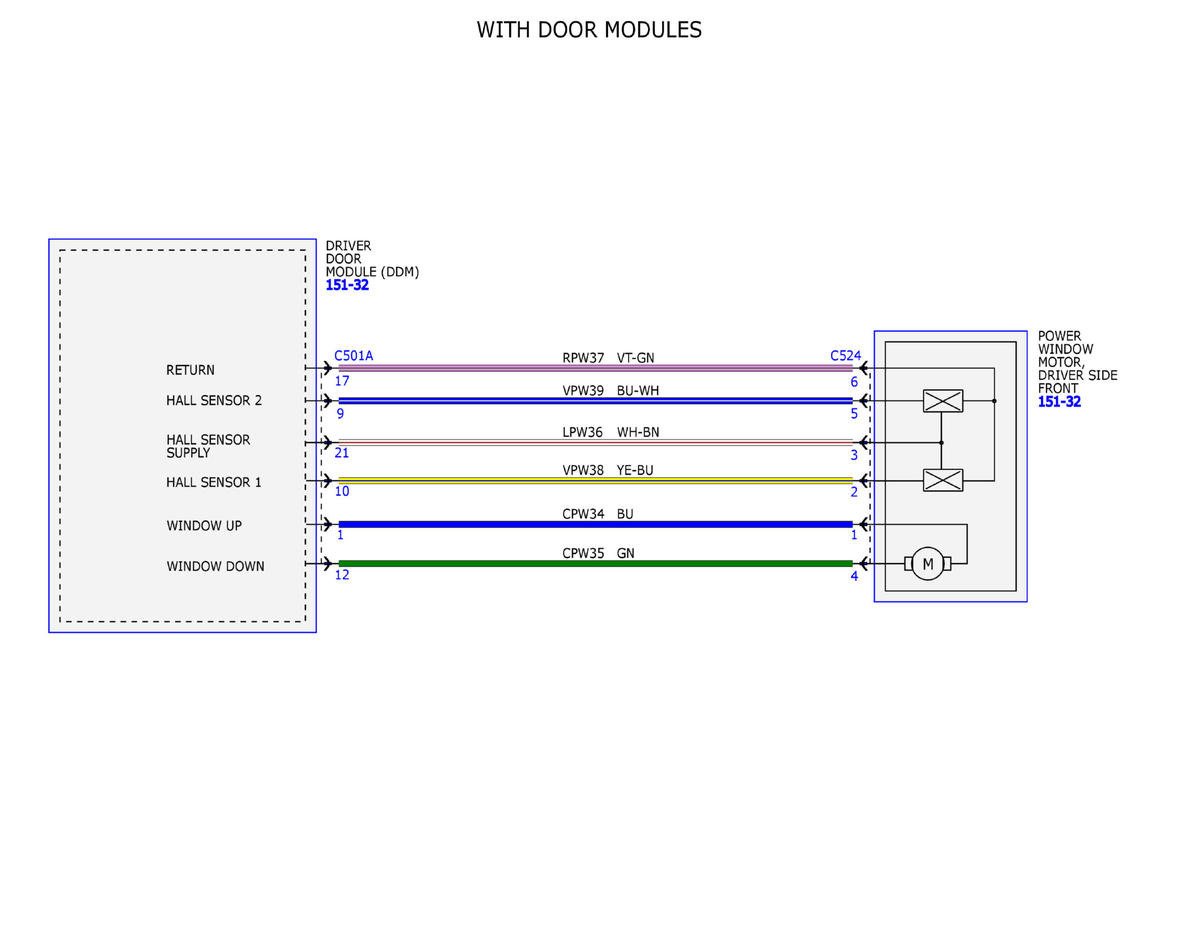

Fig 4: Power Windows System Wiring Diagrams (4 Of 15)

Courtesy of FORD MOTOR COMPANY

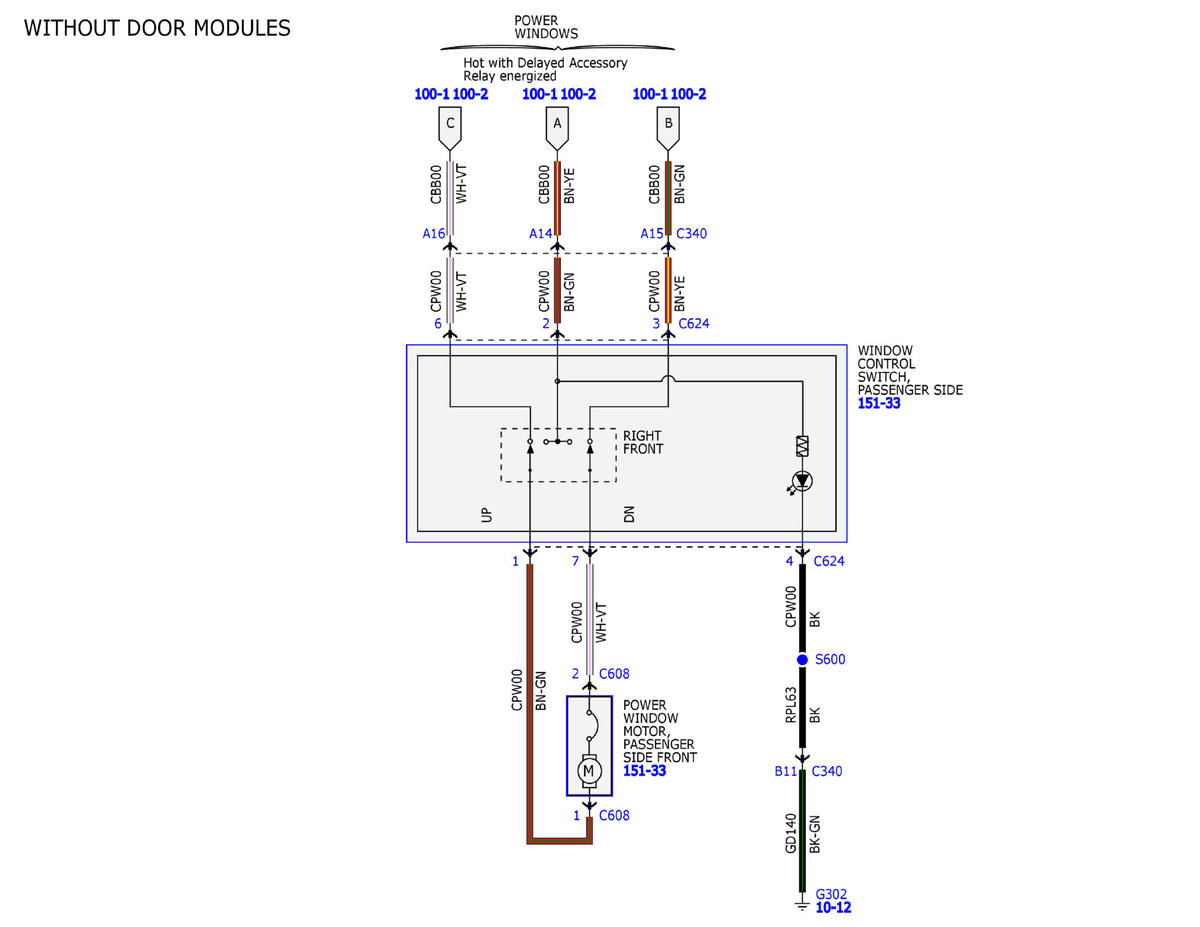

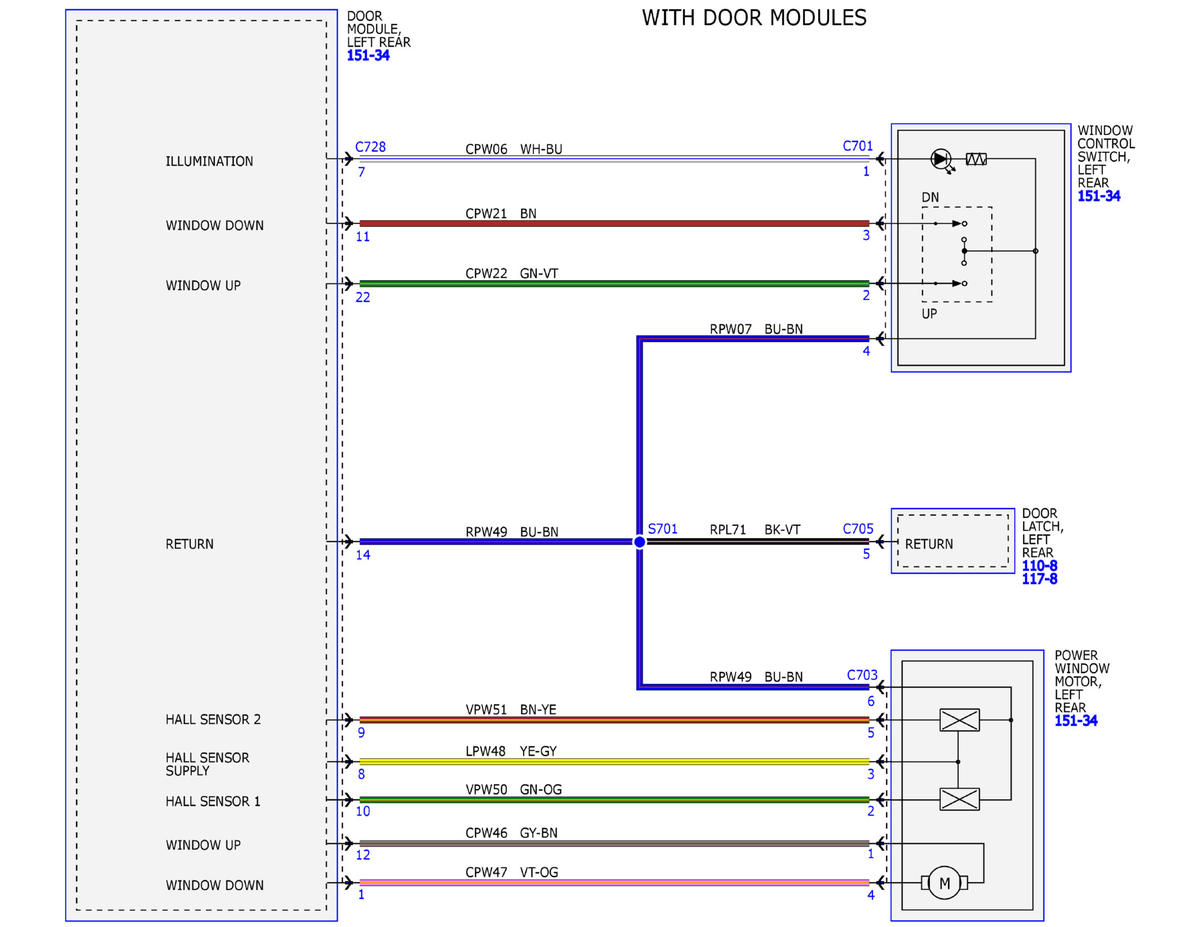

Fig 5: Power Windows System Wiring Diagrams (5 Of 15)

Courtesy of FORD MOTOR COMPANY

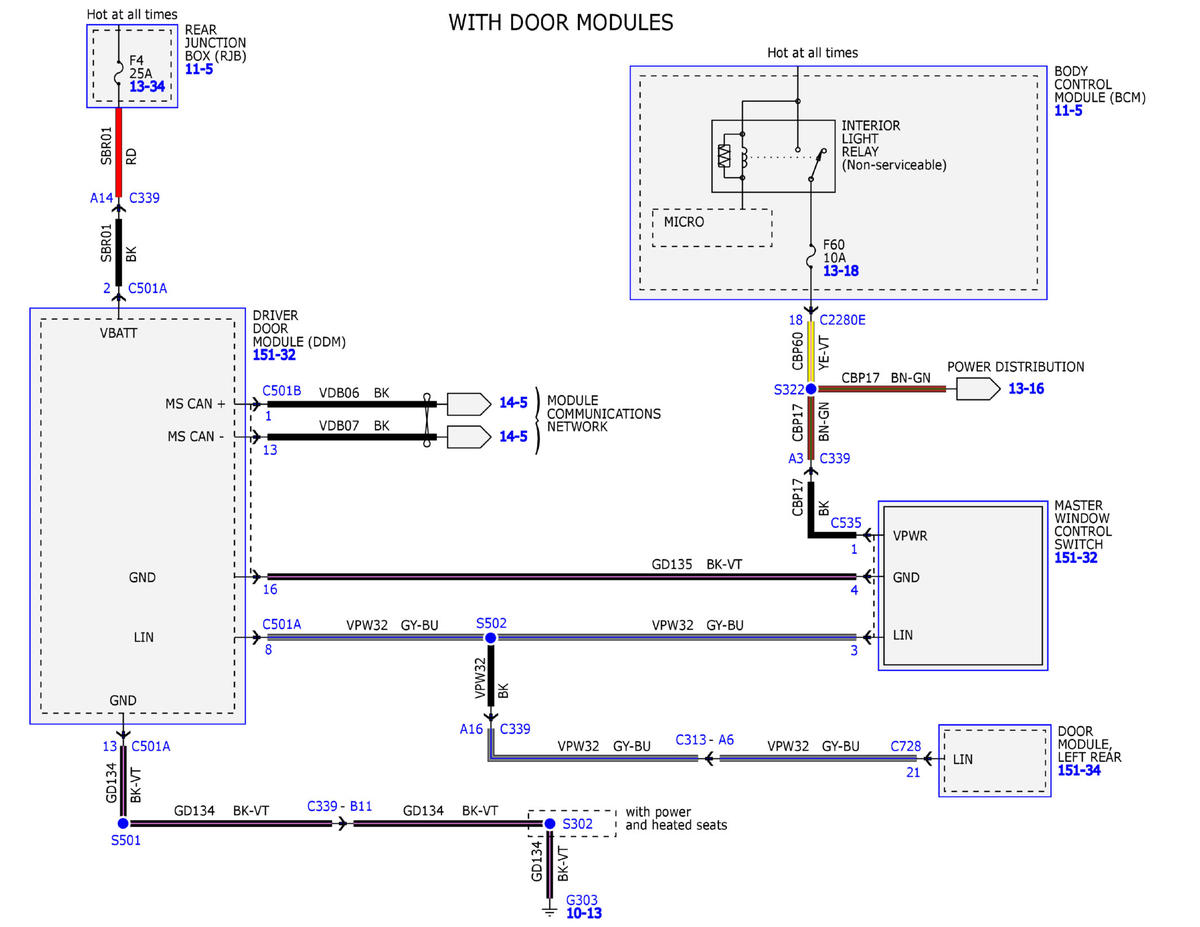

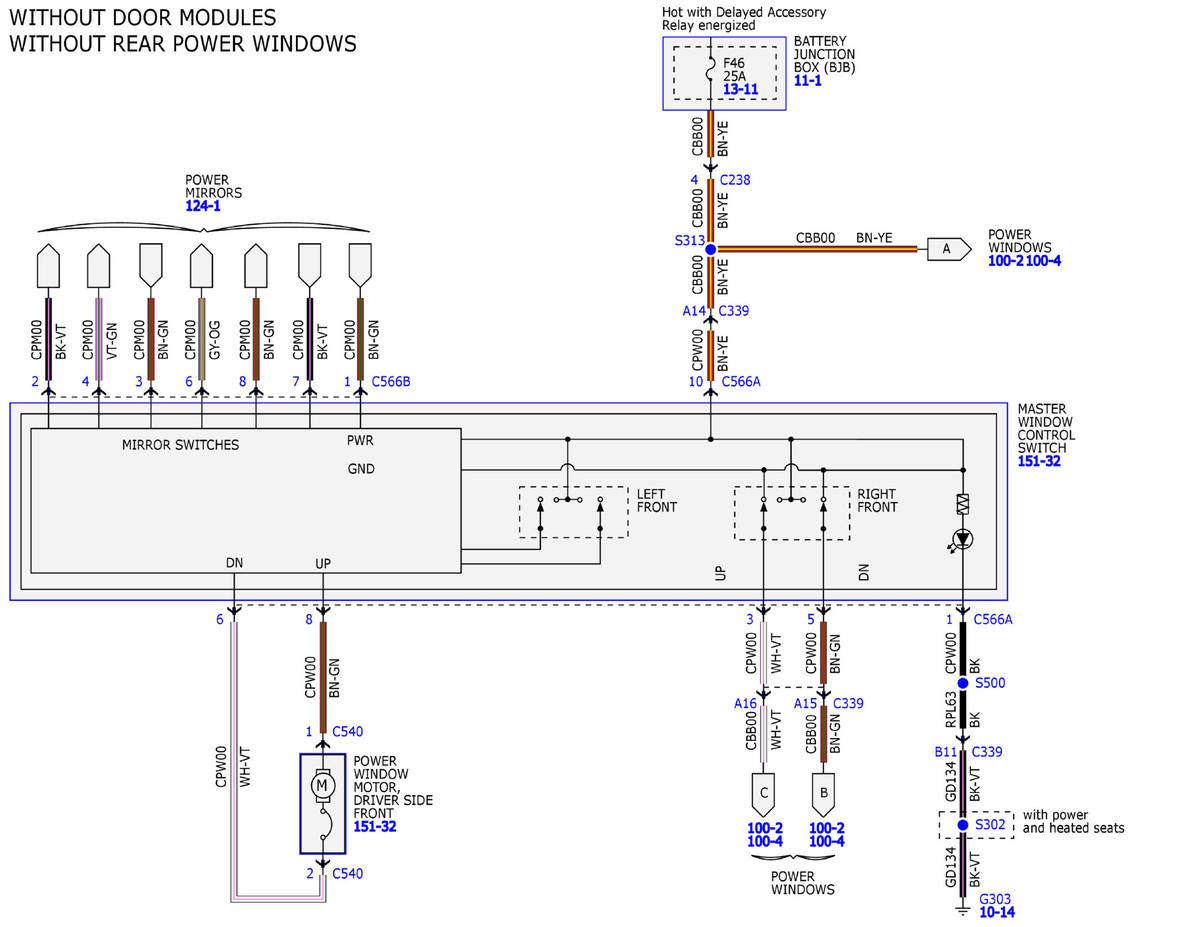

Fig 6: Power Windows System Wiring Diagrams (6 Of 15)

Courtesy of FORD MOTOR COMPANY

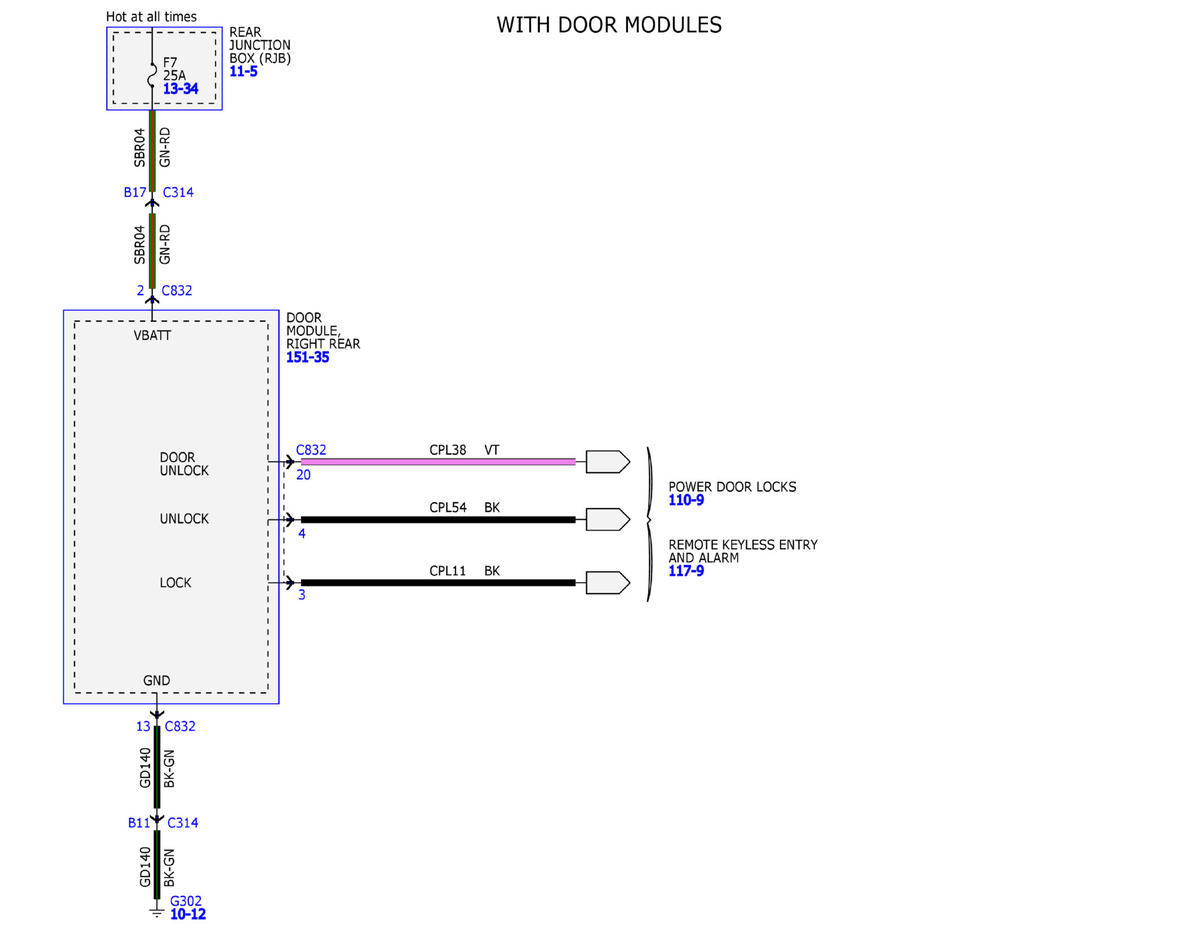

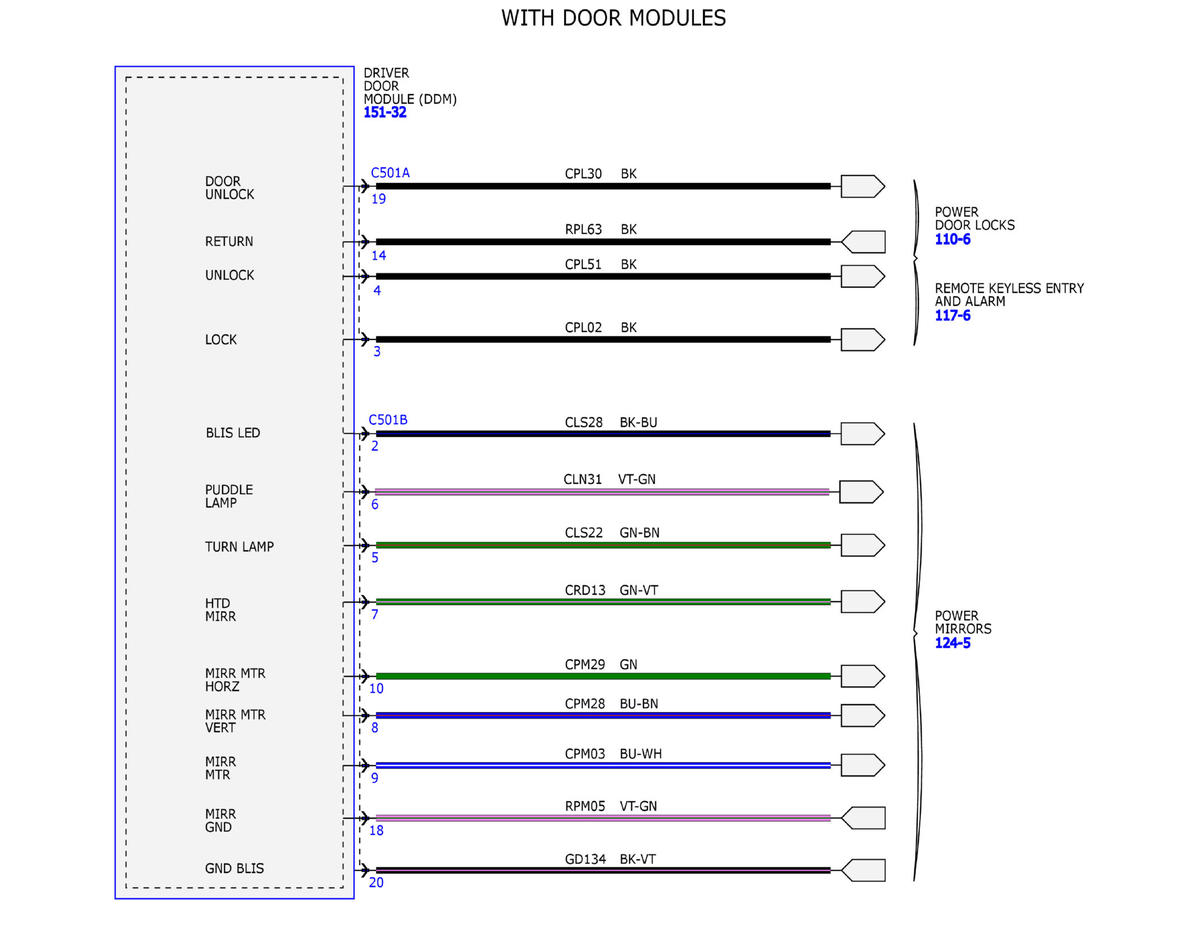

Fig 7: Power Windows System Wiring Diagrams (7 Of 15)

Courtesy of FORD MOTOR COMPANY

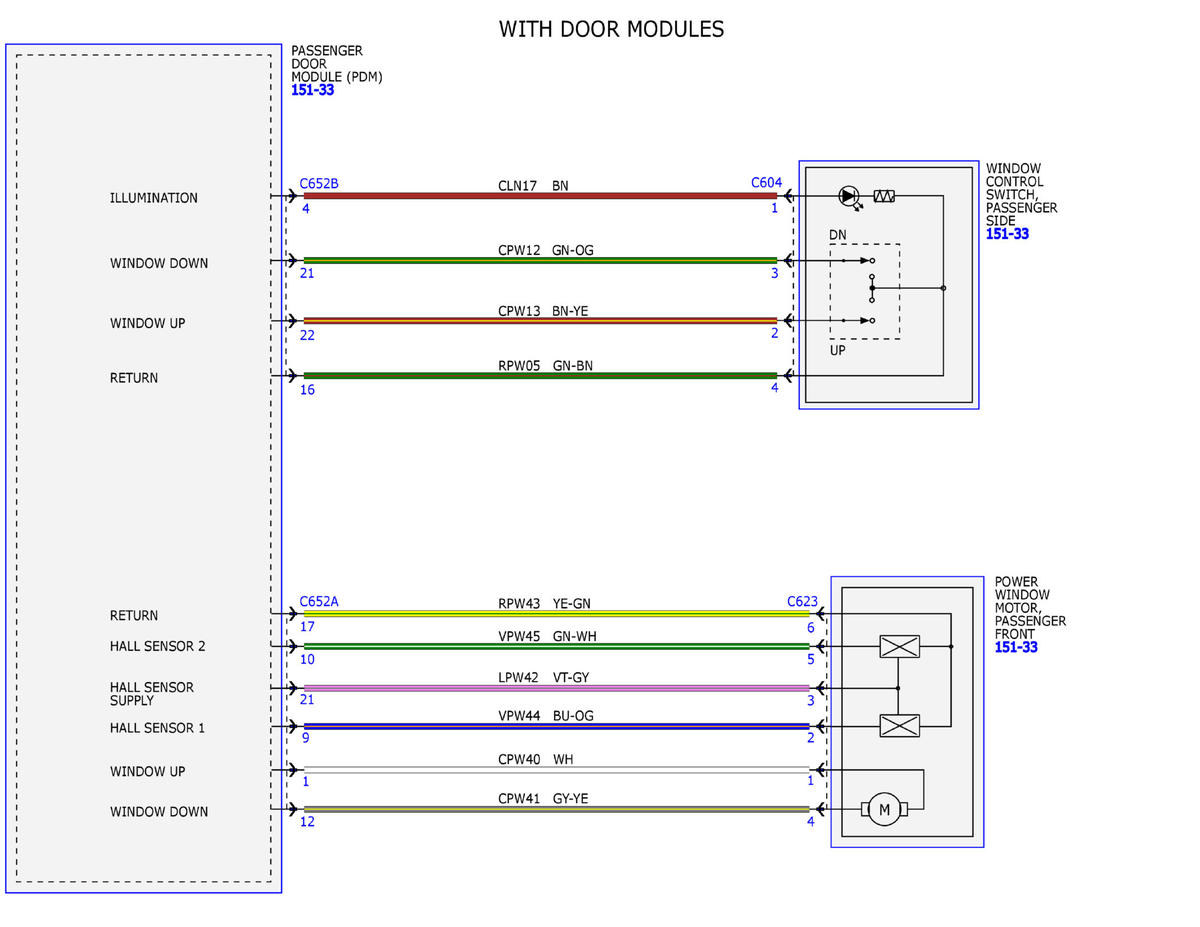

Fig 8: Power Windows System Wiring Diagrams (8 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 9: Power Windows System Wiring Diagrams (9 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 10: Power Windows System Wiring Diagrams (10 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 11: Power Windows System Wiring Diagrams (11 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 12: Power Windows System Wiring Diagrams (12 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 13: Power Windows System Wiring Diagrams (13 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 14: Power Windows System Wiring Diagrams (14 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 15: Power Windows System Wiring Diagrams (15 Of 15)

Courtesy of FORD MOTOR COMPANY
