Section 1470 (OEM Wiring Diagrams (Except Electric))
>>
Power Steering Controls
Power Steering Controls
WARNING:
This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

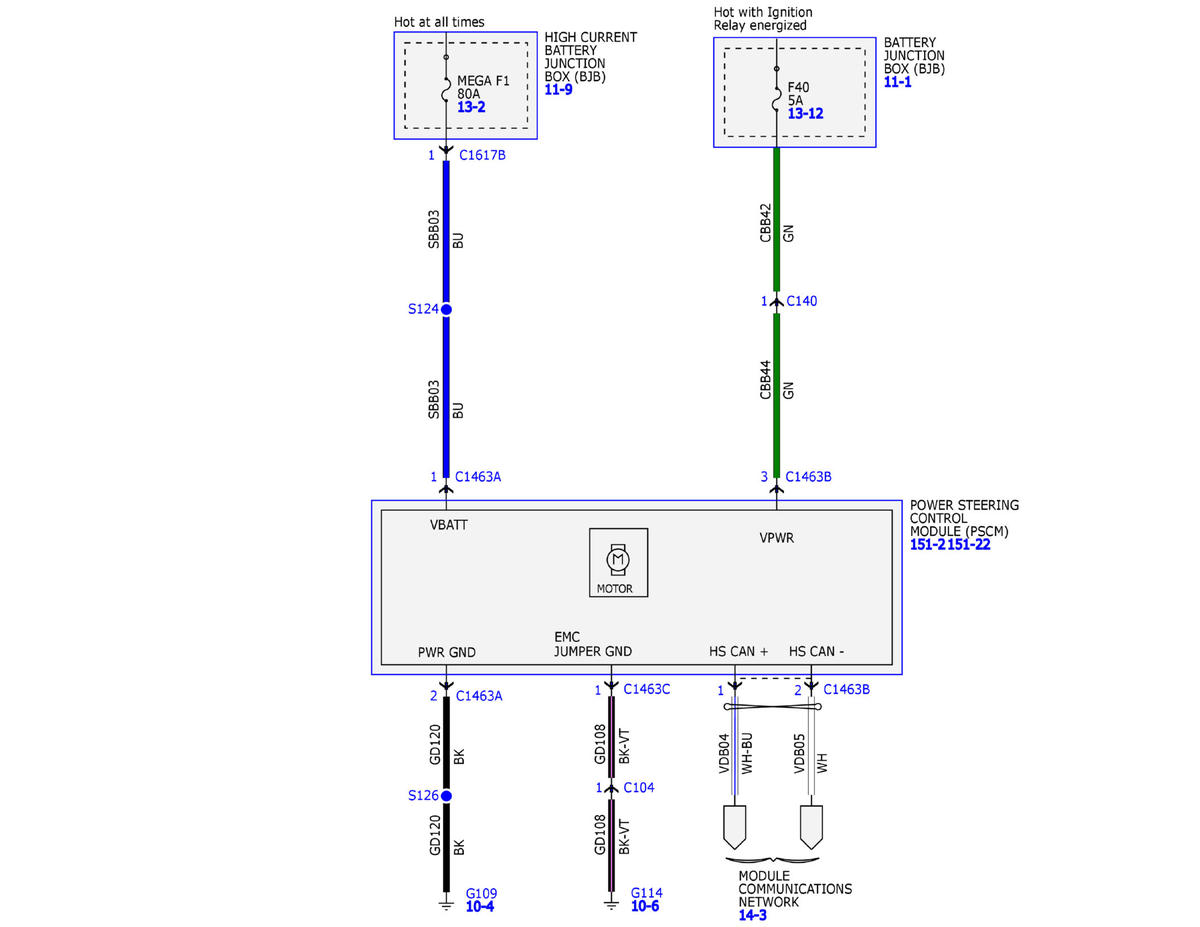

Fig 1: Power Steering Controls System Wiring Diagram
Courtesy of FORD MOTOR COMPANY
