Section 1470 (OEM Wiring Diagrams (Except Electric))
>>
Power Distribution
Power Distribution
WARNING:
This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

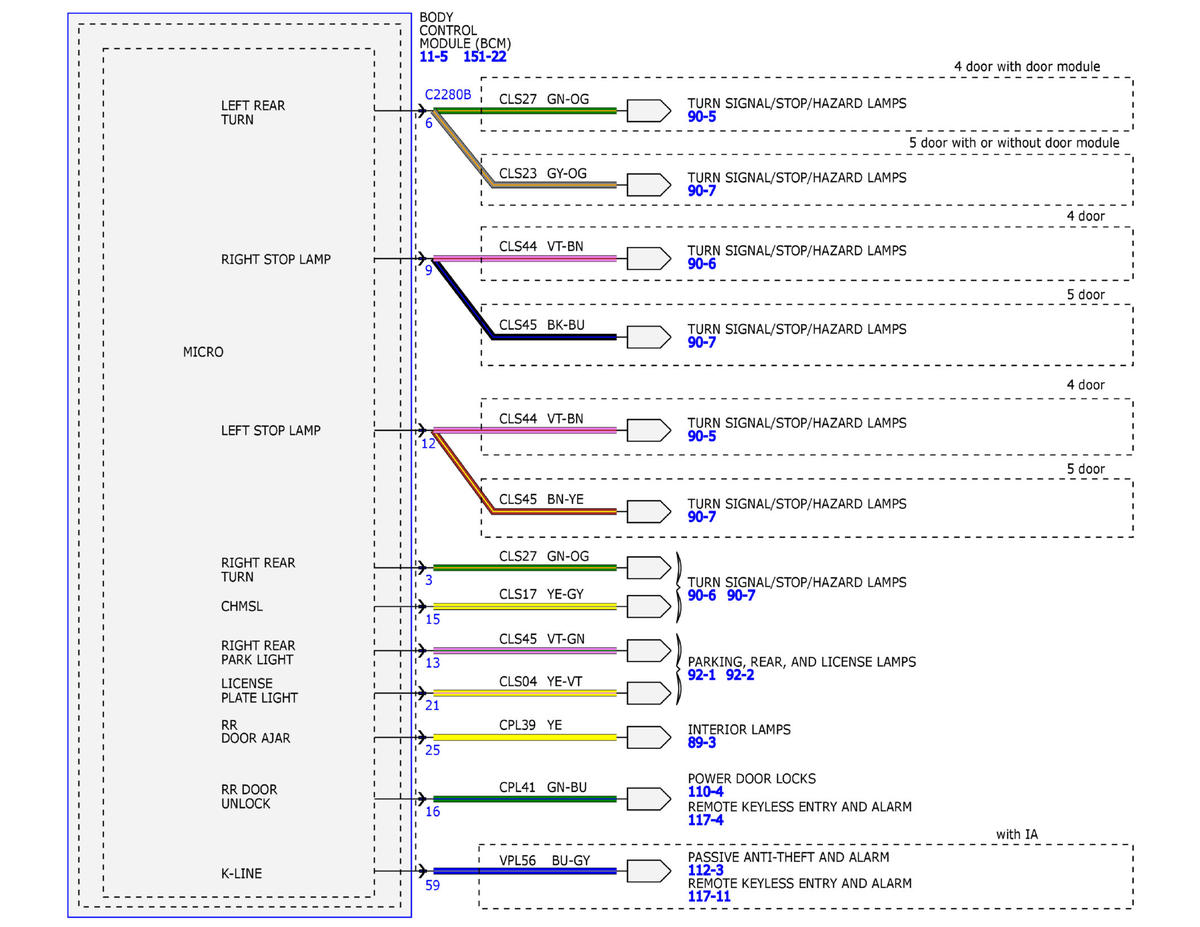

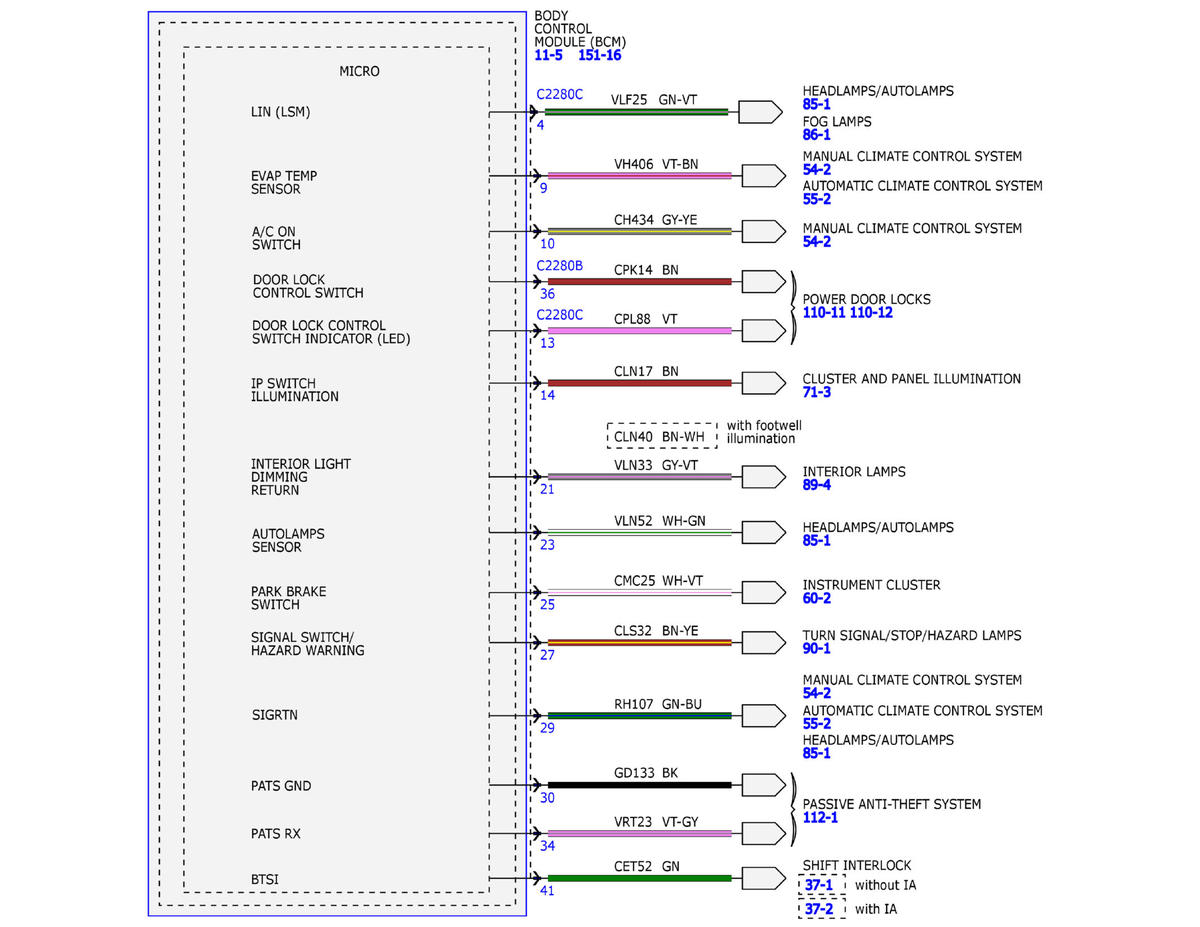

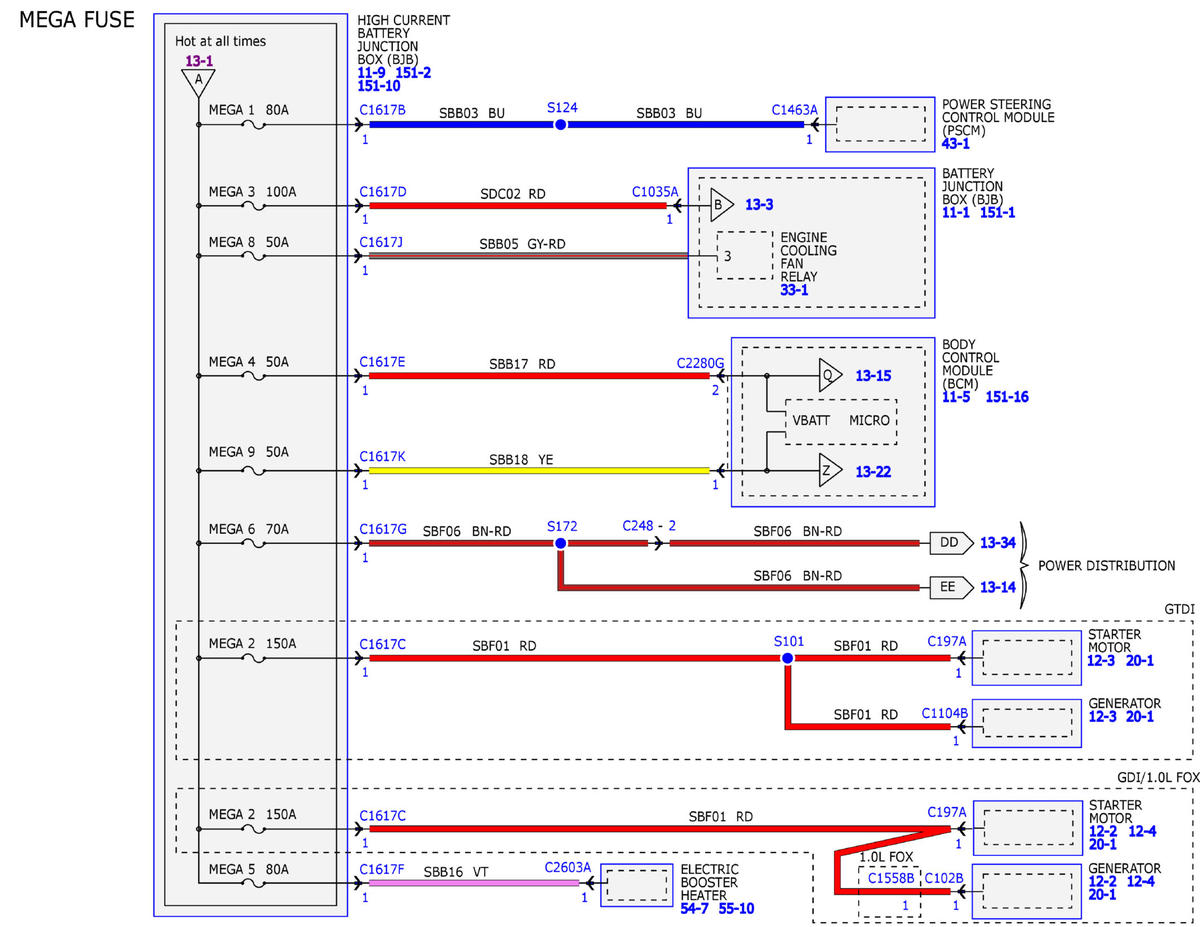

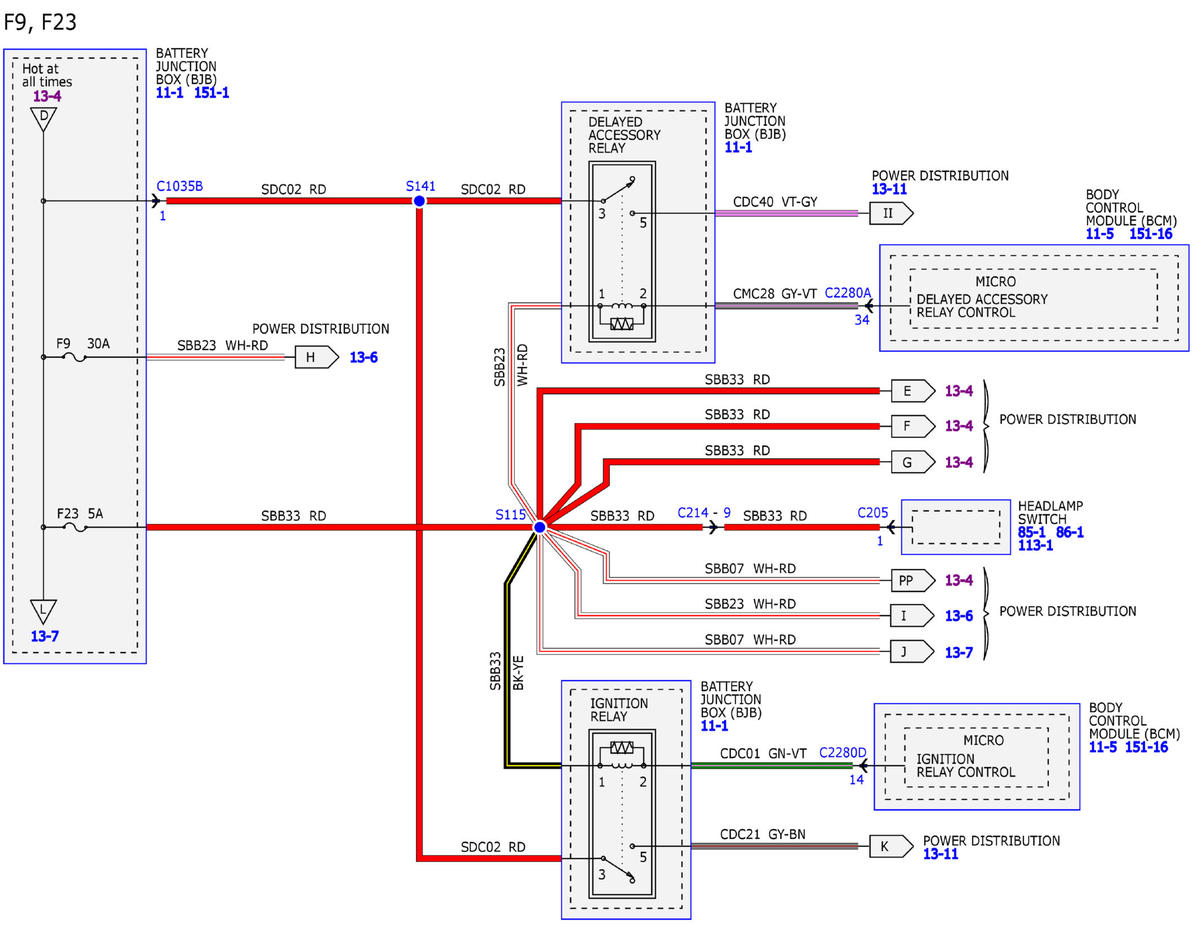

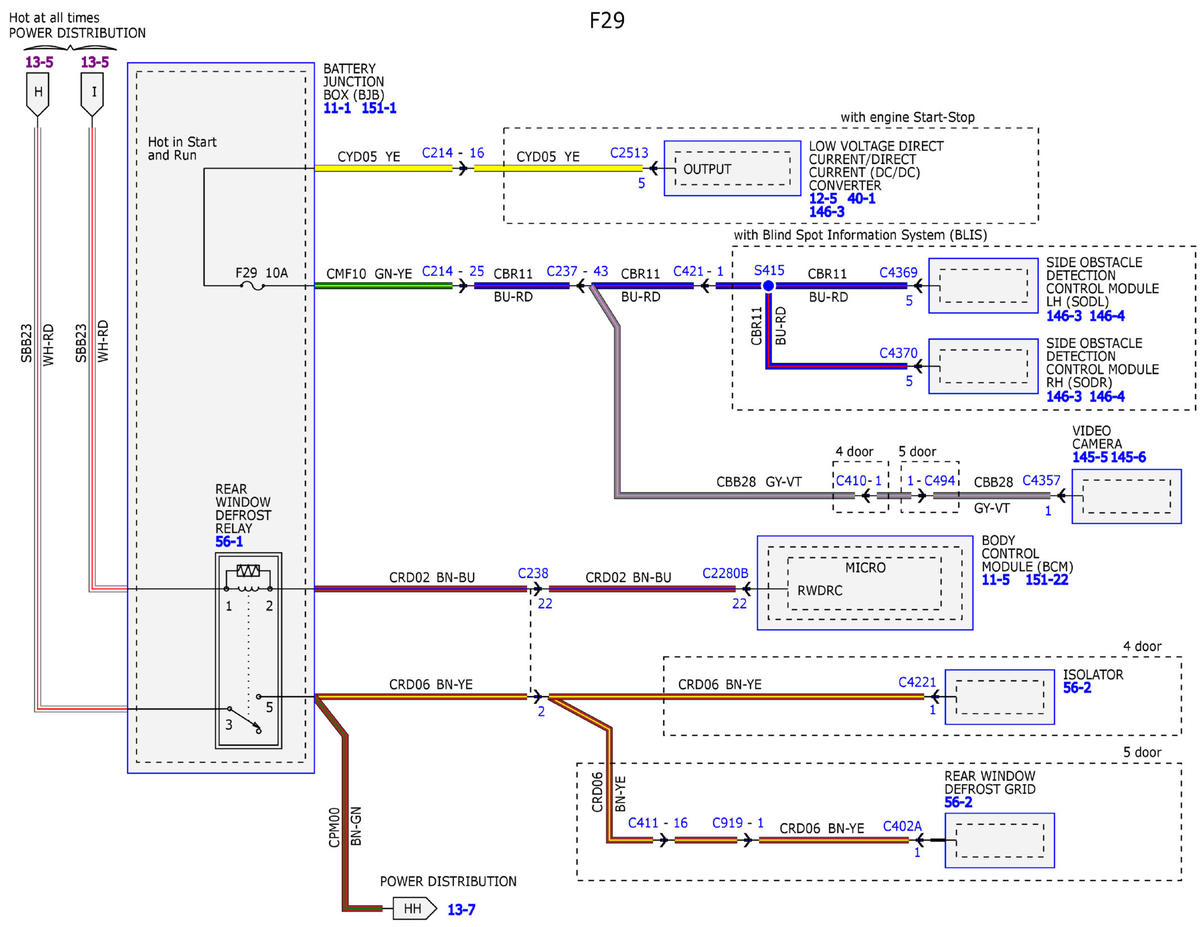

Fig 1: Power Distribution System Wiring Diagrams (1 Of 34)
Courtesy of FORD MOTOR COMPANY

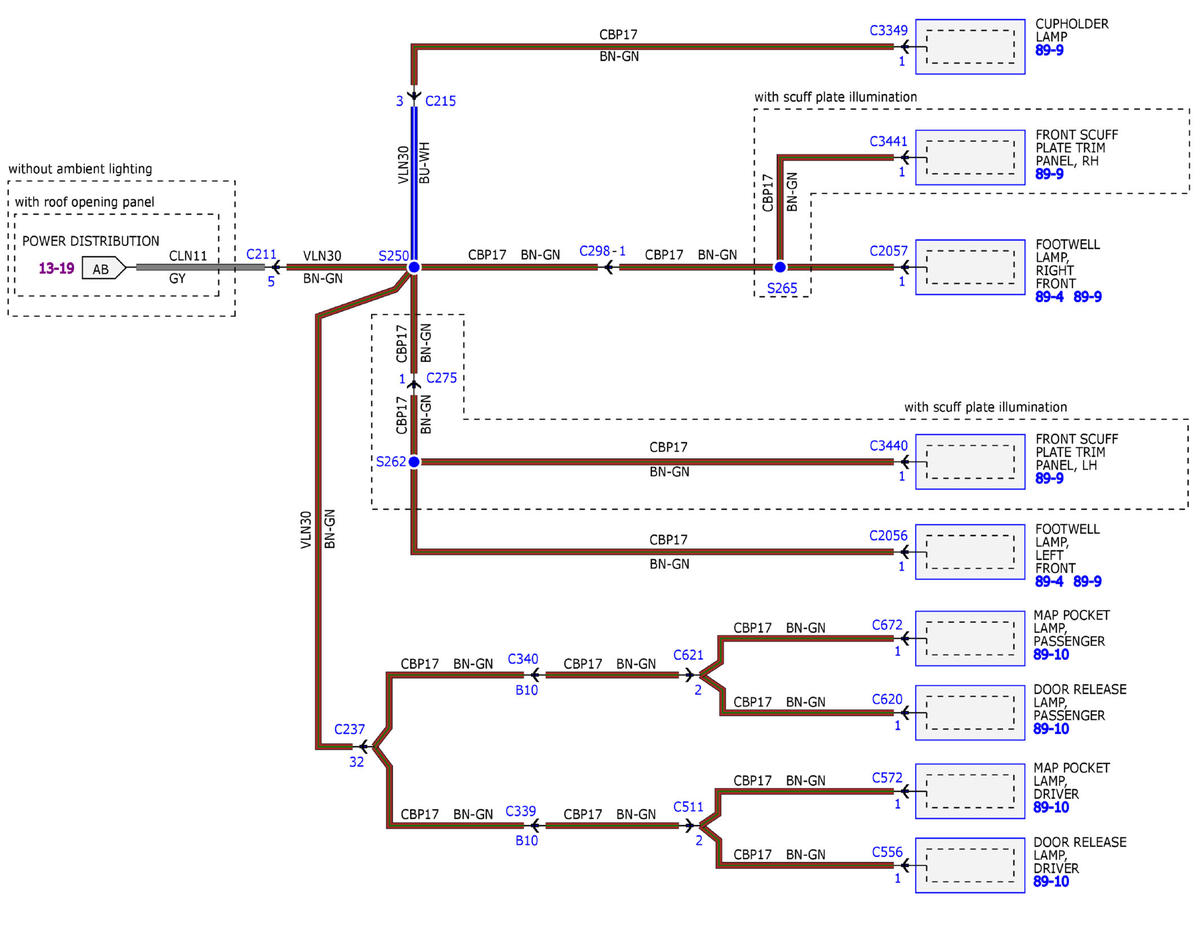

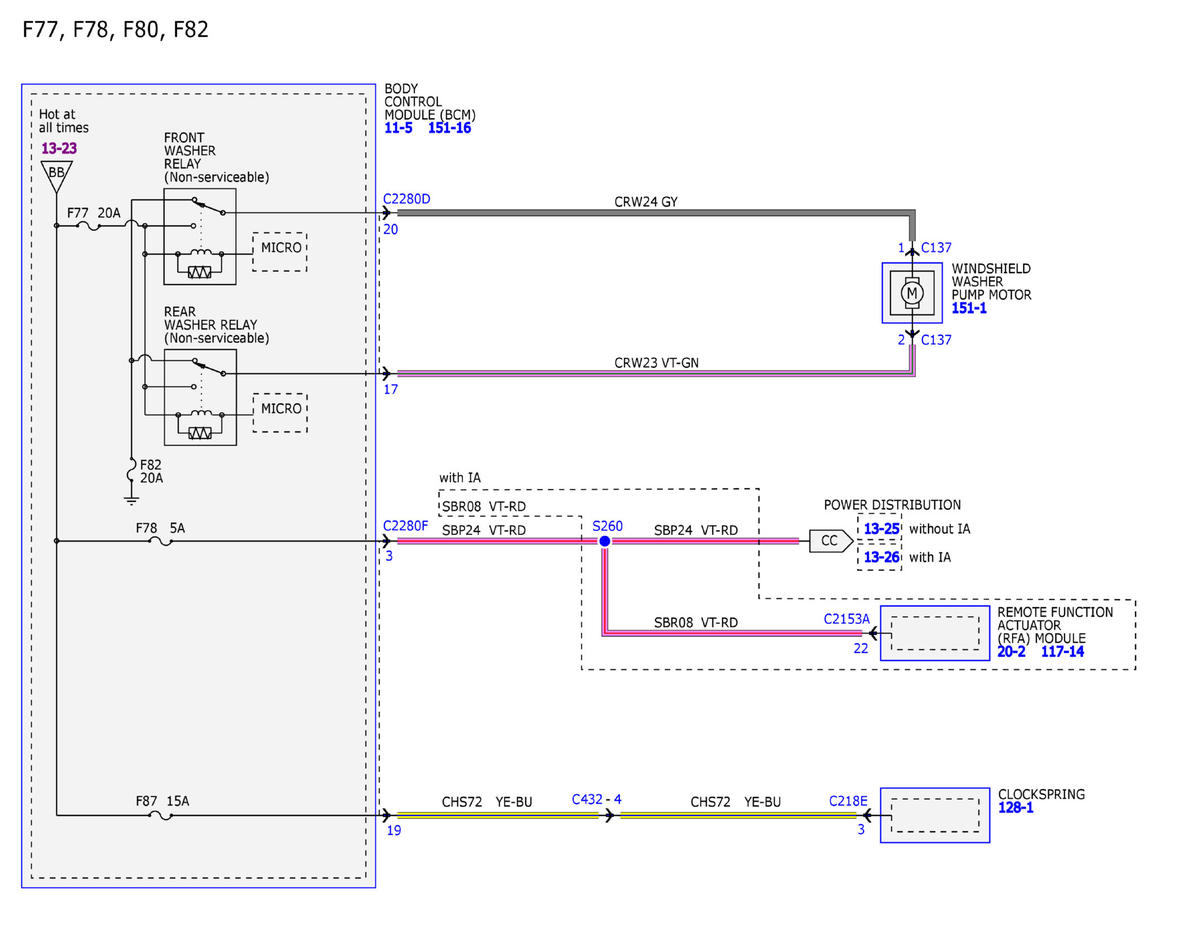

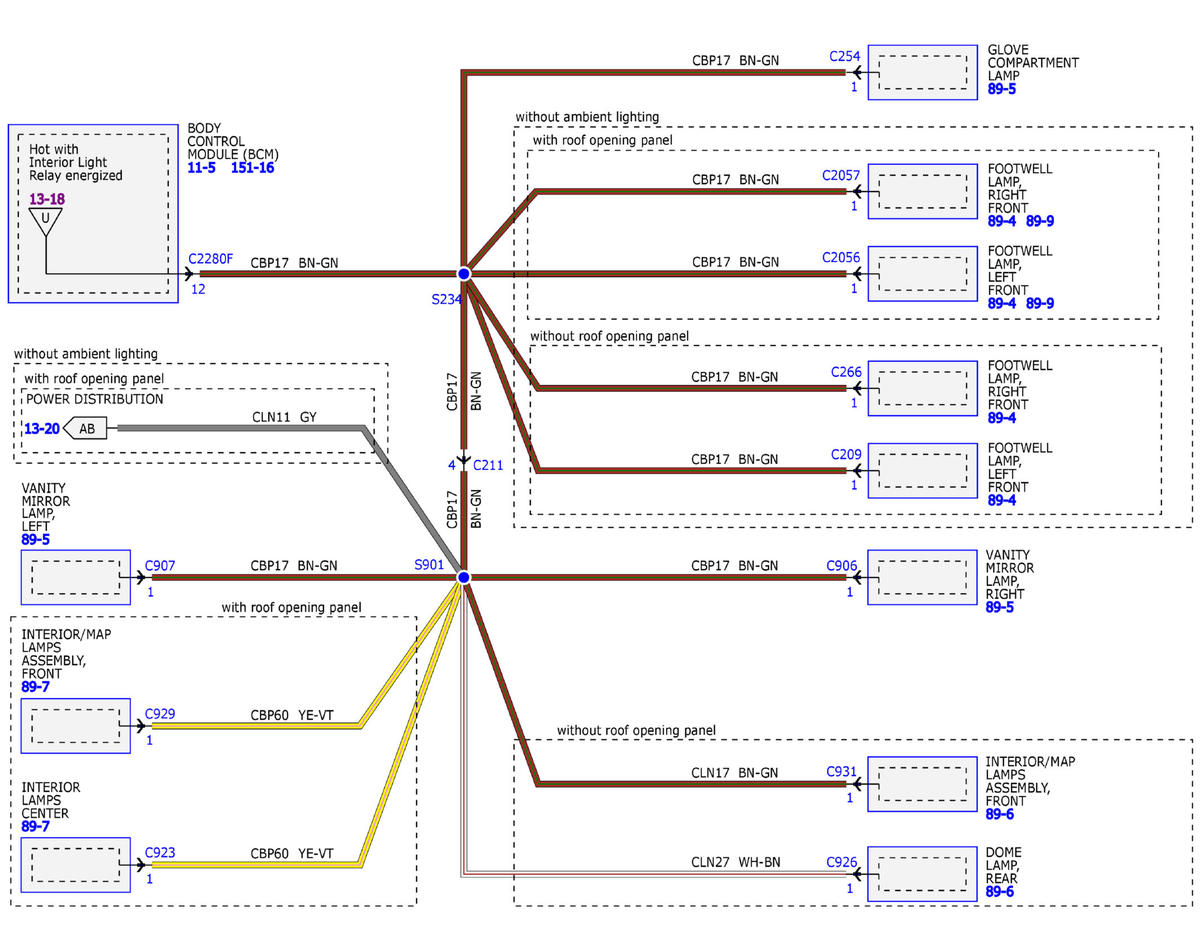

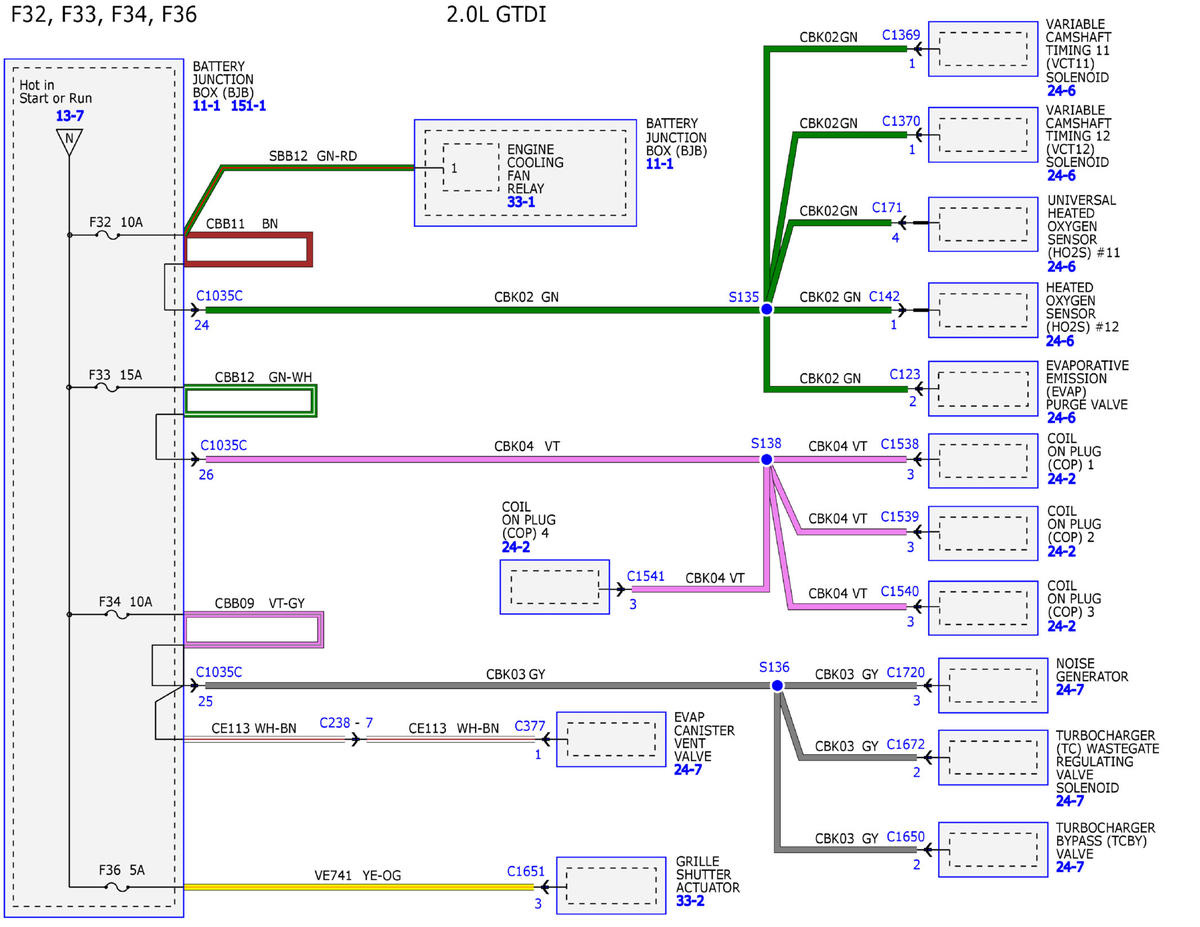

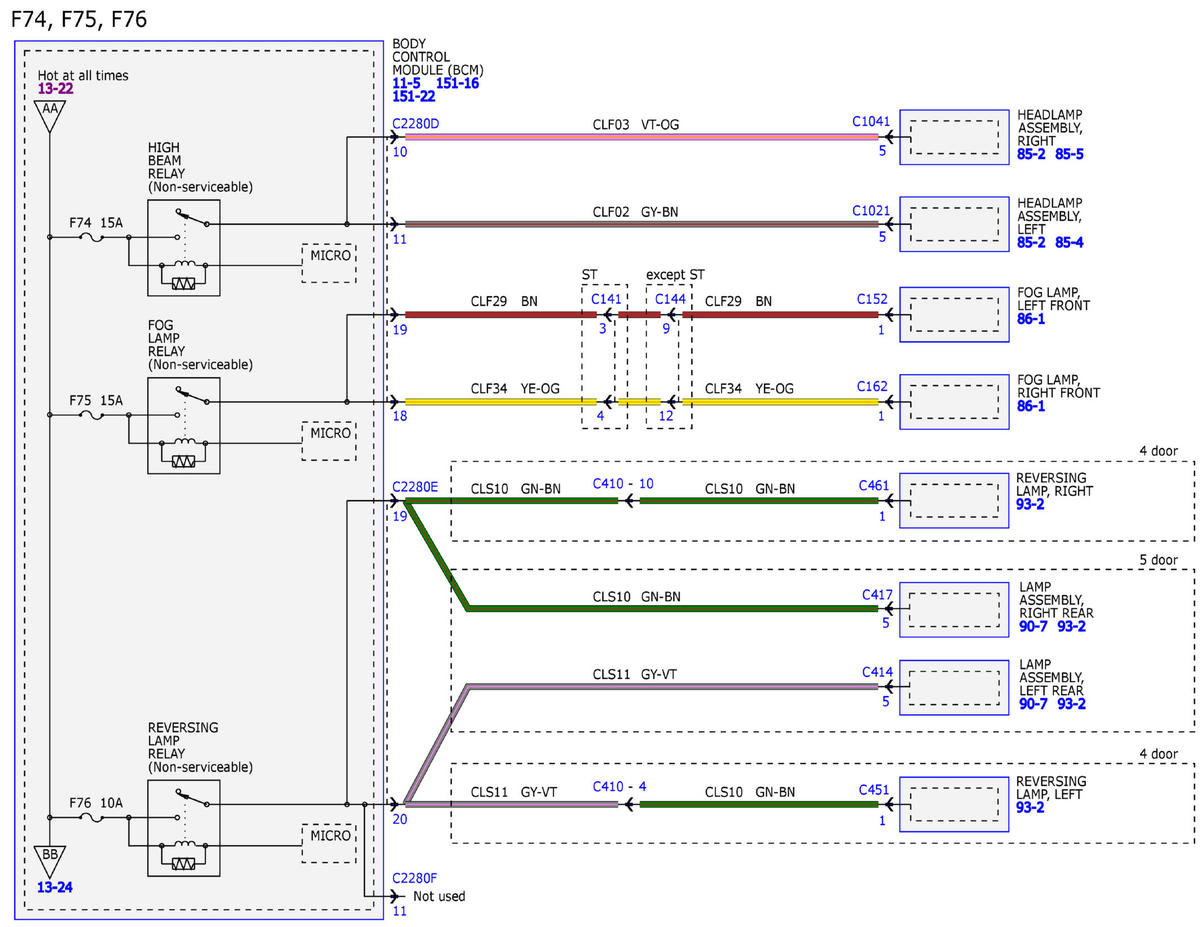

Fig 2: Power Distribution System Wiring Diagrams (2 Of 34)
Courtesy of FORD MOTOR COMPANY

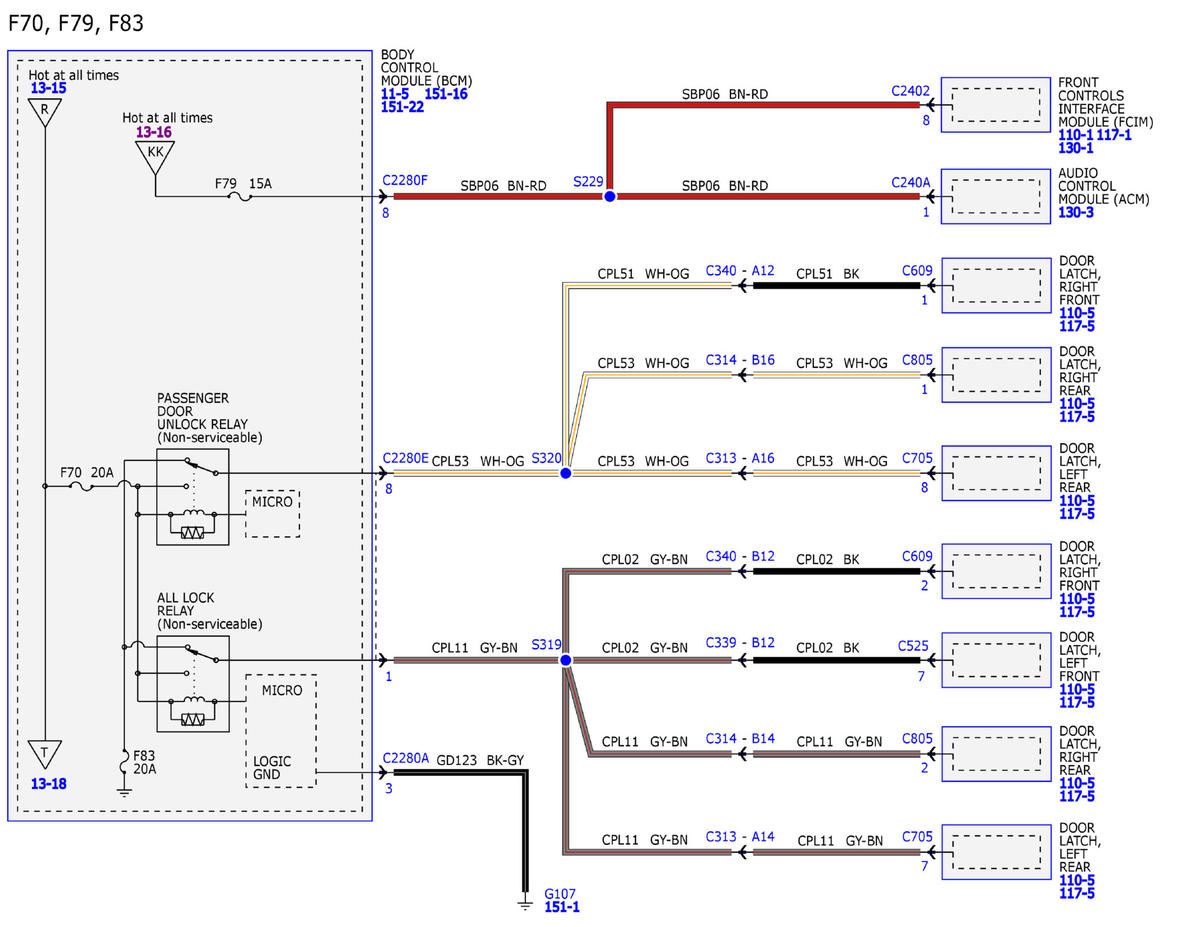

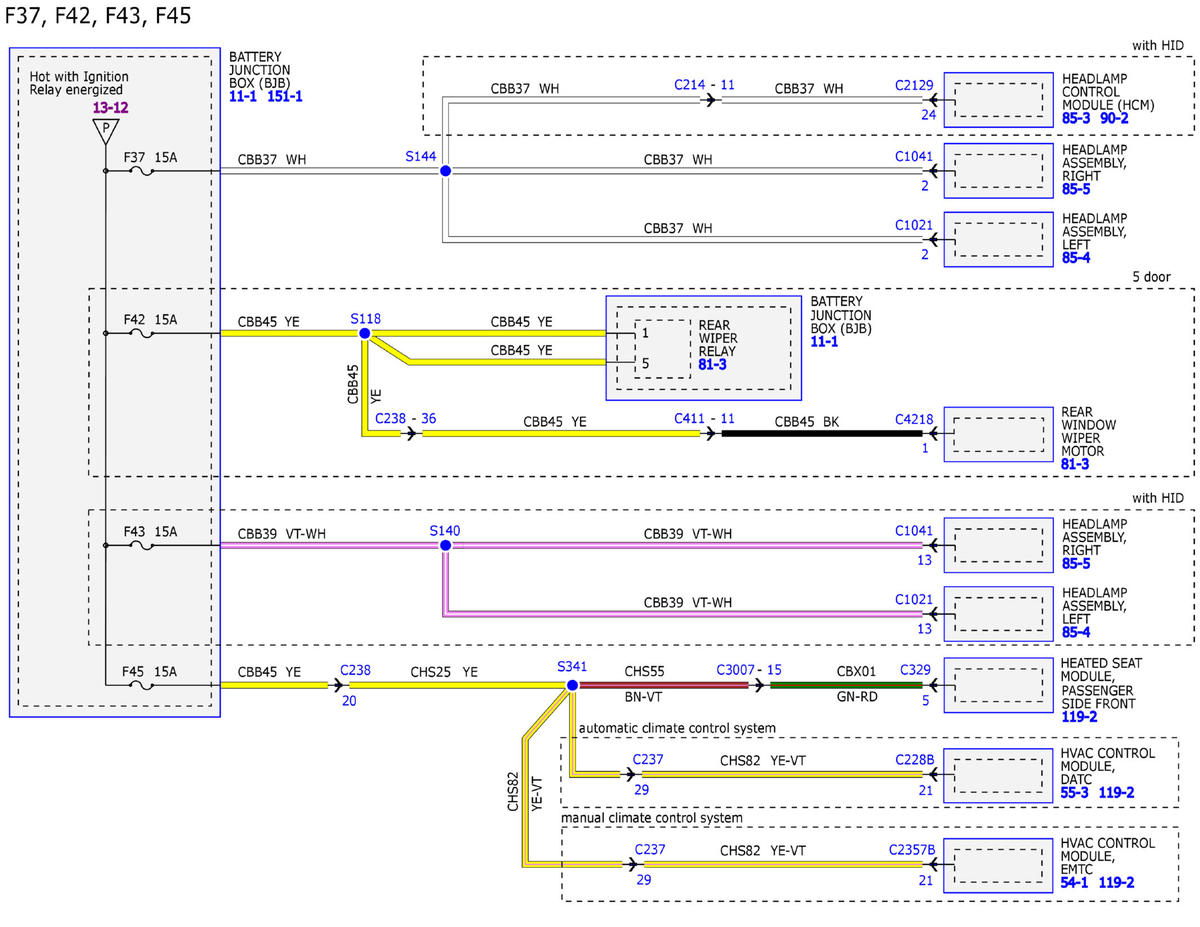

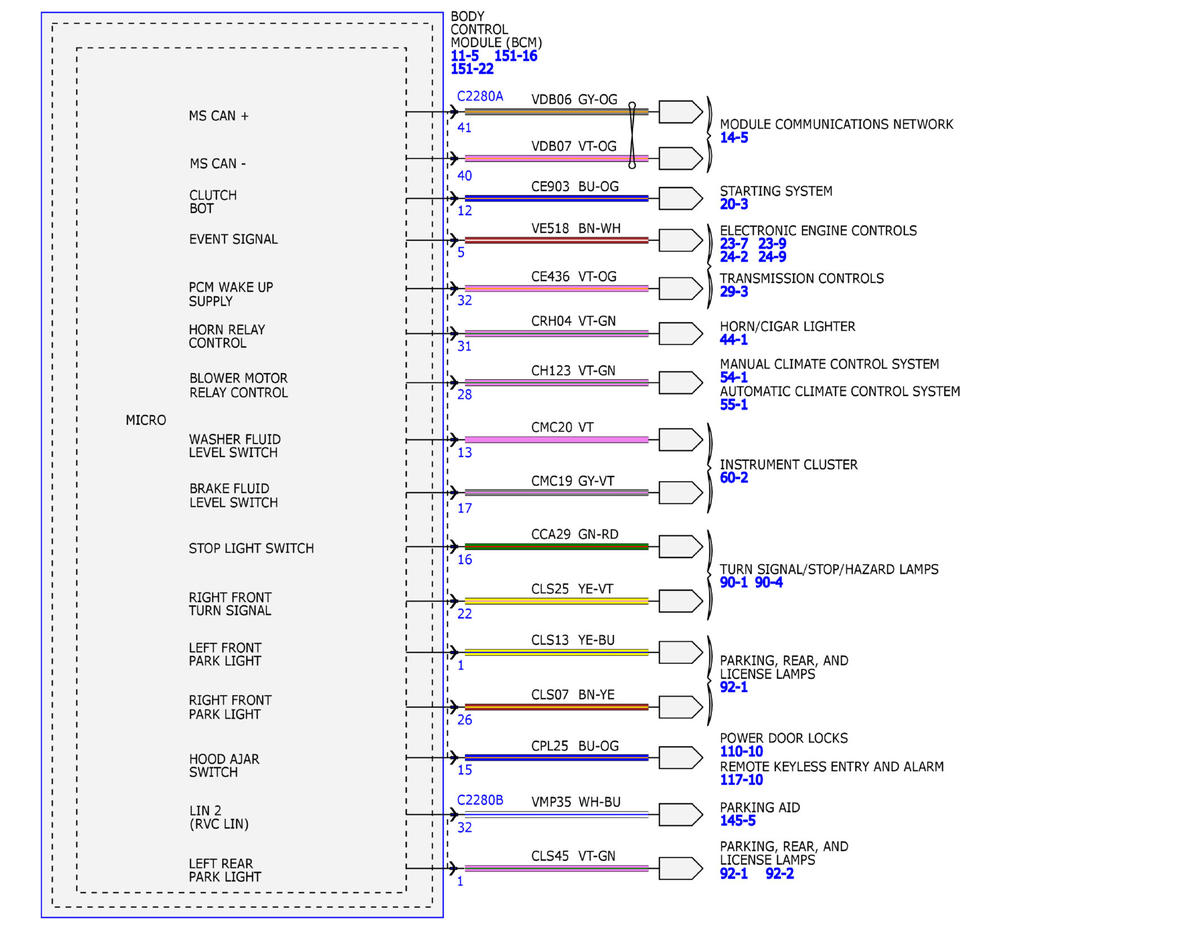

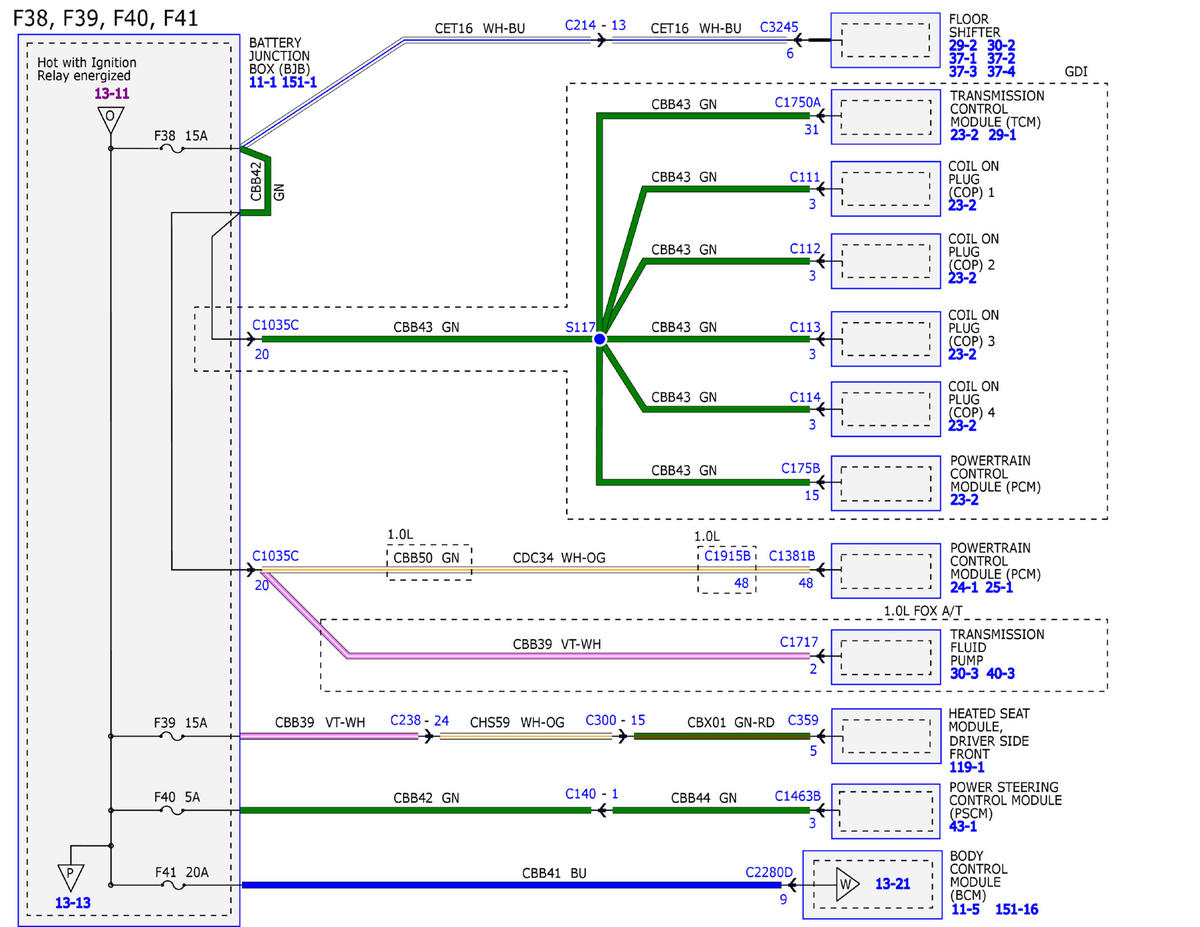

Fig 3: Power Distribution System Wiring Diagrams (3 Of 34)
Courtesy of FORD MOTOR COMPANY

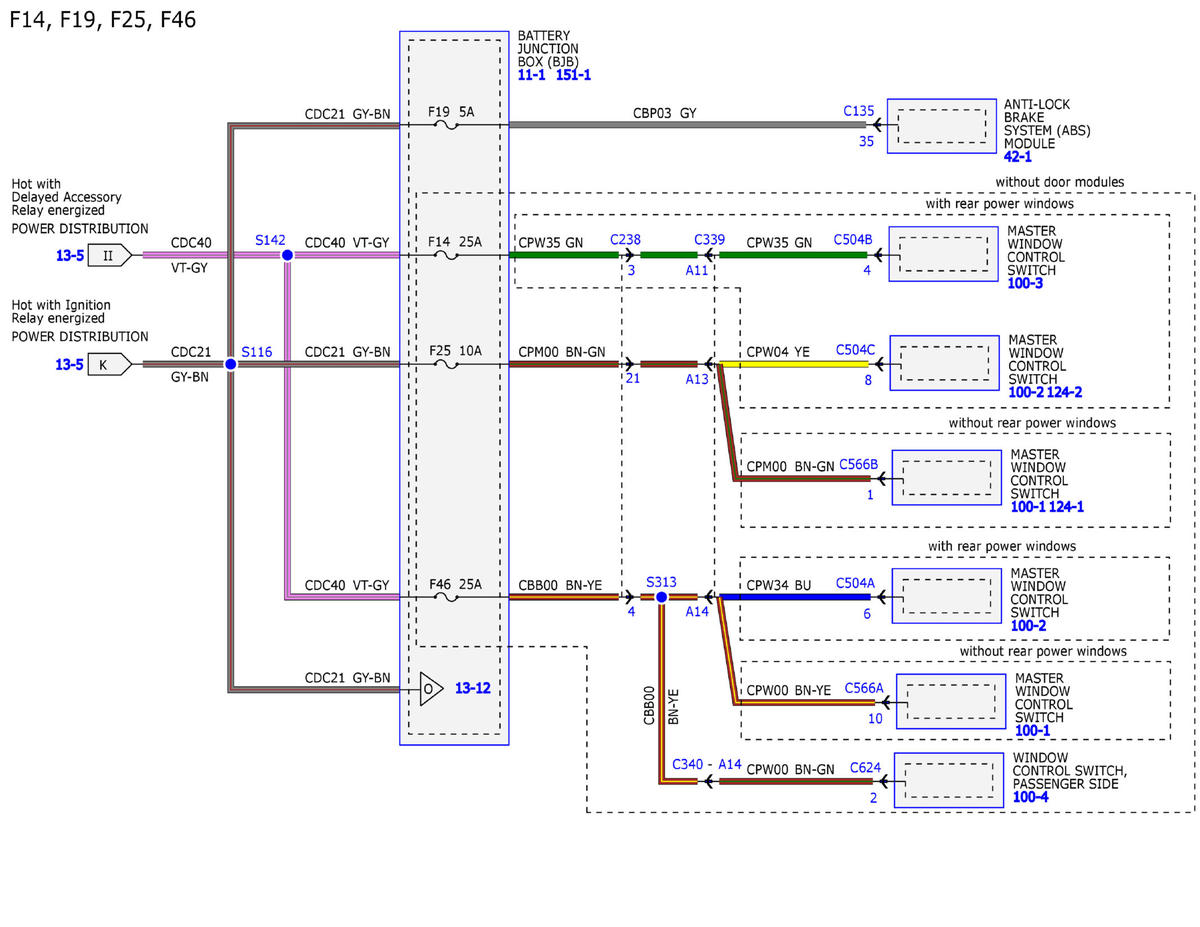

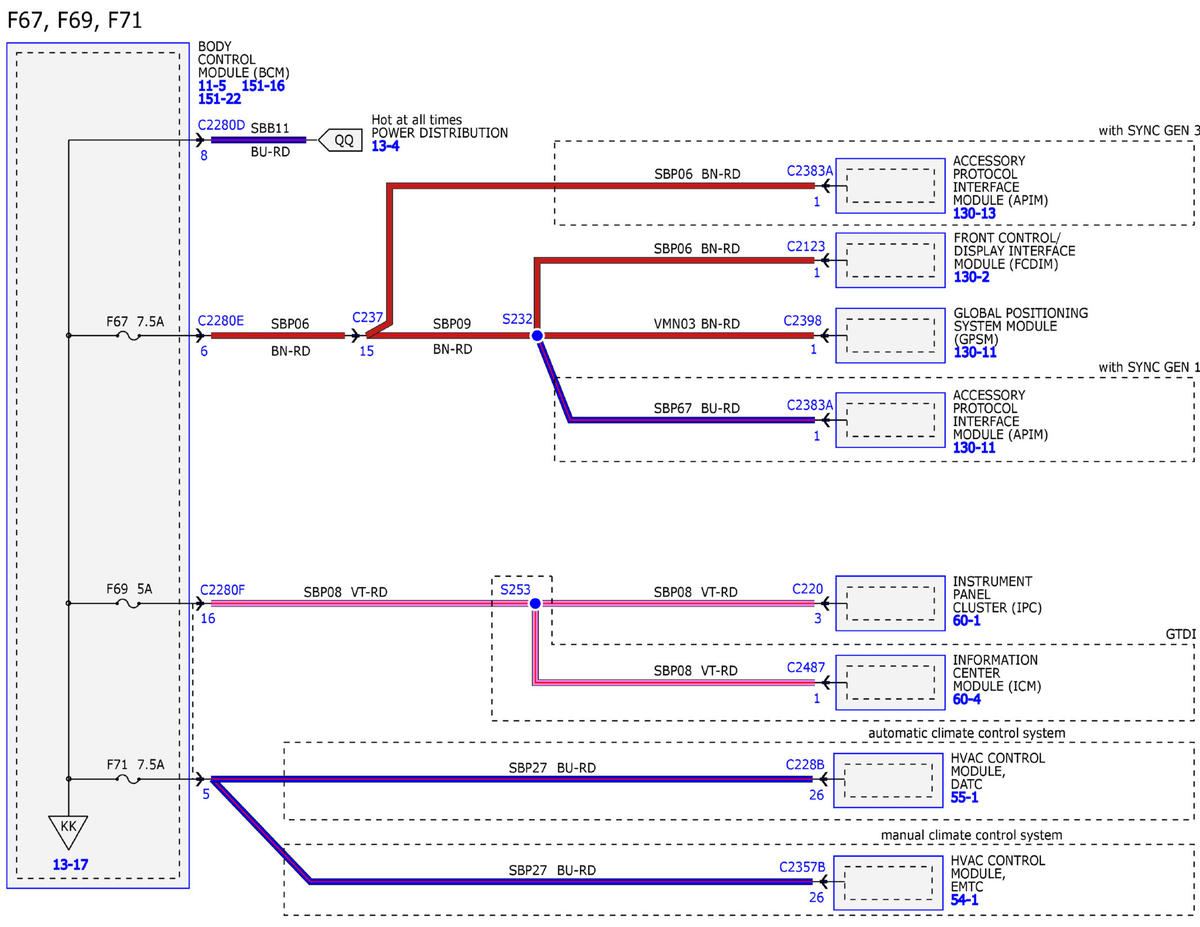

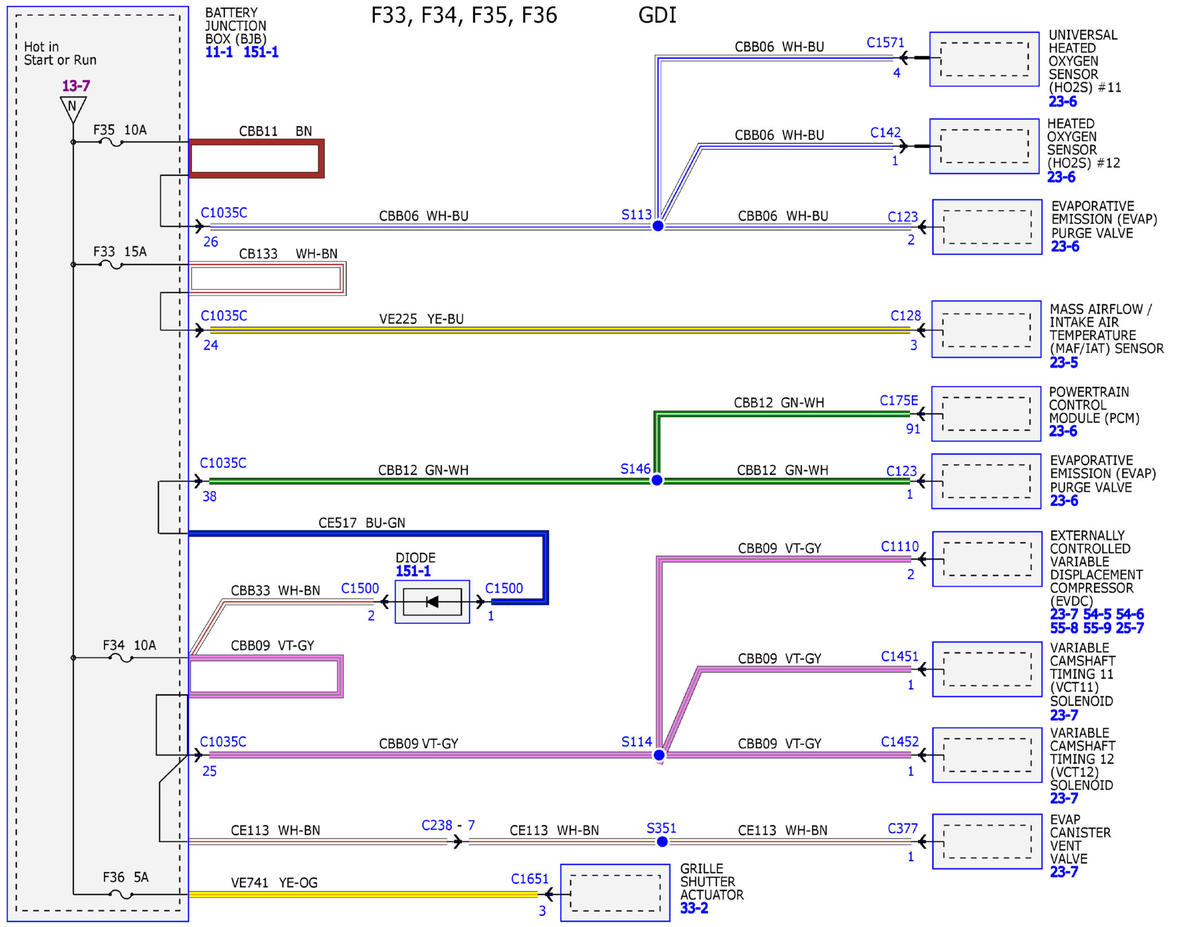

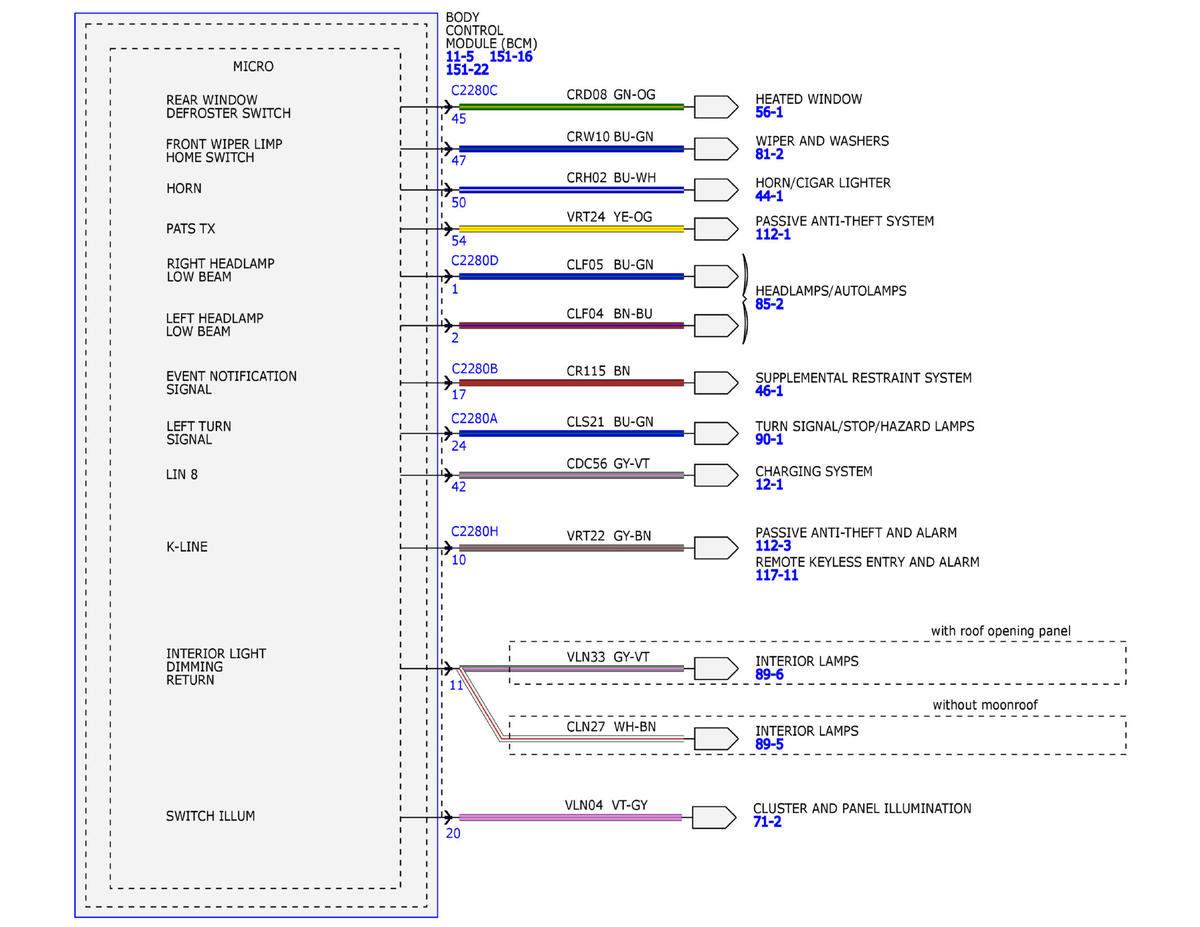

Fig 4: Power Distribution System Wiring Diagrams (4 Of 34)
Courtesy of FORD MOTOR COMPANY

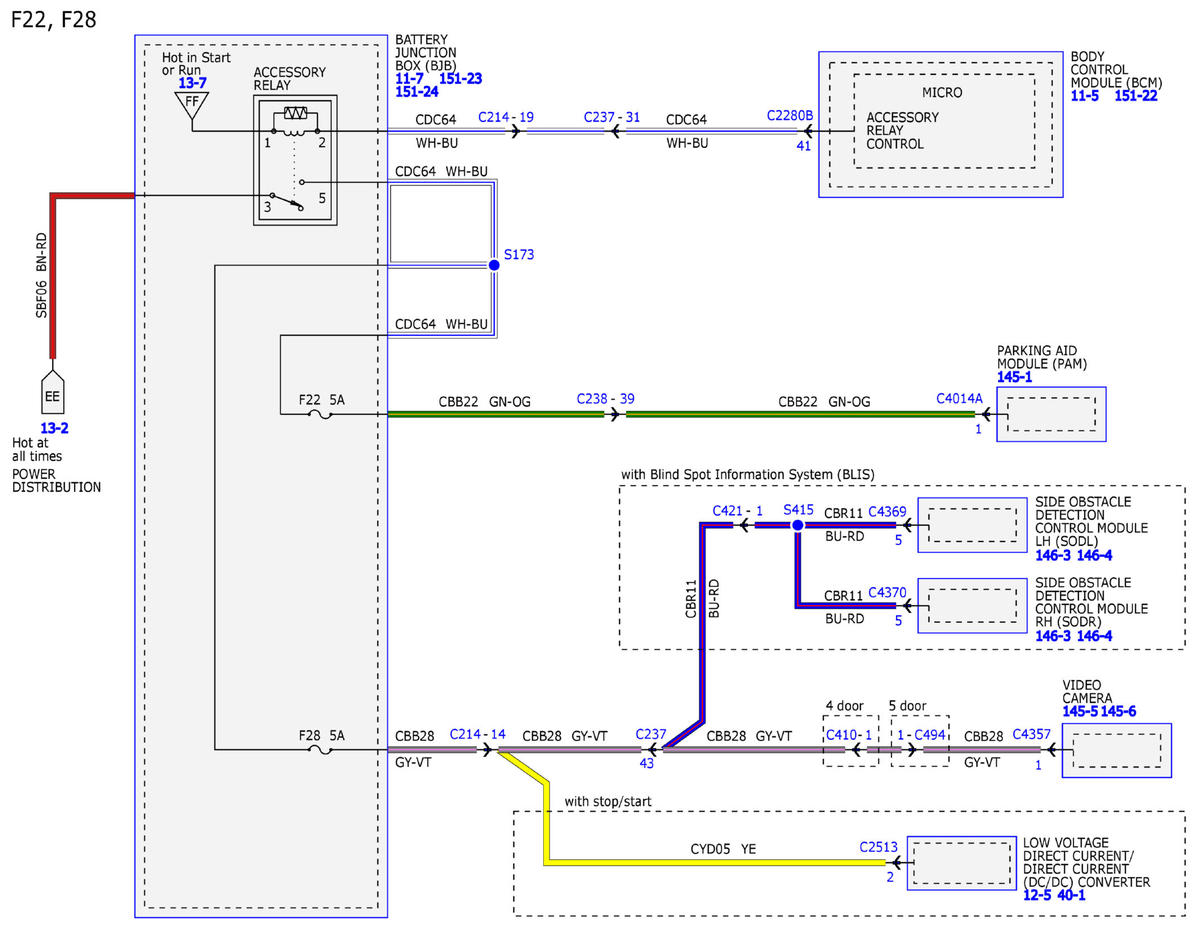

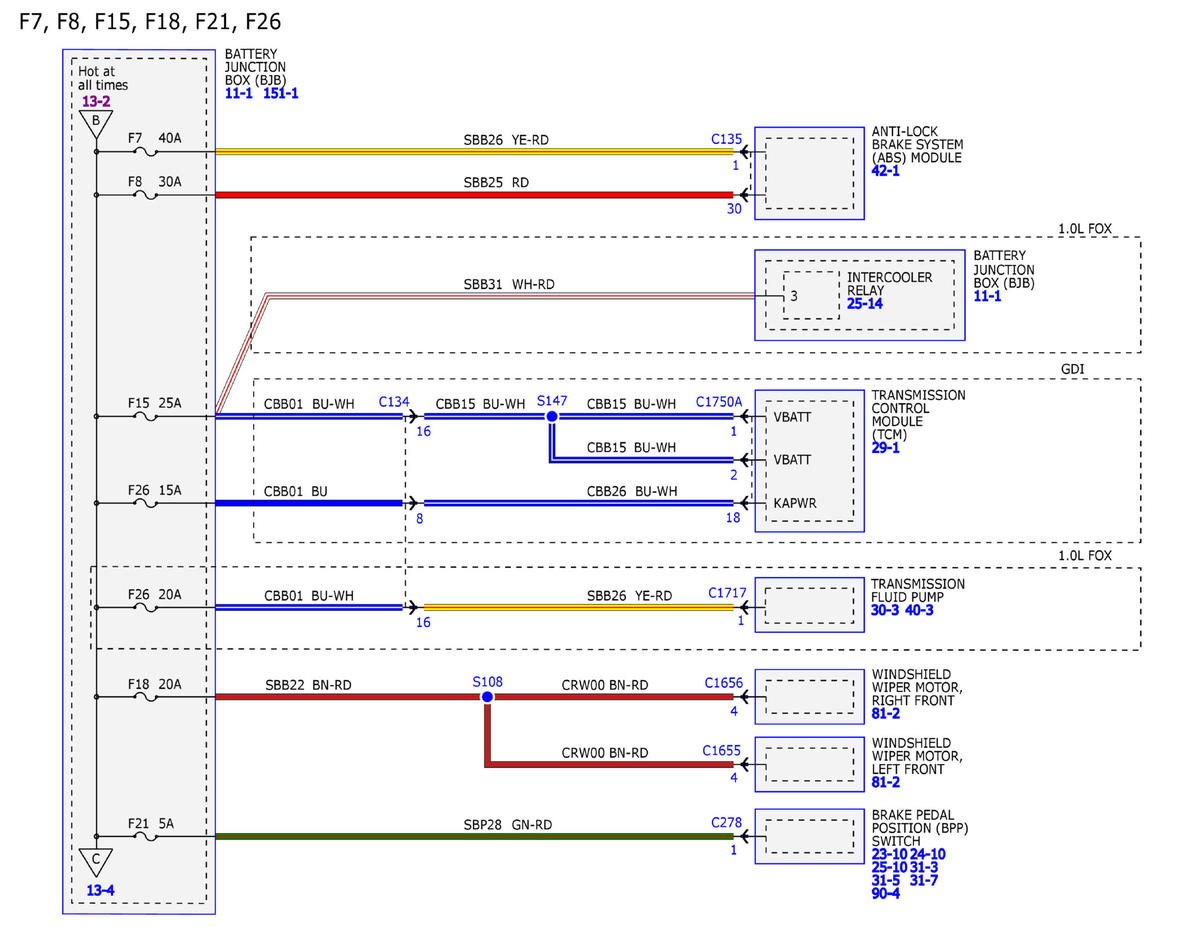

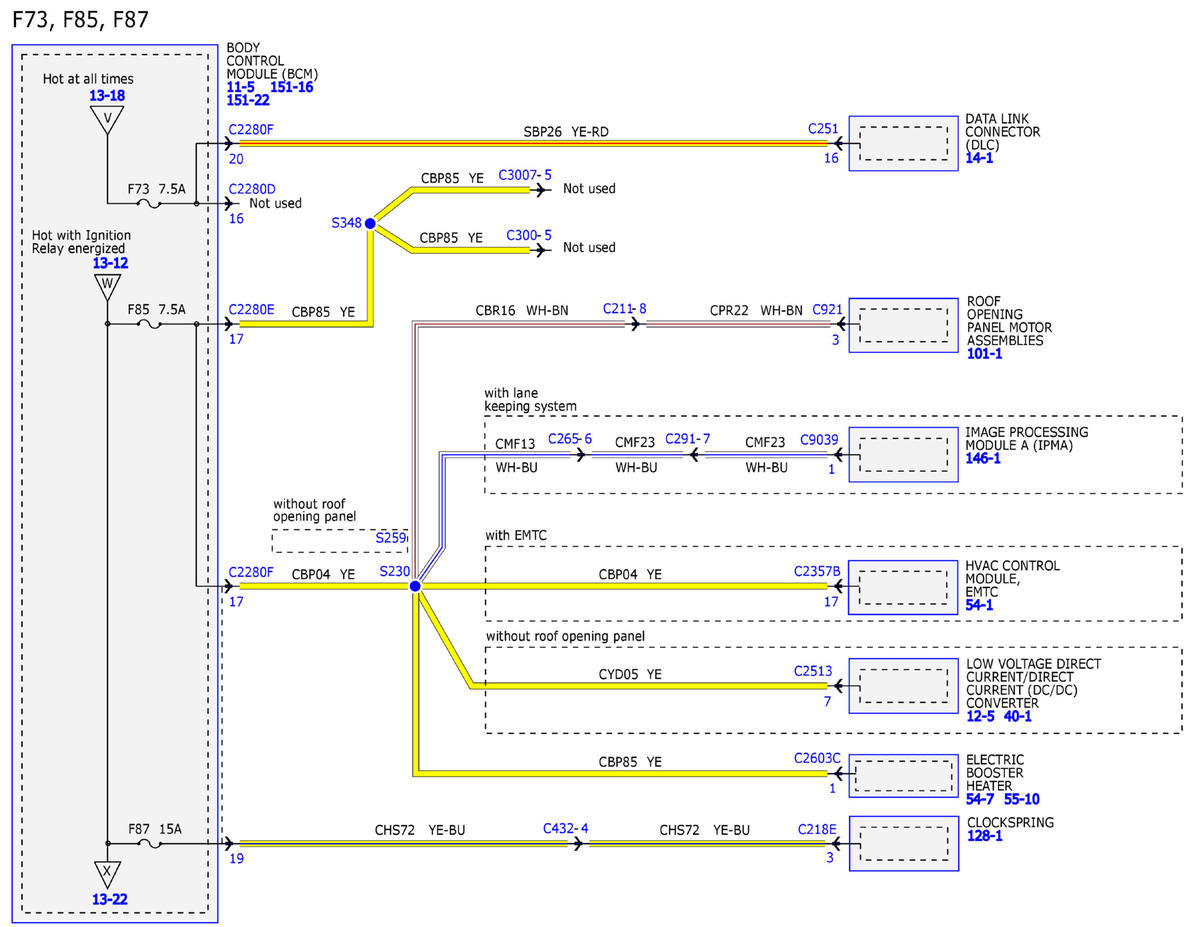

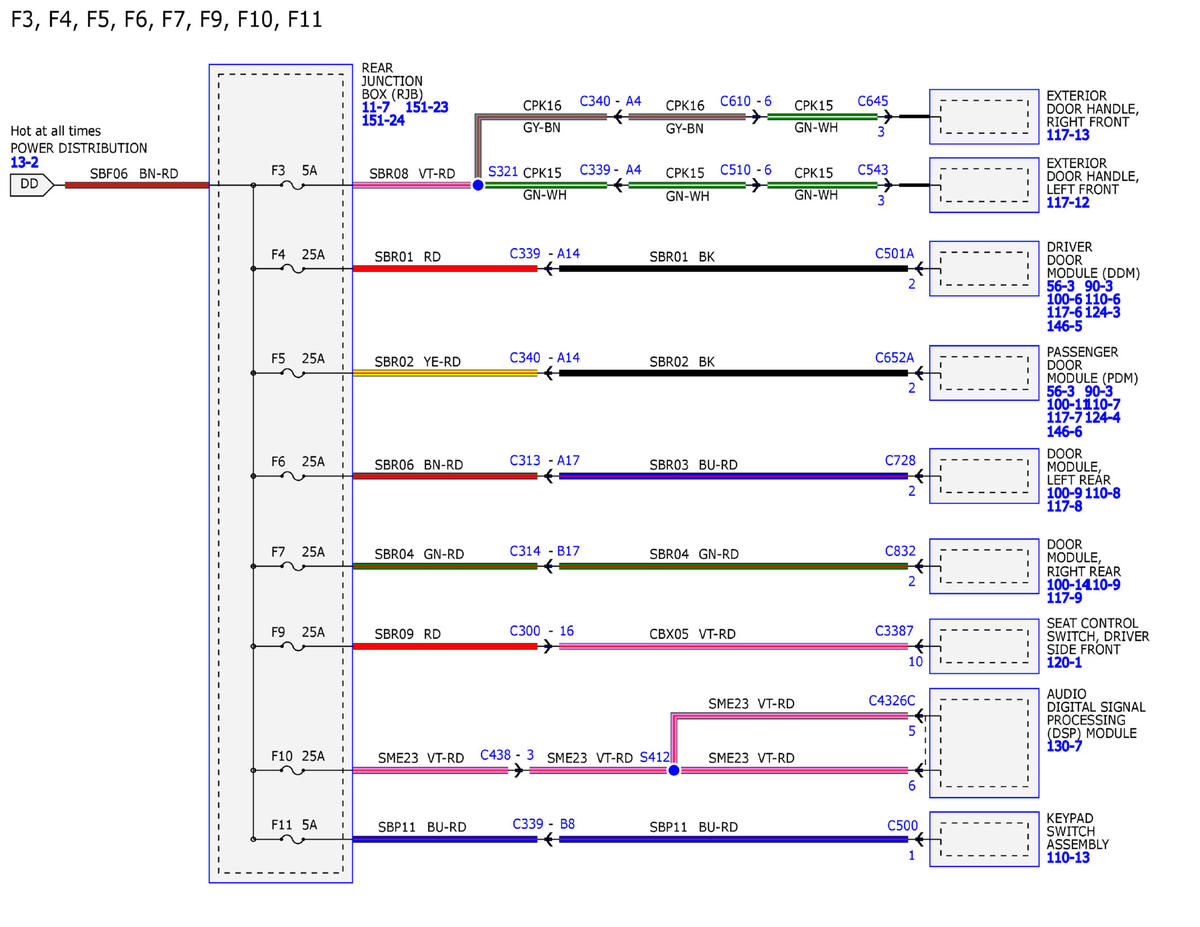

Fig 5: Power Distribution System Wiring Diagrams (5 Of 34)
Courtesy of FORD MOTOR COMPANY

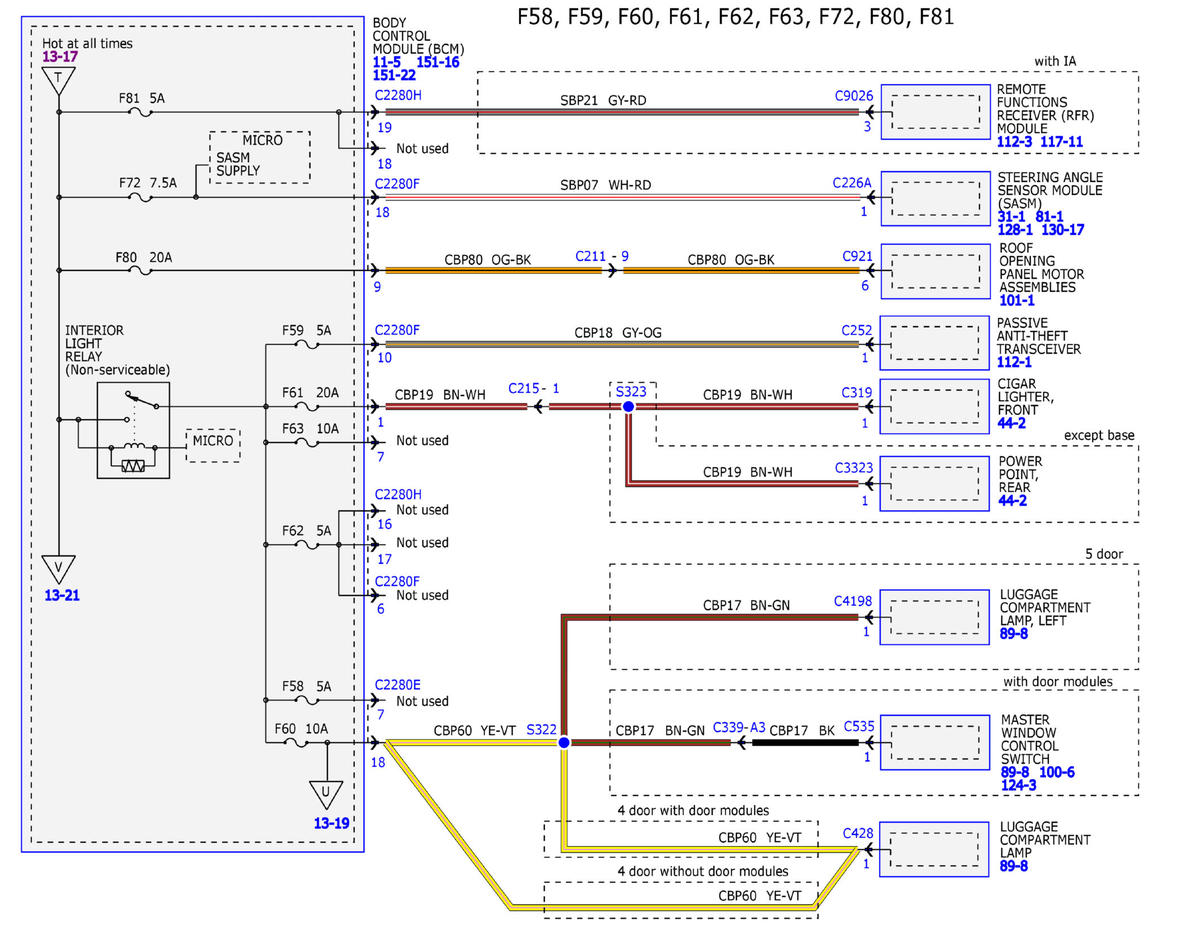

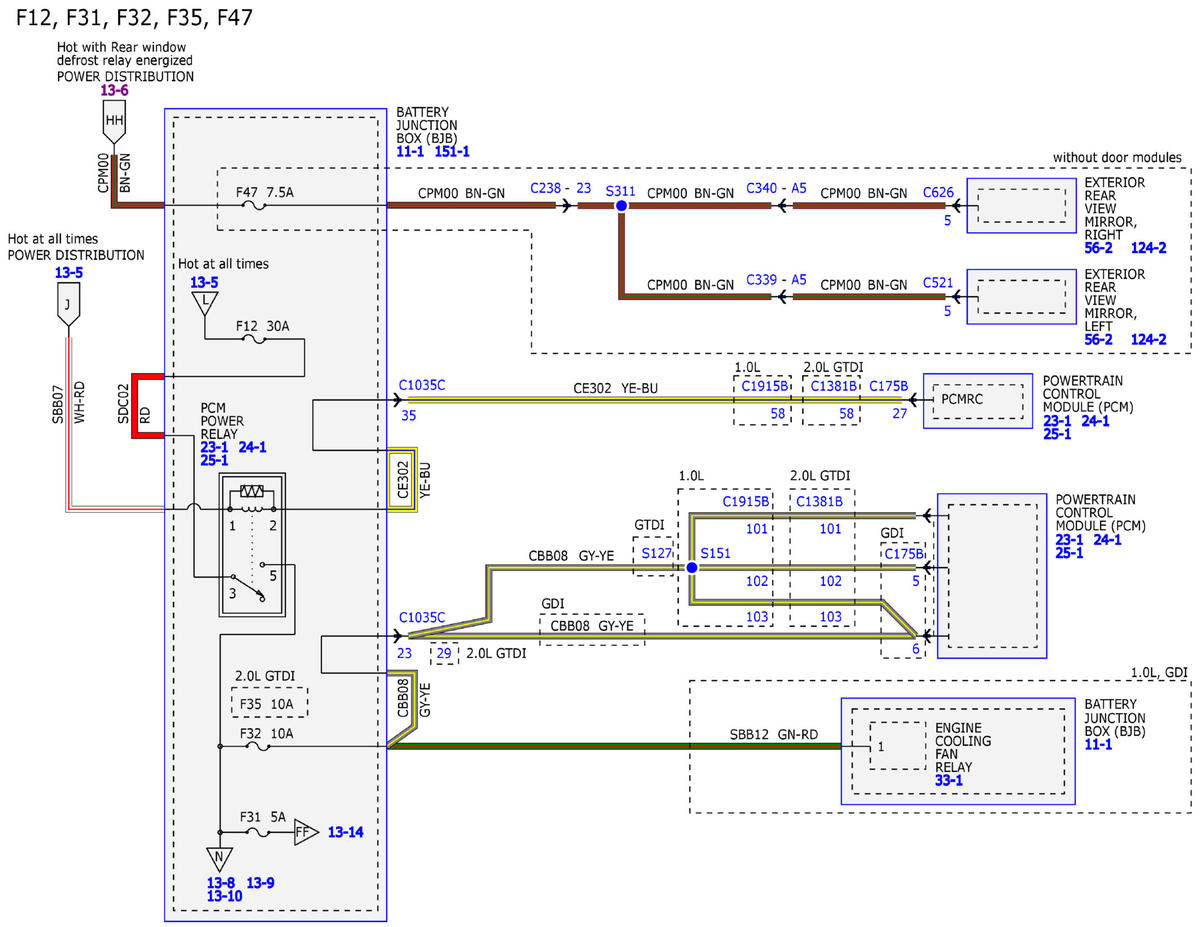

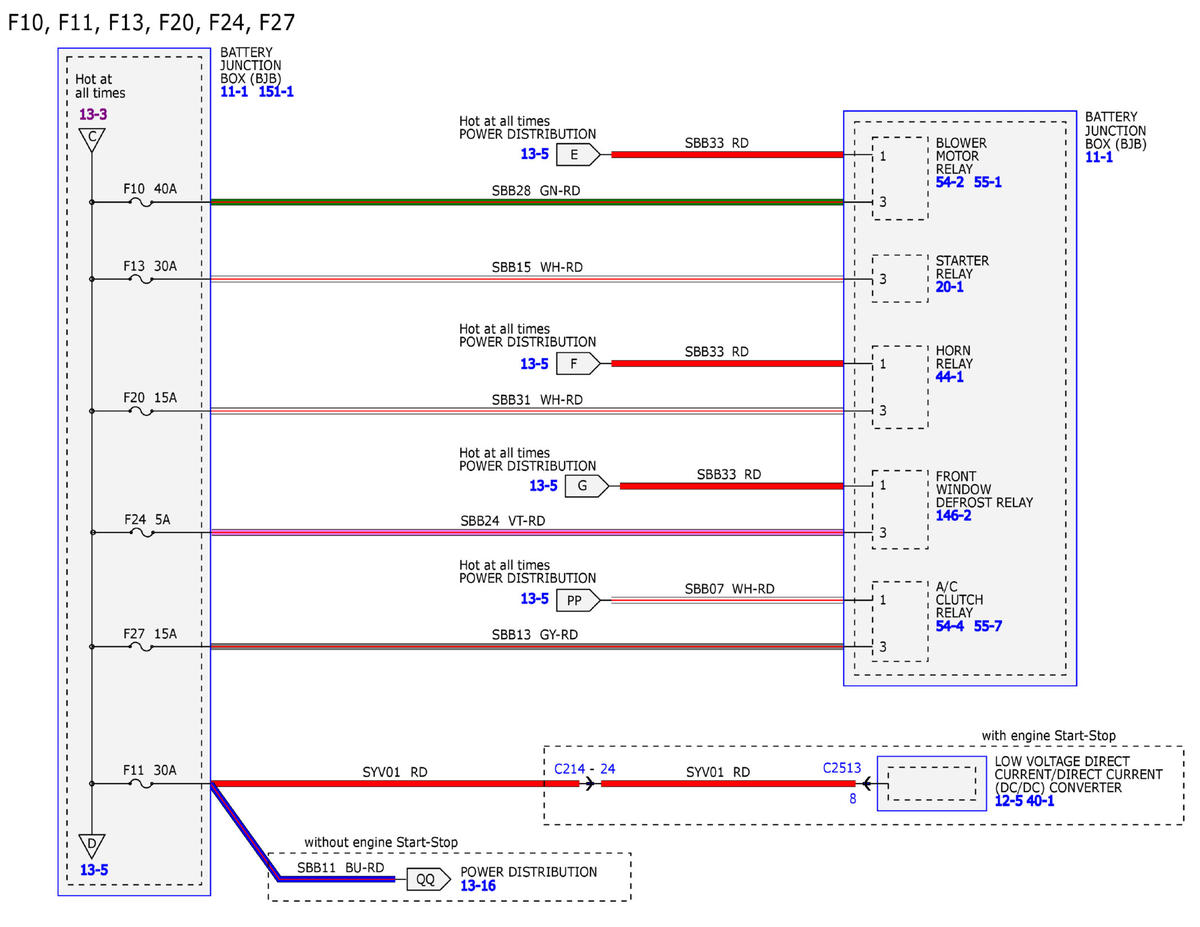

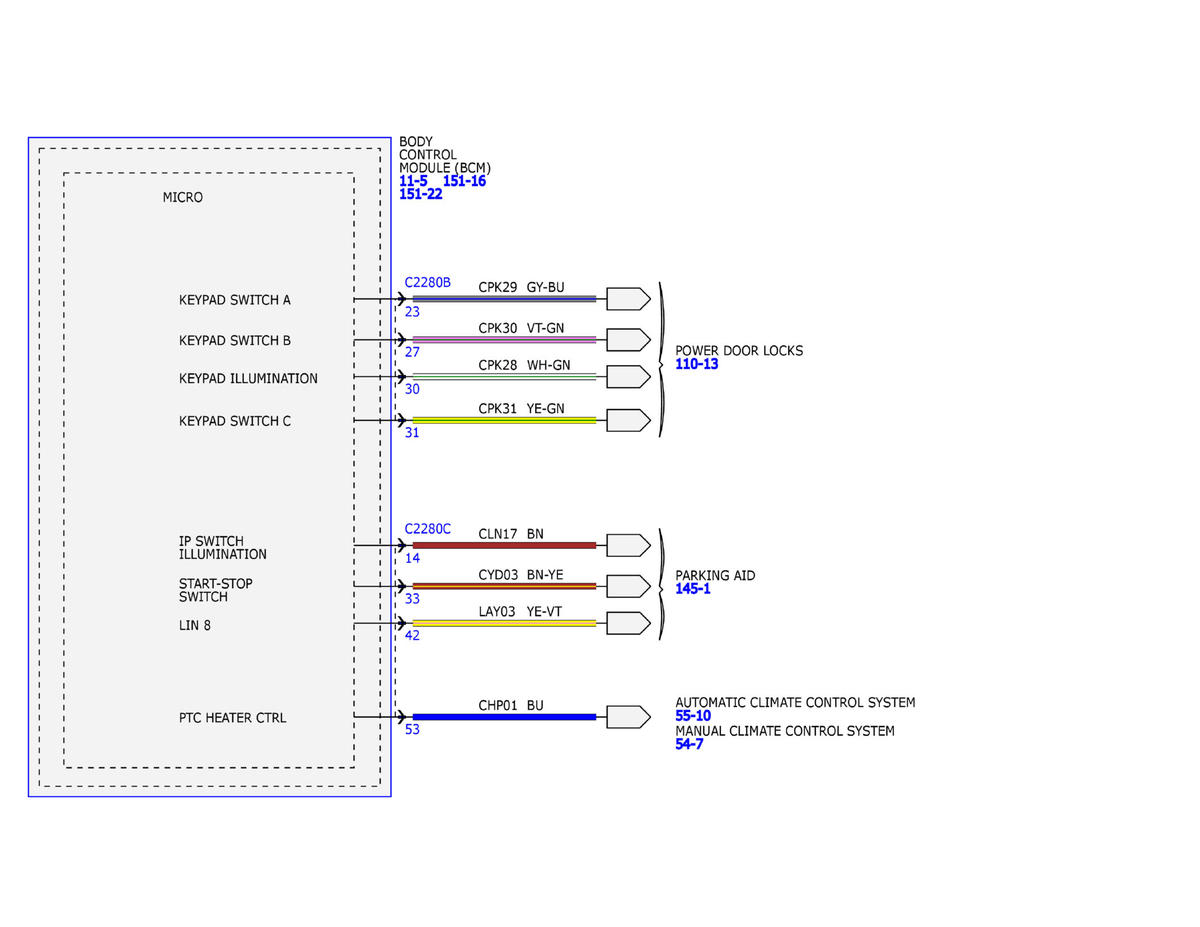

Fig 6: Power Distribution System Wiring Diagrams (6 Of 34)
Courtesy of FORD MOTOR COMPANY

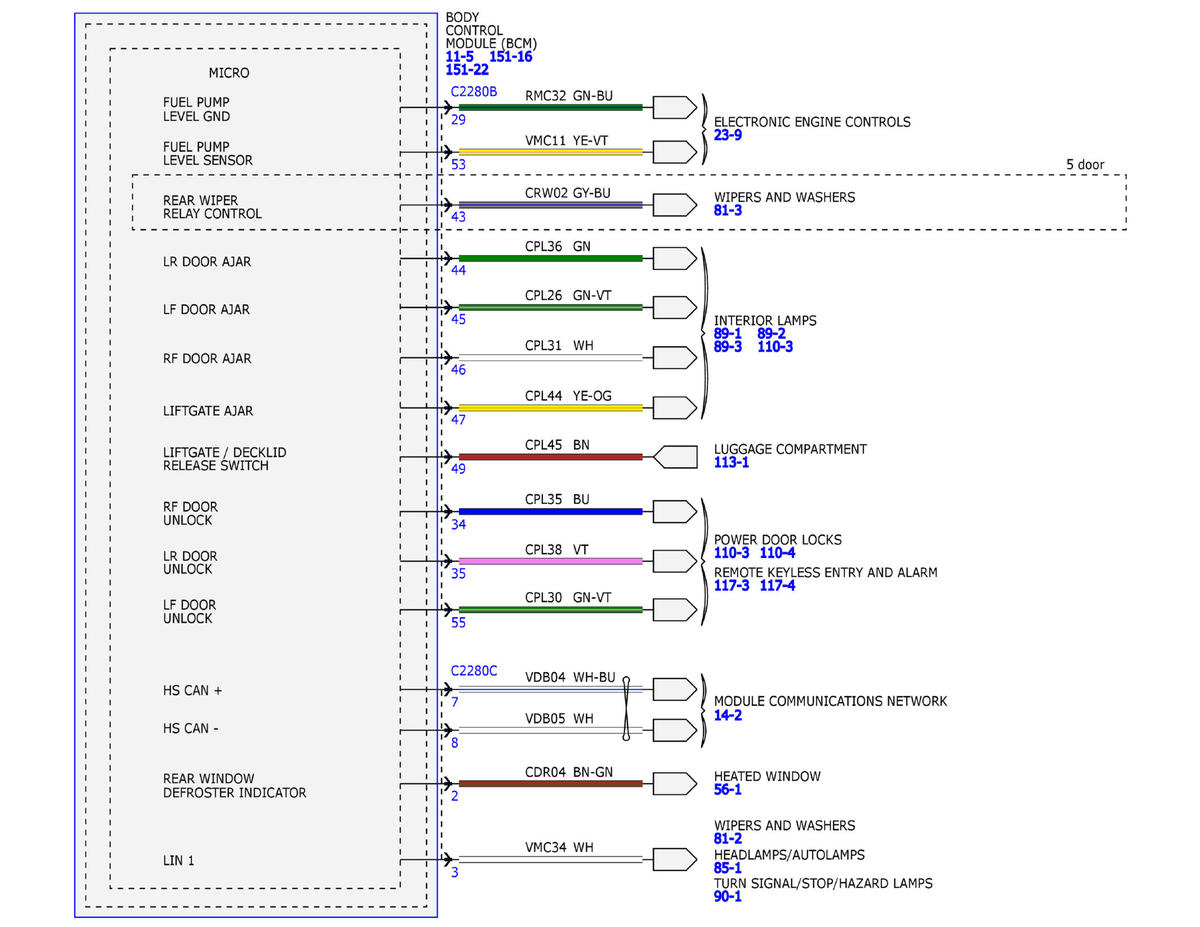

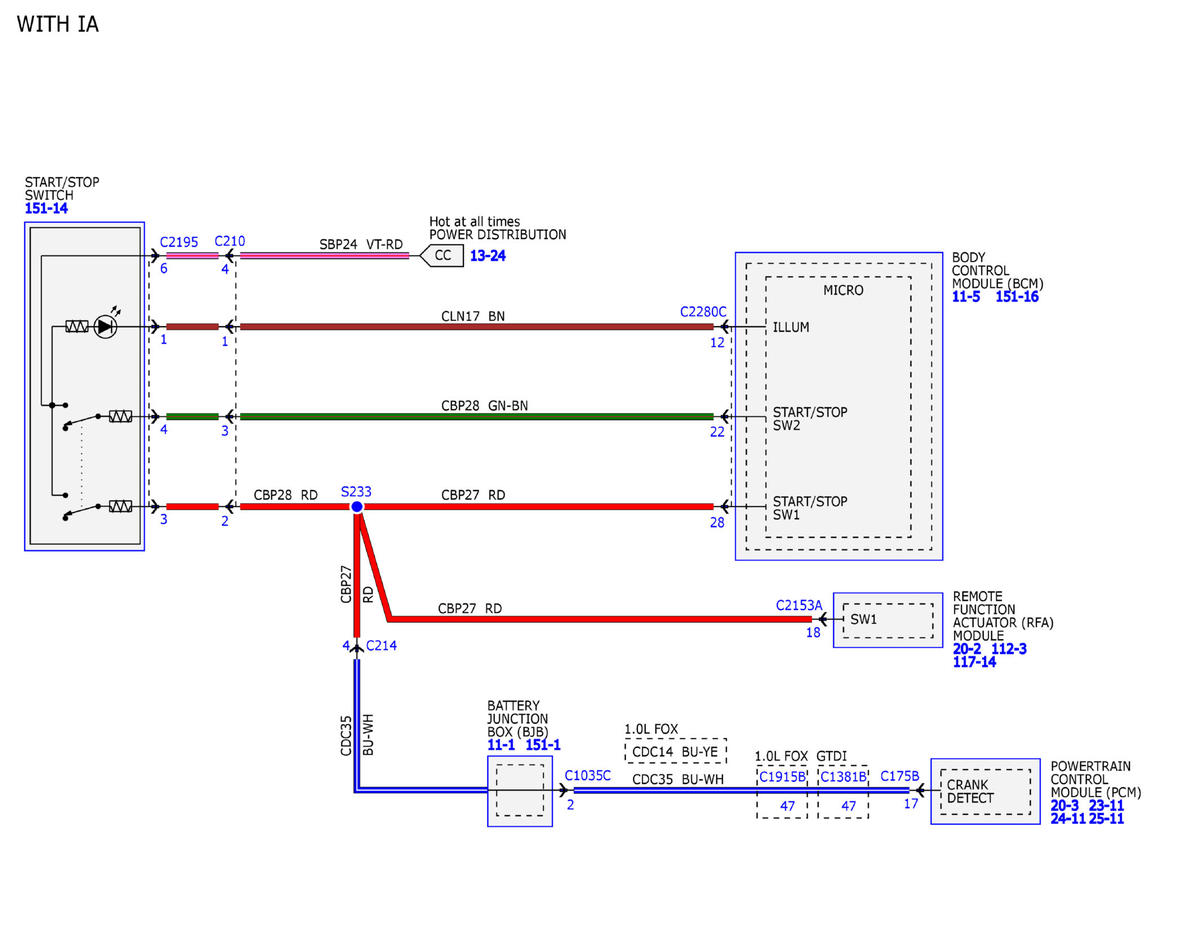

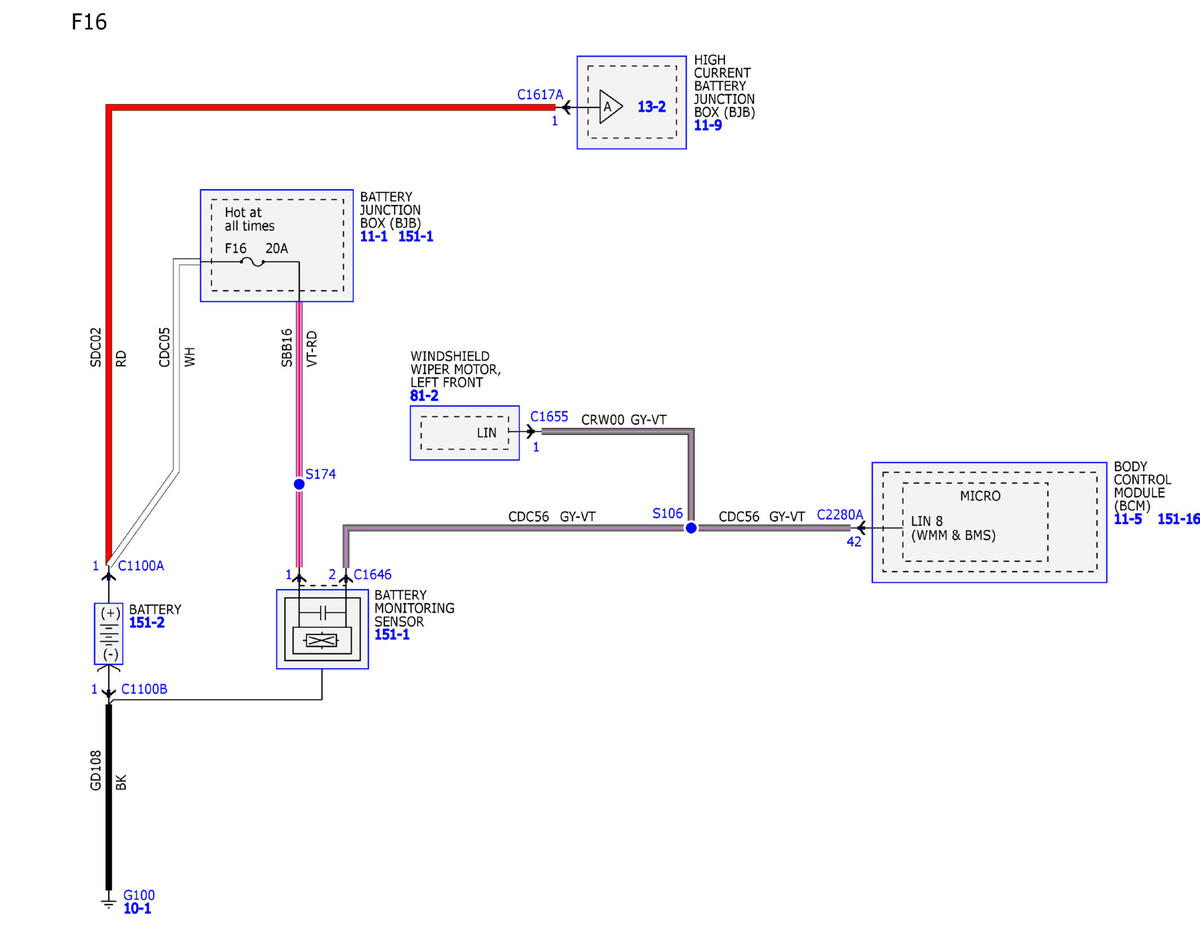

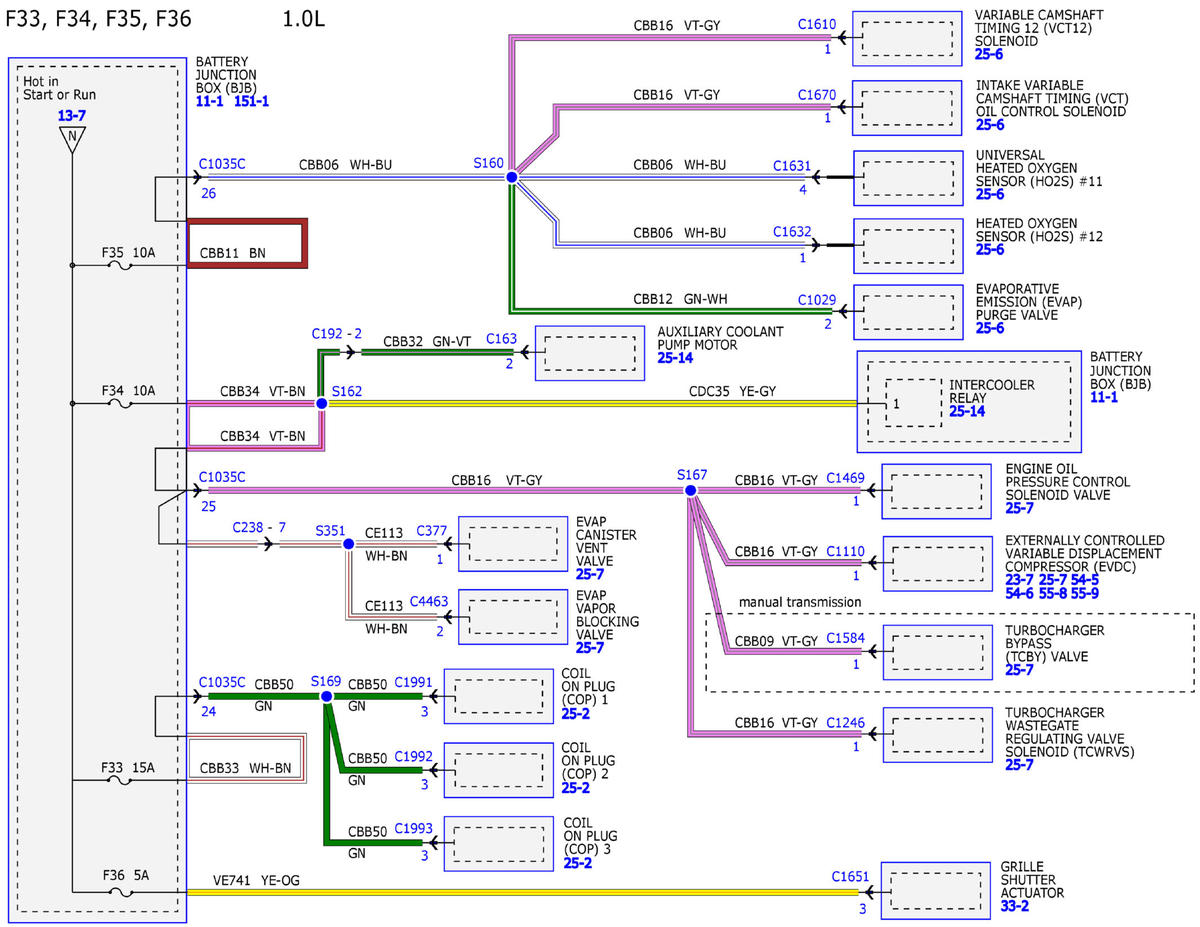

Fig 7: Power Distribution System Wiring Diagrams (7 Of 34)
Courtesy of FORD MOTOR COMPANY

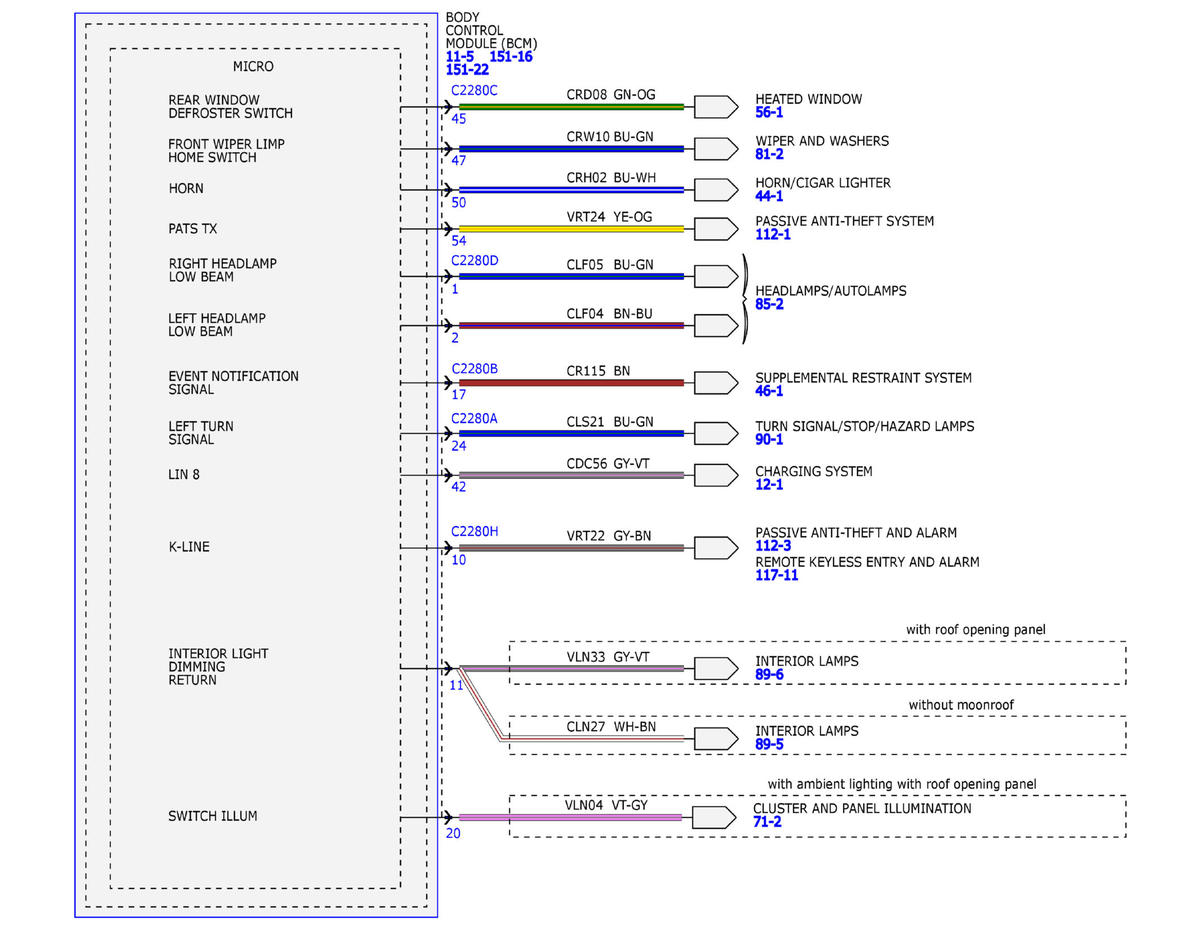

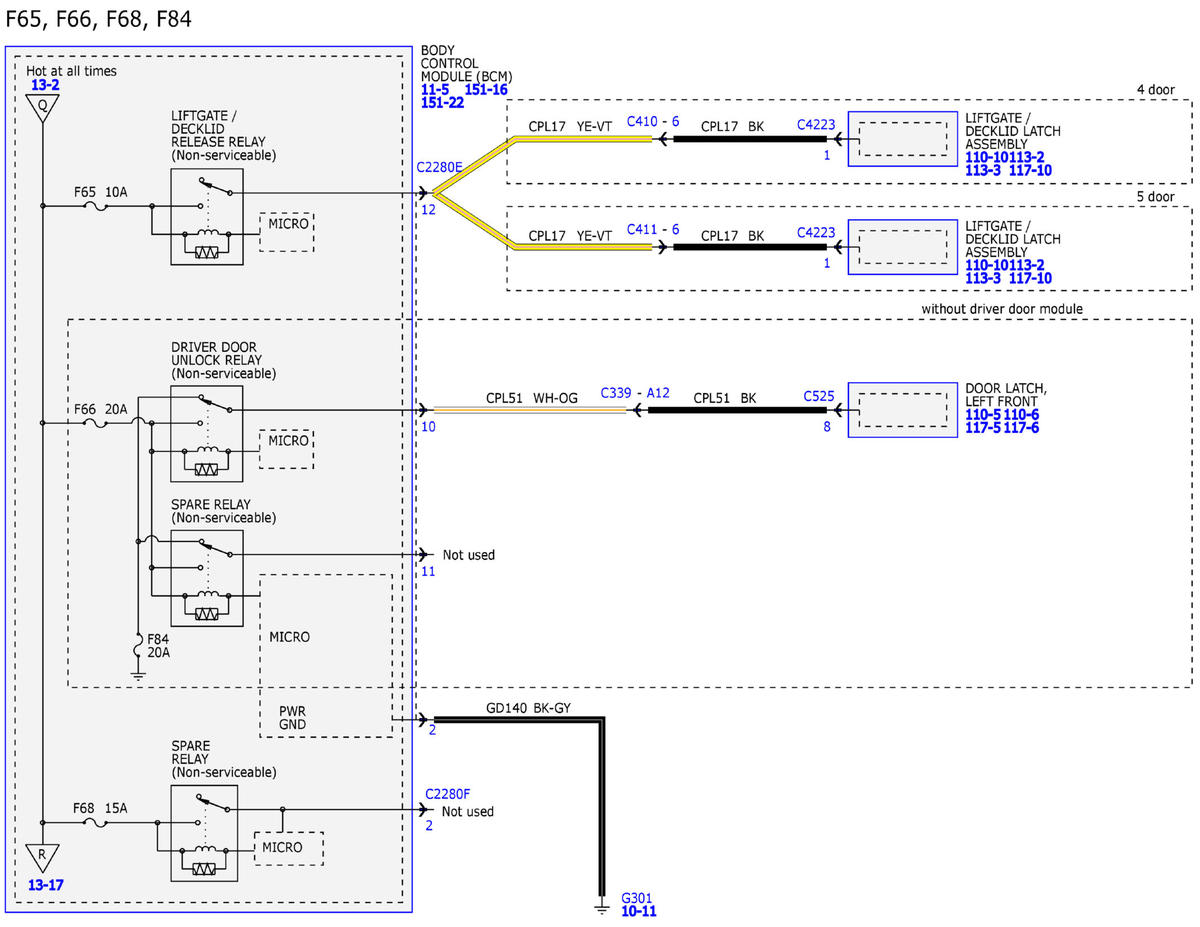

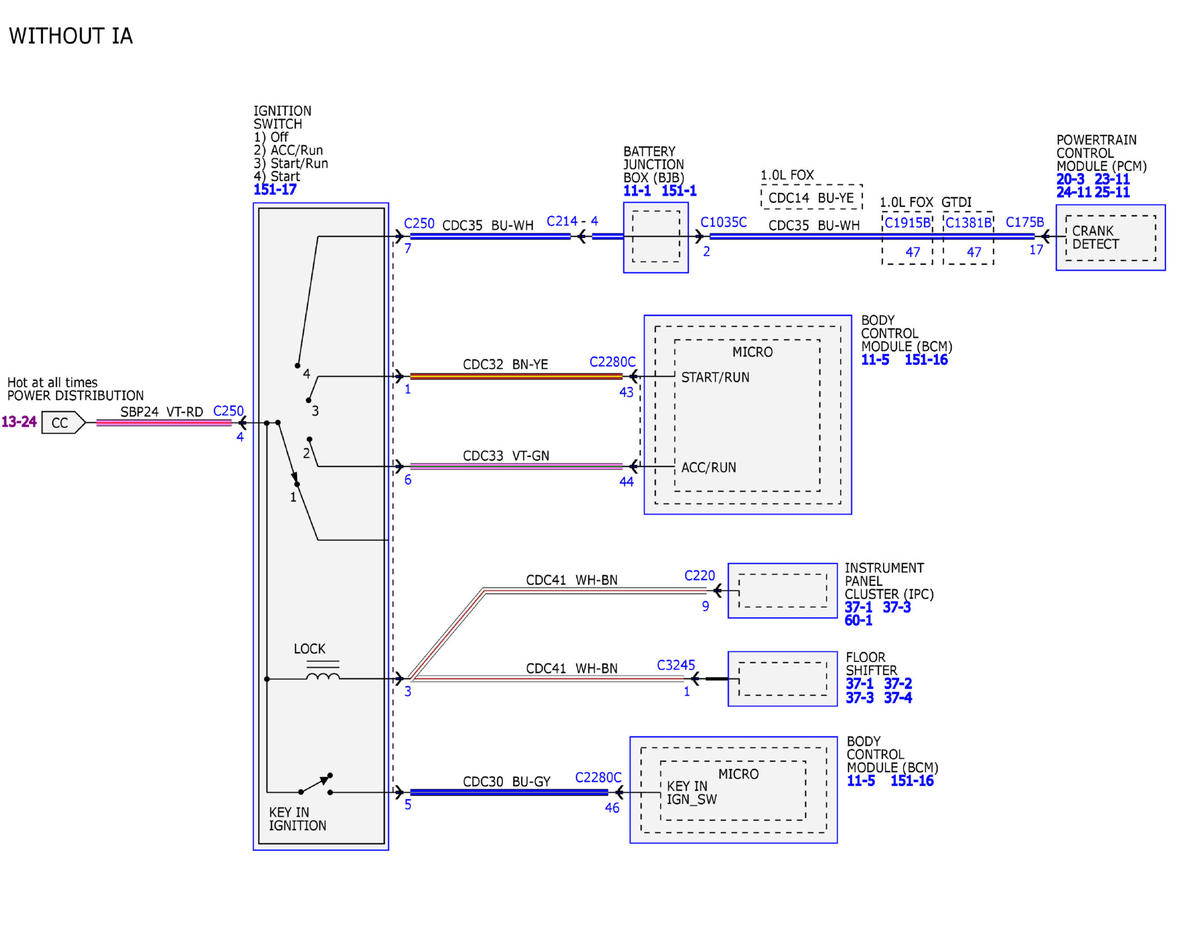

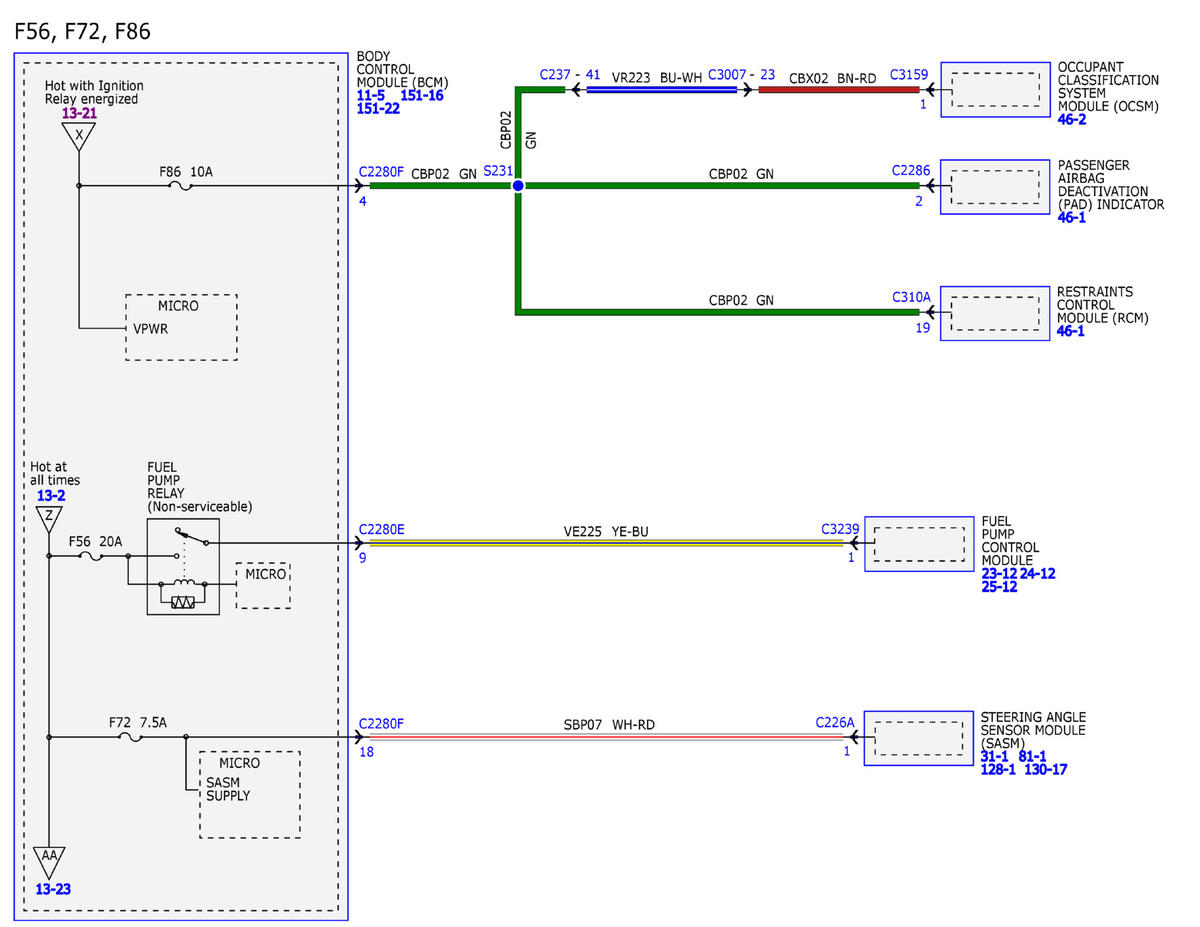

Fig 8: Power Distribution System Wiring Diagrams (8 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 9: Power Distribution System Wiring Diagrams (9 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 10: Power Distribution System Wiring Diagrams (10 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 11: Power Distribution System Wiring Diagrams (11 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 12: Power Distribution System Wiring Diagrams (12 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 13: Power Distribution System Wiring Diagrams (13 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 14: Power Distribution System Wiring Diagrams (14 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 15: Power Distribution System Wiring Diagrams (15 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 16: Power Distribution System Wiring Diagrams (16 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 17: Power Distribution System Wiring Diagrams (17 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 18: Power Distribution System Wiring Diagrams (18 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 19: Power Distribution System Wiring Diagrams (19 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 20: Power Distribution System Wiring Diagrams (20 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 21: Power Distribution System Wiring Diagrams (21 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 22: Power Distribution System Wiring Diagrams (22 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 23: Power Distribution System Wiring Diagrams (23 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 24: Power Distribution System Wiring Diagrams (24 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 25: Power Distribution System Wiring Diagrams (25 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 26: Power Distribution System Wiring Diagrams (26 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 27: Power Distribution System Wiring Diagrams (27 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 28: Power Distribution System Wiring Diagrams (28 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 29: Power Distribution System Wiring Diagrams (29 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 30: Power Distribution System Wiring Diagrams (30 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 31: Power Distribution System Wiring Diagrams (31 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 32: Power Distribution System Wiring Diagrams (32 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 33: Power Distribution System Wiring Diagrams (33 Of 34)
Courtesy of FORD MOTOR COMPANY
Fig 34: Power Distribution System Wiring Diagrams (34 Of 34)
Courtesy of FORD MOTOR COMPANY
