Parking Aid

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

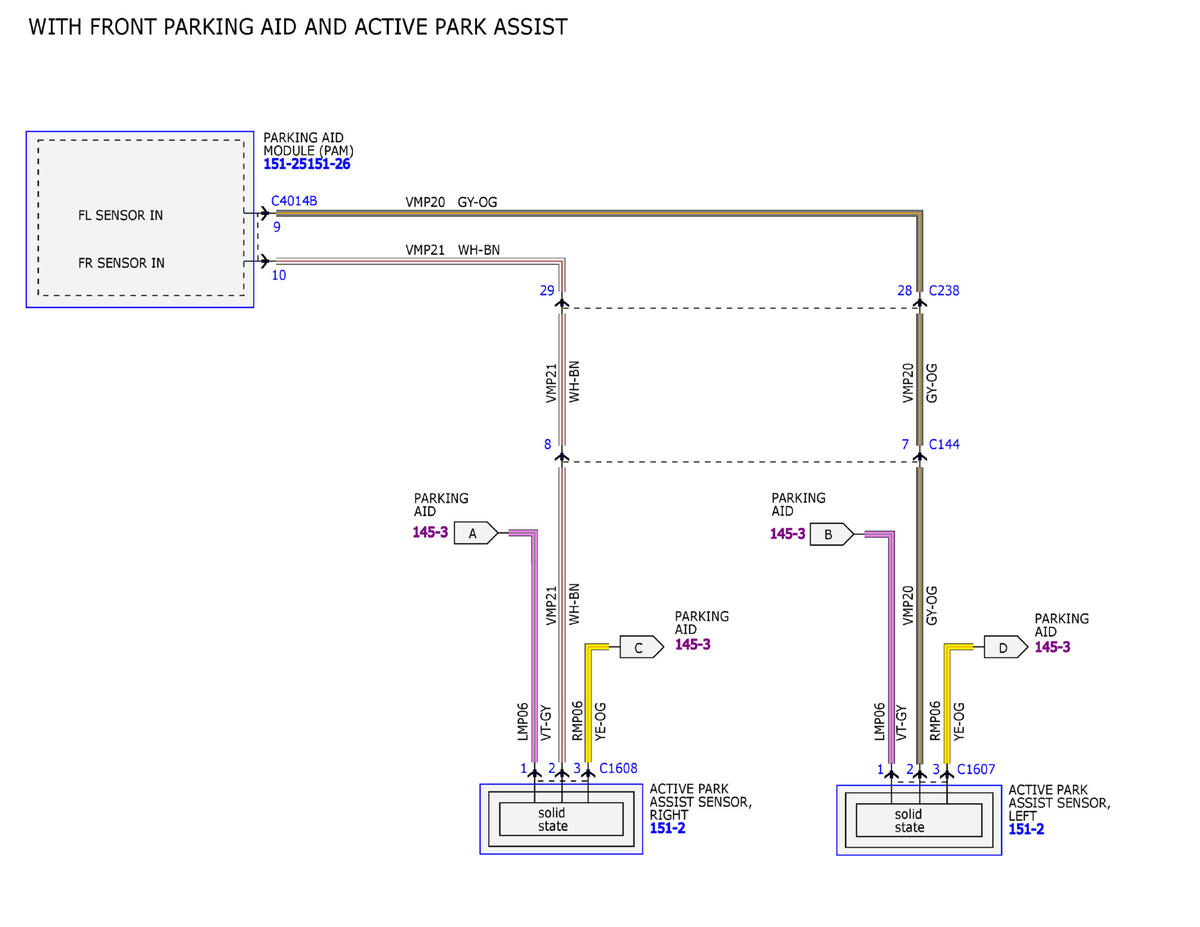

Fig 1: Parking Aid System Wiring Diagrams (1 Of 6)

Courtesy of FORD MOTOR COMPANY

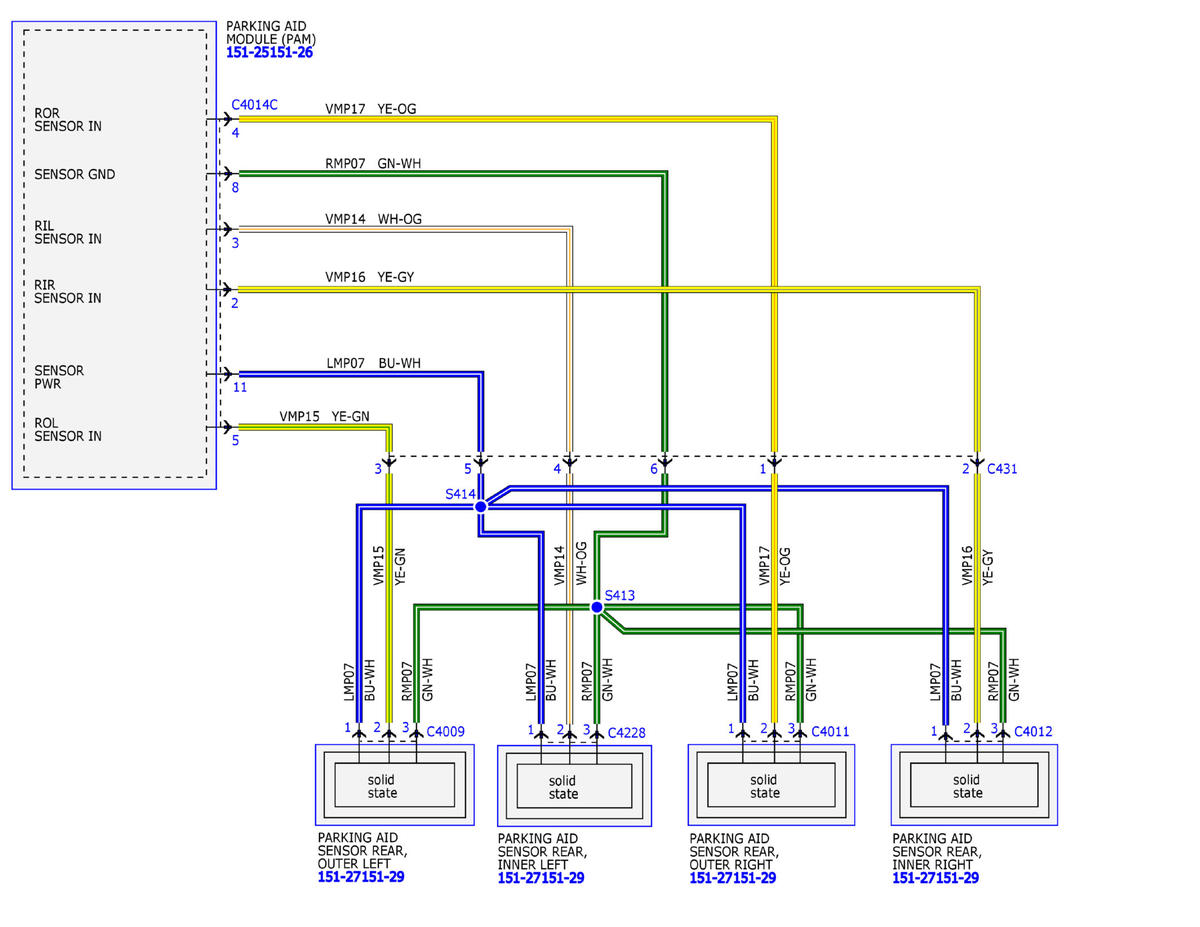

Fig 2: Parking Aid System Wiring Diagrams (2 Of 6)

Courtesy of FORD MOTOR COMPANY

Fig 3: Parking Aid System Wiring Diagrams (3 Of 6)

Courtesy of FORD MOTOR COMPANY

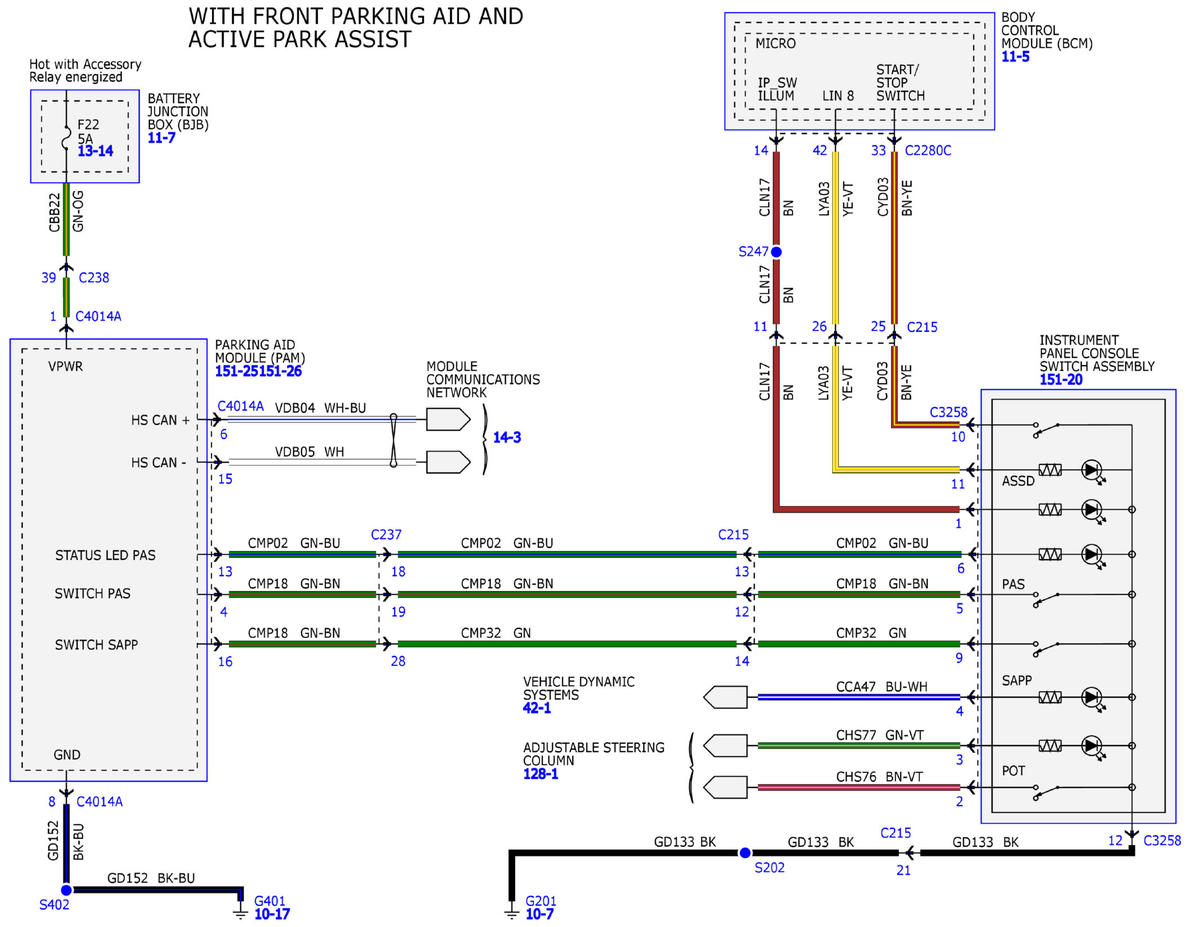

Fig 4: Parking Aid System Wiring Diagrams (4 Of 6)

Courtesy of FORD MOTOR COMPANY

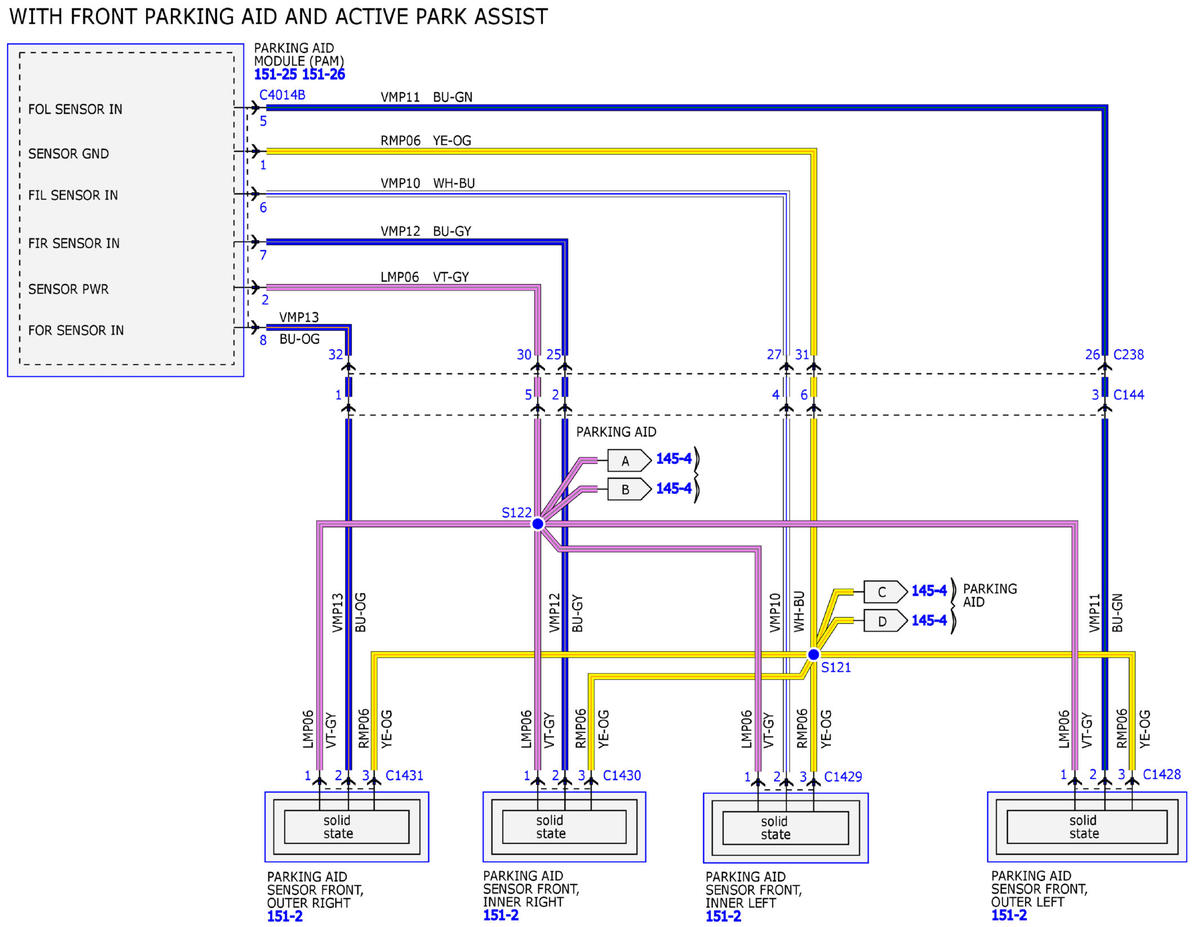

Fig 5: Parking Aid System Wiring Diagrams (5 Of 6)

Courtesy of FORD MOTOR COMPANY

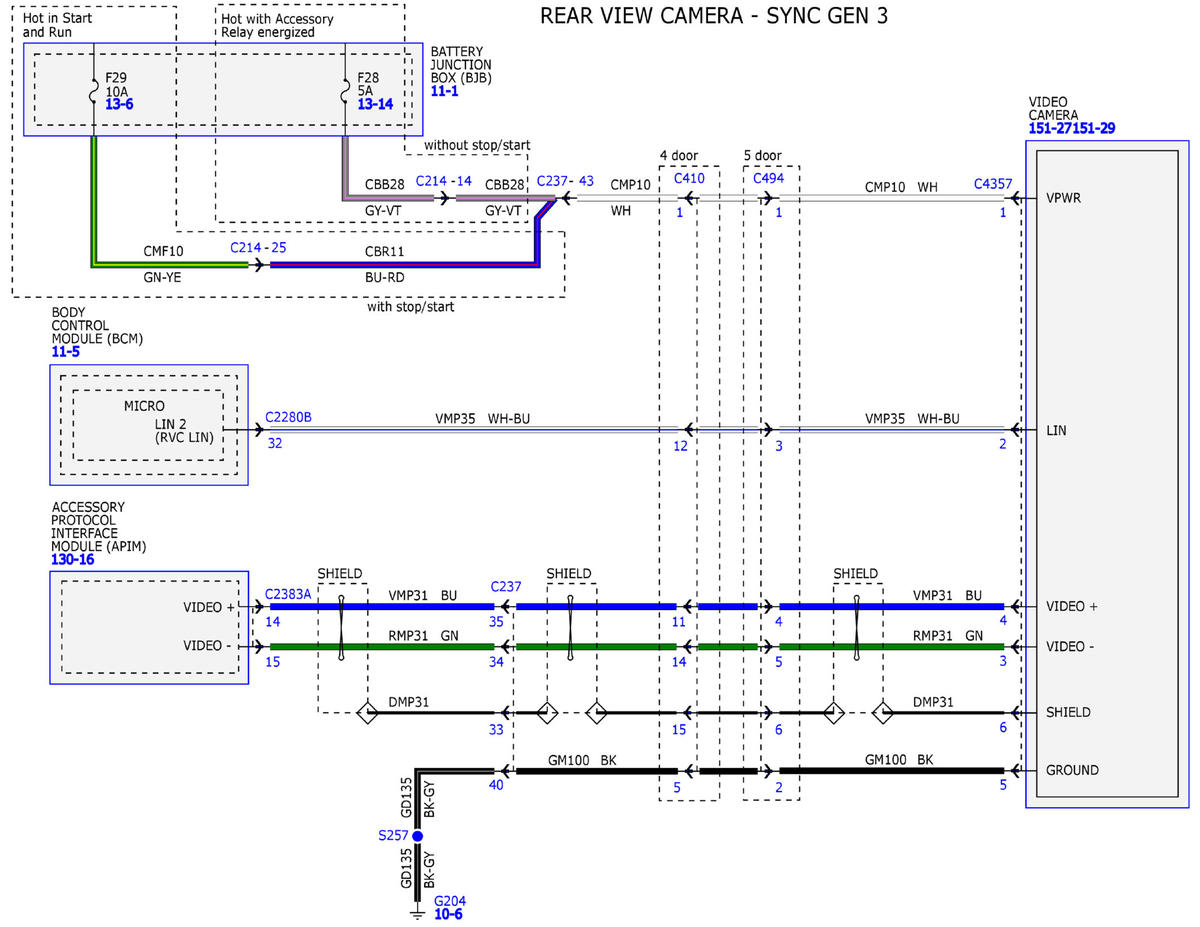

Fig 6: Parking Aid System Wiring Diagrams (6 Of 6)

Courtesy of FORD MOTOR COMPANY
