Interior Lamps

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

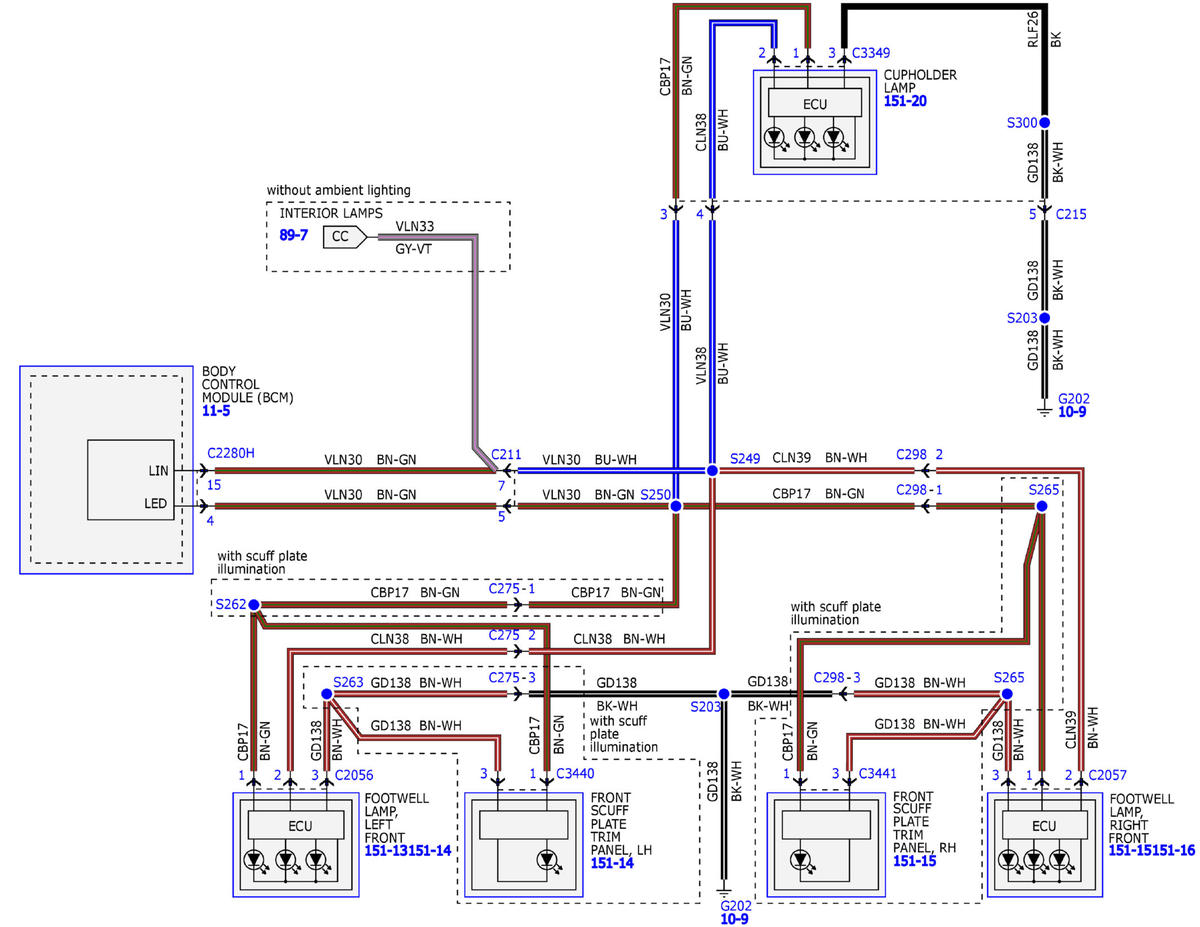

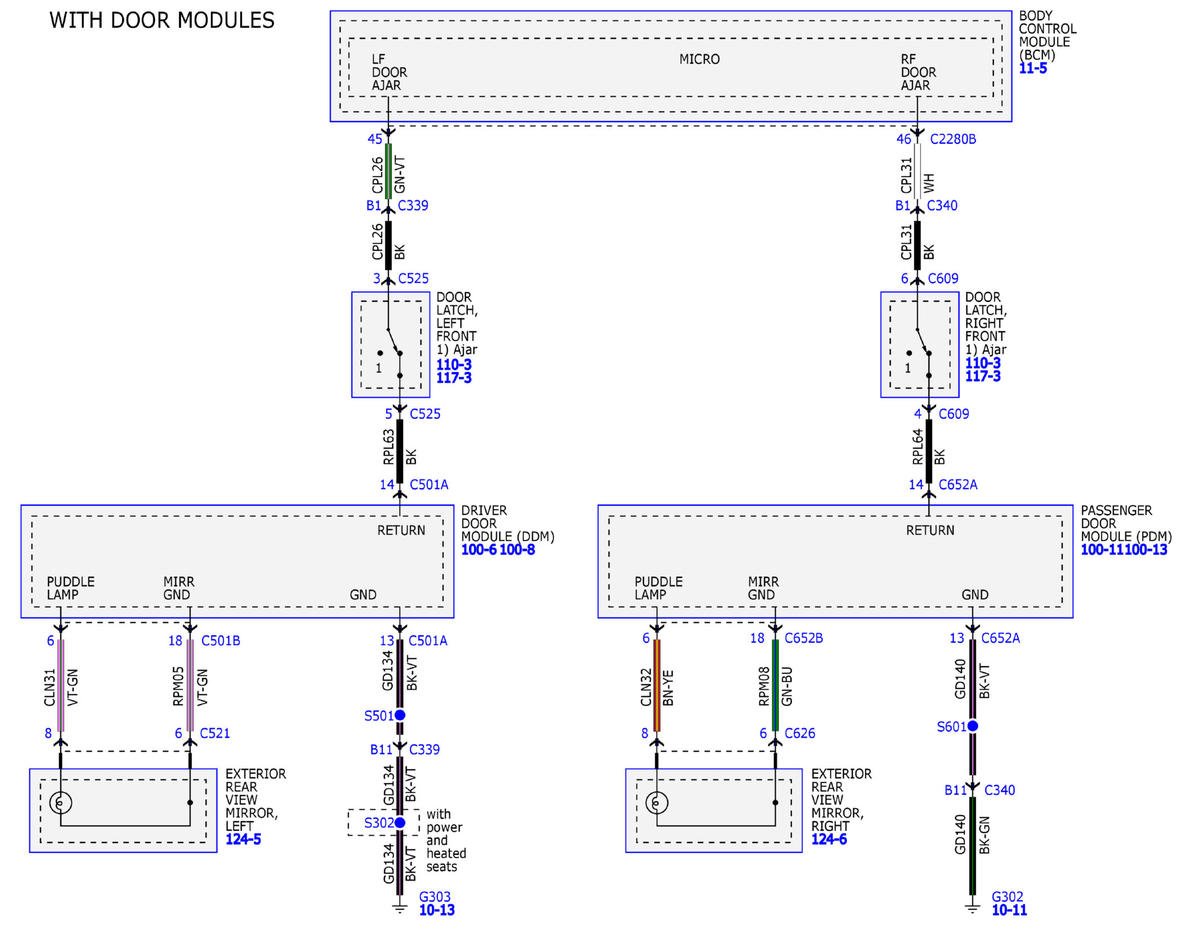

Fig 1: Interior Lamps System Wiring Diagrams (1 Of 10)

Courtesy of FORD MOTOR COMPANY

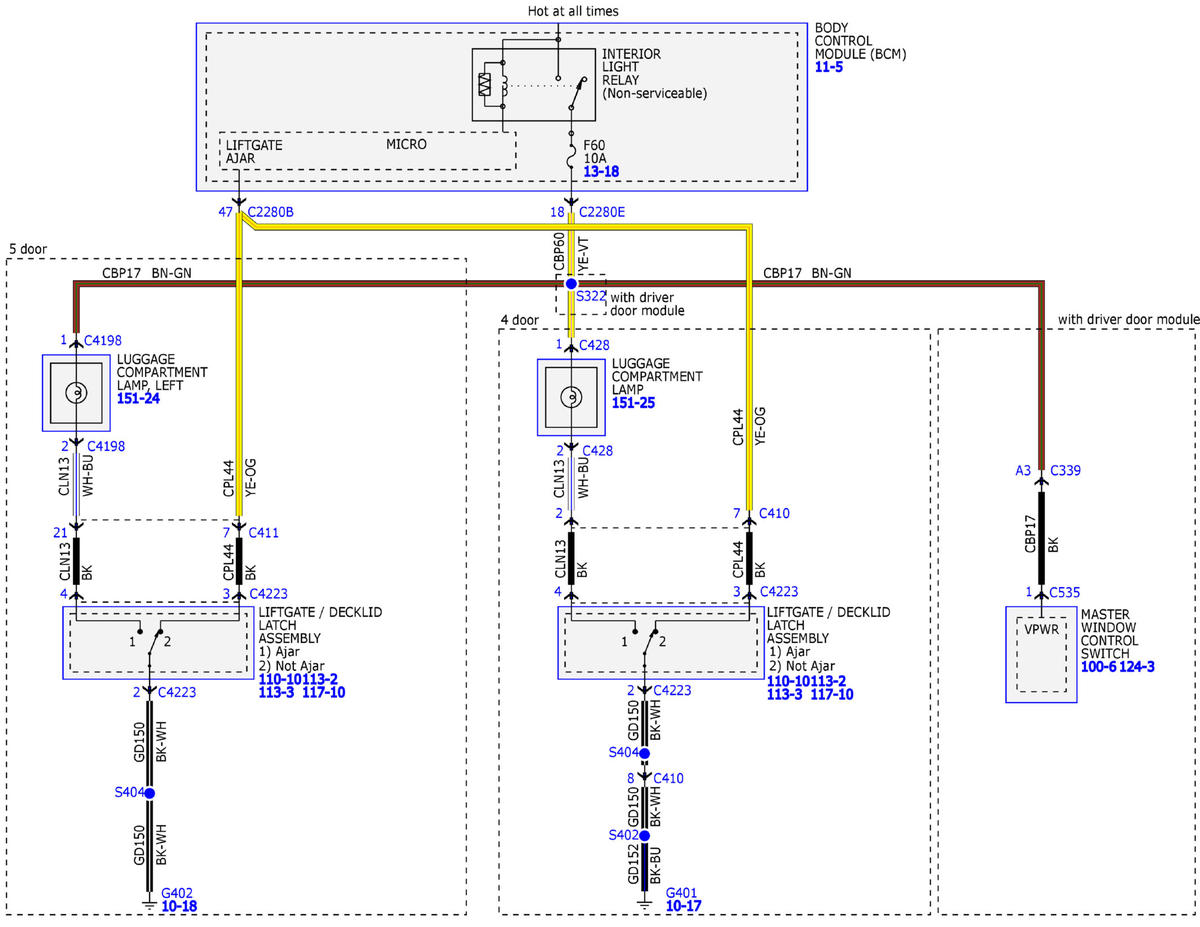

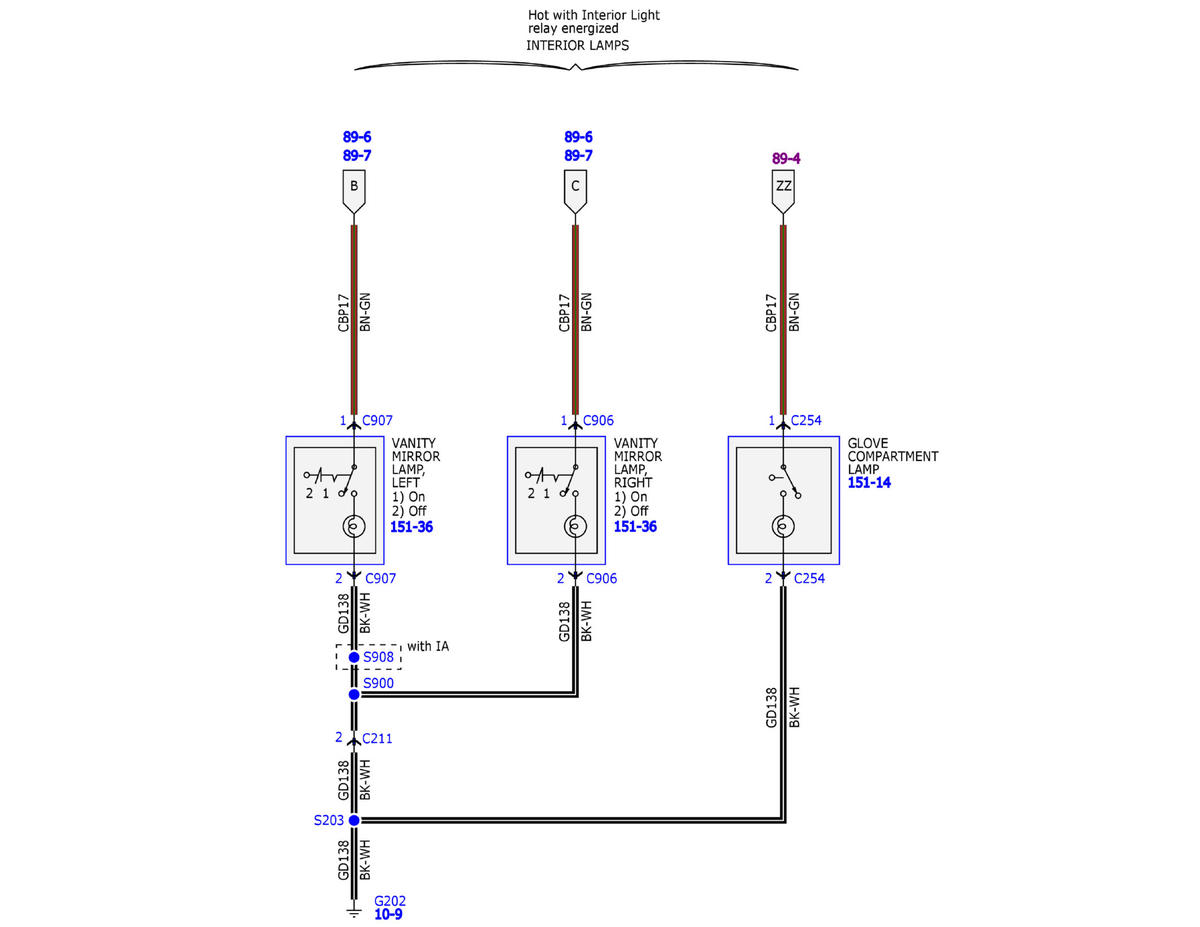

Fig 2: Interior Lamps System Wiring Diagrams (2 Of 10)

Courtesy of FORD MOTOR COMPANY

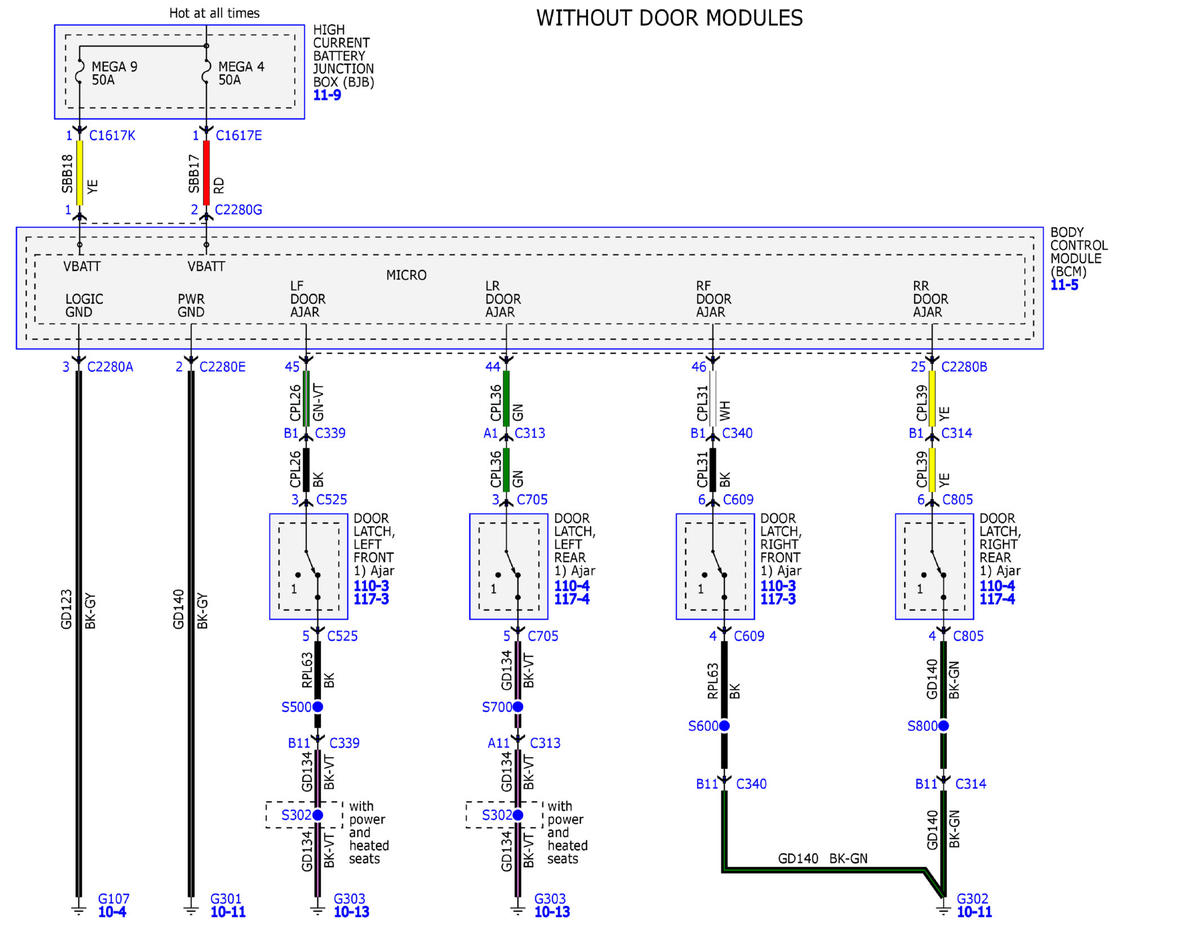

Fig 3: Interior Lamps System Wiring Diagrams (3 Of 10)

Courtesy of FORD MOTOR COMPANY

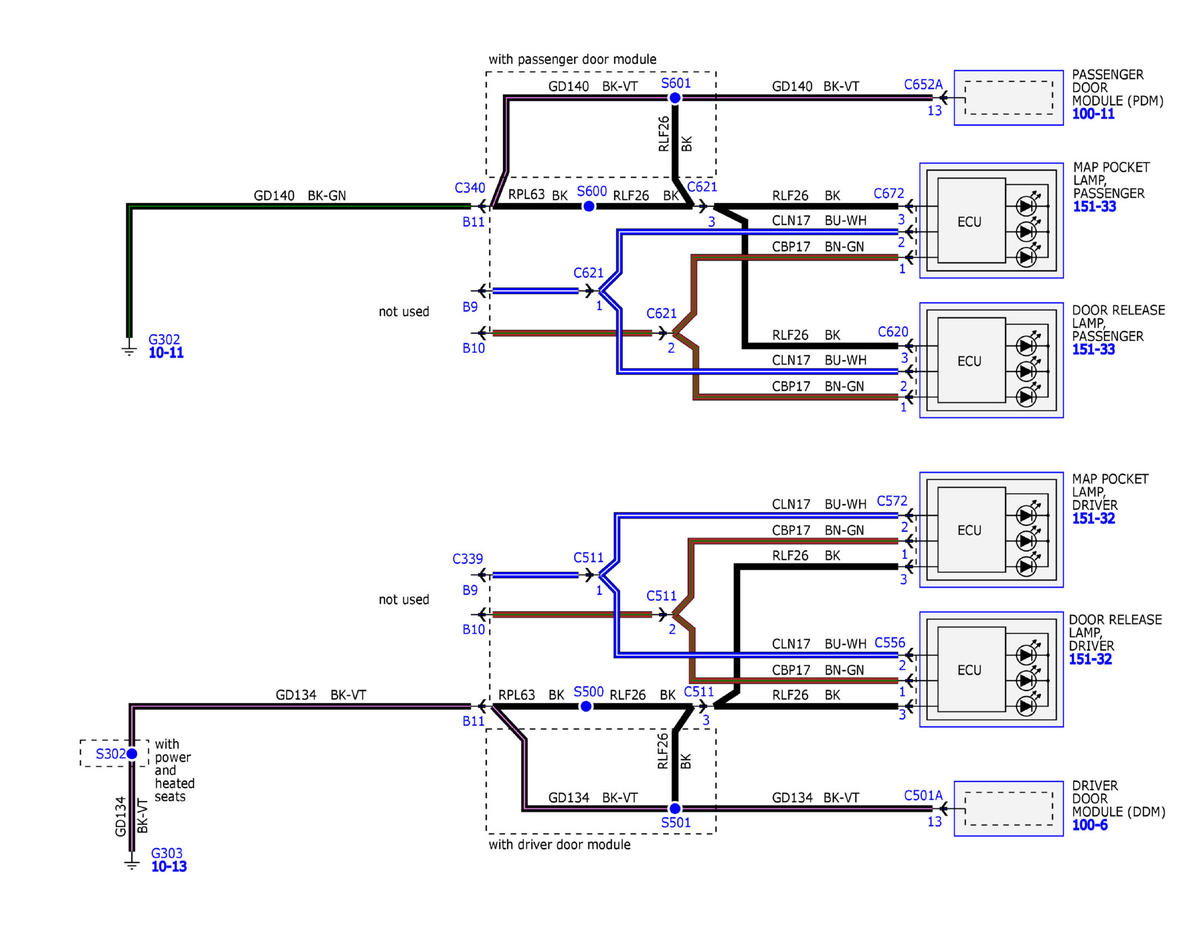

Fig 4: Interior Lamps System Wiring Diagrams (4 Of 10)

Courtesy of FORD MOTOR COMPANY

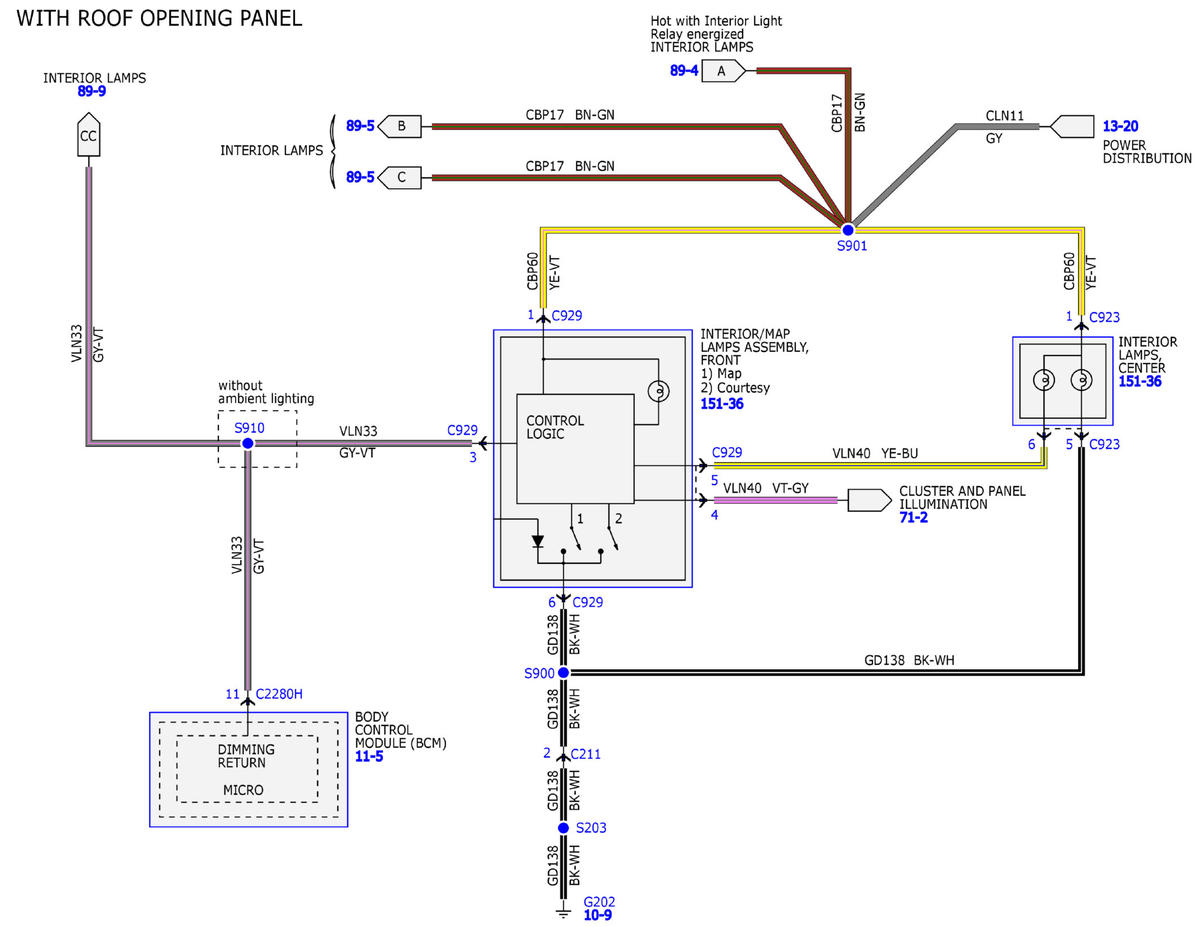

Fig 5: Interior Lamps System Wiring Diagrams (5 Of 10)

Courtesy of FORD MOTOR COMPANY

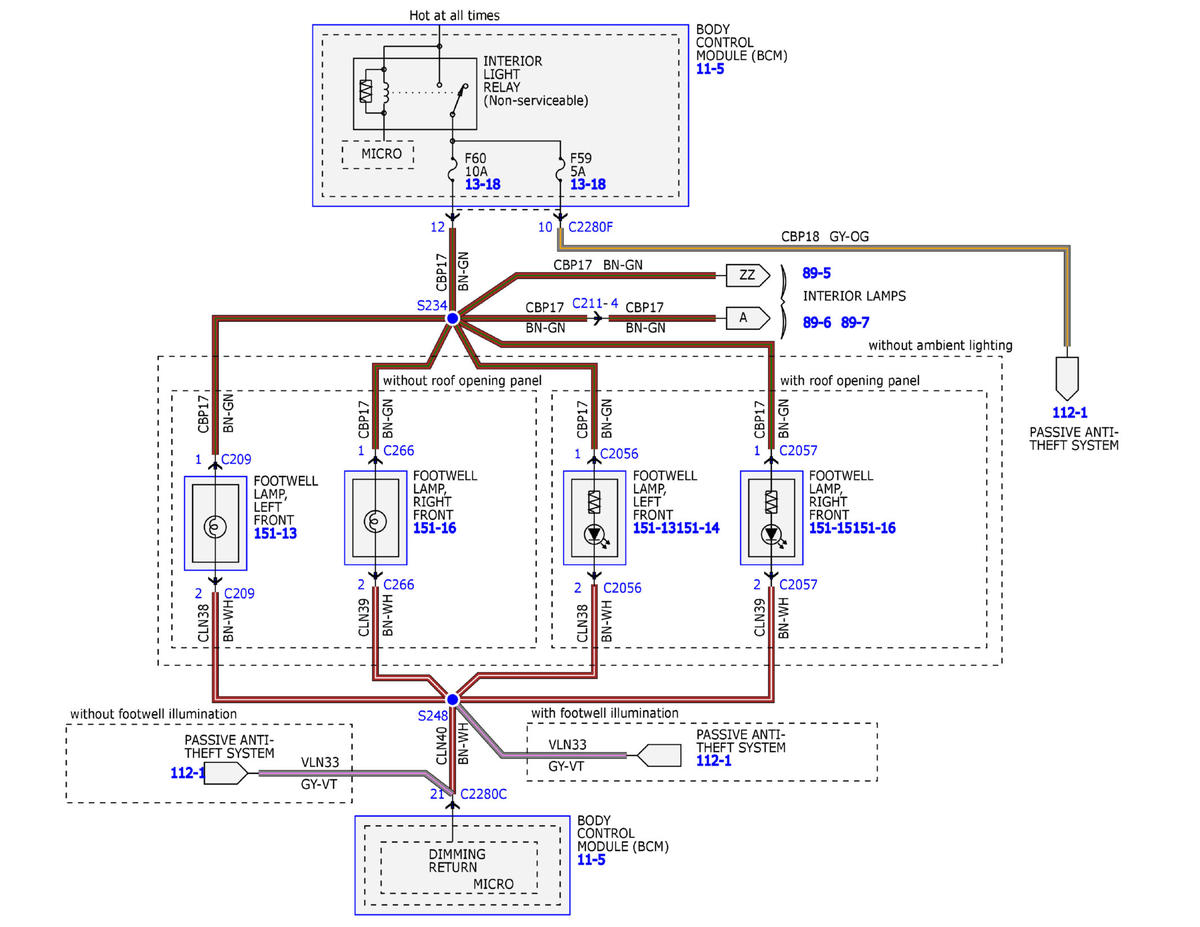

Fig 6: Interior Lamps System Wiring Diagrams (6 Of 10)

Courtesy of FORD MOTOR COMPANY

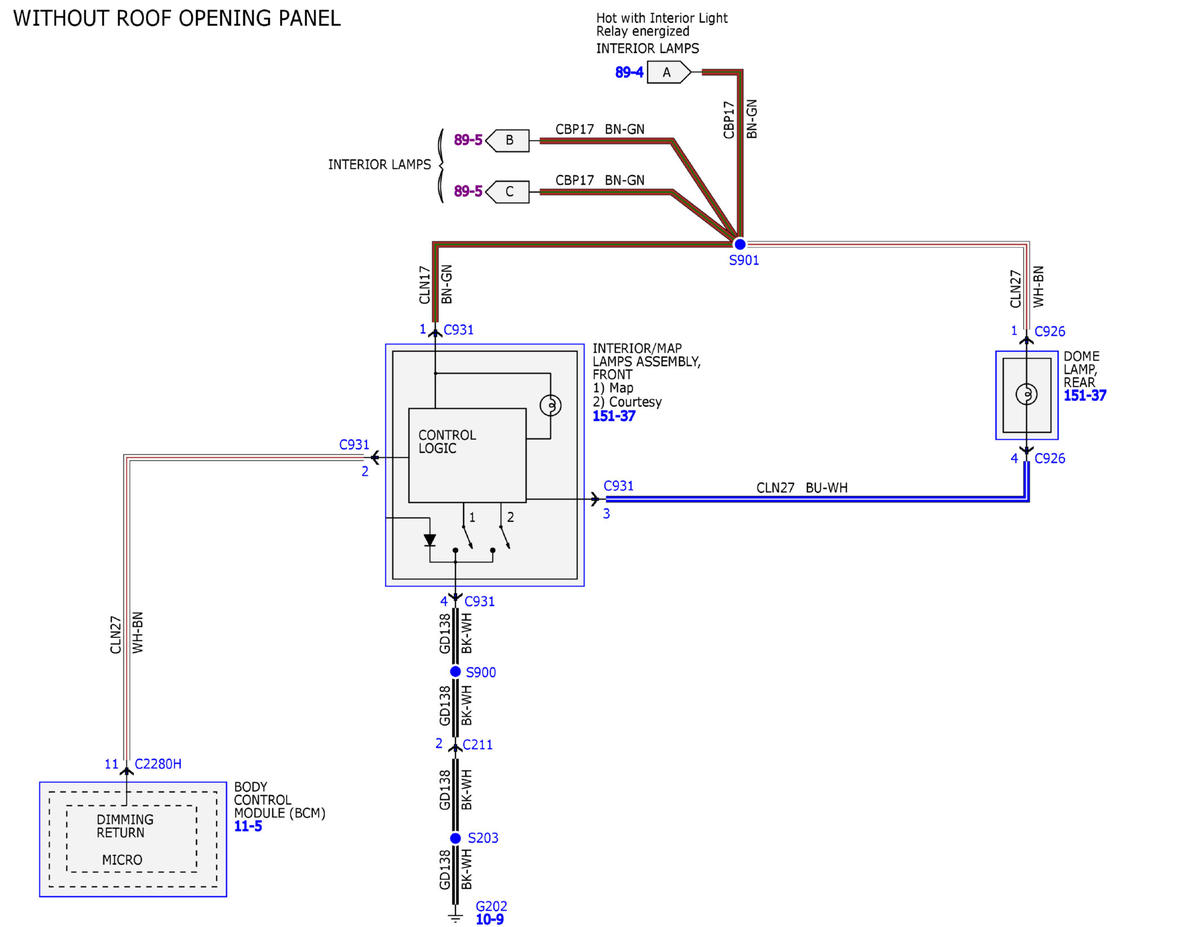

Fig 7: Interior Lamps System Wiring Diagrams (7 Of 10)

Courtesy of FORD MOTOR COMPANY

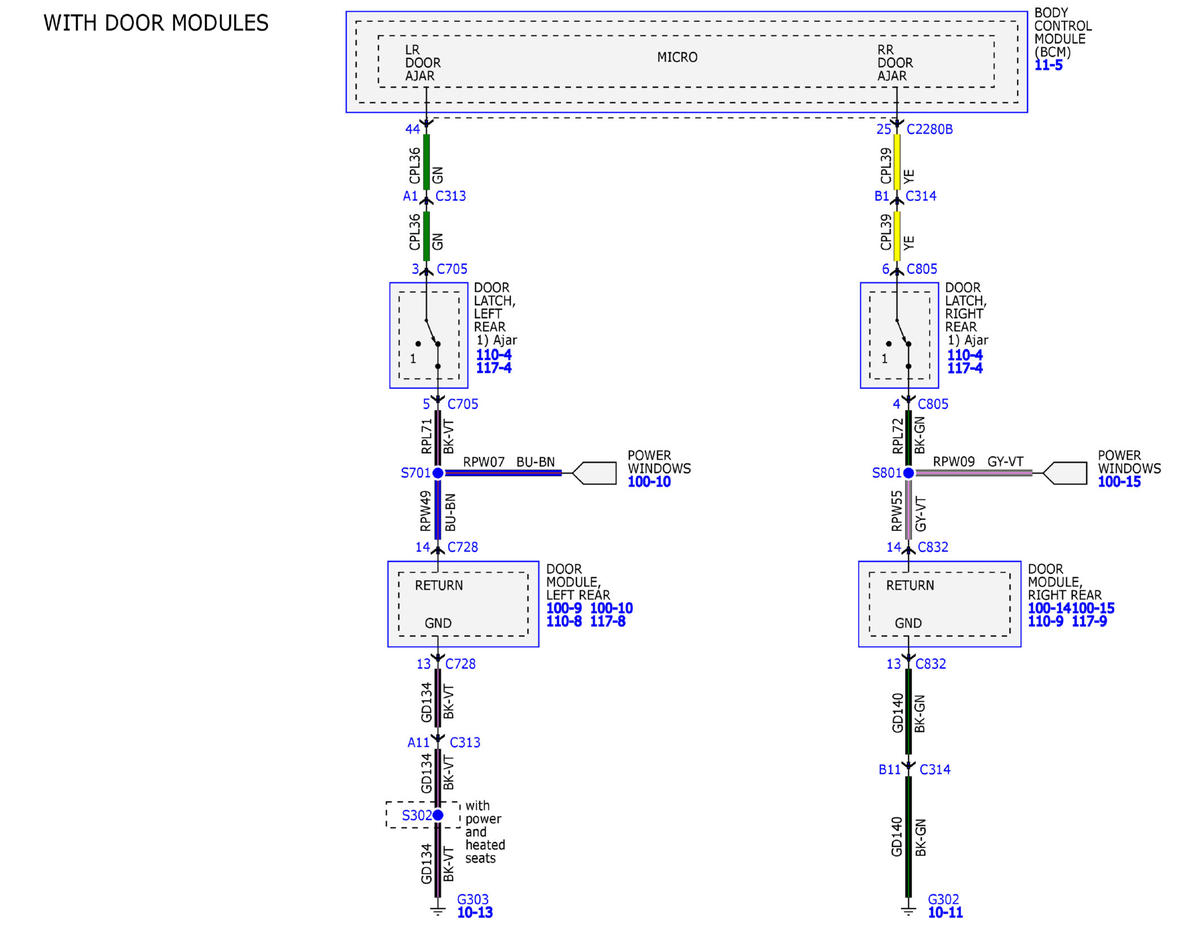

Fig 8: Interior Lamps System Wiring Diagrams (8 Of 10)

Courtesy of FORD MOTOR COMPANY

Fig 9: Interior Lamps System Wiring Diagrams (9 Of 10)

Courtesy of FORD MOTOR COMPANY

Fig 10: Interior Lamps System Wiring Diagrams (10 Of 10)

Courtesy of FORD MOTOR COMPANY
