Instrument Cluster

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

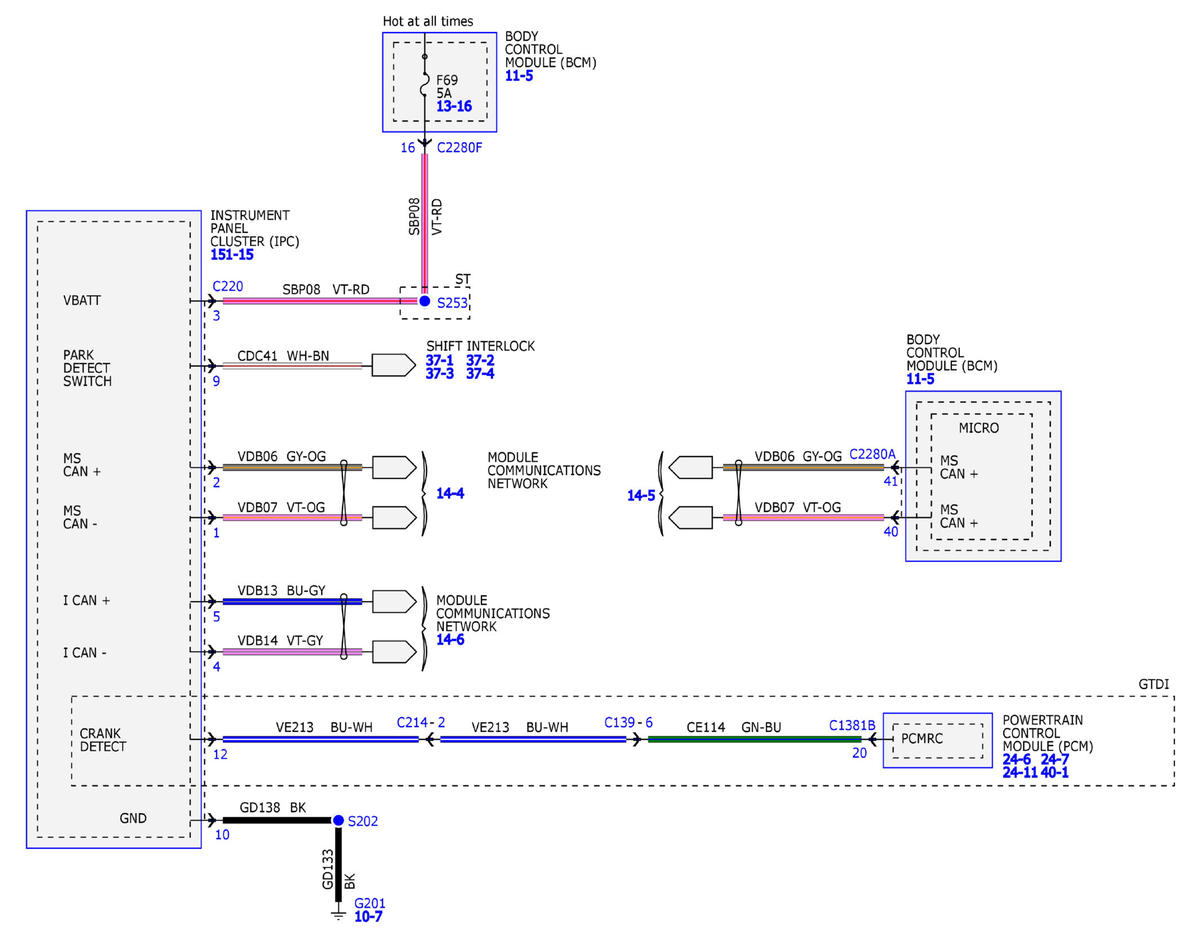

Fig 1: Instrument Cluster System Wiring Diagrams (1 Of 4)

Courtesy of FORD MOTOR COMPANY

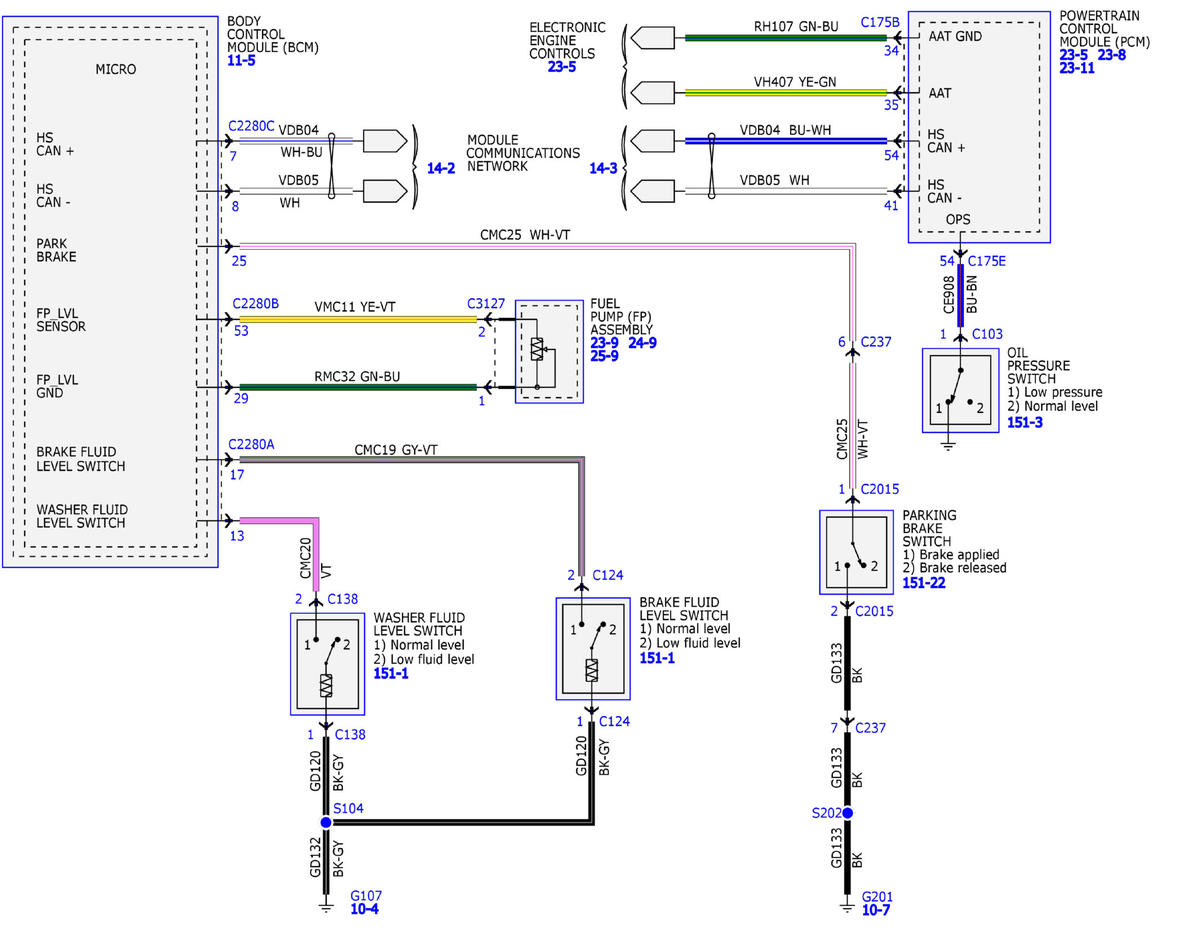

Fig 2: Instrument Cluster System Wiring Diagrams (2 Of 4)

Courtesy of FORD MOTOR COMPANY

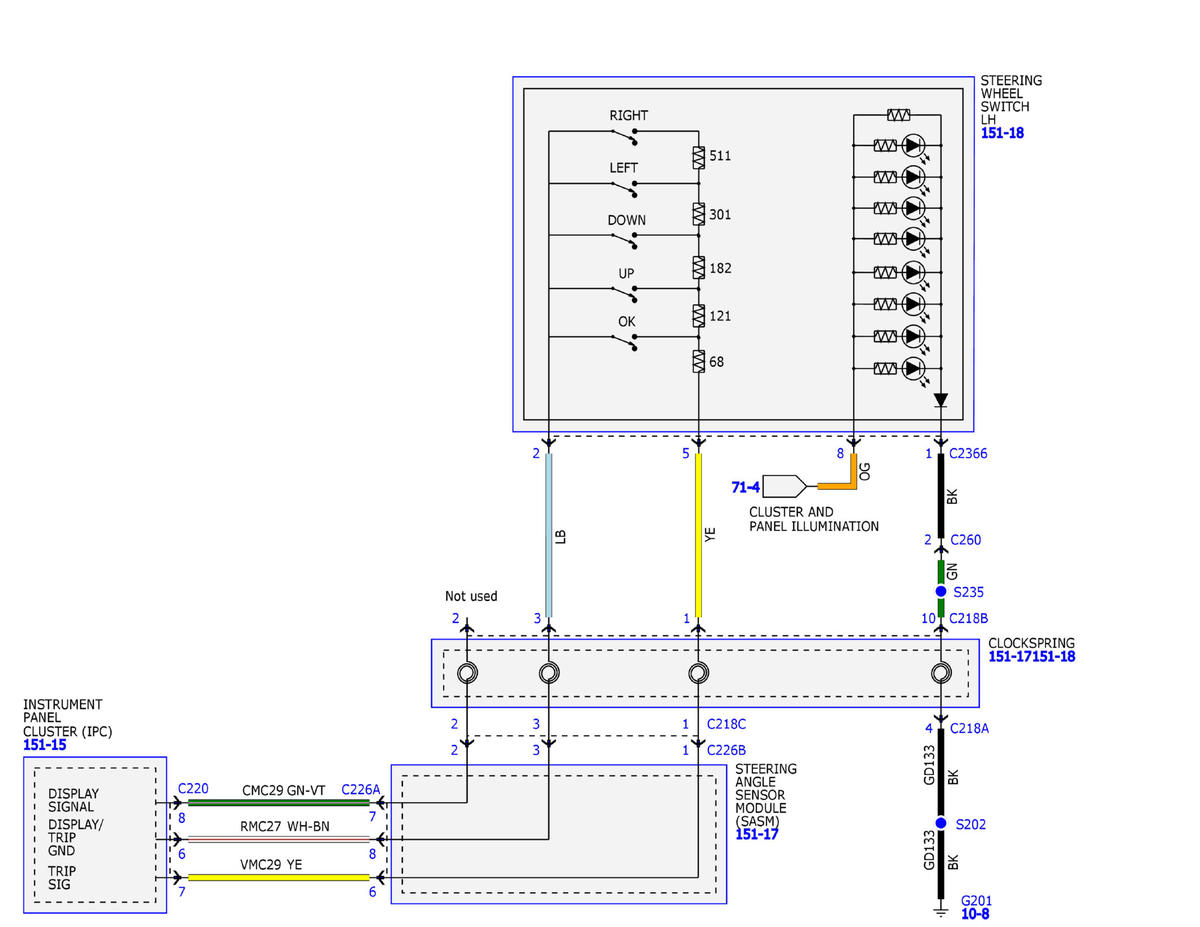

Fig 3: Instrument Cluster System Wiring Diagrams (3 Of 4)

Courtesy of FORD MOTOR COMPANY

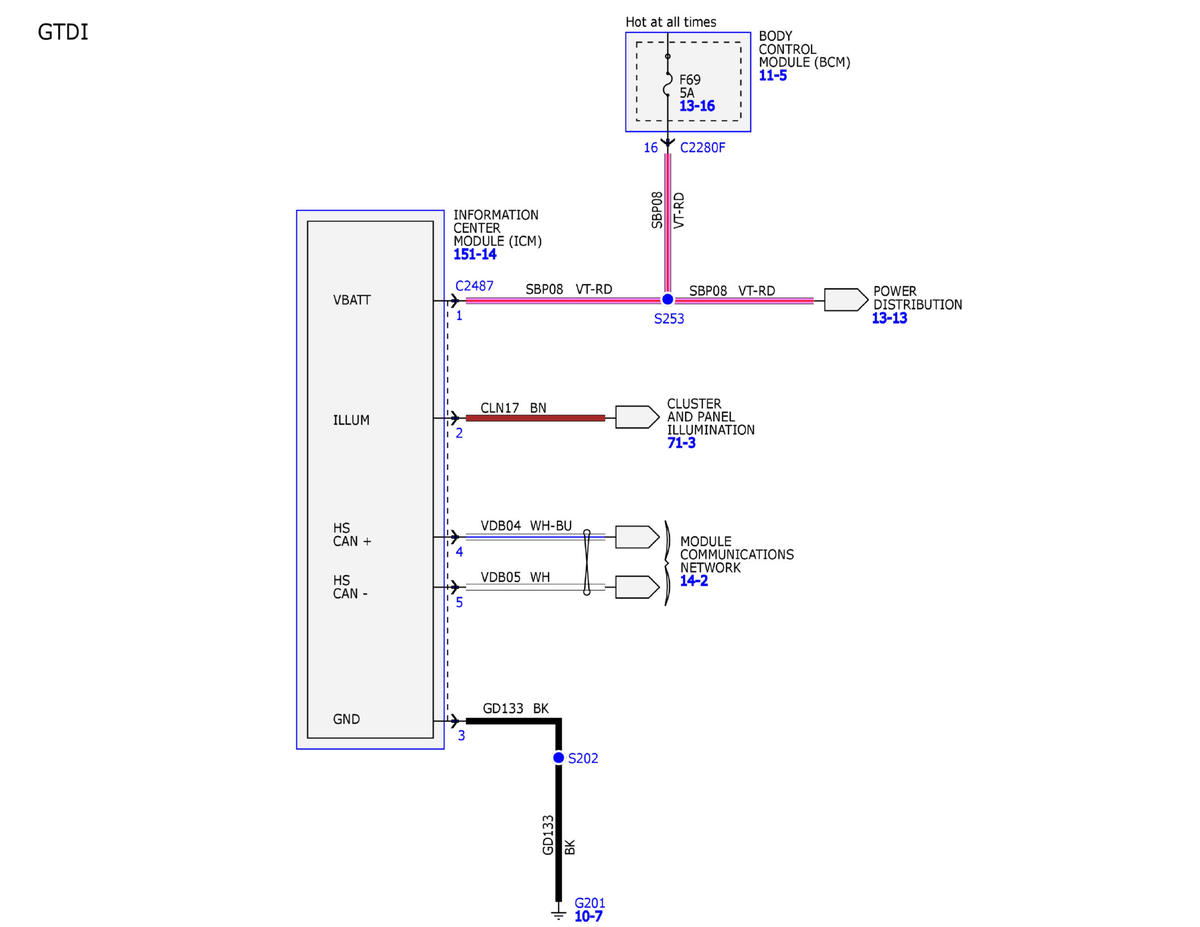

Fig 4: Instrument Cluster System Wiring Diagrams (4 Of 4)

Courtesy of FORD MOTOR COMPANY
