Section 1470 (OEM Wiring Diagrams (Except Electric))
>>
Horn/Cigar Lighter
Horn/Cigar Lighter
WARNING:
This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Horn/Cigar Lighter System Wiring Diagrams (1 Of 2)
Courtesy of FORD MOTOR COMPANY

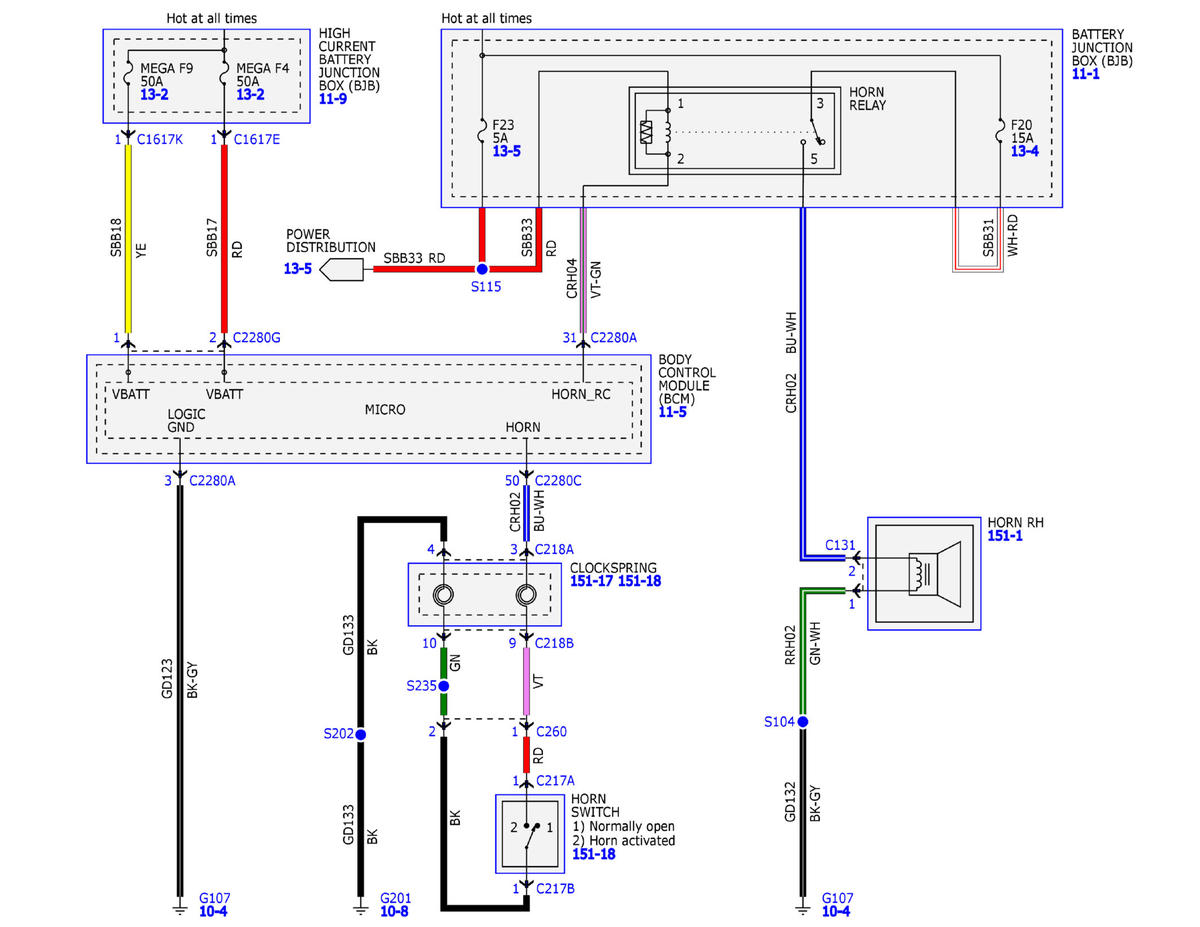

Fig 2: Horn/Cigar Lighter System Wiring Diagrams (2 Of 2)
Courtesy of FORD MOTOR COMPANY
