Section 1470 (OEM Wiring Diagrams (Except Electric)): Headlamps/Autolamps

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

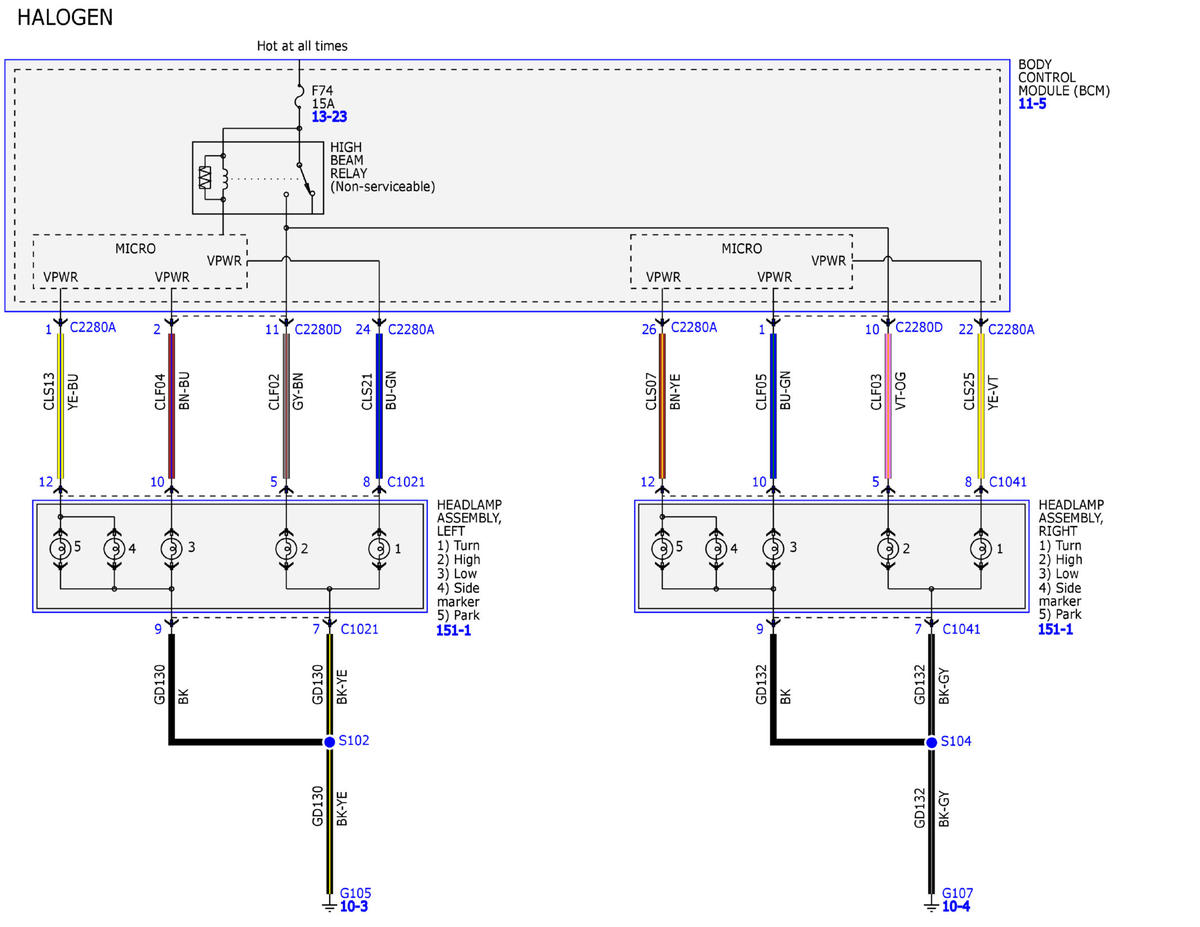

Fig 1: Headlamps/Autolamps System Wiring Diagrams (1 Of 5)

Courtesy of FORD MOTOR COMPANY

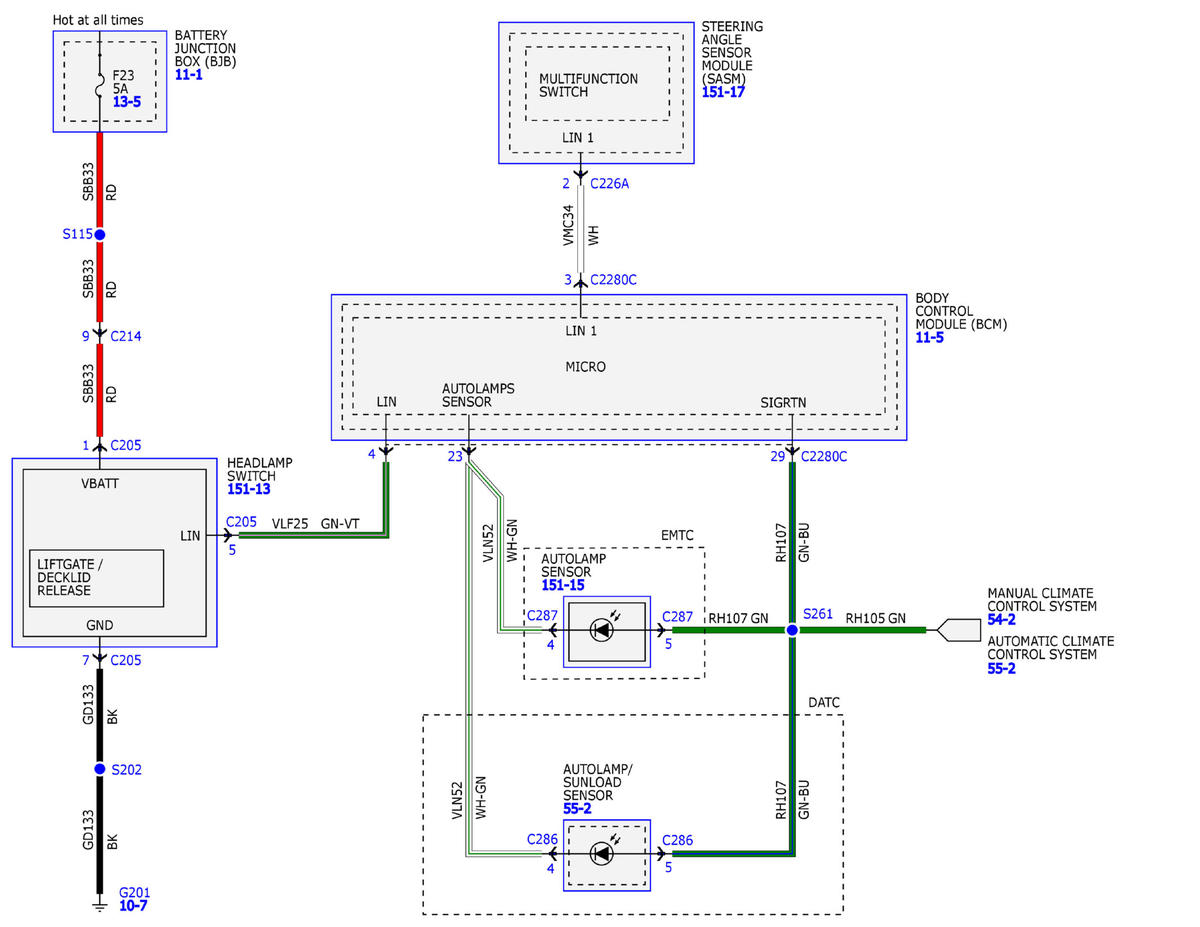

Fig 2: Headlamps/Autolamps System Wiring Diagrams (2 Of 5)

Courtesy of FORD MOTOR COMPANY

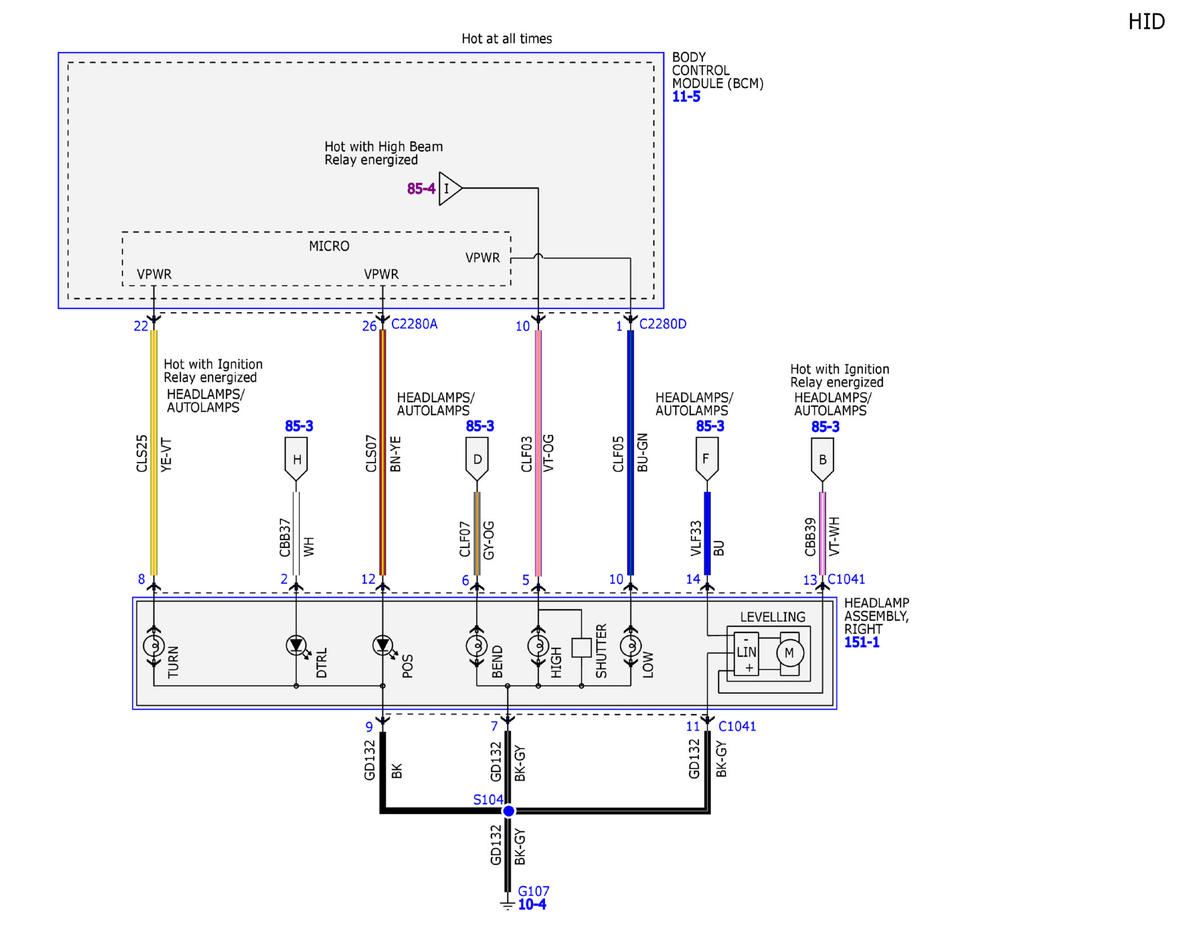

Fig 3: Headlamps/Autolamps System Wiring Diagrams (3 Of 5)

Courtesy of FORD MOTOR COMPANY

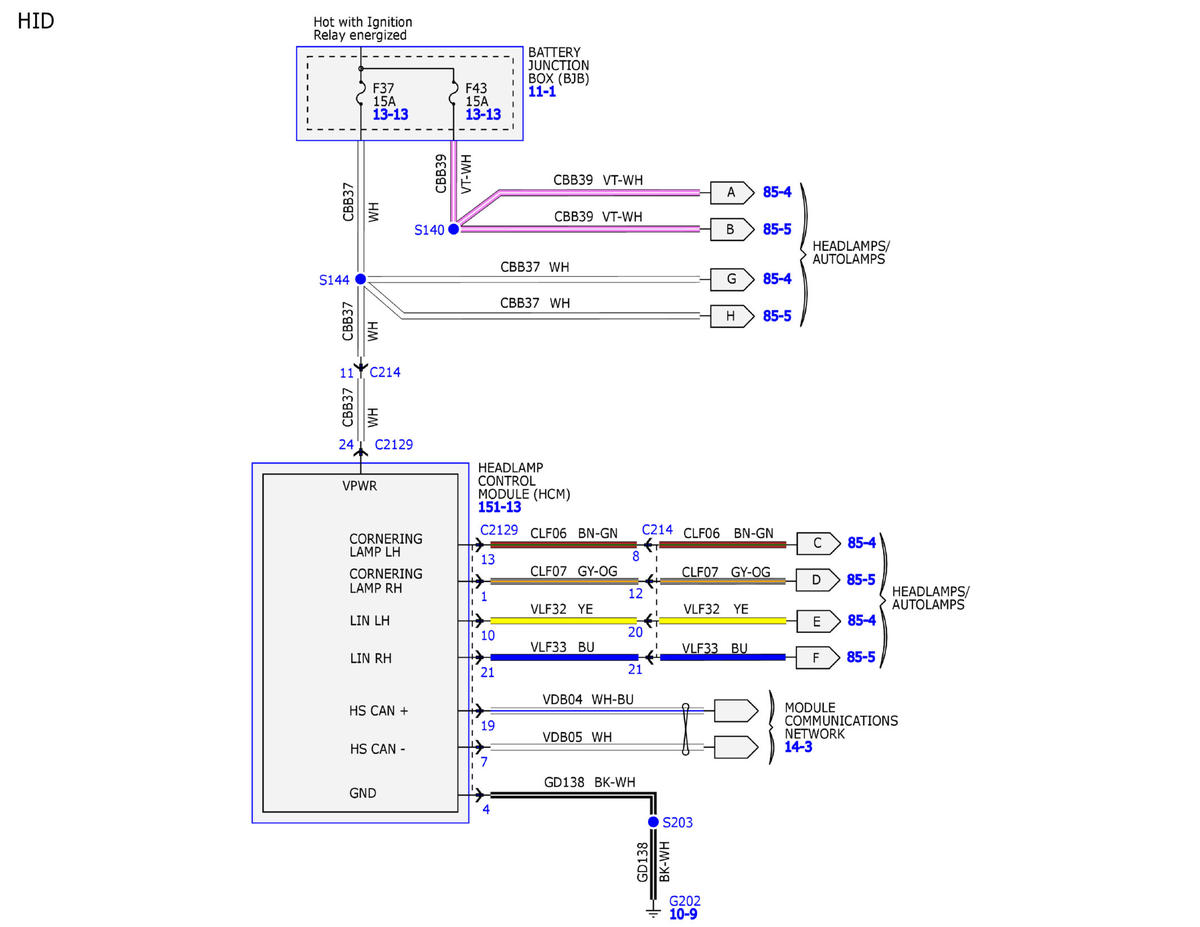

Fig 4: Headlamps/Autolamps System Wiring Diagrams (4 Of 5)

Courtesy of FORD MOTOR COMPANY

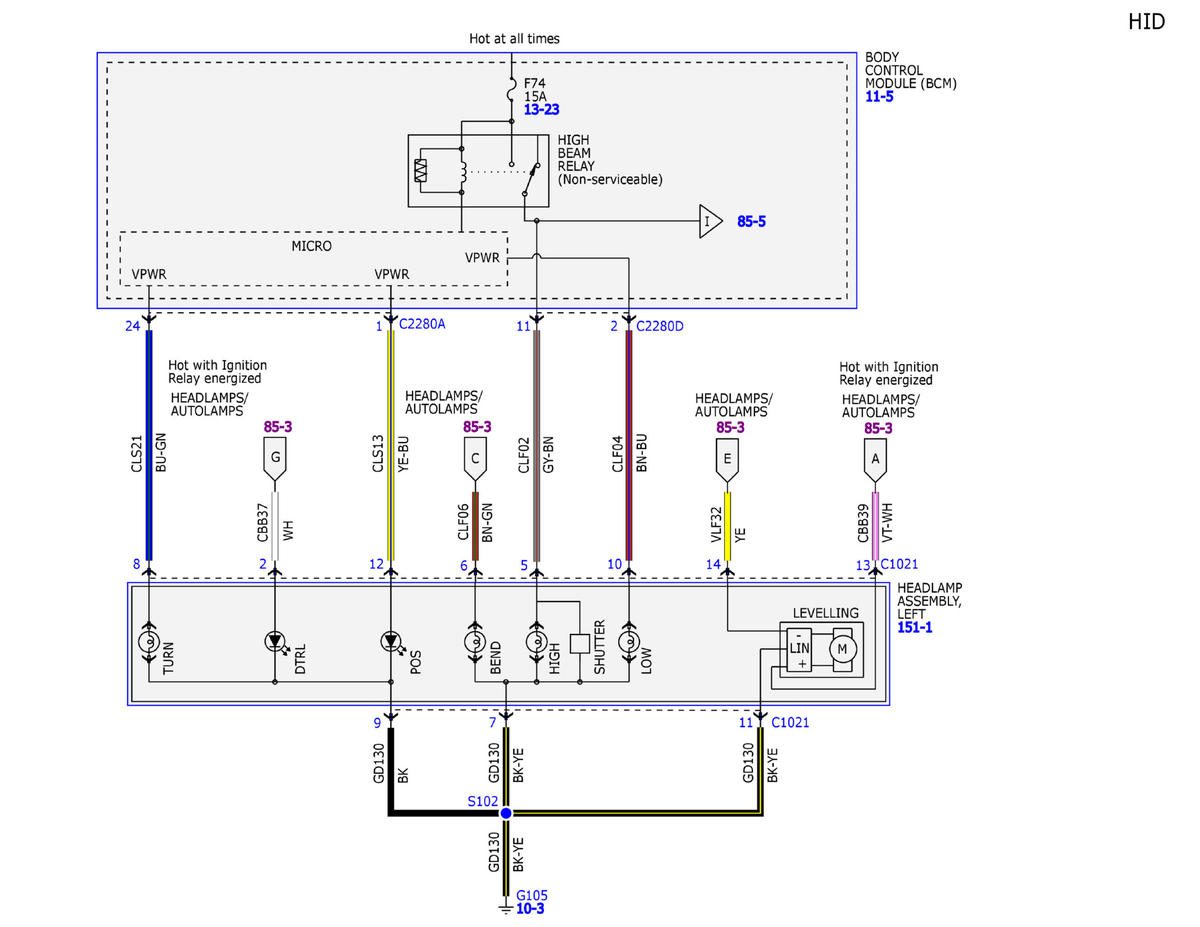

Fig 5: Headlamps/Autolamps System Wiring Diagrams (5 Of 5)

Courtesy of FORD MOTOR COMPANY
