Fuse and Relay Location

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

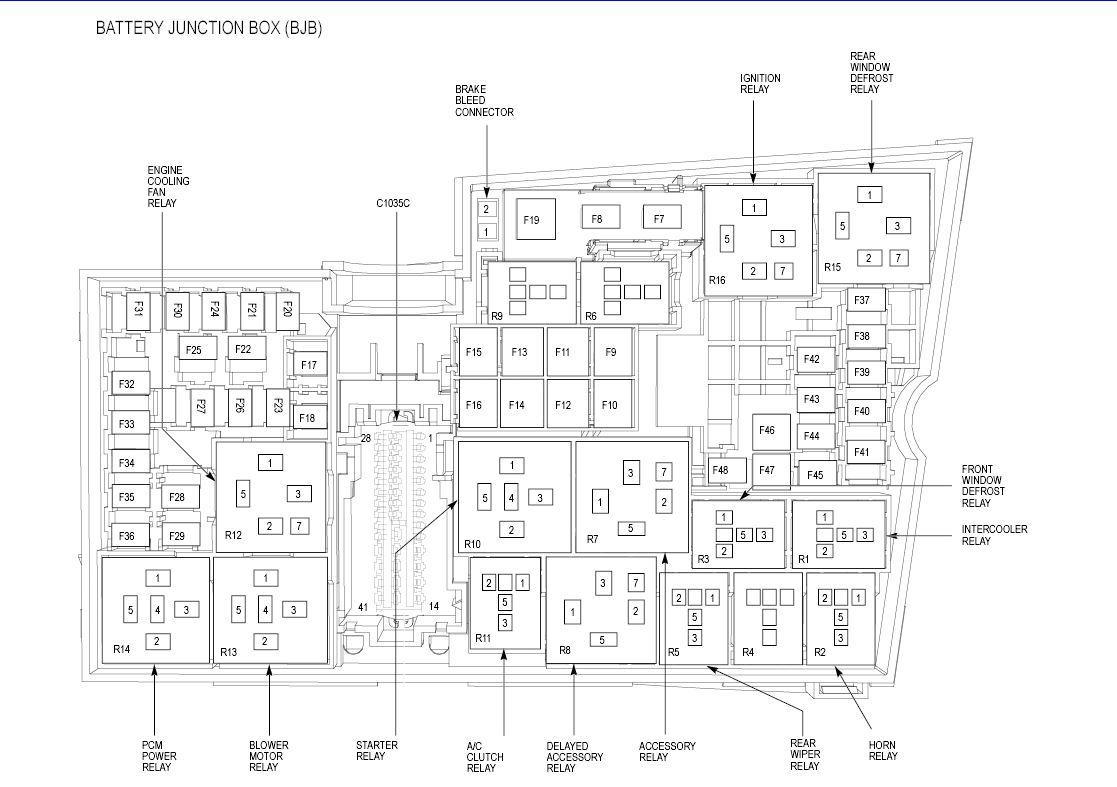

Fig 1: Battery Junction Box Component Location

Courtesy of FORD MOTOR COMPANY

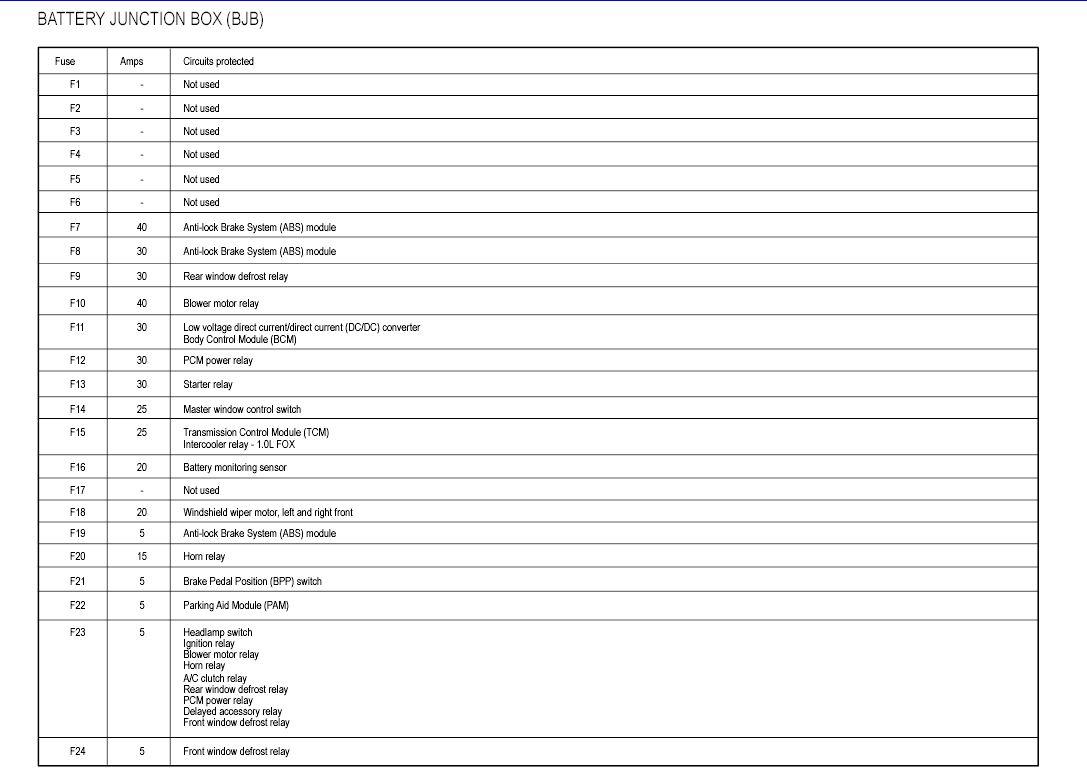

Fig 2: Battery Junction Box Component Location Legend (1 Of 3)

Courtesy of FORD MOTOR COMPANY

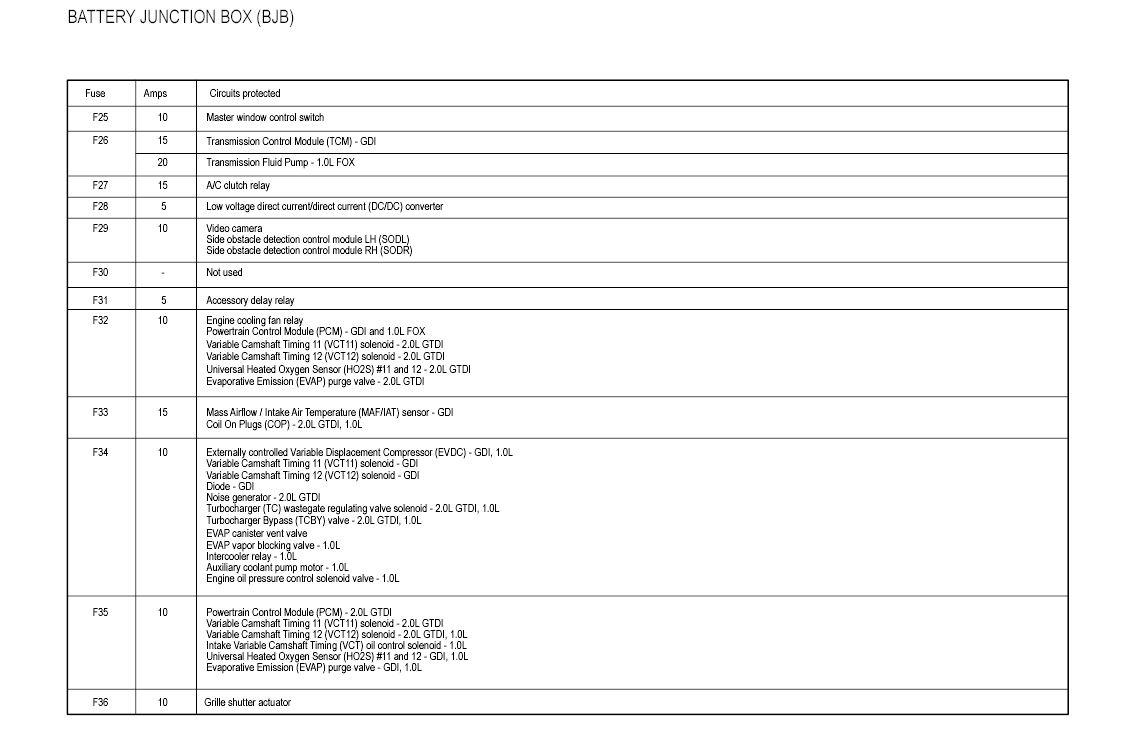

Fig 3: Battery Junction Box Component Location Legend (2 Of 3)

Courtesy of FORD MOTOR COMPANY

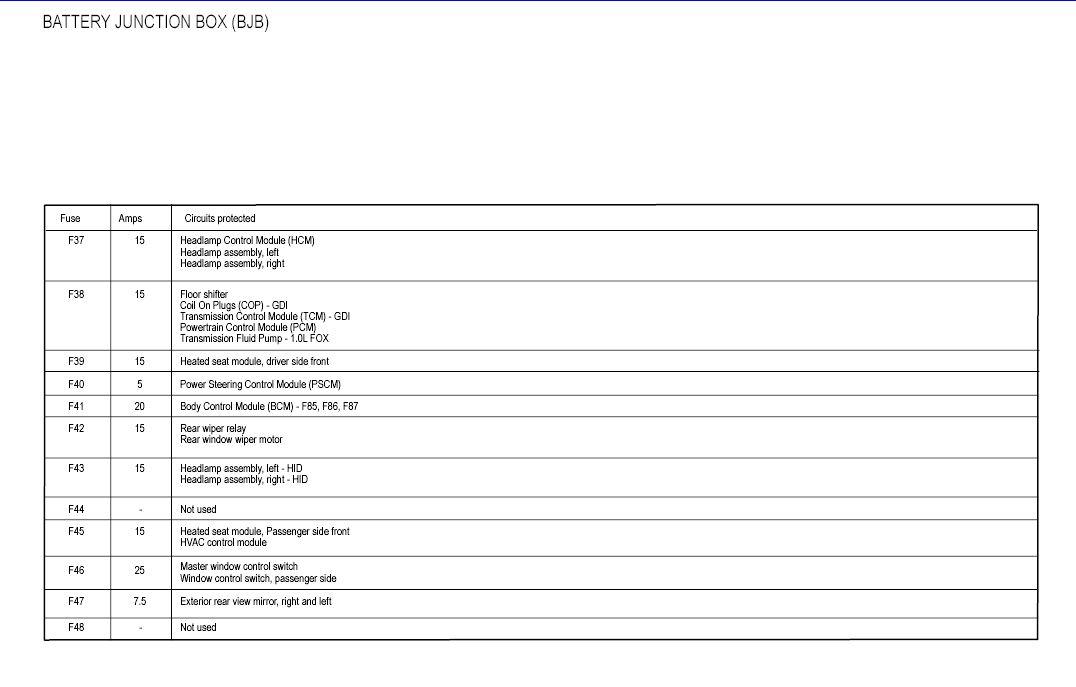

Fig 4: Battery Junction Box Component Location Legend (3 Of 3)

Courtesy of FORD MOTOR COMPANY

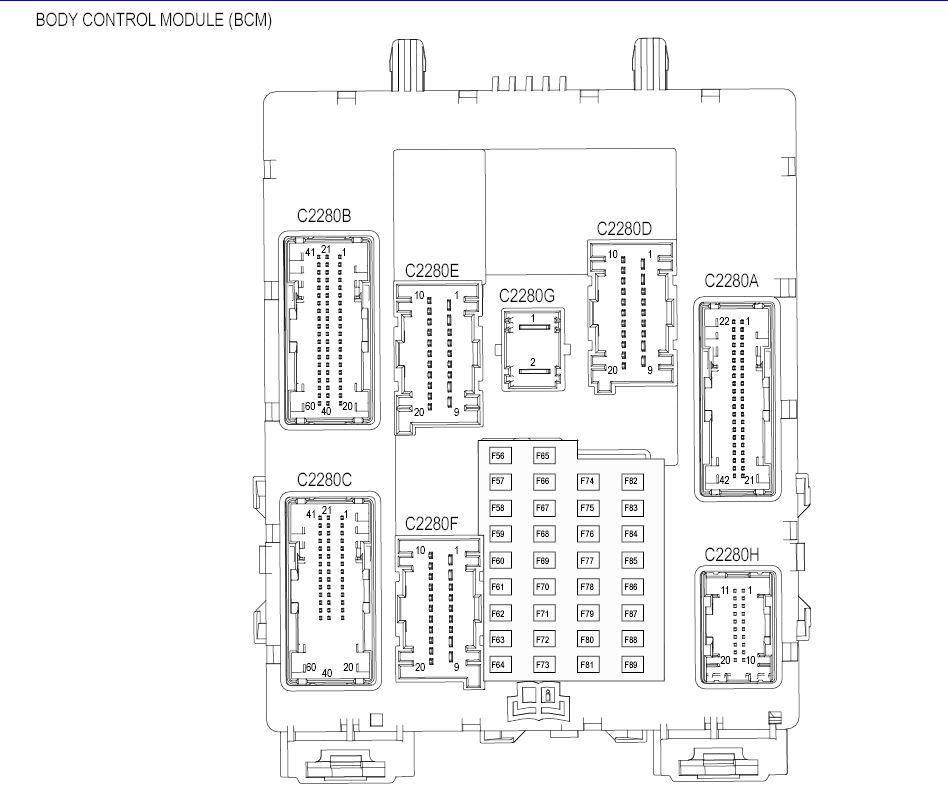

Fig 5: Body Control Module (BCM) Component Location

Courtesy of FORD MOTOR COMPANY

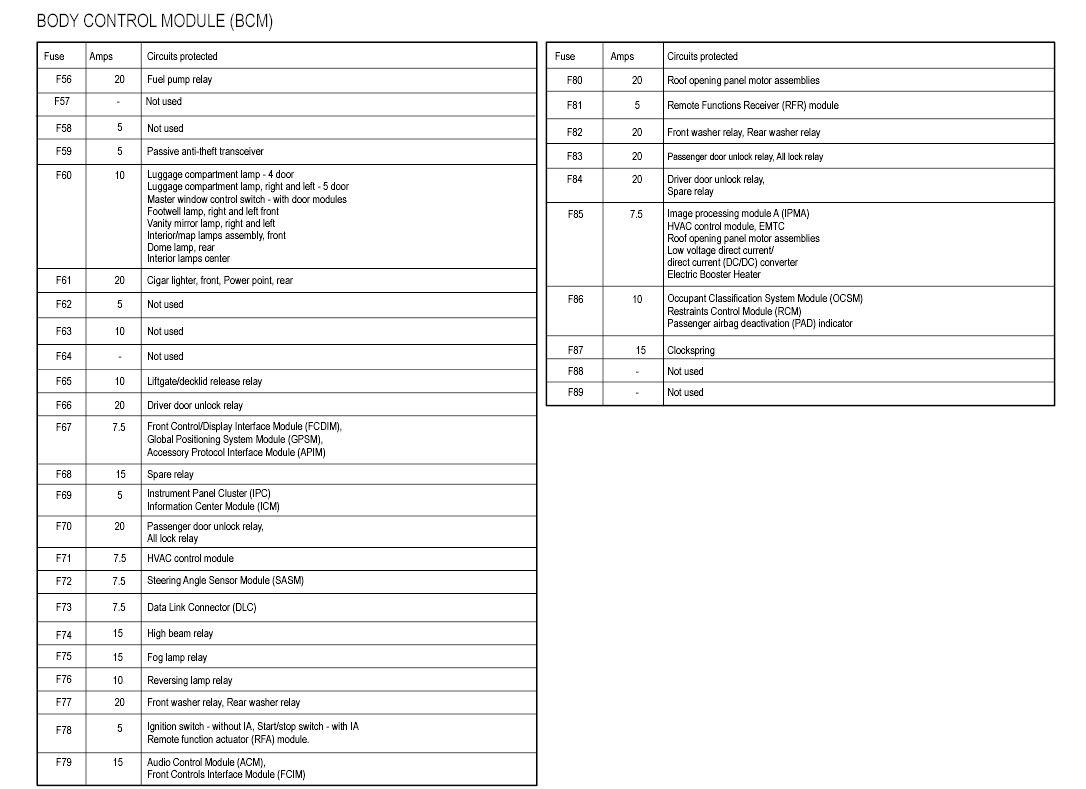

Fig 6: Body Control Module (BCM) Component Location Legend

Courtesy of FORD MOTOR COMPANY

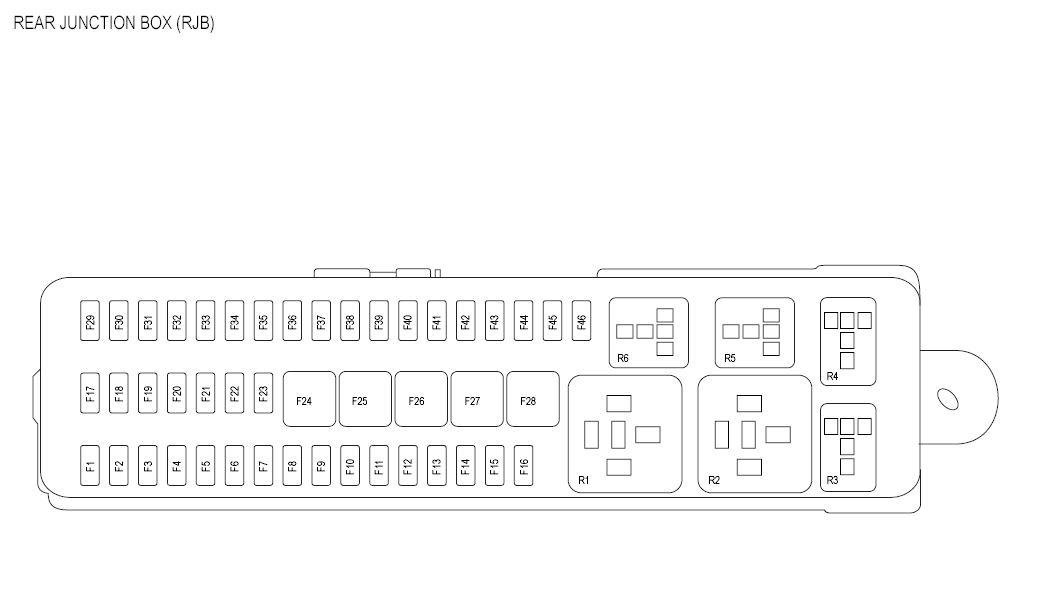

Fig 7: Rear Junction Box Component Location

Courtesy of FORD MOTOR COMPANY

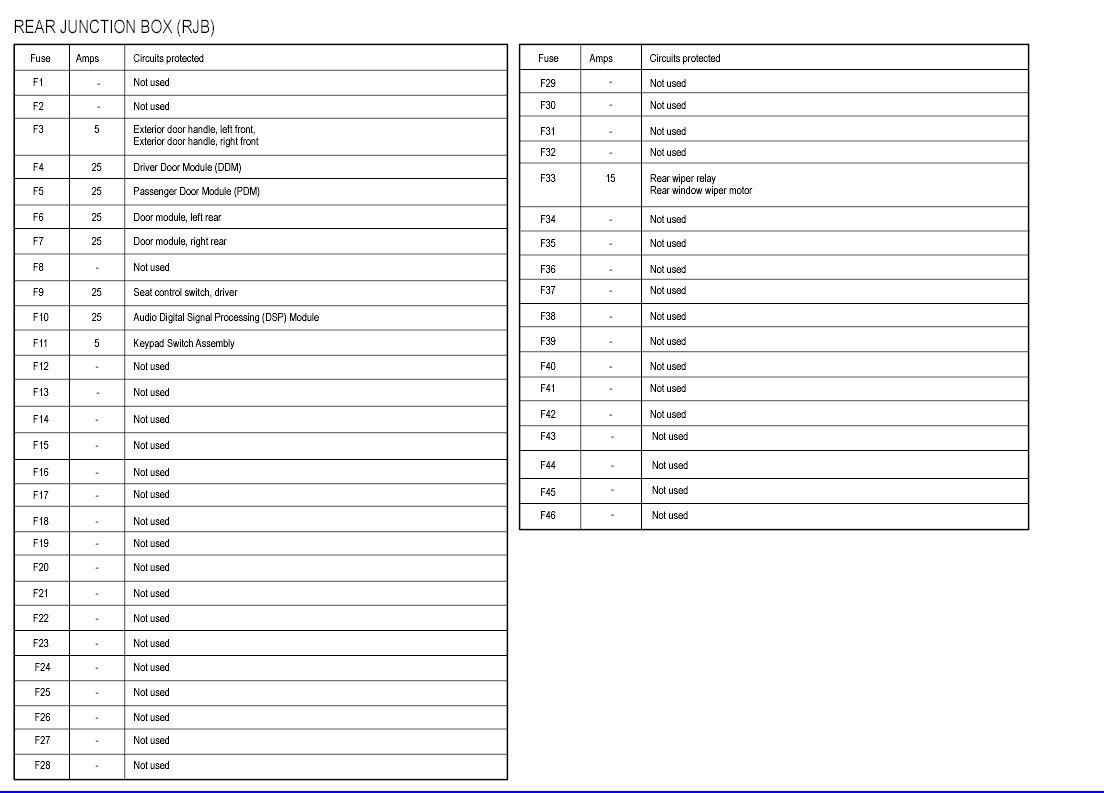

Fig 8: Rear Junction Box Component Location Legend

Courtesy of FORD MOTOR COMPANY

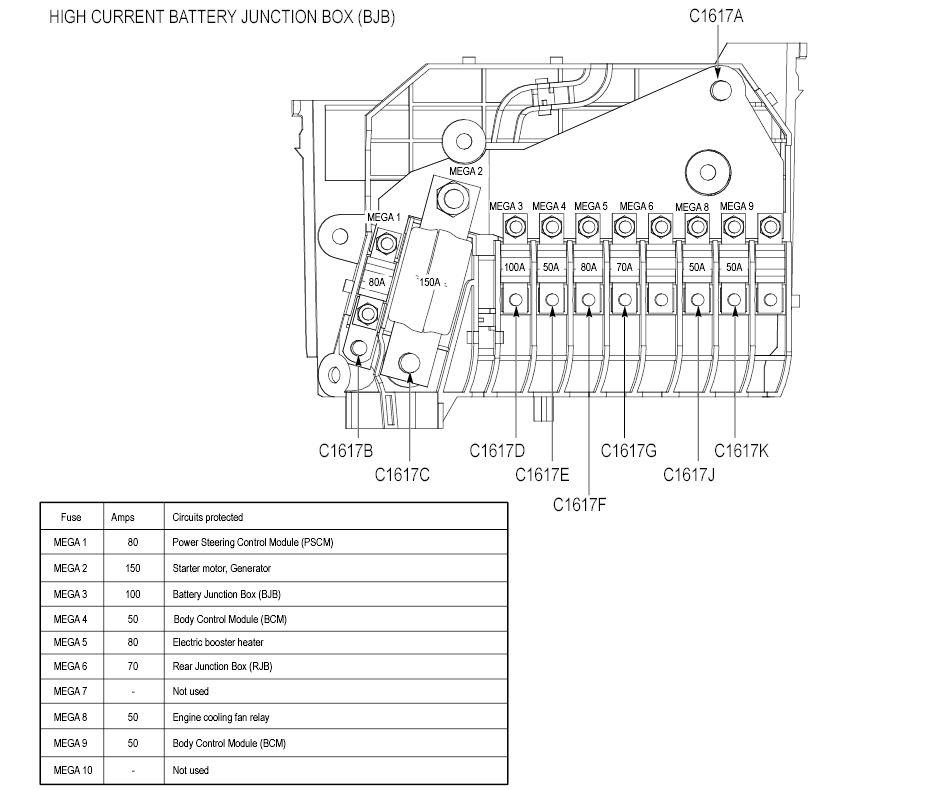

Fig 9: High Current Battery Junction Box (BJB) Component Location

Courtesy of FORD MOTOR COMPANY
