Connector Repair Procedures

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

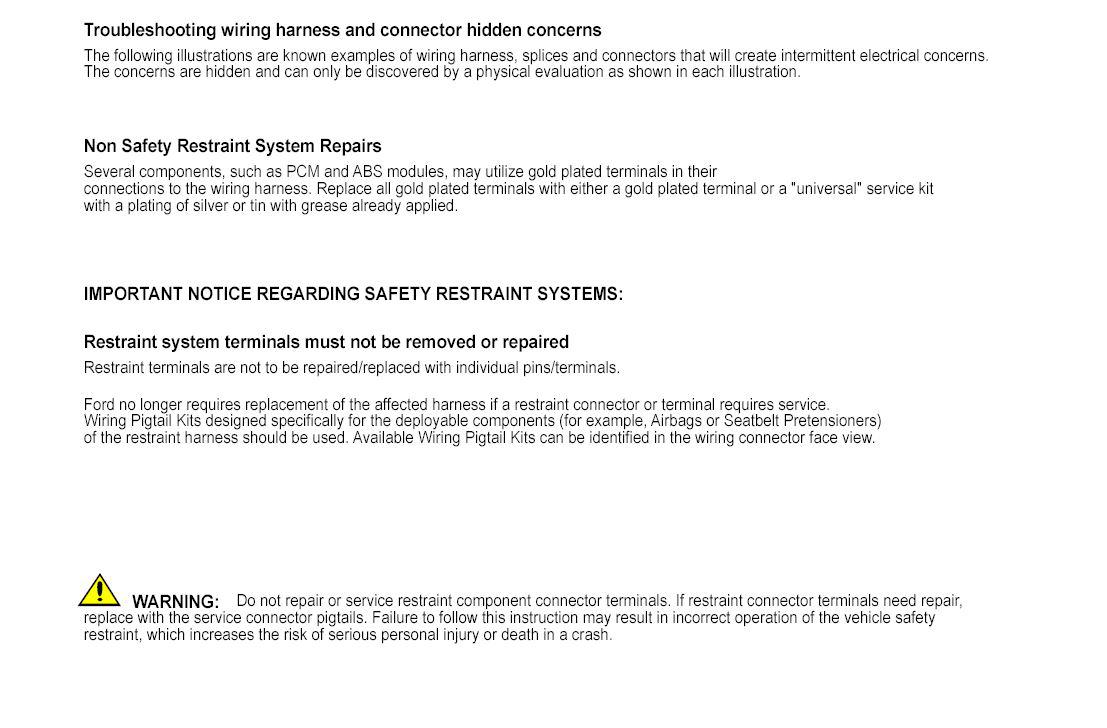

G00581695Courtesy of FORD MOTOR COMPANY

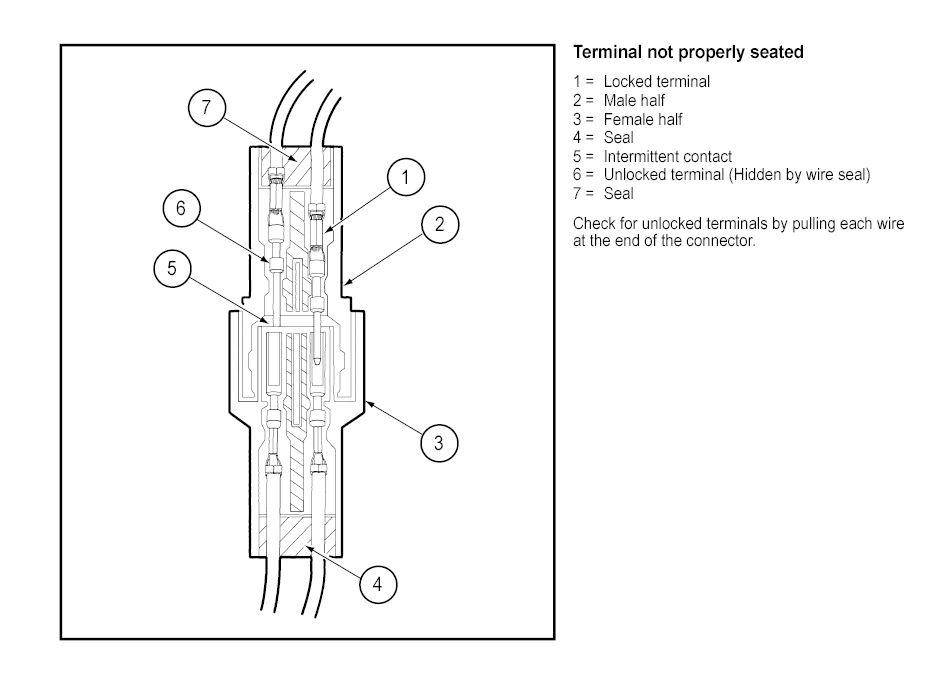

G00581696Courtesy of FORD MOTOR COMPANY

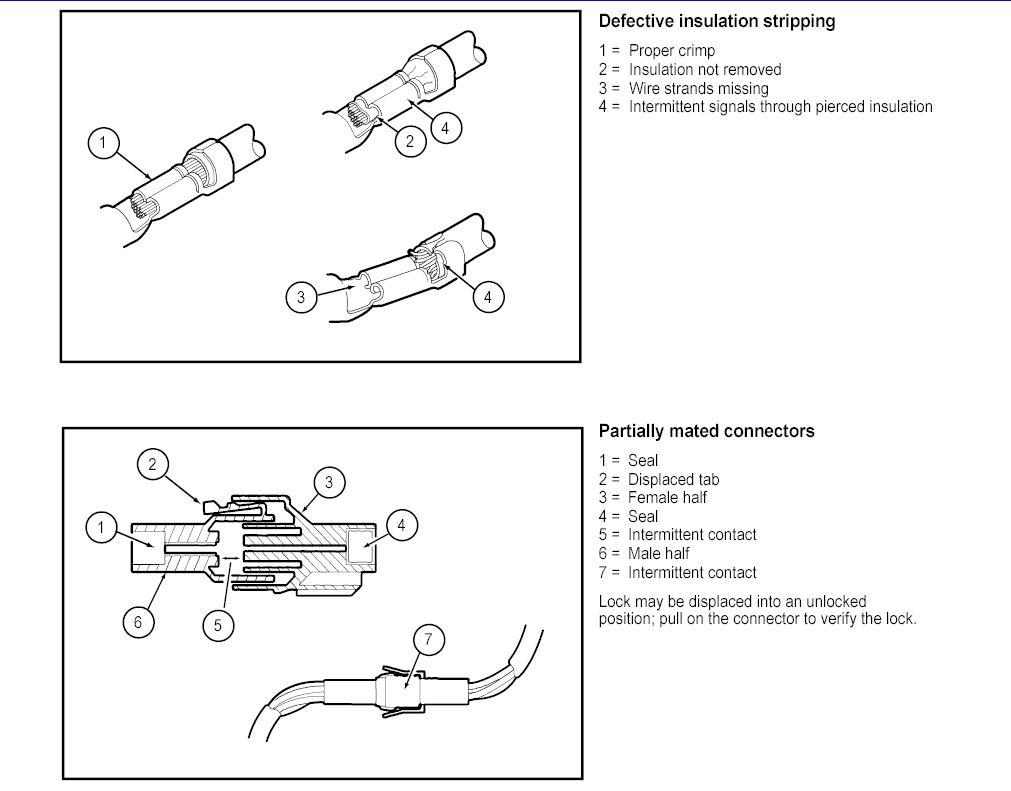

G00581697Courtesy of FORD MOTOR COMPANY

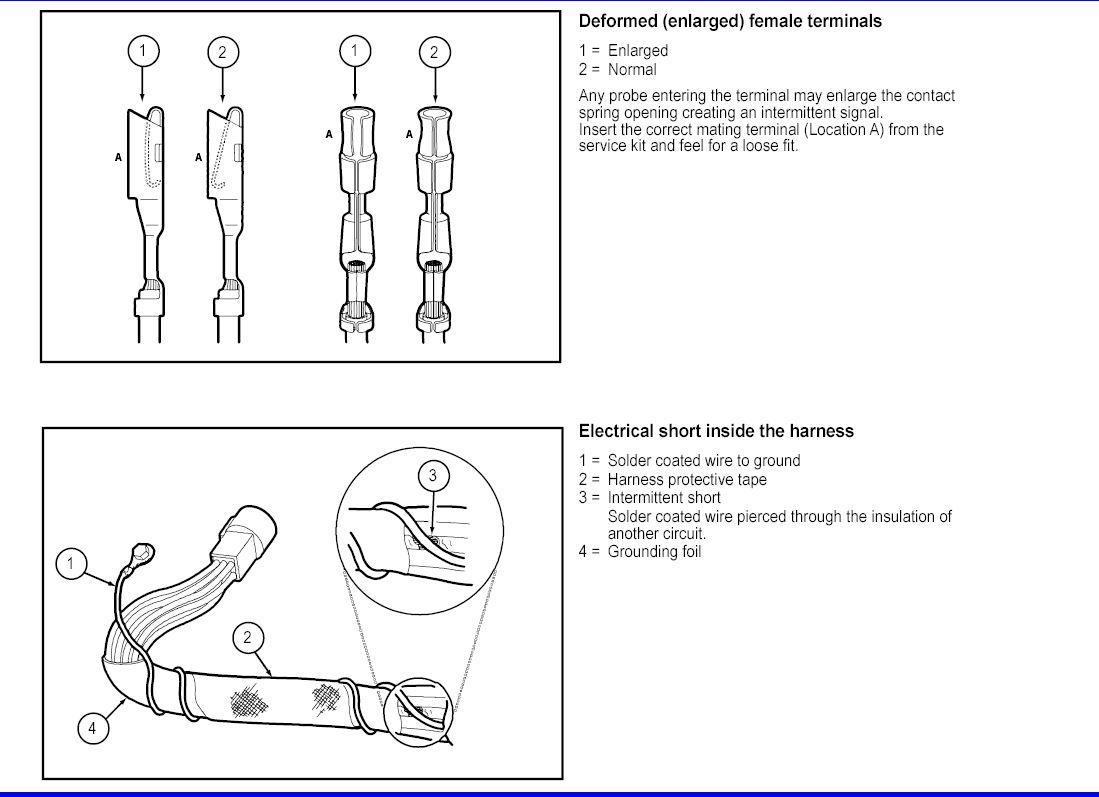

G00581698Courtesy of FORD MOTOR COMPANY

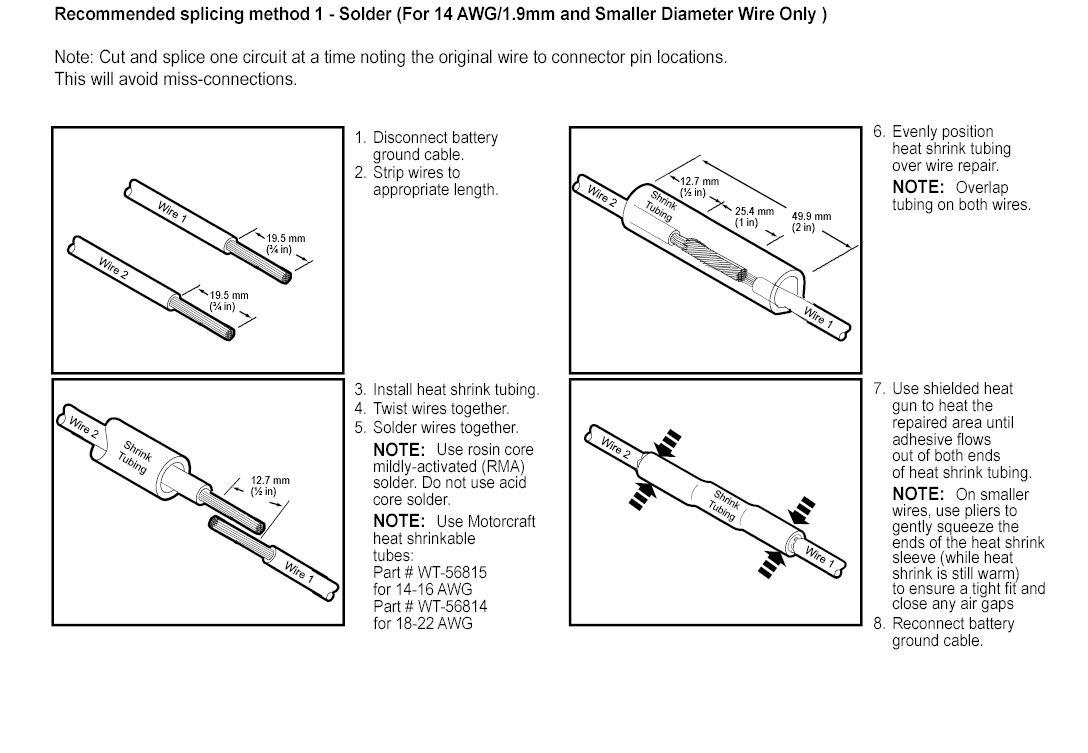

G00581699Courtesy of FORD MOTOR COMPANY

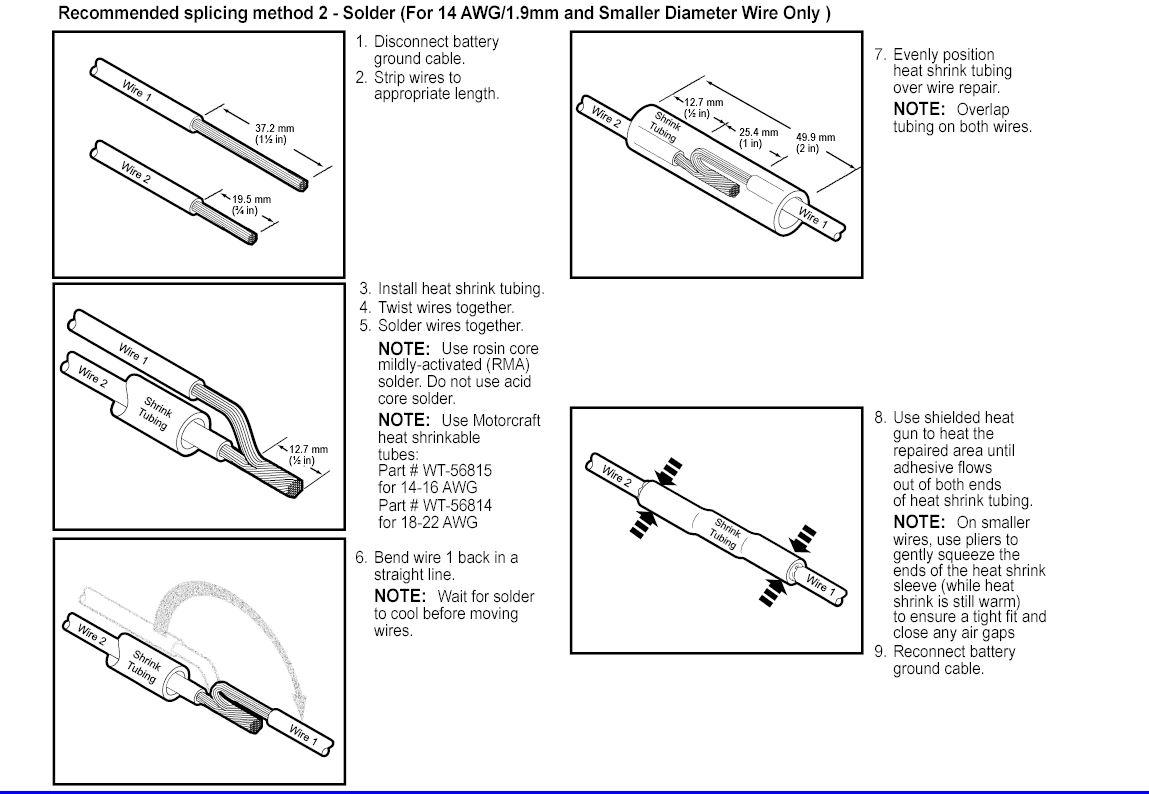

G00581700Courtesy of FORD MOTOR COMPANY

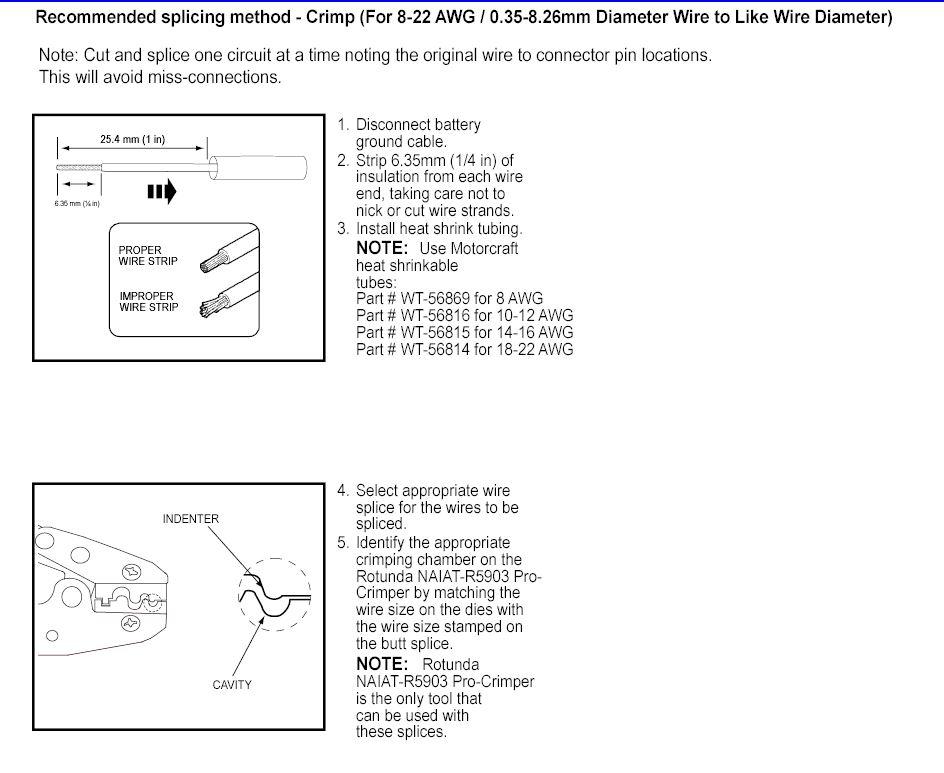

G00581701Courtesy of FORD MOTOR COMPANY

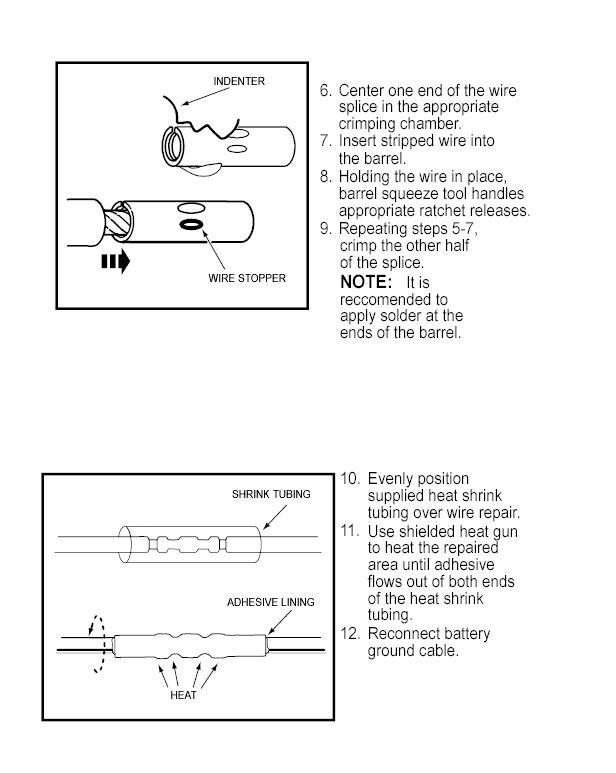

G00581702Courtesy of FORD MOTOR COMPANY

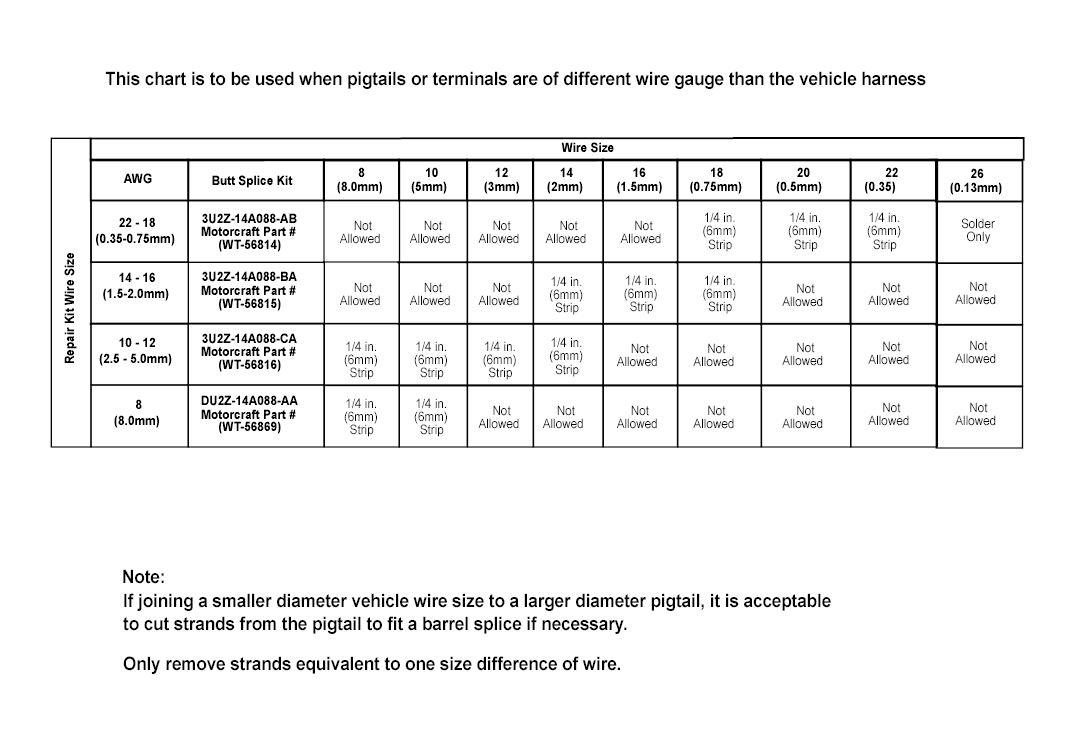

G00581703Courtesy of FORD MOTOR COMPANY
