Starter Motor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Always disconnect the battery ground cable at the battery before disconnecting the starter motor battery terminal lead. If a tool is shorted at the starter motor battery terminal, the tool can quickly heat enough to cause a skin burn. Failure to follow this instruction may result in serious personal injury.

NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery. Refer to: Battery Disconnect and Connect .
NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.
1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.
Courtesy of FORD MOTOR COMPANY

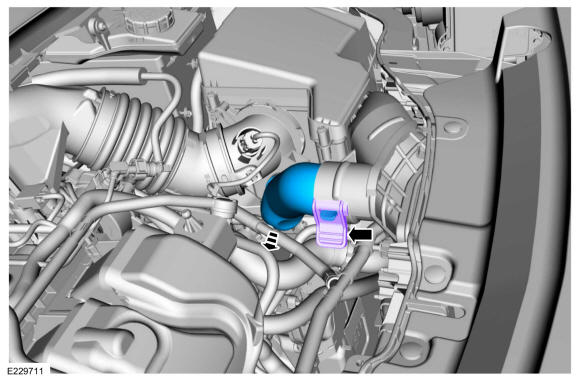

Release the fastener and remove the air cleaner inlet tube.

Courtesy of FORD MOTOR COMPANY
Disconnect the quick release couplings and position the tubes aside. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

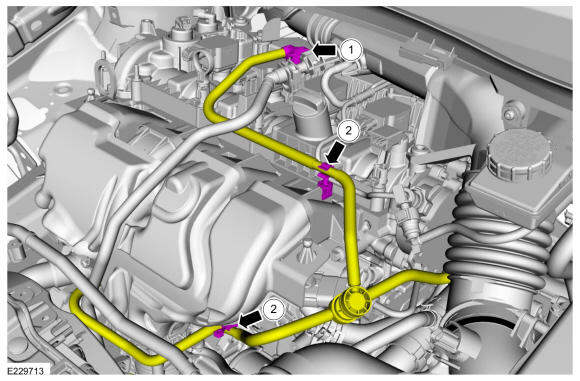

1. Disconnect the quick release coupling. Refer to: Quick Release Coupling .
2. Detach the retainers and position the tubes aside.
Courtesy of FORD MOTOR COMPANY
If equipped. Remove the underbody shield retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Loosen the clamp, disconnect and position the CAC outlet pipe aside.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Clean, inspect, and cover all open ports.
With start/stop

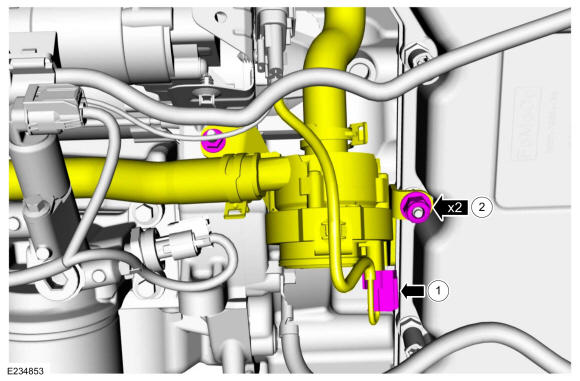

1. Disconnect the cabin heater coolant pump electrical connector.
2. Remove the nuts and position the cabin heater coolant pump aside.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

Without start/stop

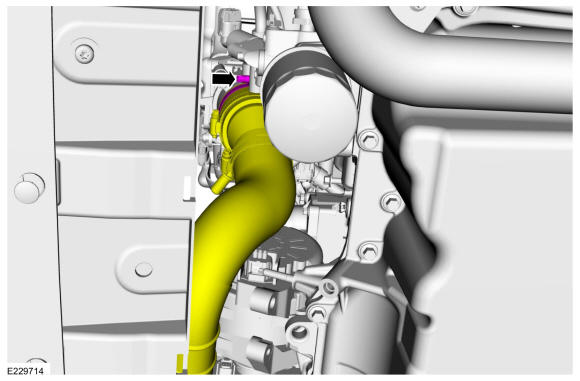

Detach the retainer and position the tube aside.

Courtesy of FORD MOTOR COMPANY

All vehicles

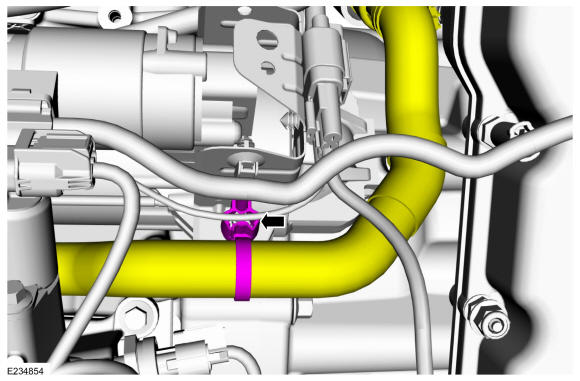

Detach the wiring harness retainers and position the wiring harnesses aside.

Courtesy of FORD MOTOR COMPANY

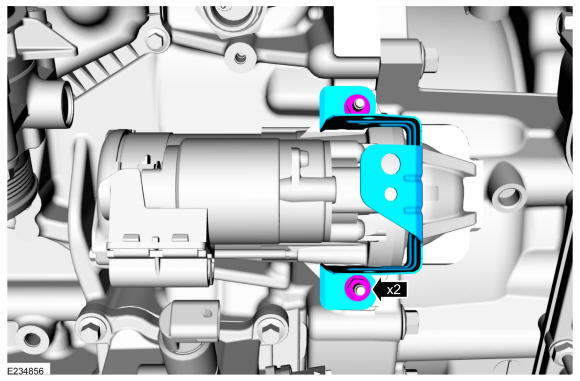

Remove the nuts and the starter motor bracket.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

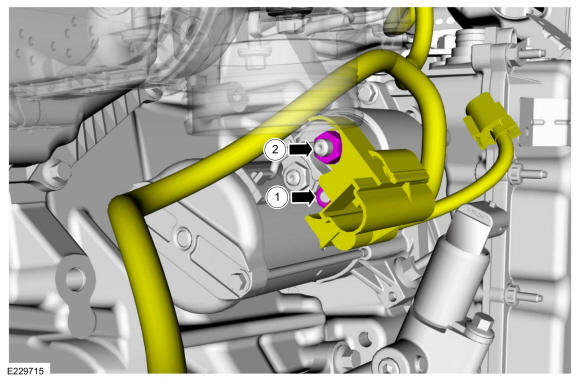

1. Remove the starter motor control wire retaining nut and disconnect the starter motor control wire at the starter motor.
  Torque: 53 lb.in (6 Nm)
2. Remove the battery positive cable retaining nut and disconnect the battery positive cable at the starter motor.
  Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY

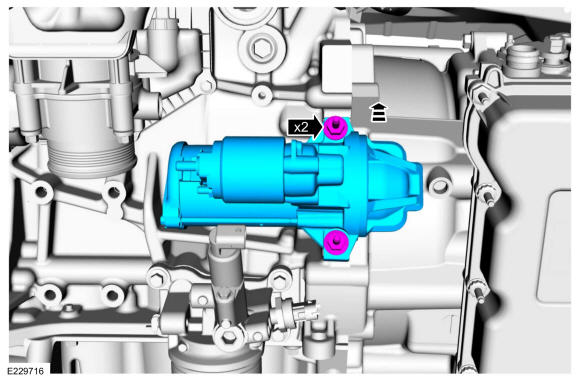

Remove the studbolts and the starter motor.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the starter motor drive gear and the flexplate or flywheel ring gear. Refer to: Starter Motor Drive Gear and Flywheel Ring Gear Inspection .
