Wiper Linkage Assembly: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Cowl Panel .

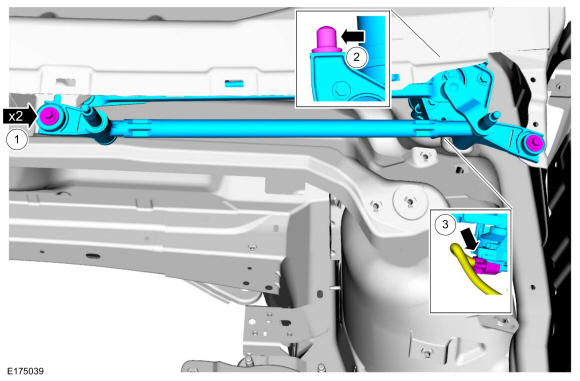

1. Remove the 2 wiper linkage bolts.
  Torque: 80 lb.in (9 Nm)
2. NOTE: Make sure that the rubber grommet is installed on the wiper linkage assembly prior to installation. Failure to follow this could cause the wiper system to work improperly.
3. Disconnect the windshield wiper motor electrical connector.
Courtesy of FORD MOTOR COMPANY

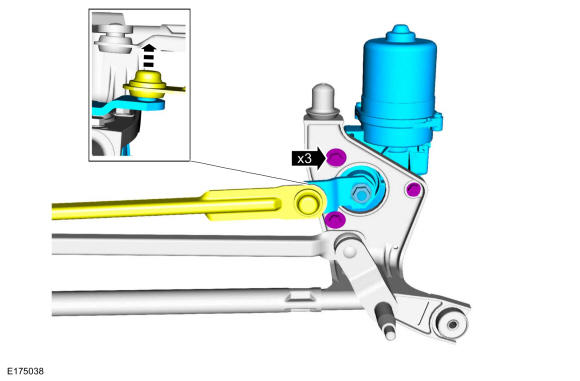

NOTE: This step is only necessary when installing a new component.

Torque: 115 lb.in (13 Nm)

Courtesy of FORD MOTOR COMPANY
