Windshield Wiper Pivot Arm: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

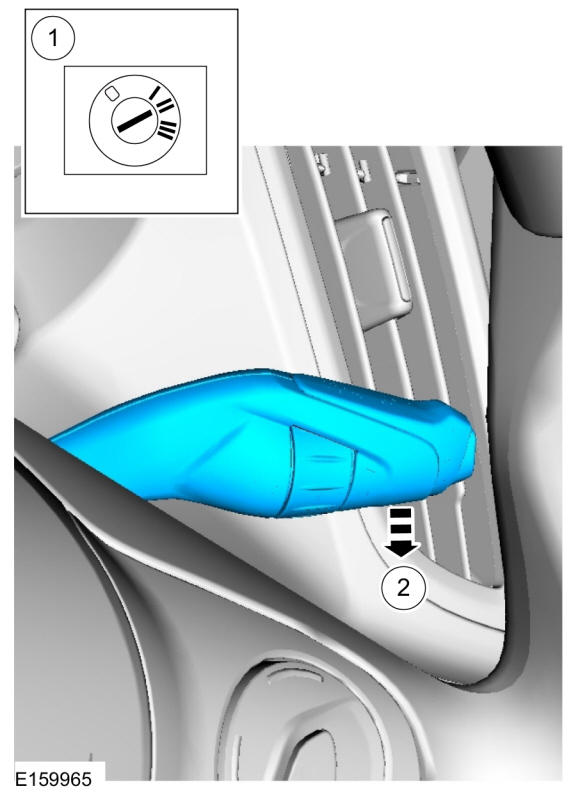

1. NOTE: The ignition switch must remain ON during installation of wiper pivot arms.

  Set ignition switch to the ON position.
2. Cycle the wipers "ON" for one complete cycle and then turn the wipers "OFF".
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the wiper motor is in the PARK position.

NOTE: LH windshield wiper pivot arm is always positioned above the RH windshield wiper pivot arm.

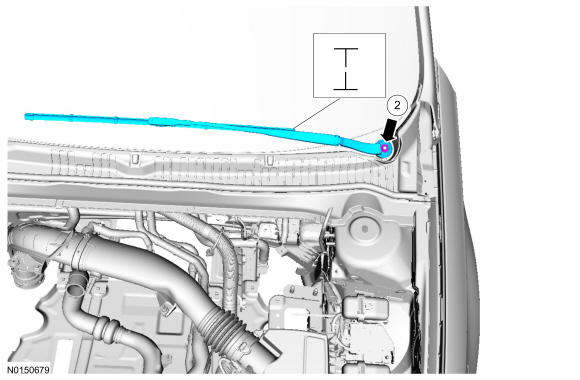

1. Align windshield wiper blades inside the marks on the windshield.
2. Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY

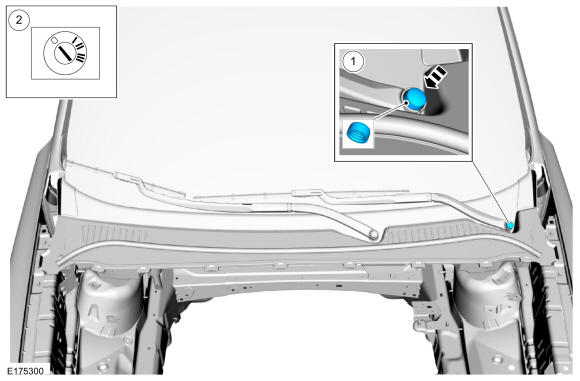

1. Install the wiper pivot arm nut cover.
2. Set the ignition to the OFF position.

Courtesy of FORD MOTOR COMPANY
