Windshield Washer Reservoir: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Removal steps in this procedure may contain installation details.

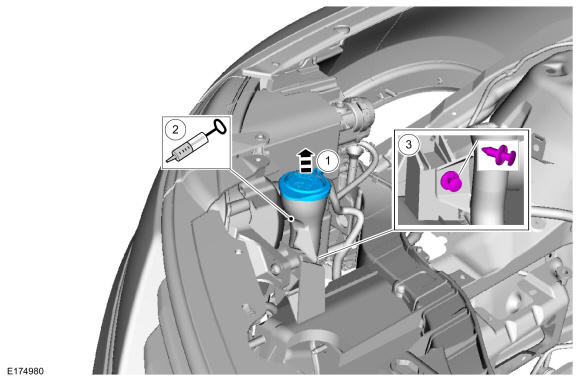

    GFD230509Courtesy of FORD MOTOR COMPANY
  2. On RH side. Refer to: Fender Splash Shield .
  3. NOTE: Be prepared to collect escaping fluid.

    Refer to: Washer Hose Coupling .

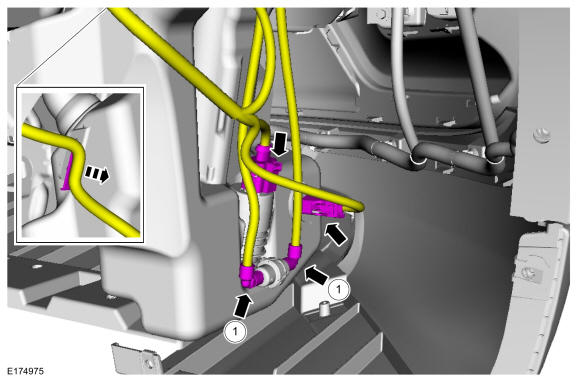

    GFD230510Courtesy of FORD MOTOR COMPANY
  4. Torque: 71 lb.in (8 Nm)

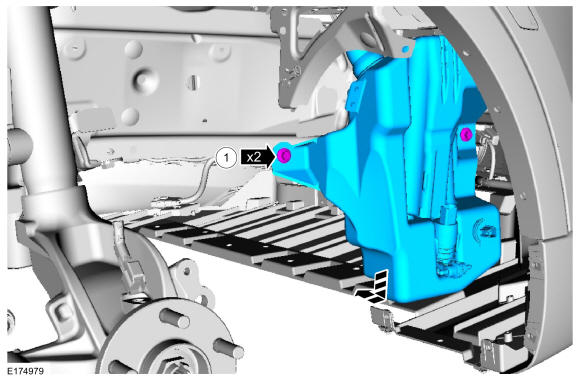

    GFD230511Courtesy of FORD MOTOR COMPANY
