Rear Window Wiper Pivot Arm: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

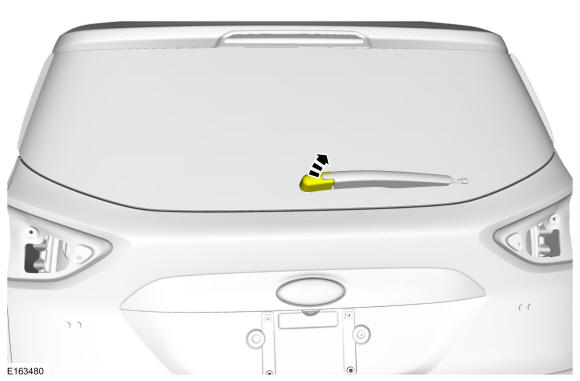

  1. Open the rear pivot arm nut cover.
    GFD230522Courtesy of FORD MOTOR COMPANY

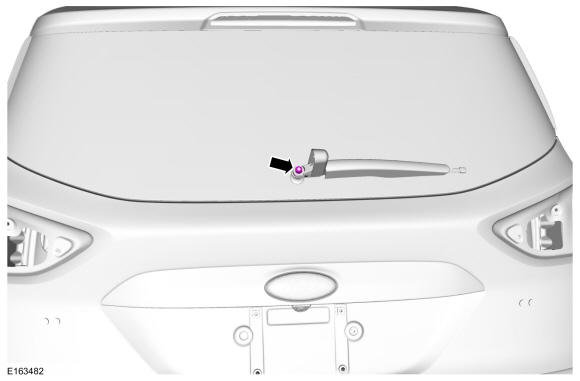

  2. Remove the rear wiper pivot arm nut and washer.
    GFD230523Courtesy of FORD MOTOR COMPANY

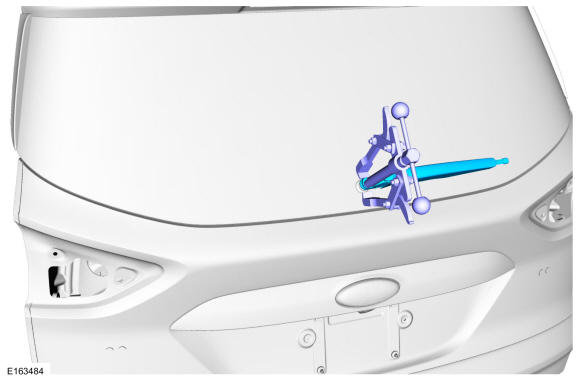

  3. Remove the wiper pivot arm. Use the General Equipment: Two Leg Puller
GFD230524Courtesy of FORD MOTOR COMPANY
