Rear Window Wiper Pivot Arm: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rear wiper blade to the first defroster line located on the rear window glass.
    GFD230525Courtesy of FORD MOTOR COMPANY
  2. Install the rear wiper pivot arm washer and the nut.

    Torque: 106 lb.in (12 Nm)

    GFD230523Courtesy of FORD MOTOR COMPANY

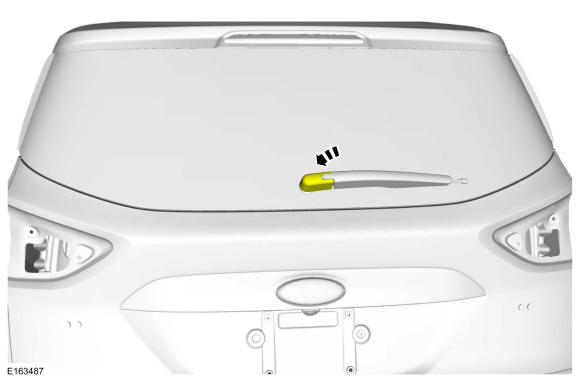

  3. Close the wiper pivot arm nut cover.
GFD230526Courtesy of FORD MOTOR COMPANY
