Removal And Installation: Turbocharger: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the mating faces are clean and free of foreign material.

If removed, install and tighten the turbocharger mounting studs.
Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new turbocharger gasket.
Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY

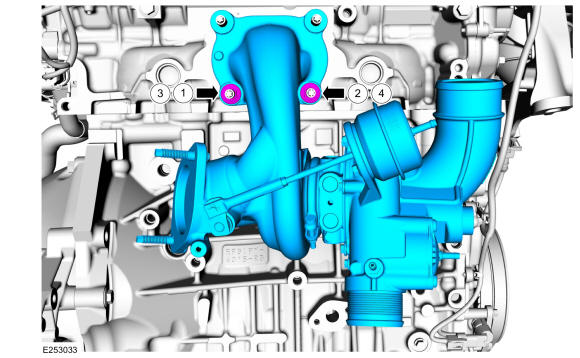

Install the turbocharger, then install and tighten the lower turbocharger mounting nuts.
Torque:

1 : 18 lb.ft (25 Nm)

2 : 18 lb.ft (25 Nm)

3 : 37 lb.ft (50 Nm)

4 : 37 lb.ft (50 Nm)

Courtesy of FORD MOTOR COMPANY

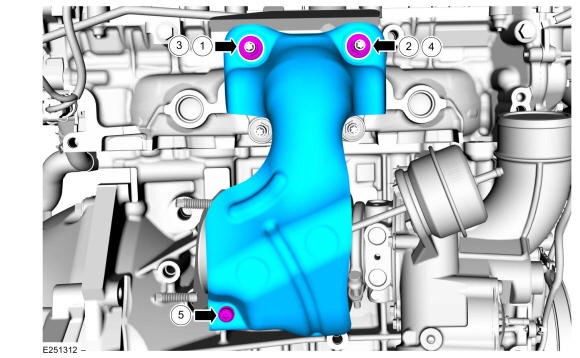

Install the turbocharger heat shield, the upper turbocharger mounting nuts and the lower turbocharger heat shield retaining bolt finger tight at this stage.
Torque:

1 : 18 lb.ft (25 Nm)

2 : 18 lb.ft (25 Nm)

3 : 37 lb.ft (50 Nm)

4 : 37 lb.ft (50 Nm)

5 : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not reuse the turbocharger oil supply filter, a new turbocharger oil supply filter must be installed.

Install the new turbocharger oil supply filter.

Courtesy of FORD MOTOR COMPANY
NOTE: The rolled sealing washer goes on the turbocharger side of the banjo fitting, the flat sealing washer goes on the banjo bolt side.

Inspect the banjo bolt for flatness and square-ness, and the sealing surface for damage. Install a new turbocharger oil supply tube O-ring seal and the new turbocharger oil supply tube sealing washers. Lubricate the new turbocharger oil supply tube O-ring seal with clean engine oil. REFER to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: The oil supply tube must be fully seated prior to fastener tightening.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
  Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

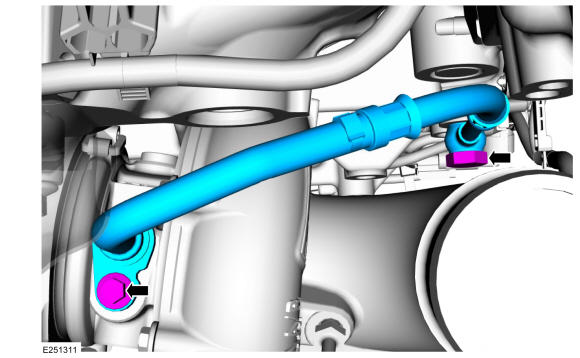

1. Install the turbocharger oil supply tube and the turbocharger oil supply tube retaining bolts finger tight at this stage.
  Torque:

  Tighten the turbocharger oil supply tube retaining bolt. : 89 lb.in (10 Nm)

  Tighten the turbocharger oil supply tube retaining banjo bolt. : 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY
Install a new turbocharger oil return tube O-ring seal and a new turbocharger oil return tube gasket. Lubricate the new turbocharger oil return tube O-ring seal with clean engine oil. REFER to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: The oil return tube must be fully seated prior to fastener rundown.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
  Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

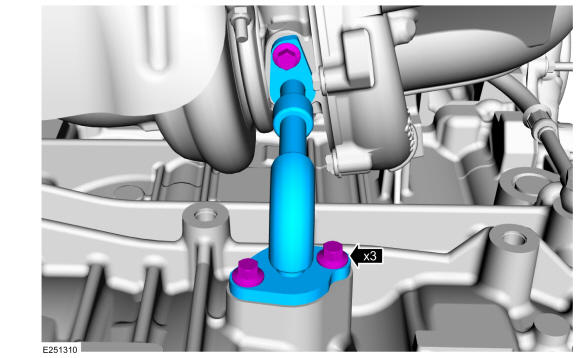

1. Install the turbocharger oil return tube, then install and tighten the turbocharger oil return tube bolts.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

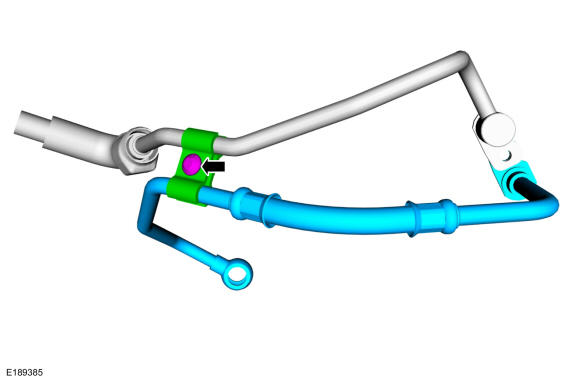

Assemble the turbocharger coolant supply tube and the turbocharger coolant return tube. Install the turbocharger coolant tube clamp and the turbocharger coolant tube clamp bolt finger tight.

Courtesy of FORD MOTOR COMPANY
NOTE: The rolled sealing washer goes on the turbocharger side of the banjo fitting, the flat sealing washer goes on the banjo bolt side.

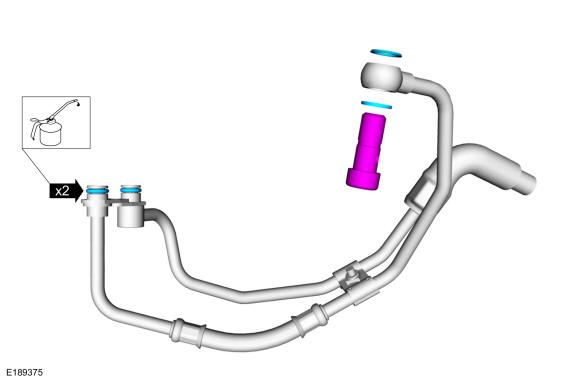

Install the new turbocharger coolant tube sealing washers. Lubricate the turbocharger coolant tube O-ring seals with clean engine coolant. REFER to: Specifications .

Courtesy of FORD MOTOR COMPANY

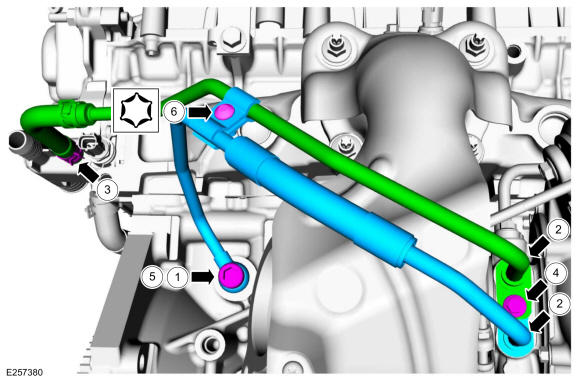

1. Install finger tight at this stage.
2. Fit the O-ring end of the 2 turbocharger coolant tubes to the turbocharger. The lower coolant inlet tube goes into the turbocharger first.
3. Install the turbocharger coolant tube hose end to the water outlet adapter port. Use the General Equipment: Hose Clamp Remover/Installer
4. Tighten the turbocharger coolant tube bolt.
  Torque: 89 lb.in (10 Nm)
5. Tighten the turbocharger coolant tube bolt.
  Torque: 27 lb.ft (37 Nm)
6. Tighten the turbocharger coolant tube clamp bolt.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

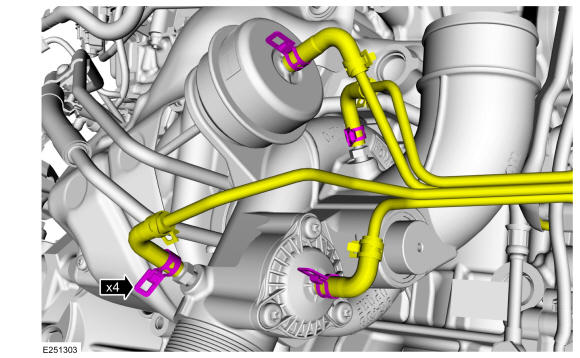

Connect the turbocharger control hoses. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
Install the halfshaft support bracket, then install and tighten the halfshaft support bracket bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the RH halfshaft. REFER to: Front Halfshaft RH .

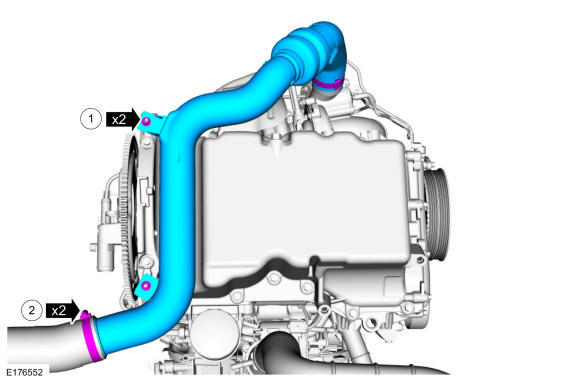

1. Install the charge air cooler inlet tube and the nuts.
  Torque: 97 lb.in (11 Nm)
2. Tighten the clamps.
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY

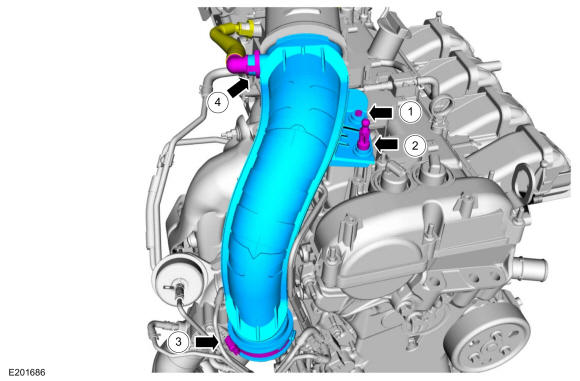

1. NOTE: Install the turbocharger inlet pipe.

  Install and tighten the turbocharger inlet pipe nut.

  Torque: 97 lb.in (11 Nm)
2. Install and tighten the engine cover mounting stud.
  Torque: 97 lb.in (11 Nm)
3. Tighten the turbocharger inlet pipe clamp.
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
Install the Catalytic Converter. REFER to: Catalytic Converter .
Fill the cooling system. REFER to: Cooling System Draining, Vacuum Filling and Bleeding .
