2.3L EcoBoost
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

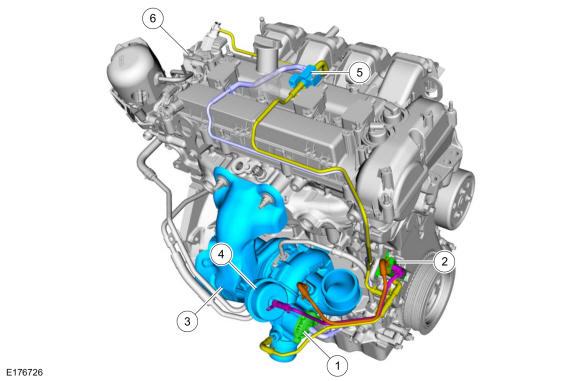

| Item |
Description |
| 1 |
Turbocharger bypass valve |
| 2 |
Wastegate control valve solenoid |
| 3 |
Turbocharger |
| 4 |
Turbocharger wastegate valve |
| 5 |
Turbocharger bypass valve solenoid |
| 6 |
Vacuum pump |
