Removal And Installation: Horn: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: RH shown, LH similar.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front bumper cover. REFER to: Front Bumper Cover .

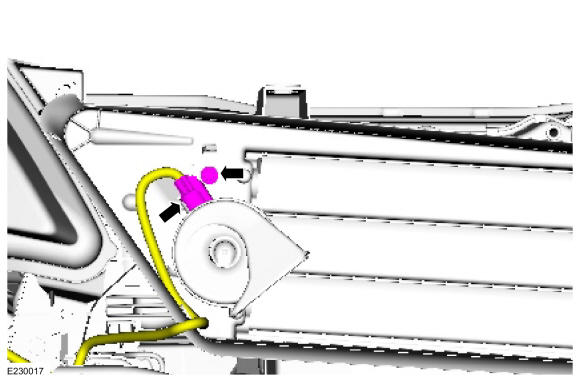

  2. Disconnect the electrical connector and remove the bolt.

    Torque: 89 lb.in (10 Nm)

    GFD229733Courtesy of FORD MOTOR COMPANY

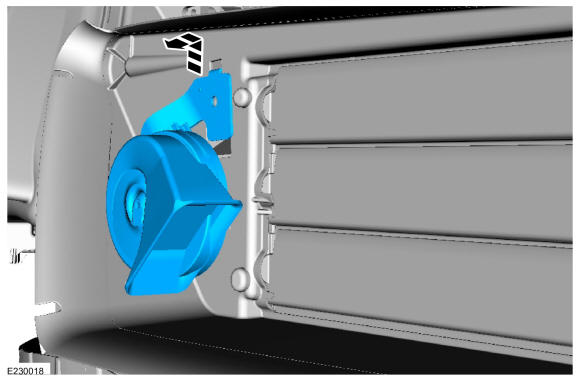

  3. Remove the horn.
GFD229734Courtesy of FORD MOTOR COMPANY
