Fuel Tank Filler Pipe: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation steps.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-

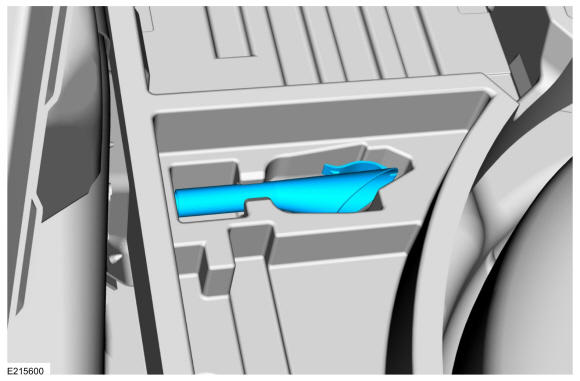

NOTE: The supplemental refueling adapter is located next to the spare tire in the luggage compartment.
Remove the supplemental refueling adapter from the luggage compartment.
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

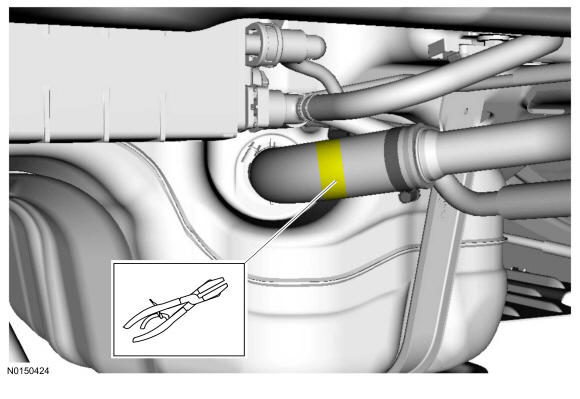

- Clamp off the fuel filler pipe hose.
- Install the supplemental refueling adapter and a length of semi-rigid fuel drain tube into the Easy Fuel ™ (capless) fuel tank filler pipe and drain any residual fuel into a suitable container.
- Remove the rear wheel on the right-hand side. Refer to: Wheel and Tire .

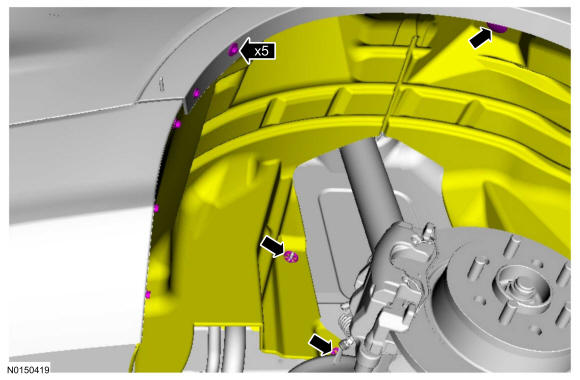

- Remove the retainers and position the wheel liner aside.

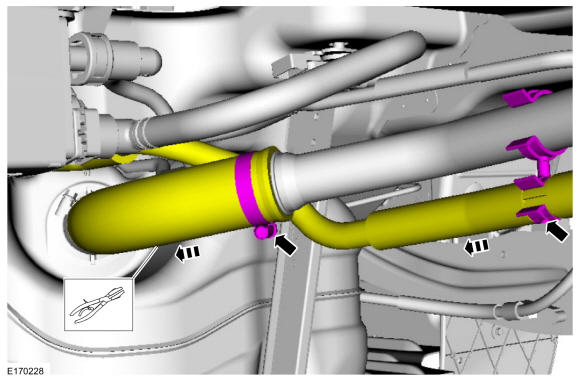

- Release the clamp and position the fuel filler pipe hose aside.
-

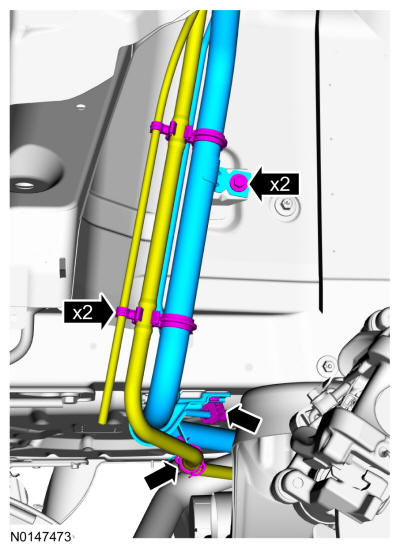

- Disconnect the vent tube quick release coupling. Refer to: Quick Release Coupling .
- Remove the retainers and the fuel tank filler pipe.
Torque: 124 lb.in (14 Nm)
