Section 1239 (Perimeter Anti-Theft Alarm System)
>>
Description And Operation
>>
Perimeter Anti-Theft Alarm - System Operation and Component Description
>>
System Operation
>>

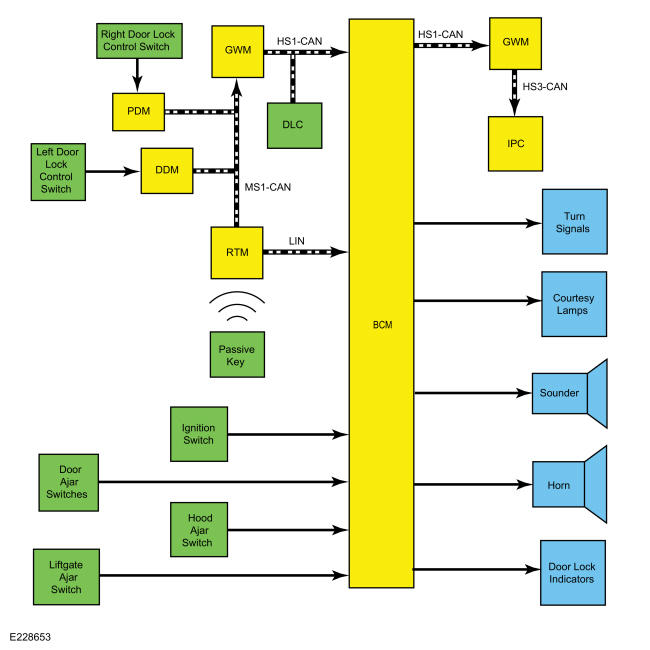

System Diagram
System Diagram
WARNING:
This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
