2.0L EcoBoost

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

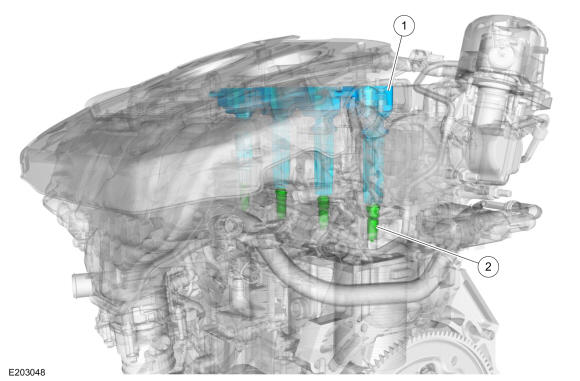

GFD228597Courtesy of FORD MOTOR COMPANY
Item Description
1 Ignition coil-on-plug(s)
2 Spark plug(s)
